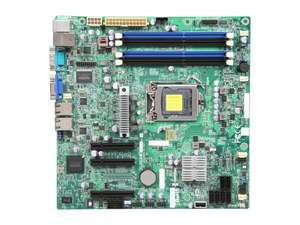

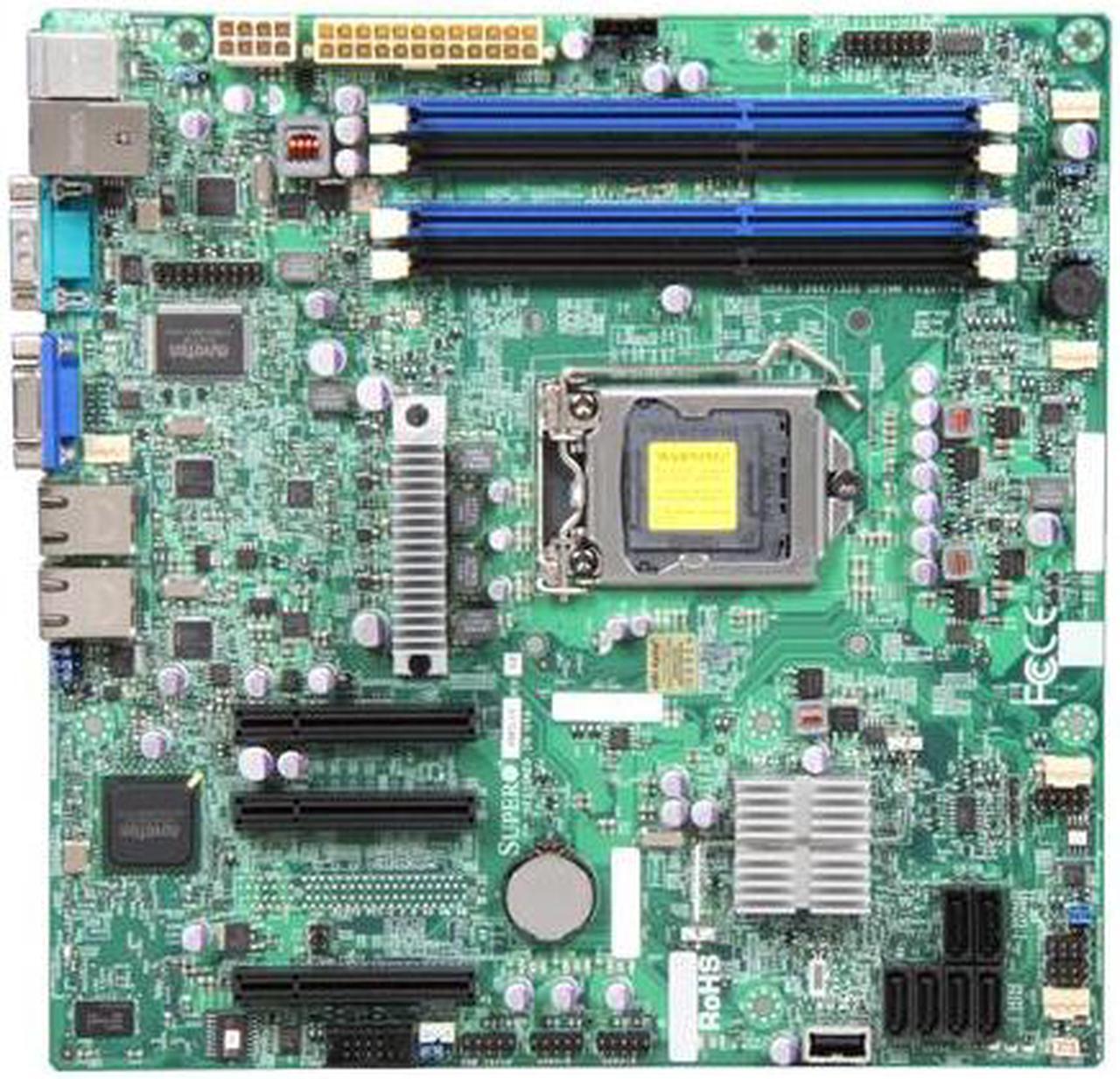

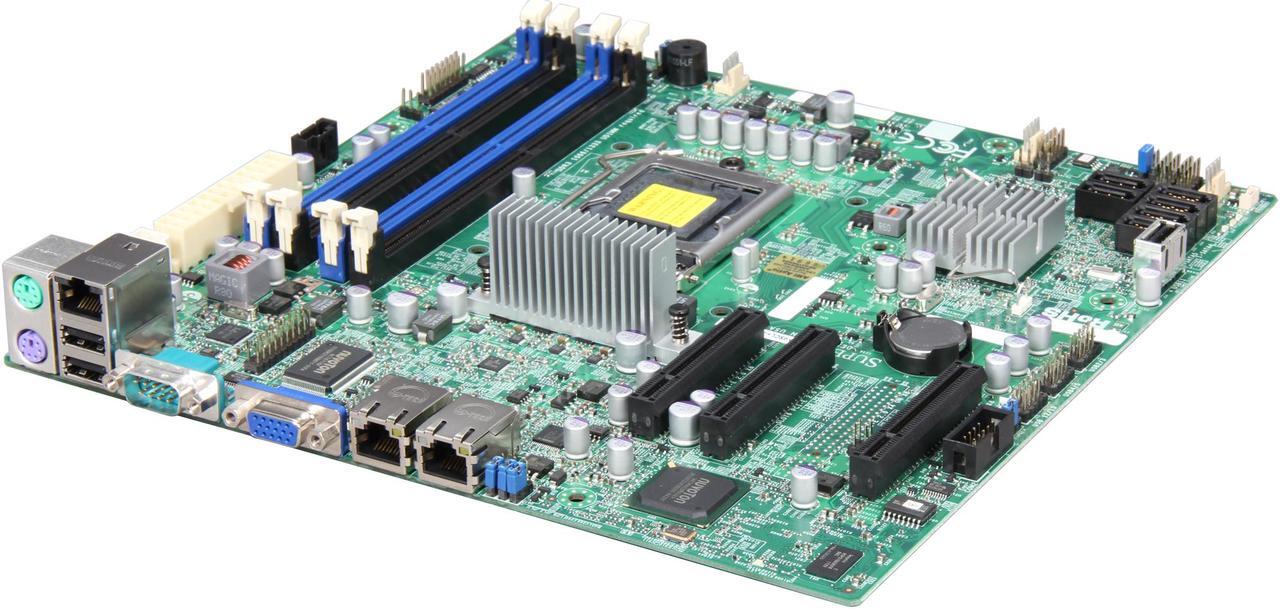

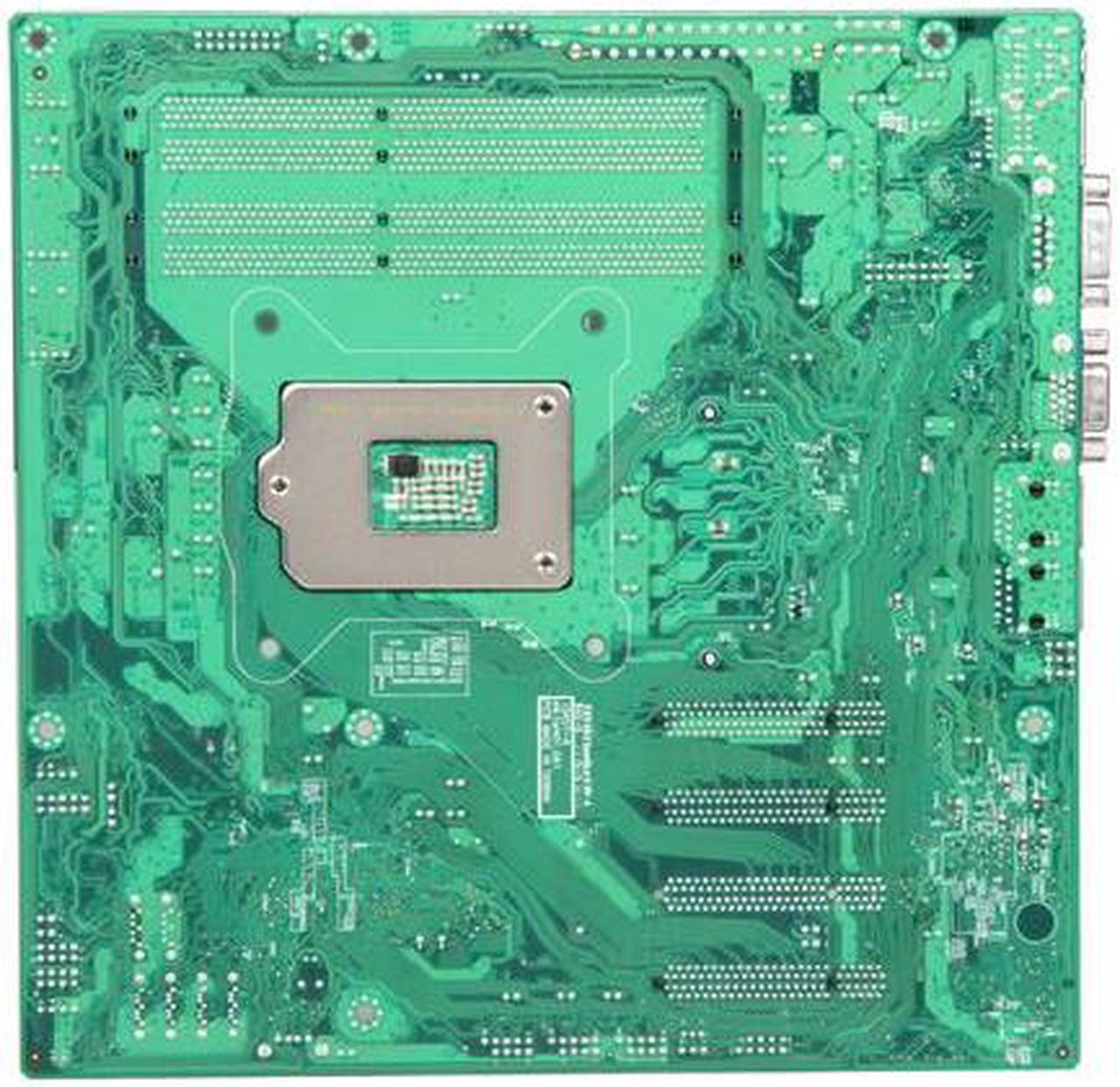

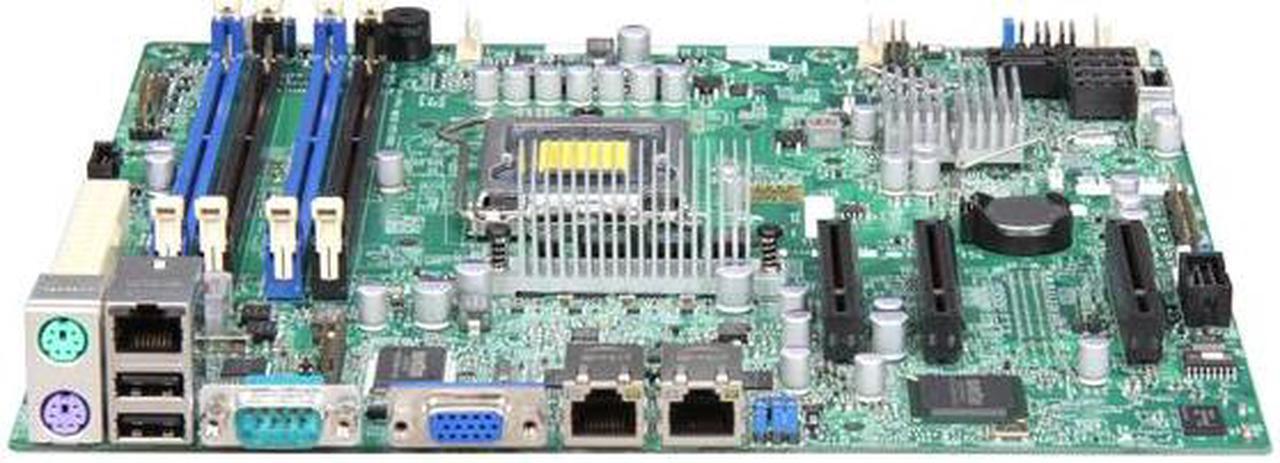

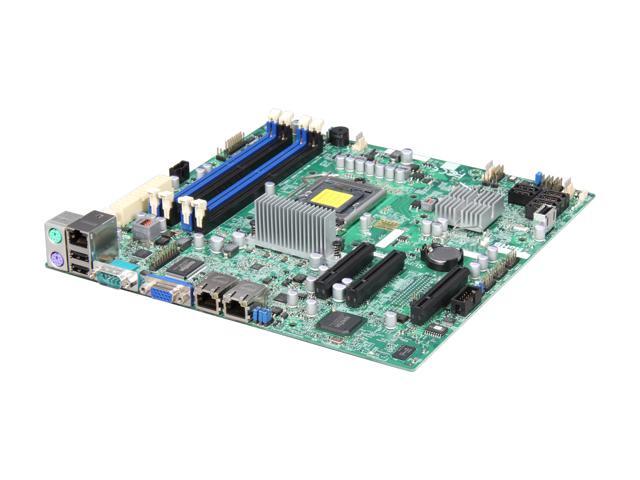

SUPERMICRO MBD-X9SCL+-F Micro ATX Server Motherboard LGA 1155 Intel C202 DDR3 1333

(21) Write a Review
  • LGA 1155
  • Intel C202
  • 4 x 240pin
Overview
Specs
Reviews (21)
MBD-X9SCL+-F

SUPERMICRO MBD-X9SCL+-F Micro ATX Server Motherboard

Features

MBD-X9SCL+-F
  • Single socket H2 (LGA 1155) supports Intel® Xeon® E3-1200 & E3-1200 v2 series, 2nd and 3rd Gen Core i3 processors***, Pentium, Celeron
  • Intel® C202 PCH Chipset
  • Up to 32GB DDR3 ECC 1333MHz / 1600MHz*** UDIMMs in 4 sockets
  • Two Intel® 82574L GbE Controllers, 2x Gigabit Ethernet LAN ports
  • 6x SATA 2.0 with RAID 0, 1, 5, 10
  • 2x (x8) PCI-E 3.0*** in x8 slots and 1x (x4) PCI-E 2.0 in x8 slot
  • 9x USB 2.0 ports (2 rear + 6 via header + 1 Type-A)
  • Integrated IPMI 2.0 with KVM and Dedicated LAN

Specifications

Product SKUs
MBD-X9SCL+-F -B X9SCL+-F (Bulk Pack)
Physical Stats
Form Factor uATX
Dimensions 9.6" x 9.6", (24.4cm x 24.4 cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *** *
  • Socket H2 (LGA 1155)
System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C202 PCH chipset
SATA 6x SATA2 (3Gb/s) w/ RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Two Intel® 82574L Gigabit Ethernet Controllers
  • Virtual Machine Device Queues High efficient I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA BMC integrated Matrox G200
Super I/O Nuvoton NCT6776F
Input / Output
Serial ATA
  • 6 SATA 2.0 ports
  • 6 SATA hard drives supported
LAN
  • 2x Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB 9x USB 2.0 ports total (2x rear + 6x via header + 1x type A)
VGA 1x VGA port
Serial Port / Header 2x Fast UART 16550 serial port (one header and one rear port)
TPM 1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express
  • 2 (x8) PCI-E 3.0 in x8 slots***
  • 1 (x4) PCI-E 2.0 in x8 slots
System BIOS
BIOS Type 32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI (SMBIOS) 2.7
  • ACPI 4.0
  • PCI 2.3
  • USB Keyboard support
Management
Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • SuperDoctor® III
  • Watch Dog
  • NMI
Power Configurations
  • ACPI / ACPM Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • Five 4-pin fan headers
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • +5V Standby alert LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header

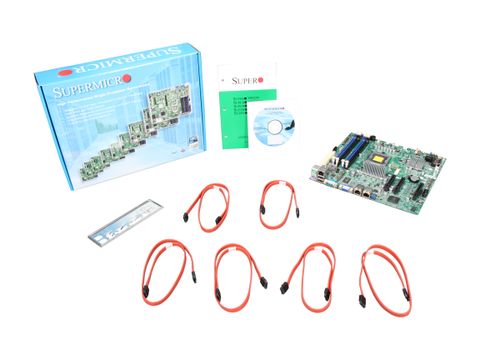

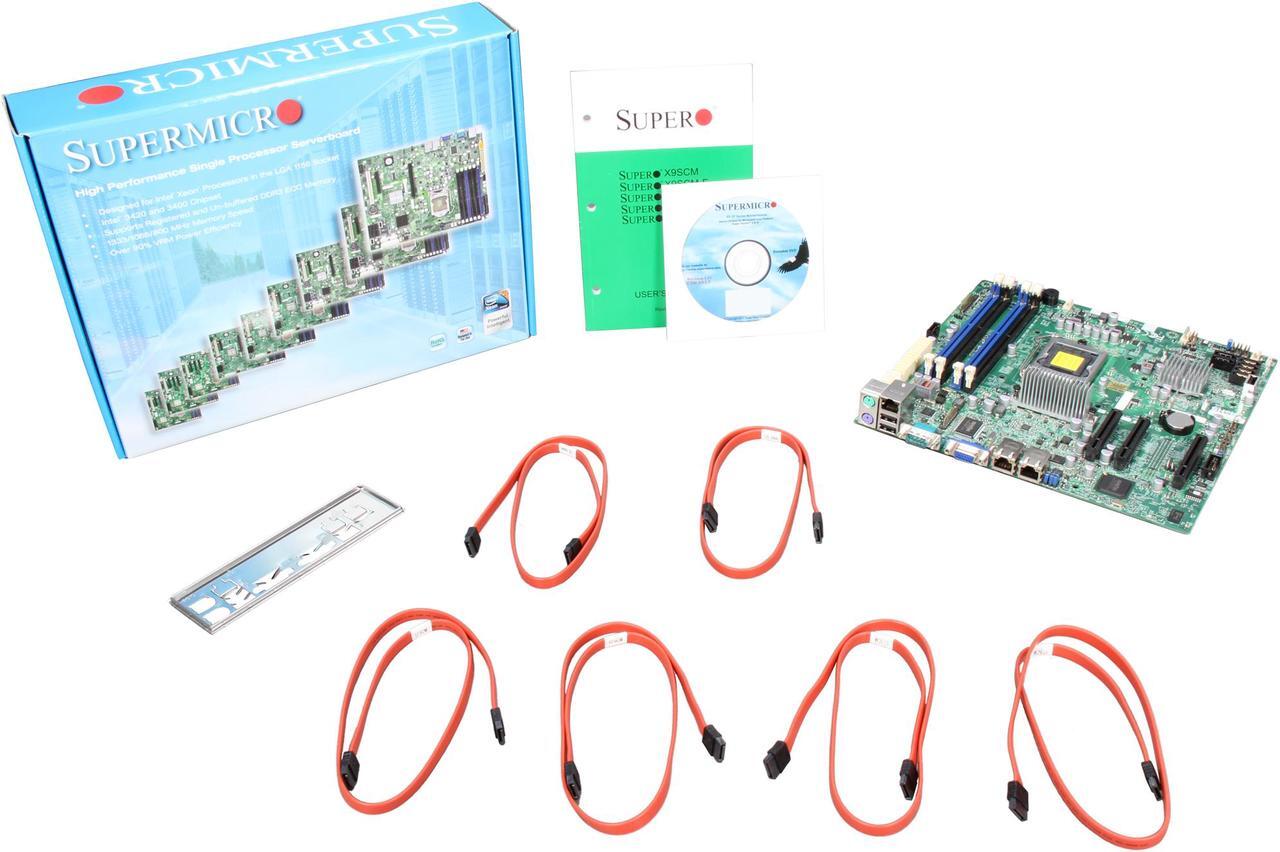

What's in the Box
