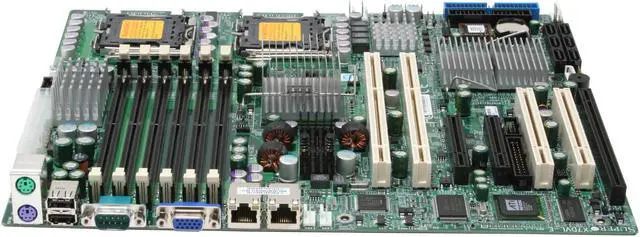

Alt view image 2 of 5 - SUPERMICRO X7DVL-E-O ATX Server Motherboard Dual LGA 771 Intel 5000V DDR2 667

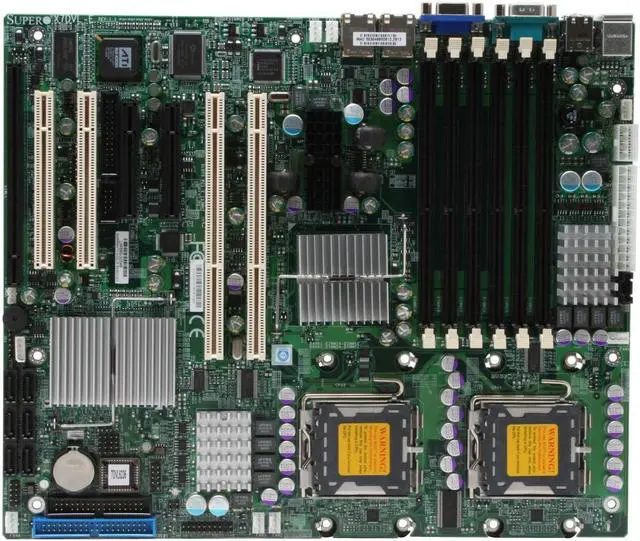

Alt view image 3 of 5 - SUPERMICRO X7DVL-E-O ATX Server Motherboard Dual LGA 771 Intel 5000V DDR2 667

Alt view image 4 of 5 - SUPERMICRO X7DVL-E-O ATX Server Motherboard Dual LGA 771 Intel 5000V DDR2 667

Alt view image 5 of 5 - SUPERMICRO X7DVL-E-O ATX Server Motherboard Dual LGA 771 Intel 5000V DDR2 667

Shop All Supermicro Products

SUPERMICRO X7DVL-E-O ATX Server Motherboard Dual LGA 771 Intel 5000V DDR2 667

Name: SUPERMICRO X7DVL-E-O ATX Server Motherboard
Brand: Supermicro
SKU: N82E16813182097
Rating: 4 (11 reviews)

(11) Write a Review

Dual LGA 771
Intel 5000V
6 x 240Pin

Specs

Reviews (11)

Learn more about the Supermicro X7DVL-E-O

Model
Brand	SUPERMICRO
Model	X7DVL-E-O

Supported CPU
CPU Socket Type	Dual LGA 771
CPU Type	Dual Intel Xeon
System Bus	1333/1066 MHz

Chipsets
North Bridge	Intel 5000V
South Bridge	Intel ESB2

Memory
Number of DDR2 Slots	6 x 240Pin
DDR2 Standard	DDR2 667
Maximum Memory Supported	24GB
ECC Supported	Yes
Registered	FBDIMM

Expansion Slots
PCI Express x8	1 x PCI Express x8
PCI Express x4	1 (x4) PCI-e (using x8) slot
PCI-X Slots (64-bit 133MHz)	2
PCI Slots	2 x PCI Slots
Other Slots	IPMI 2.0 (SIMLC) Slot

Storage Devices
PATA	1 x ATA 100 2 Dev. Max
SATA	6 x SATA 3.0Gb/s
SATA RAID	RAID 0, 1, 5, 10 support (Windows Only) RAID 0, 1, 10 support (Linux)

Onboard Video
Onboard Video Chipset	ATI ES1000

Onboard LAN
LAN Chipset	Intel 82563EB
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel 82563EB
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
PS/2	2
COM	1
Video Ports	D-Sub
USB 1.1/2.0	2 x USB 2.0

Onboard Ports
Onboard USB	2 x USB internal headers

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" X 10.0"

Packaging

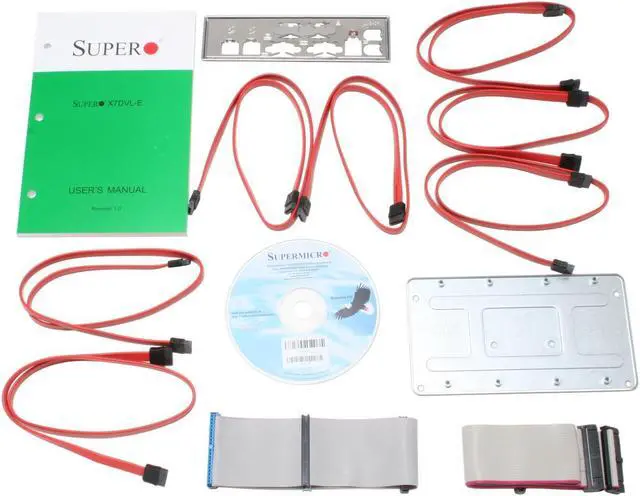

Package Contents	X7DVL-E-O User Manual Software Disk Rear I/O Panel Shield IDE Cable FDD Cable 7 x SATA Cable

Additional Information
First Listed on Newegg	August 10, 2006
