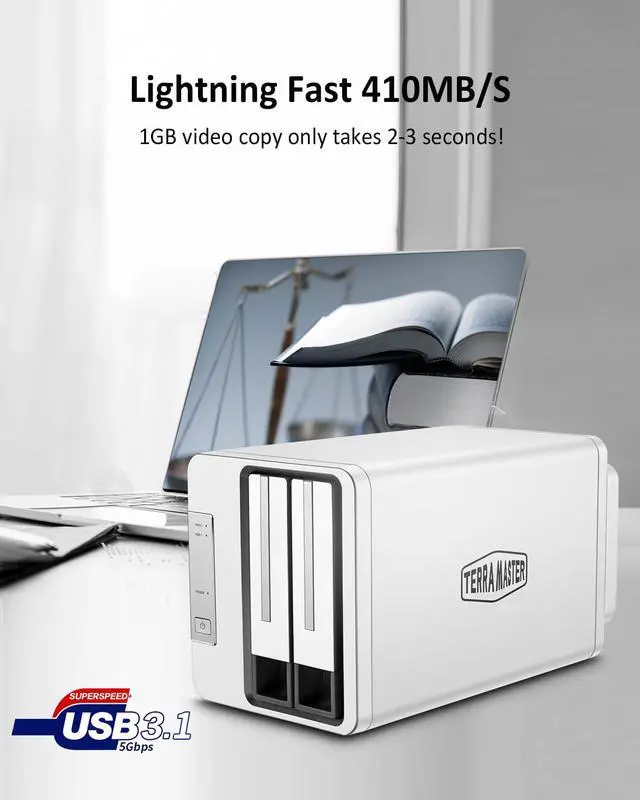

Up to 40TB capacity with up to 410MB/s sequential read speed
The D2-310 is desktop RAID storage with massive capacity ideal for storing photos, videos, documents and music. RAID0 mode provides super-fast performance with up to 410MB/s sequential read speeds and up to 40TB capacity. Switch to RAID1 configuration for redundancy and to mirror your data,perfectly protect the security of stored data.
Cross-Platform Compatibility for Data Backup
Use D2-310 to easily backup computer files, compatible with Windows, Mac, and Linux machines. No drivers needed!
Multiple Hardware RAID Modes,Effectively Protect Data Security

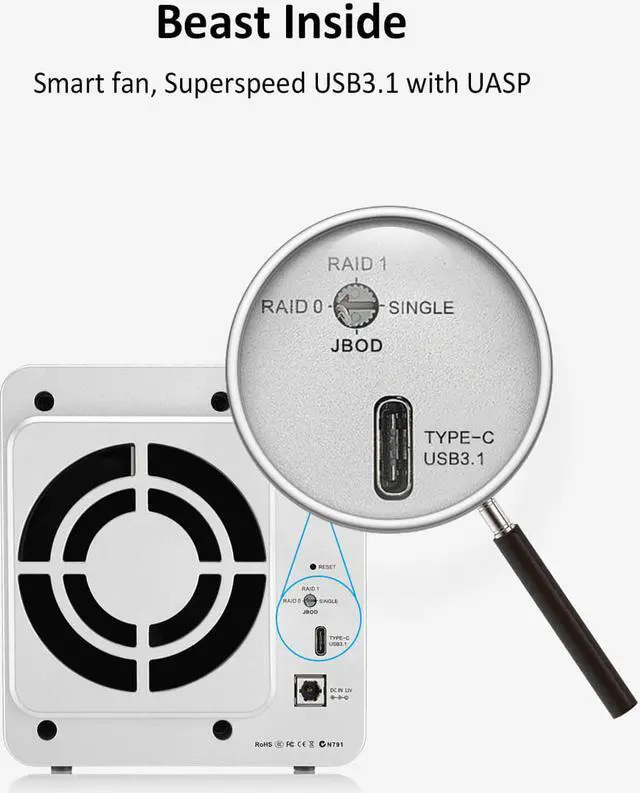

Supports multiple RAID modes: RAID 0, RAID 1, JBOD, and Single Disk. User-friendly RAID Knob,Switch Modes Easily.Professionals can choose one or more according to their application scenarios. Effectively protect data security.
The D2-310 can quickly add storage space to your NAS. It can be used as an external hardware RAID device for TerraMaster NAS. The D2-310 operates independently and does not require additional NAS system resources. The D2-310 features USB3.1 connection and supports SSD/HDD drives for high-speed data access and massive capacity.
- Relying on the USB 3.1 Gen 1 super speed protocol, the D2-310's transmission speeds can reach up to 410MB/s (Tested with 4TB dedicated SATA III NAS drives in RAID 0).
- The D2-310 adopts the latest USB Type-C interface, a Type C to Type-A cable is included.

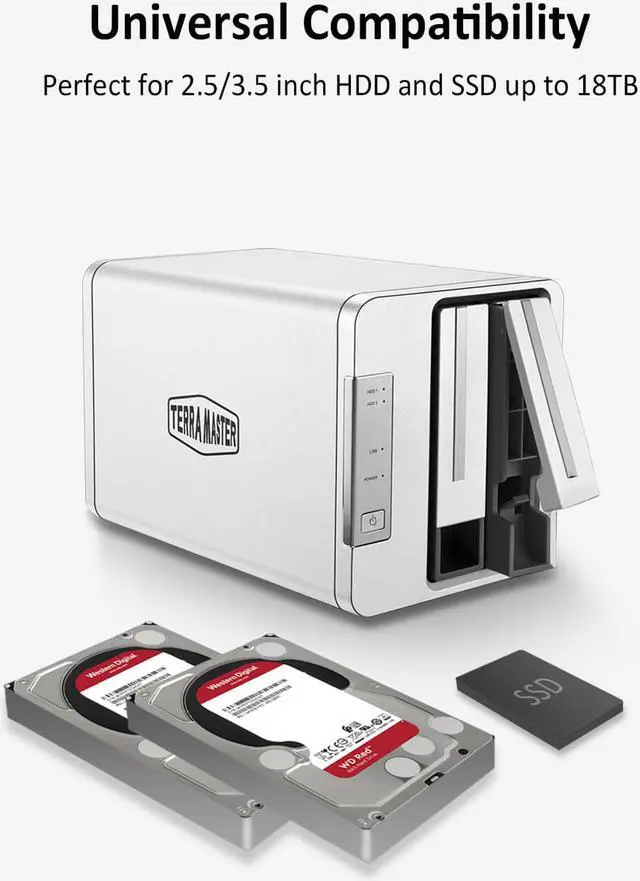

- Compatible with diverse 3.5-inch SATA hard drive brands and models, as well as with 2.5-inch SATA hard drives and SSDs. Equipped with 2 drive slots, supports a drive capacity of up to 20TB, and a total storage capacity of up to 40TB (Users need to purchase their own hard drives).
- With exclusive energy-saving technology, the D2-310 automatically enters sleep mode, along with your computer, to save energy and extend the life of your drives.
The D2-310 features an intelligent temperature control system and incorporates a low noise fan. The fan speed is automatically adjusted with the temperature of the hard drive to ensure that your hard drive remains at the optimal working temperature.
- Brand new replacement for 2 years.
- Quick service in 24 hours.
| Products | |||||
|---|---|---|---|---|---|
| Drive Bays | 2 | 4 | 5 | 5 | 5 |
| Interface | USB3.1 Gen1 Type C (5Gbps) | USB3.1 Gen1 Type C (5Gbps) | USB3.1 Gen1 Type C (5Gbps) | USB3.1 Gen1 Type C (5Gbps) | Thunderbolt 3 (40Gbps) |
| Max. number of HDDs/SSDs | 2 x 2.5" or 3.5" SATA 6Gb/s | 4 x 2.5" or 3.5" SATA 6Gb/s | 5 x 2.5" or 3.5" SATA 6Gb/s | 5 x 2.5" or 3.5" SATA 6Gb/s | 5 x 2.5" or 3.5" SATA 6Gb/s |
| Max. Storage | 40TB (20TB x 2) | 80TB (20TB x 4) | 100TB (20TB x 5) | 100TB (20TB x 5) | 100TB (20TB x 5) |
| Reading Speed (max.) | 410MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 420MB/sec (tested by 4 SSD, in SingleDisk) | 410MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 210MB/sec (tested by 5 SSD, in raid 0, Windows OS) | 1035MB/sec (tested by 5 SSD, in raid 0, Windows OS) |
| Writing Speed (max.) | 400MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 390MB/sec (tested by 4 SSD, in SingleDisk) | 400MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 190MB/sec (tested by 5 SSD, in raid 0, Windows OS) | 850MB/sec (tested by 5 SSD, in raid 0, Windows OS) |
| Hardware RAID | YES | NO | YES | YES | YES |
| RAID Mode | RAID 0, 1, JBOD, Single | NO | RAID 0, 1, Single | RAID 0, RAID 1, RAID 5, RAID 10, CLONE, JBOD, and Single Disk | RAID 0, 1, 5, 10, JBOD, Single |
| RAID Features | RAID 0, 1, JBOD, Single for HDD1 & HDD2 | Only individual disk | HDD1 & HDD2 can be set as RAID 0, 1, Single; HDD3-5 can be individual disks | RAID 0, RAID 1, RAID 5, RAID 10, CLONE, JBOD, and Single Disk | Professional-grade Hardware RAID |
| RAID Auto-rebuilding | RAID1 | NO | RAID1 | RAID1, RAID5, RAID10 | RAID1, RAID5, RAID10 |
