Multi-Functional

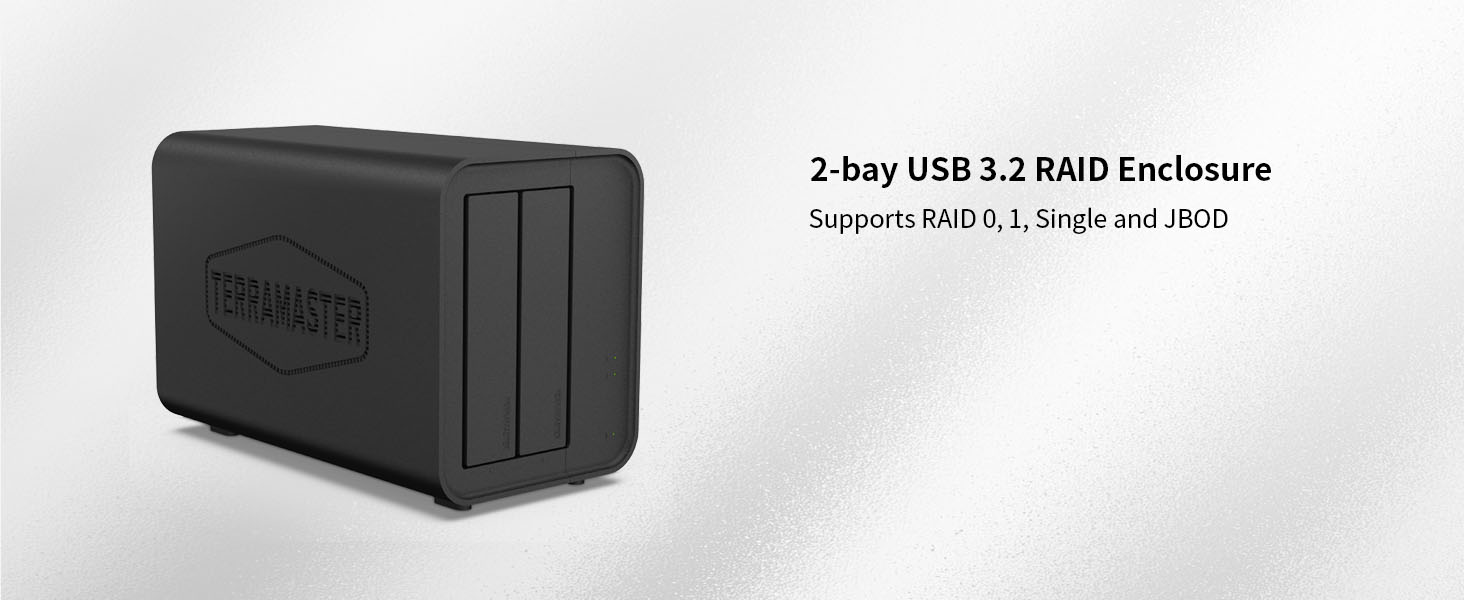

Multiple RAIDs Supported

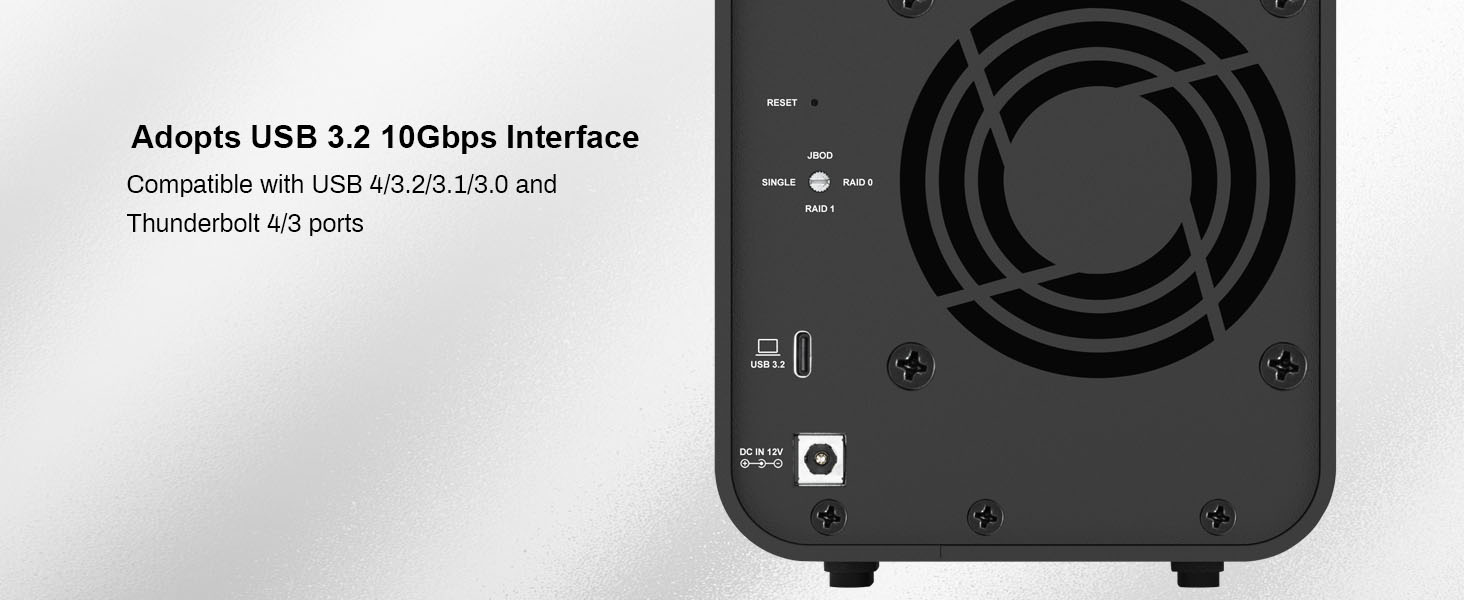

USB 3.2 10Gbps Interface

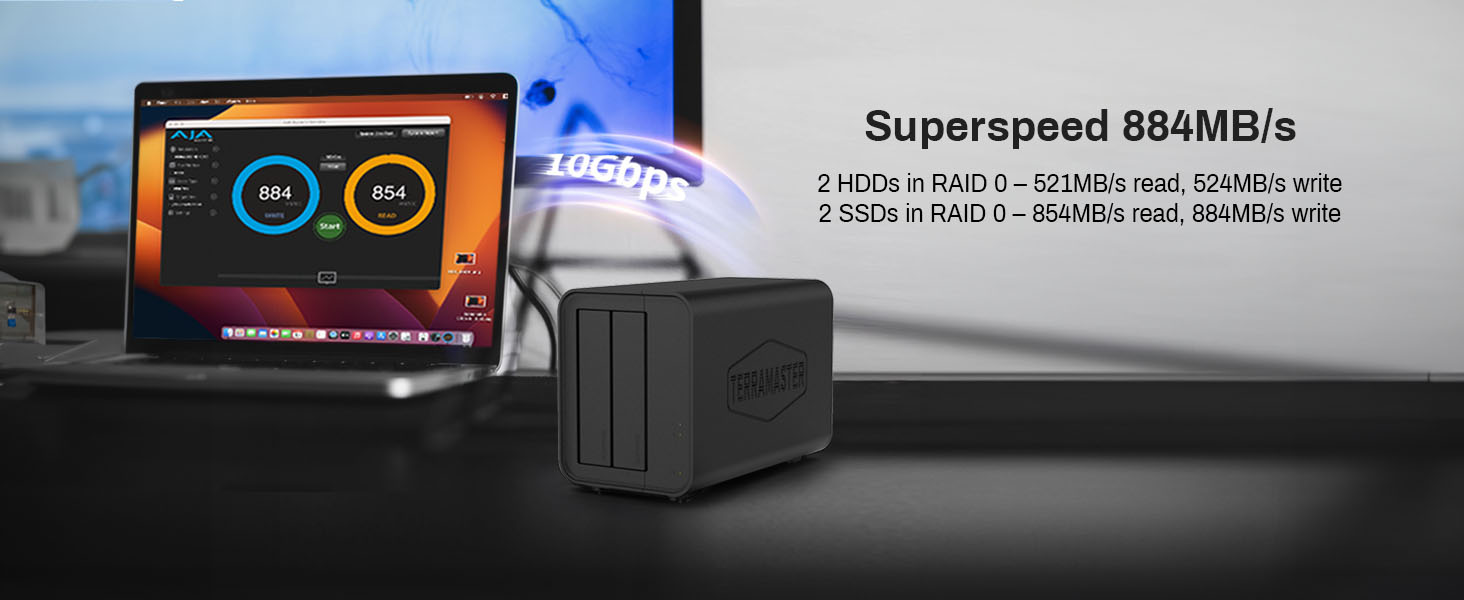

Superspeed Transmission
Large Capacity Space

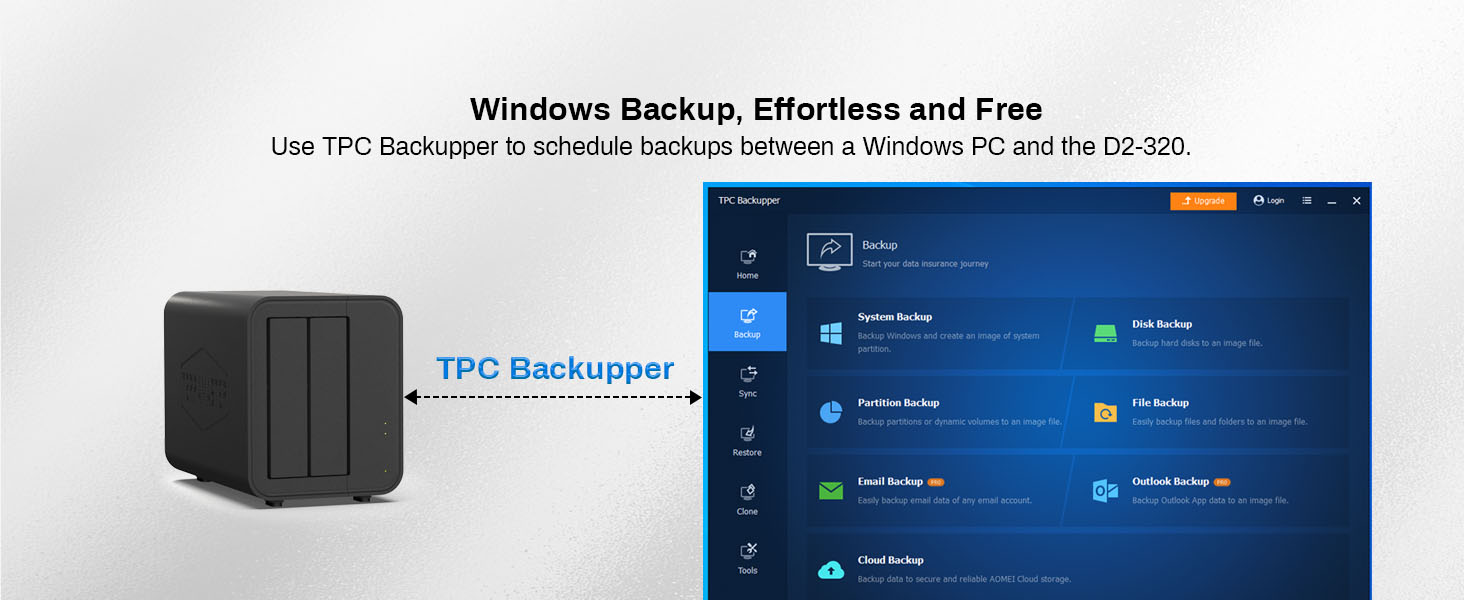

Effortless Windows Backup

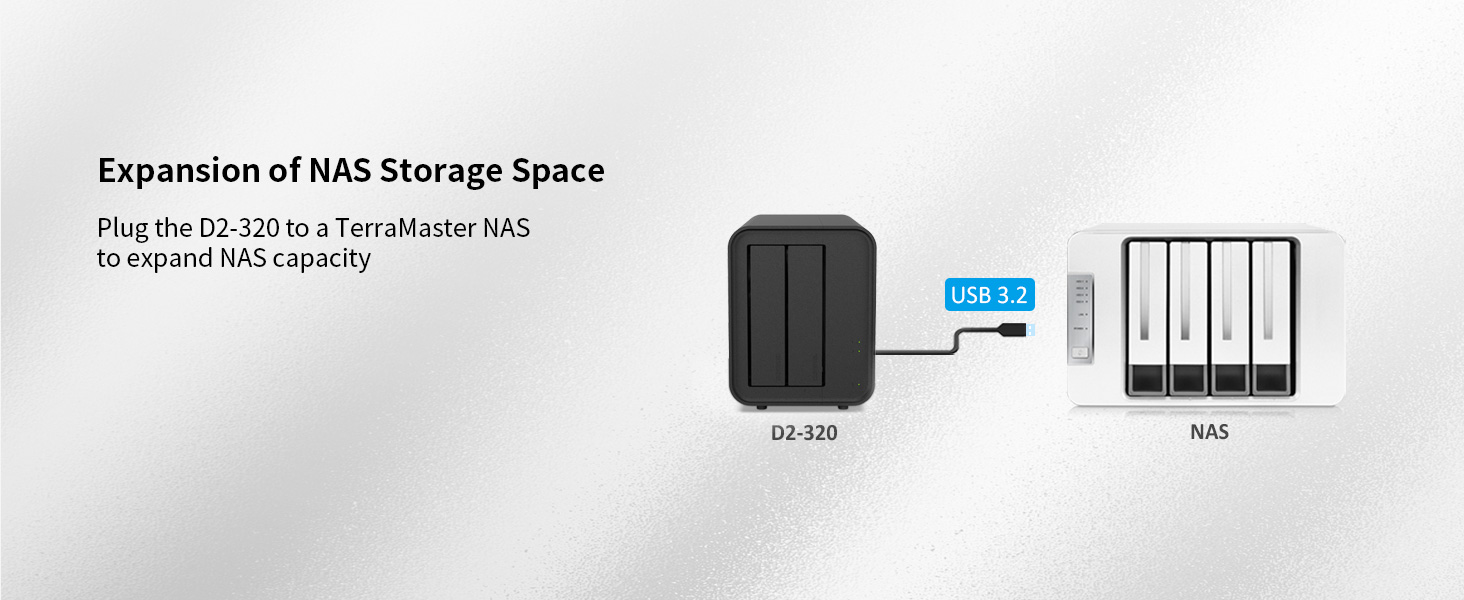

Expand NAS Space
Expand PC/Mac/Linux Space

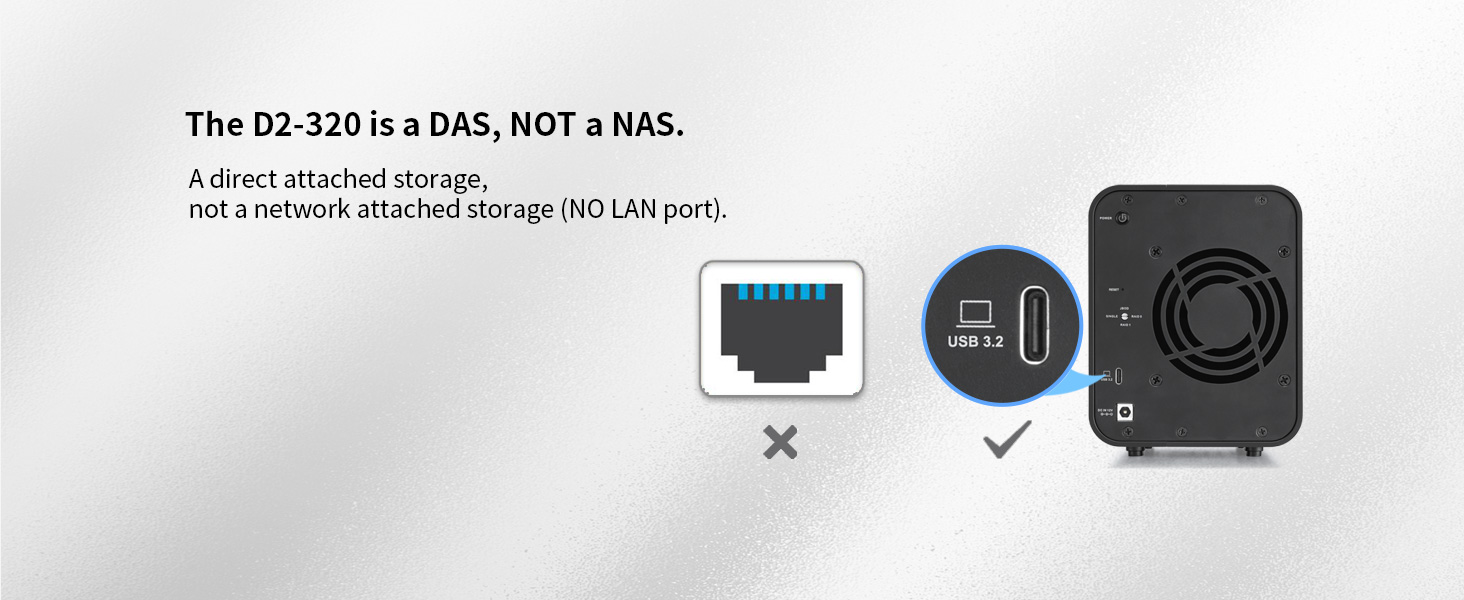

A DAS, NOT a NAS
Reliable HDD Enclosure
Better Heat Dissipation
Intelligent Disk Sleep
Various Applications

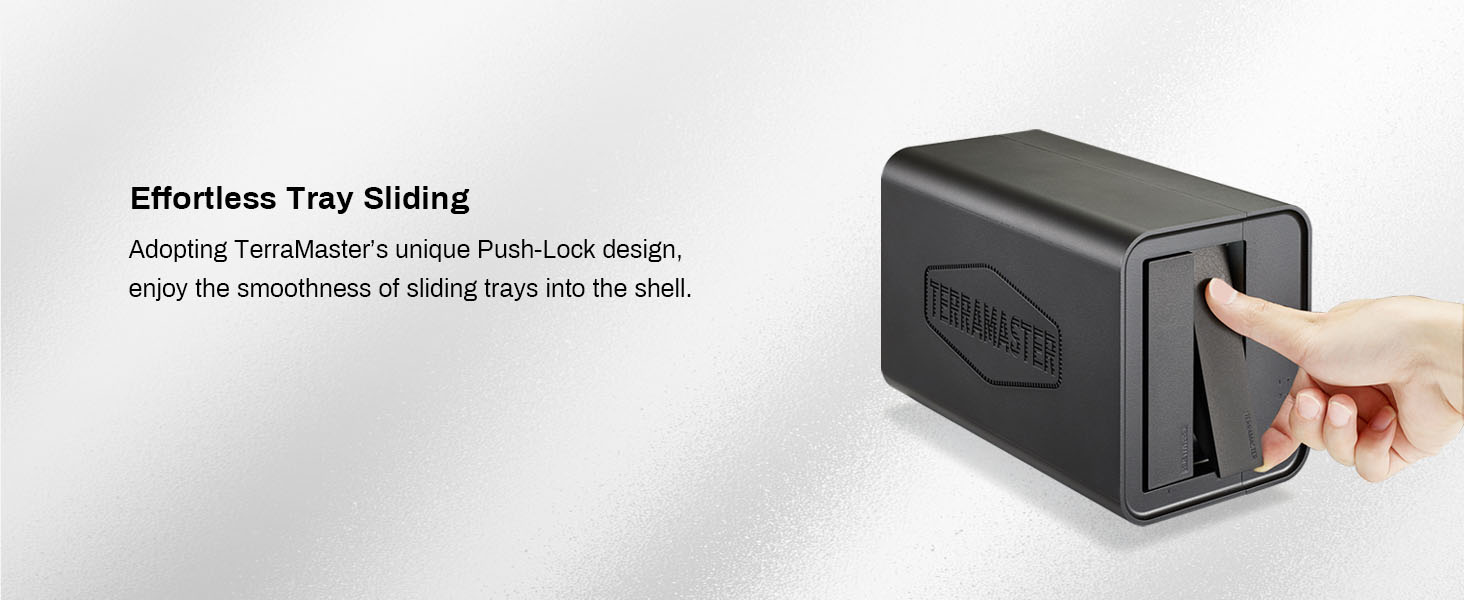

Push-Lock Design
Tool-Free

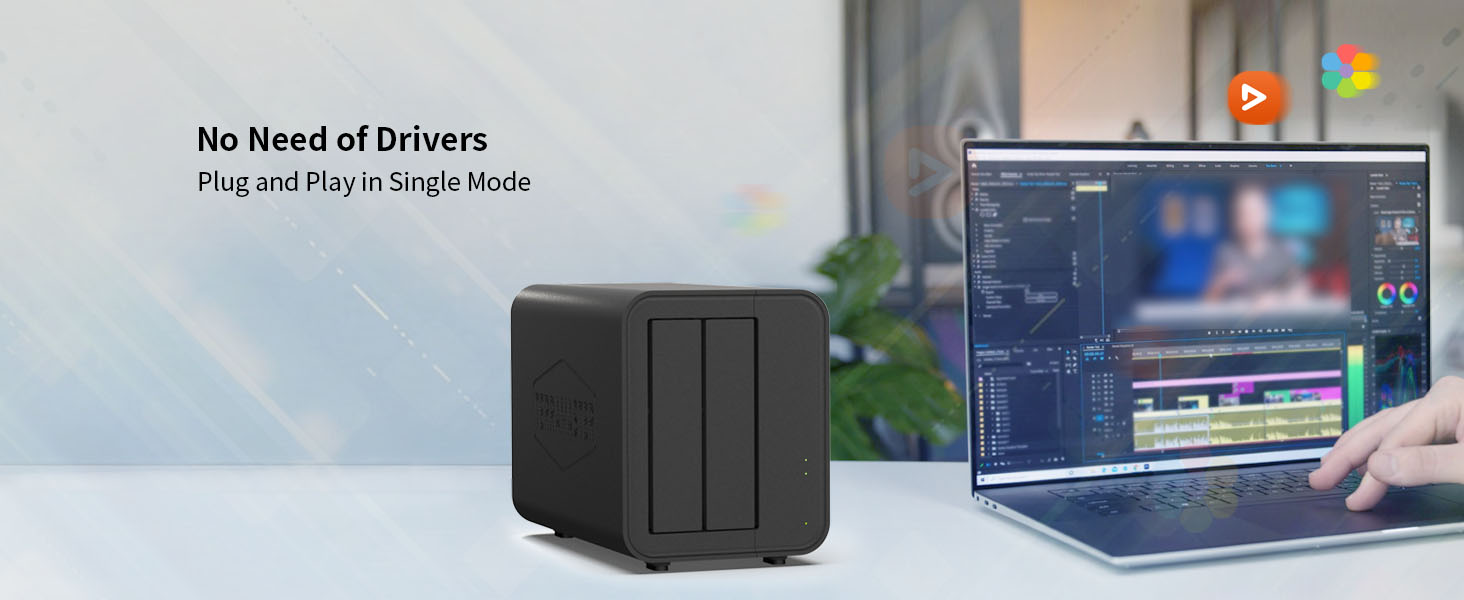

No Need of Drivers

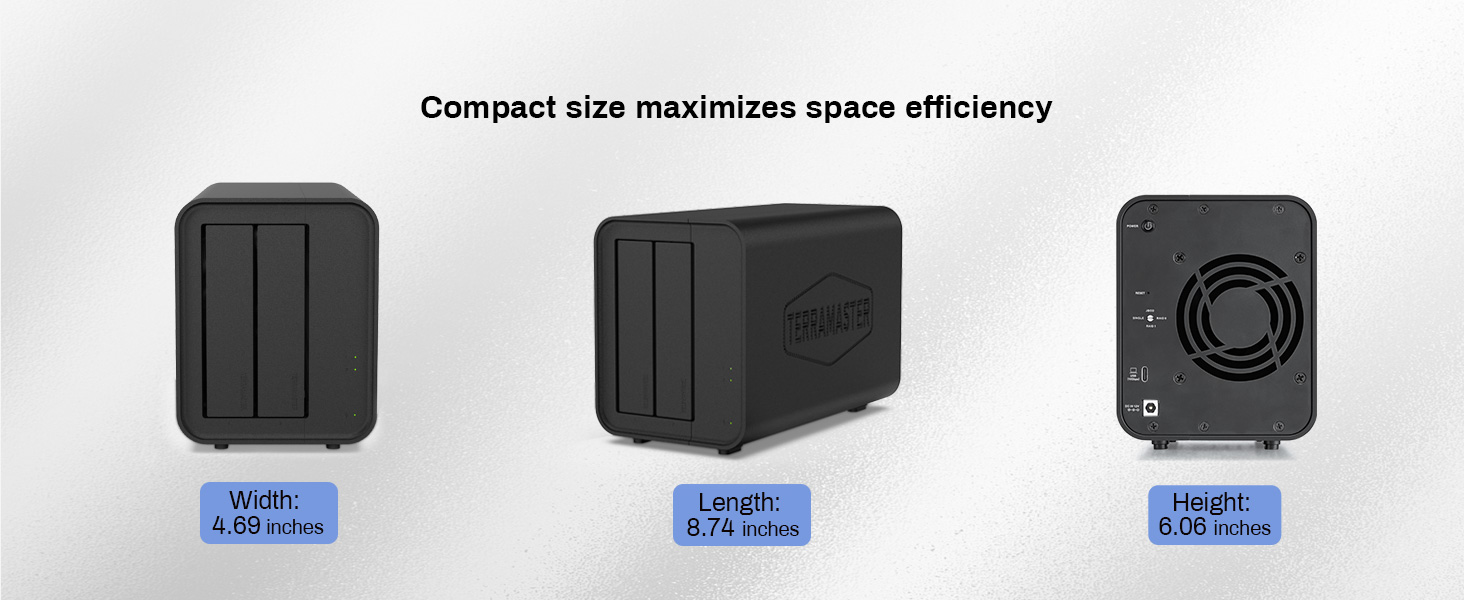

Compact Size

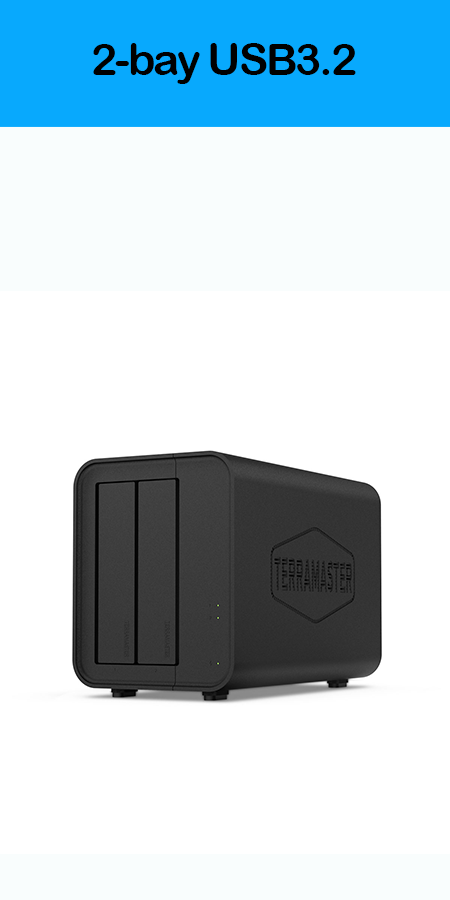

D2-320 Hardware RAID Enclosure
- USB3.2 Gen2 (10Gbps), supports 2× SATA HDD/SSD, max 44TB (22TB×2).
- RAID 0 speeds: HDD 521MB/s, SSD 1075MB/s. Modes: RAID 0/1, JBOD, Single.
- USB-C cable included, compatible with USB 3.0/3.1/3.2, Thunderbolt 3/4.
- Expands NAS storage (TerraMaster NAS, TOS 5.1+ for RAID creation).
- Temp-controlled fan, low noise, intelligent disk sleep (follows OS).
- Tool-free tray, Push-lock design, <10 sec drive swap.
Note: Some mini PCs may have weaker USB signal output, which can cause random interruptions during file read/write operations during data transmission.
When this occurs, it is recommended to:
1) use the rear USB ports of the computer, as they typically provide a more stable signal;
2) test the device on another known-good computer to rule out hardware issues on the original PC;
3) use a 10Gbps USB-A/USB-C hub or splitter with a short 0.3m-0.5m cable to reduce signal loss.
| Products | ||||
|---|---|---|---|---|

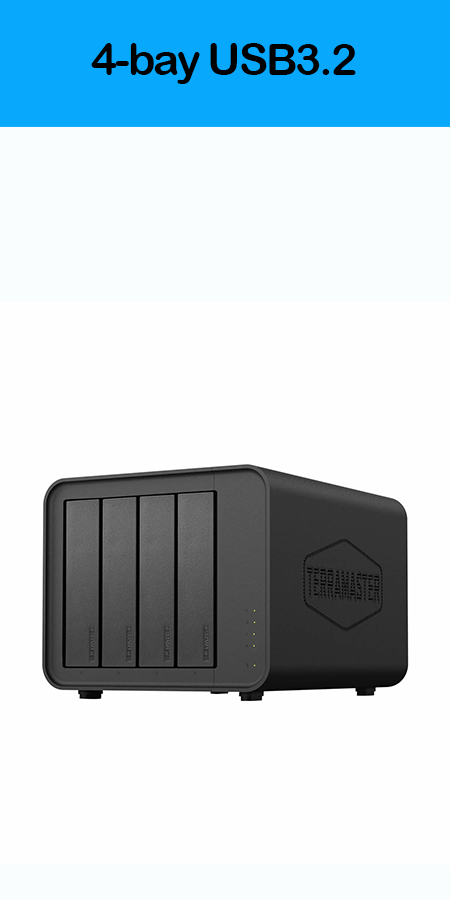

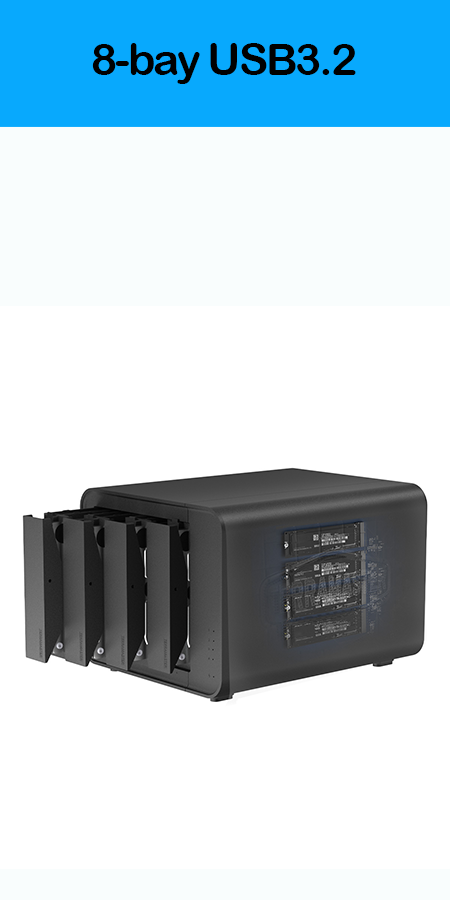

| Drive Bays | 2 | 2 Bays + 3 x M.2 NVMe Slots | 4 Bays + 4 x M.2 NVMe Slots | 4 |
| Interface | USB3.2 10Gpbs Type C | USB3.2 10Gpbs Type C | USB3.2 10Gpbs Type C | USB3.2 10Gpbs Type C |
| Max. number of HDDs/SSDs | 2 x 2.5" or 3.5" SATA 6Gb/s | 2 x SATA HDD/SSD; 3 x M.2 SSD | 4 x SATA HDD/SSD; 4 x M.2 SSD | 4 x 2.5" or 3.5" SATA 6Gb/s |
| Max. Storage | 44TB (22TB x 2) | 44TB (22TB x 2) | 120TB (22TB x 4 + 8TB x 4) | 88TB (22TB x 4) |
| Reading Speed (max.) | 854MB/s (2 SSD, in RAID 0) | 980MB/s (1 NVMe SSD, Single) | 980MB/s (1 NVMe SSD, Single) | 1025MB/s (4 SSD, Single Disk) |
| Writing Speed (max.) | 884MB/s (2 SSD, in RAID 0) | 866MB/s (1 NVMe SSD, Single) | 866MB/s (1 NVMe SSD, Single) | 1016MB/s (4 SSD, Single Disk) |
| Hardware RAID | ||||
| RAID Features | RAID 0, 1, JBOD, Single | HDD1&2 - RAID 0/1/Single/JBOD | HDD1&2 - RAID 0/1/Single/JBOD | No RAID |
| RAID Auto-rebuilding | RAID1 | RAID1 | RAID1 | No RAID |
| Push-Lock Tray |
