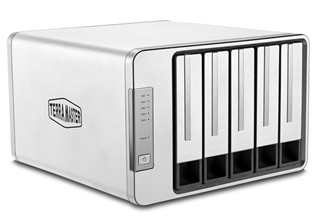

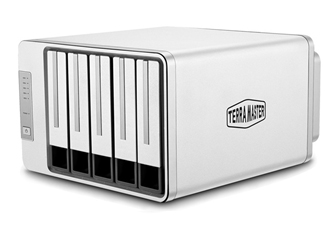

TerraMaster D5-300 USB3.0 Type C 5-Bay Raid Enclosure USB3.0 (5Gbps) Support RAID 5 Hard Drive RAID Storage (Diskless)
- Up to 40TB storage capacity
- Up to 235MB/s (Read)210MB/s(White)
- Adopts aluminum Enclosure
- Various applications video editing,photo backup,Surveillance
- Compatible with various hard drives
Big storage for video & photo
- 5-bay,Up to 40TB storage capacity
- USB3.0 Type-C Port, Up to 235MB/s (Read),210MB/s(White)
- Adopts Aluminum Enclosure and two fans, great heat dispersion.
- Various applications: Video editing, photo backup, surveillance


- Up to 40TB storage capacity. D5-300 can support five (5) SATA hard drives, is compatible with 8TB 3.5 inch SATA hard drive, and has a total storage capacity up to 40TB. (Note: users need to purchase their own hard drives. These are not included.) D5-300 is equipped with brand new USB type-C high-speed interface and compatible with Mac and Windows computers.

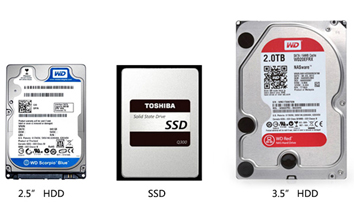

- Compatible with various hard drives. D5-300 is compatible with various hard drives, such as 3.5" SATA hard drives (including WD Green hard drives, WD Red hard drives, WD Purple hard drives, and Enterprise hard drives), 2.5" SATA hard drives, and 2.5" SATA SSD.
- Real super speed with USB3.0 (5Gbps) Transport Protocol! D5-300 adopts USB3.0 (5Gbps) SUPERSPEED protocol. When using SSHD hard drives in a RAID 0 of RAID, the speed is up to 235MB/s (Read, max), and 210MB/s (Write, max).
- D5-300 supports RAID 5.
- Various applications. Great for video editing, photo backup, storage of R&D technical documents, archival backup, music libraries, financial records, storage of video surveillance recordings and corporate data storage. Featuring an aluminum-alloy shell and low-noise fans, D5-300 is extremely solid and reliable with good heat dissipation capabilities and low noise production. It has passed multiple certifications, including FCC, CE, UL, GS and RoHS.
D5-300 equipped with brand new USB type-C high-speed interface and compatible with Mac and Windows computers.


D5-300 adopts USB3.0 (5Gbps) SUPERSPEED protocol. The speed is up to 235MB/s (Read, max), and 210MB/s (Write, max).


D5-300 can support five (5) SATA hard drives, is compatible with 8TB 3.5 inch SATA hard drive, and has a total storage capacity up to 40TB. (Note: users need to purchase their own hard drives. These are not included.)

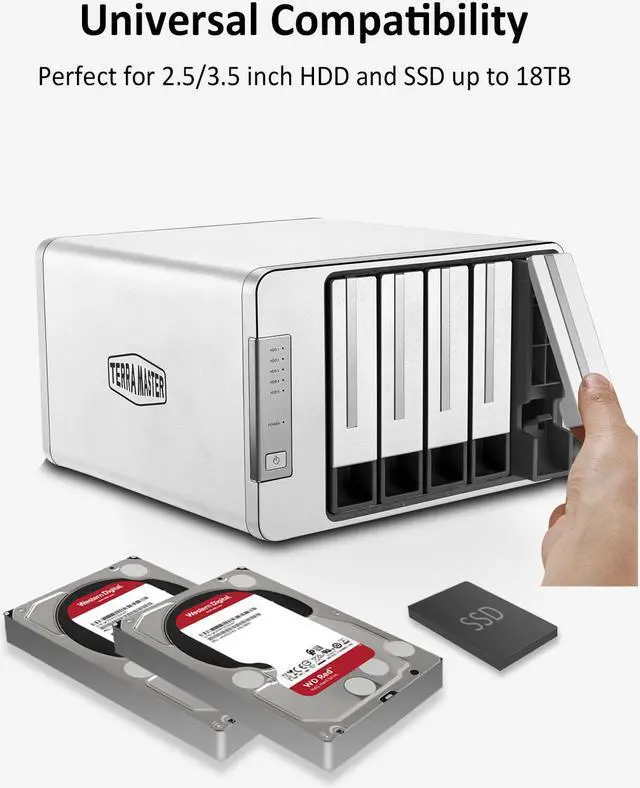

D5-300 is compatible with various hard drives, such as 3.5 inch SATA hard drives (including WD Green hard drives, WD Red hard drives, WD Purple hard drives, and Enterprise hard drives), 2.5" SATA hard drives, and 2.5" SATA SSD.


D5-300 equipped with brand new USB type-C high-speed interface and compatible with Mac and Windows computers.

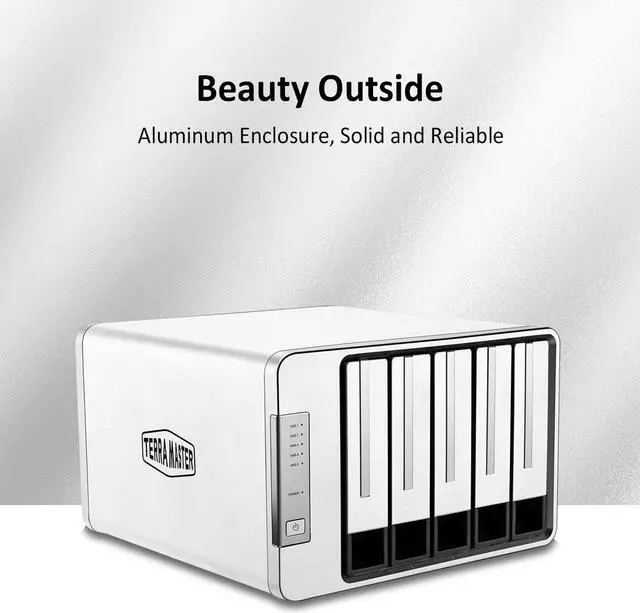

D5-300 adopts aluminum enclosure and low-noise fan, which is firm and reliable, of good heat dissipation, and low noise.

D5-300 is usable for various data application including video editing, photo backup, research and development, technical document preservation, file backup, music library, financial records, video surveillance, and corporate data storage.

Video Editing

Photo Backup

Technical Document Preservation

Archival Backup

Music Library

Financial Records

Video Surveillance

Corporate Data Storage
![]() |
![]() |
![]() |
![]() |
---|---|---|---|
Model | D2-310 | D4-300 | D5-300 |
Application | Personal and SMEs | Small and medium enterprises | Small and medium enterprises |
USB Port | USB3.1 | USB3.0 | USB3.0 |
USB Type | Type-C | Type-C | Type-C |
Maximum Read-write Speed | Read: 410MB/S Write: 400MB/S |
Read: 230MB/S Write: 210MB/S |
Read: 230MB/S Write: 210MB/S |
Internal HDD | 2 x 3.5" SATA III HDD | 4 x 3.5" SATA III HDD | 5 x 3.5" SATA III HDD |
Maximum Capacity | 16TB (8TB x 2) | 32TB (8TB x 4) | 40TB (8TB x 5) |
Hot Plug | Support | Support | Support |

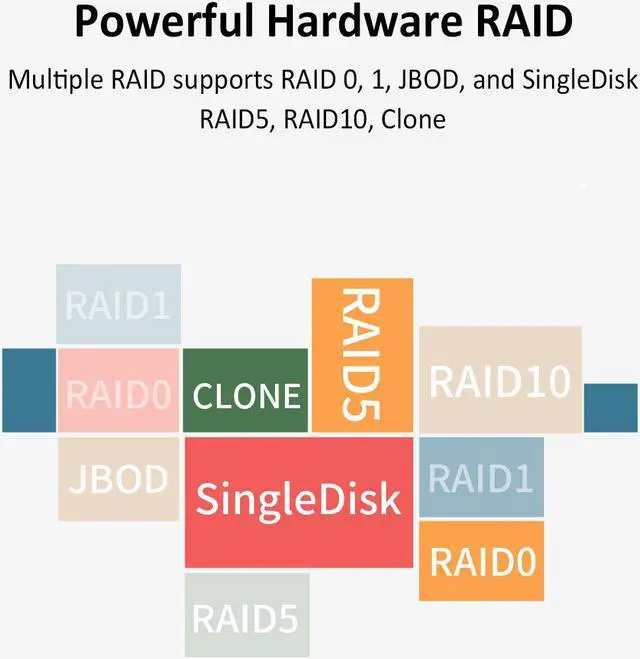

RAID Mode | RAID 0/1, JBOD, Single Disk | RAID 0/1/5/6/10, JBOD, Single Disk | RAID 5 |
Application |
|
|
|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 45 days
- This item is covered by TERRAMASTER Return Policy
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 867555-81798273
- Support Email: support_newegg@terra-master.com
- Support Website
- View other products from Terra Master
Pros: Super easy setup Inexpensive Runs pretty quiet but with 4 7200 drives spinning it's not going to be silent. Been going strong for 4 months
Cons: None yet.
Overall Review: Installed 4 x 4TB drives. They included two sizes of screws so no problems like others have reported when trying to screw in the drives. Downloaded & installed the raid configuration tool from their website. Setup as RAID 5. Plugged into my computer using the USB 3.0 cord and did a complete format which took over a day for all 16 TB which I expected. I plugged it into my Netgear router and access it from all my devices in the house using DLNA. I even have KODI hooked into it. Other thoughts: If you have a modern router you don't really need an expensive NAS drive because the router will allow you to access the content from your phones, TVs, computers, tablets, etc while you are in your house. Good routers will also allow you access to the drive from outside the house as well but they will not have all the bells and whistles of an expensive NAS drive. ***** UPDATE May 15, 2017 ******** Me being extra cautious about losing data. I bought a spare 4TB drive and tested replacing one of the drives to see if it would rebuild correctly. I learned that you must first format the drive with the same file size & cluster size before you put it in otherwise it will not work so I recommend that you write that info on a note and tape it to your Terra Master. You also have to do the drive replacement while the unit is plugged in and attached to a computer that is on. I simply yanked out one of the drives and slipped in the formatted replacement. It took about 10 hours for the rebuild to complete. Tip: If you are not using all your slots in this unit like me (1 have one empty) , you can slip your replacement drive into the empty slot and perform the format that way as you computer should see it once you slip it in. Alternately, you can power down the TerraMaster, pull all the drives out and slip your replacement drive in, format it, power down again , take it back out and put the old drives back in and power it back up. Me being paranoid, I purchased another one of the units to have as a backup because if somewhere down the road this unit dies, I don't want to have to scramble to find a raid system that can read my drives. It's worth the piece of mind. I tested pulling the drives out the current unit and placing them into the new one and it worked just fine (I powered the units down when moving the drives). I purchased HGST drives based on reliability studies from Backblaze, you can look it up on the web. The Ultrastar series is the way to go if you can afford it, otherwise the Deskstar NAS series is the next best choice which is what I went with.
