What kind of motherboards is this case compatible with?

The case is compatible with Mini ITX and Micro ATX motherboards.

What is the warranty duration for this case?

The warranty duration for this case is 3 years.

What are the cooling options for this case?

The cooling options for this case include fan placements at the top (2 x 120mm or 2 x 140mm), right side (2 x 120mm), rear (1 x 120mm), and power cover (2 x 120mm).

Is the power supply included with the case?

No, the power supply is not included with the case.

How many internal drive bays are available in this case?

This case has 1 internal 3.5" drive bay and 2 internal 2.5" drive bays.

$64^.99

Limit 99999 per customer.

Add to PC build list

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

Thermaltake

Top Rated

4.1 (885 total ratings)

$79^.99
+ $4.99 Shipping

antonline

Top Rated

4.5 (17,942 total ratings)

$96^.27
+ FREE SHIPPING

BeachAudio

Top Rated

4.4 (8,543 total ratings)

$101^.30

Volume Discounts Available

Get Educated

Make informed decisions with expert advice. Learn More

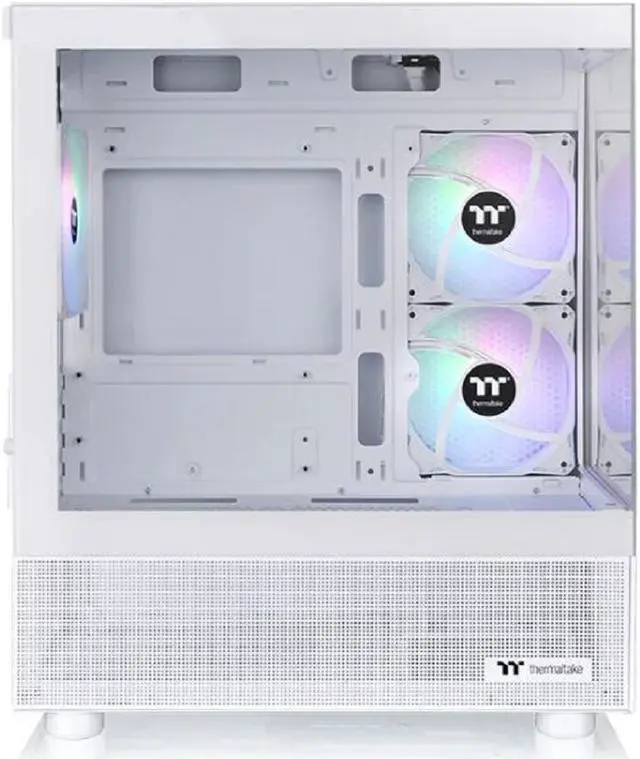

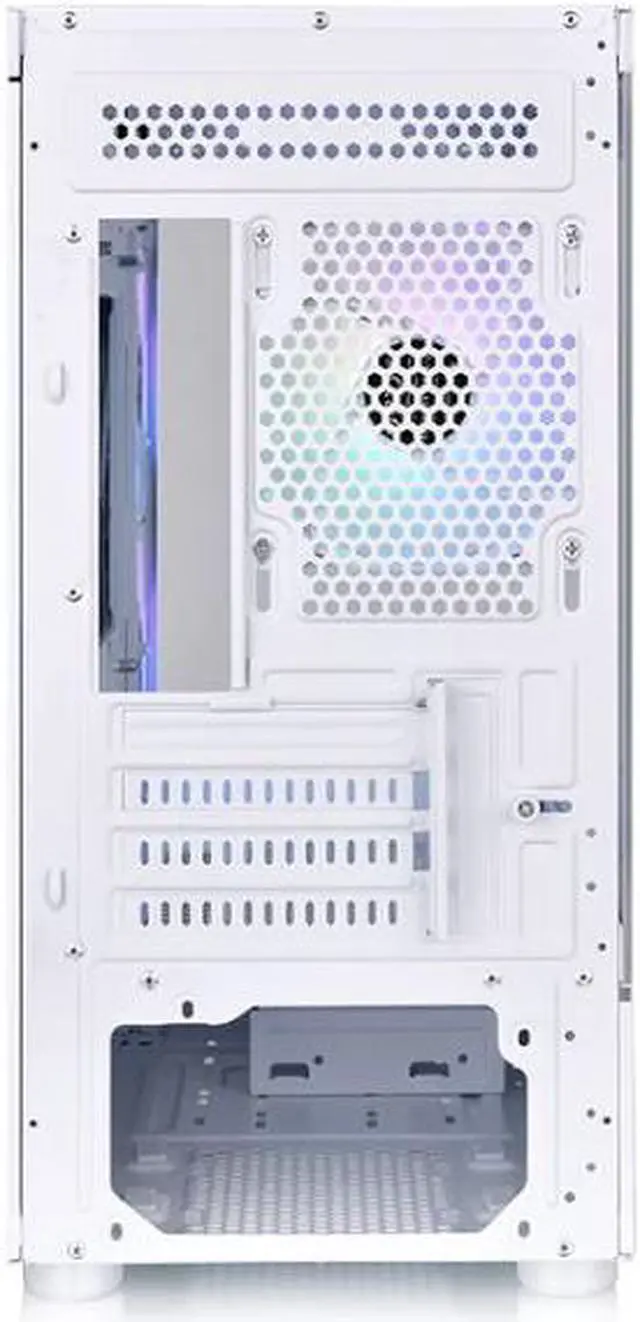

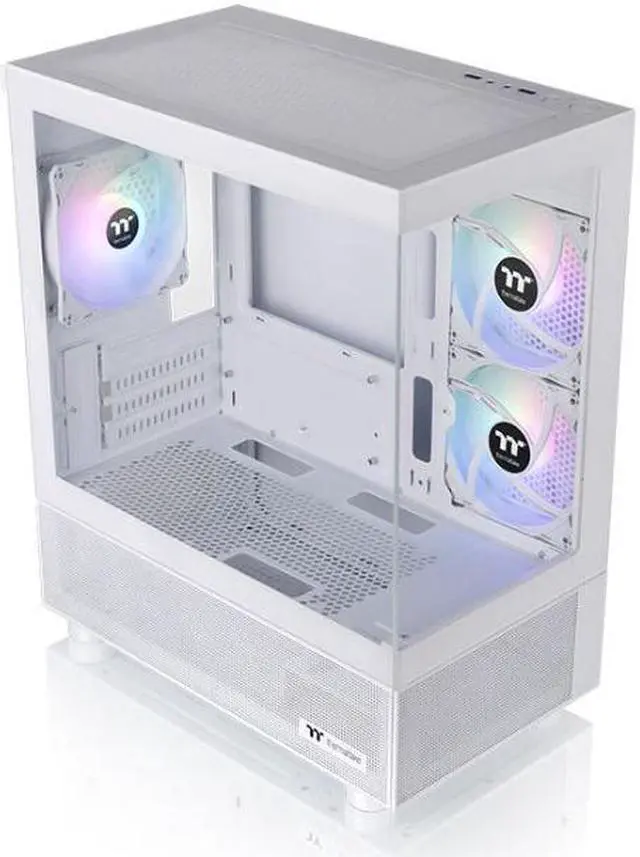

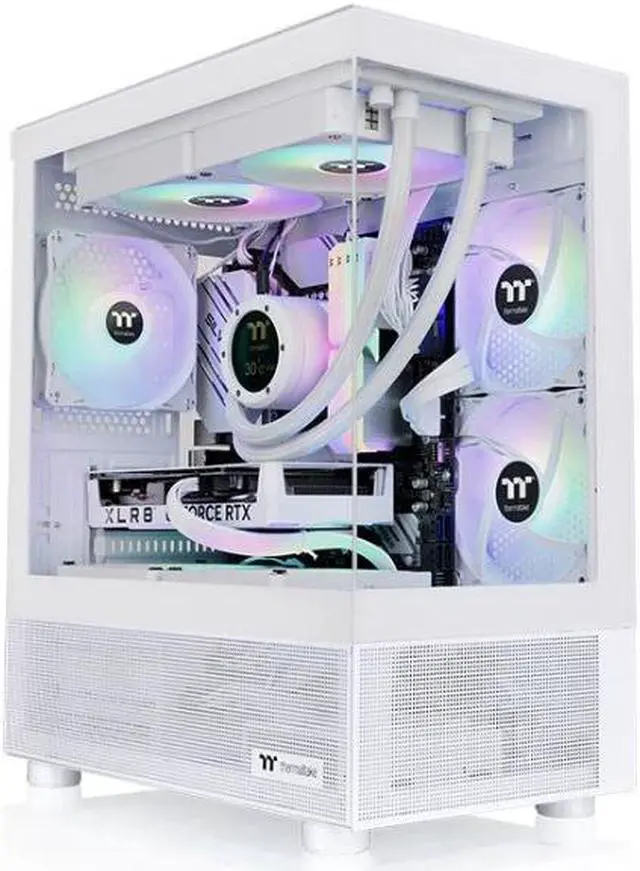

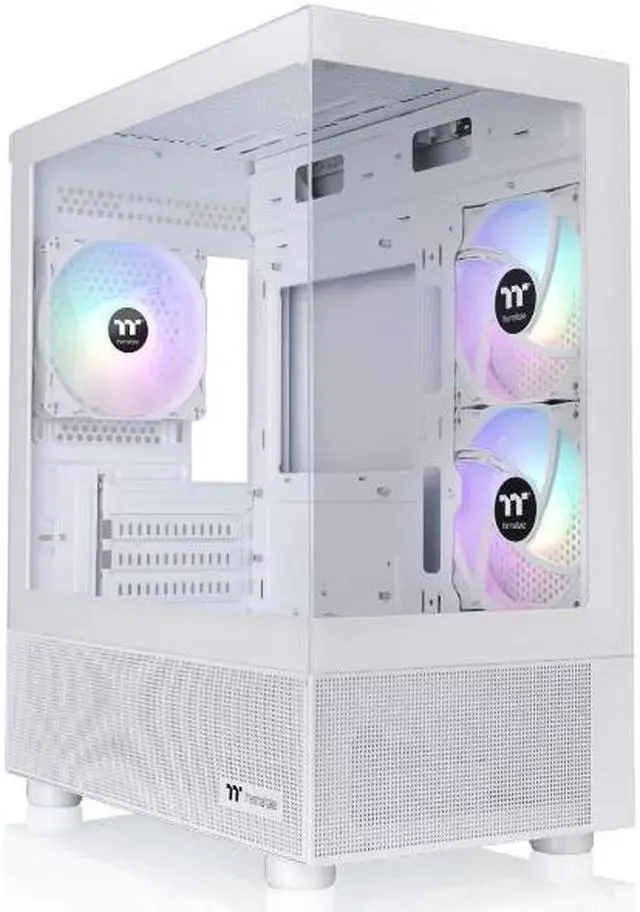

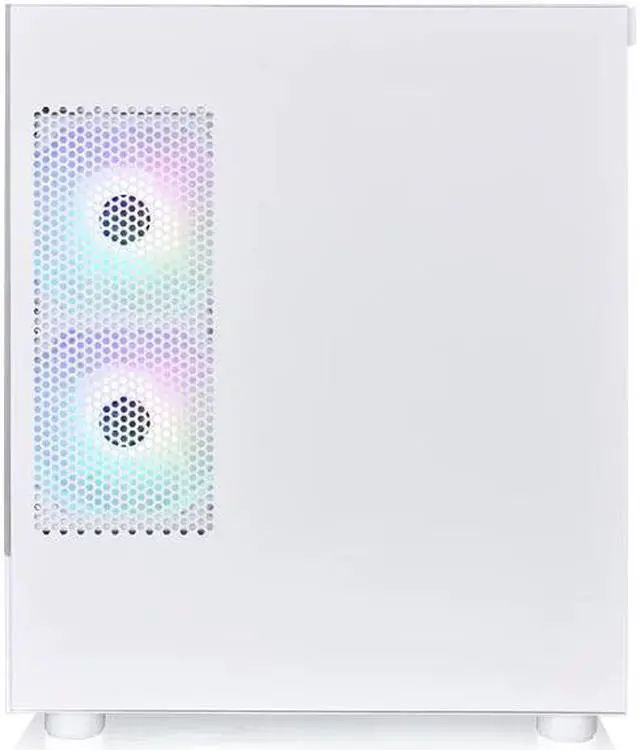

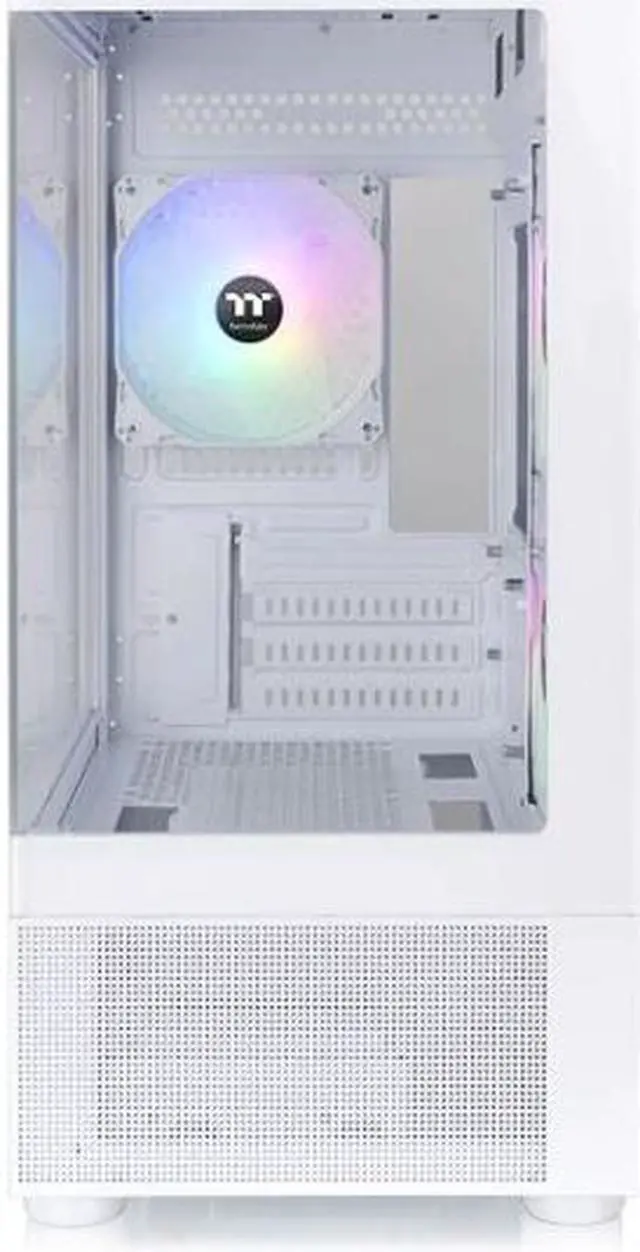

Thermaltake View 170 TG ARGB Snow Micro-ATX Case; 3x120mm ARGB Fans included; Supports Up to 280mm Radiator; Front & Side Dual Tempered Glass Panel; CA-1Z4-00M6WN-00; 3 Year Warranty

(4) Write a Review

Options: View 170 White

View 170 Black
View 170 White

Tempered Glass Front and Left Panels
Up to a 280mm/240mm Radiator
Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (4)

Any questions? Our AI beta will help you find out quickly.

Try me now

View 170 TG ARGB White Case

Model
Brand	Thermaltake
Series	View 170 Series
Model	CA-1Z4-00M6WN-00

Details
Type	ARGB Micro Chassis
Color	Snow
Case Material	SPCC
With Power Supply	No
Power Supply Mounted	Bottom
Motherboard Compatibility	Mini ITX (6.7" x 6.7") Micro ATX (9.6" x 9.6")
Side Panel Window	3mm Thick Tempered Glass x 2

Expansion
Internal 3.5" Drive Bays	1
Internal 2.5" Drive Bays	2
Expansion Slots	4

Front Panel Ports
Front Ports	2 x USB 3.0, 1 x Audio

Cooling System
Fan Options	Top: 2 x 120mm, 1 x 120mm/2 x 140mm, 1 x 140mm Right: 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Power Cover: 2 x 120mm, 1 x 120mm Cooling System: Right (intake): 120 x 120 x 25 mm ARGB Lite fan (1000RPM, 22.3 dBA) x 2 Rear: 120 x 120 x 25 mm ARGB Lite fan (1000RPM, 22.3 dBA) x 2
Radiator Options	Top: 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm Rear: 1 x 120mm

Dimensions & Weight
Max GPU Length	340 mm
Max CPU Cooler Height	160 mm
Max PSU Length	180 mm
Dimensions (H x W x D)	14.86 x 8.35 x 17.24 inch
Weight	14 lbs

Additional Information
First Listed on Newegg	June 25, 2024

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
