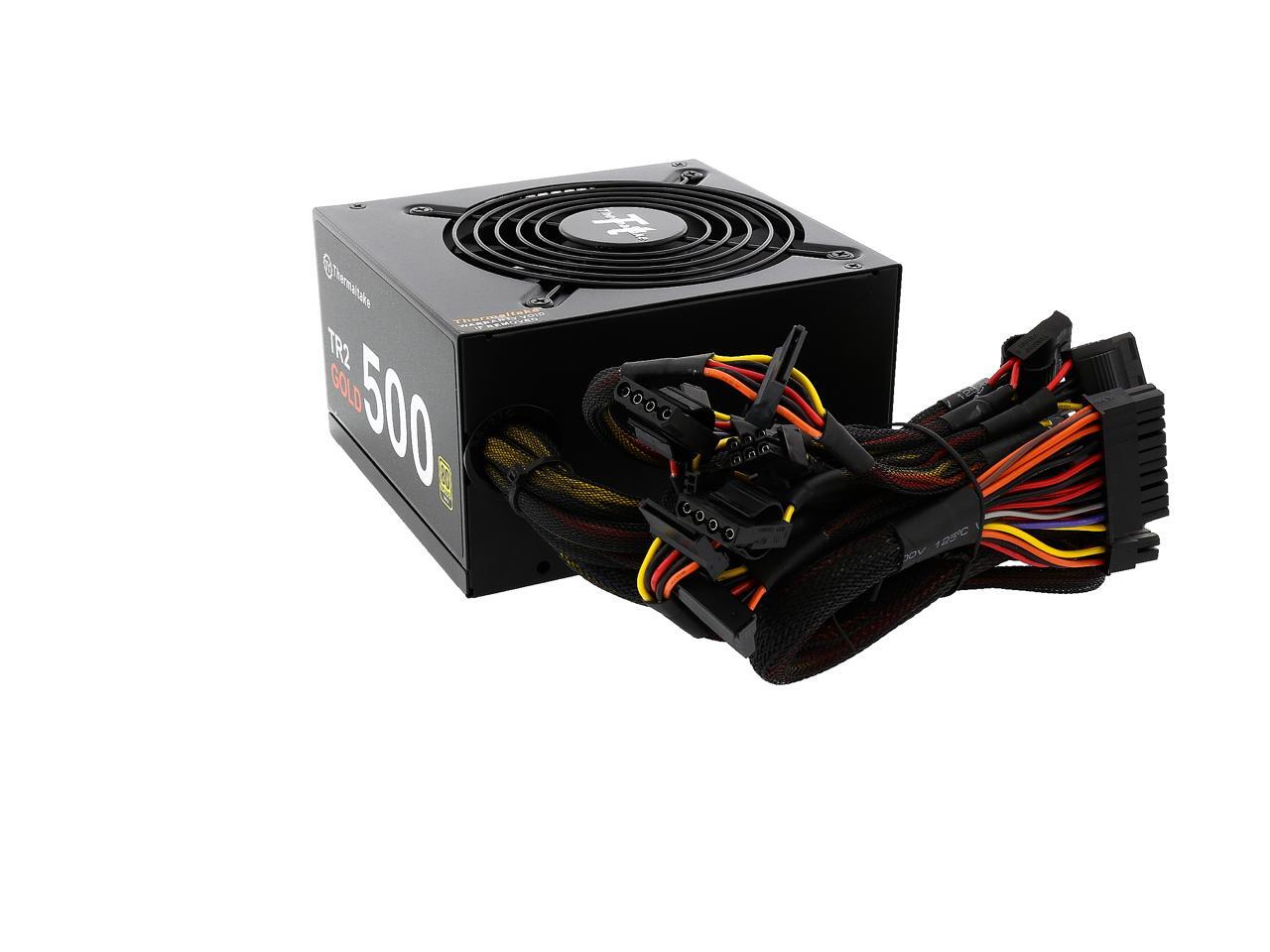

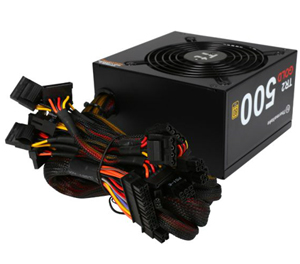

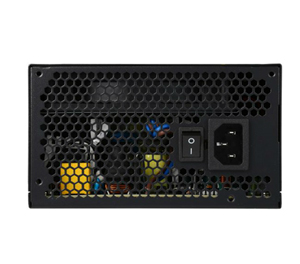

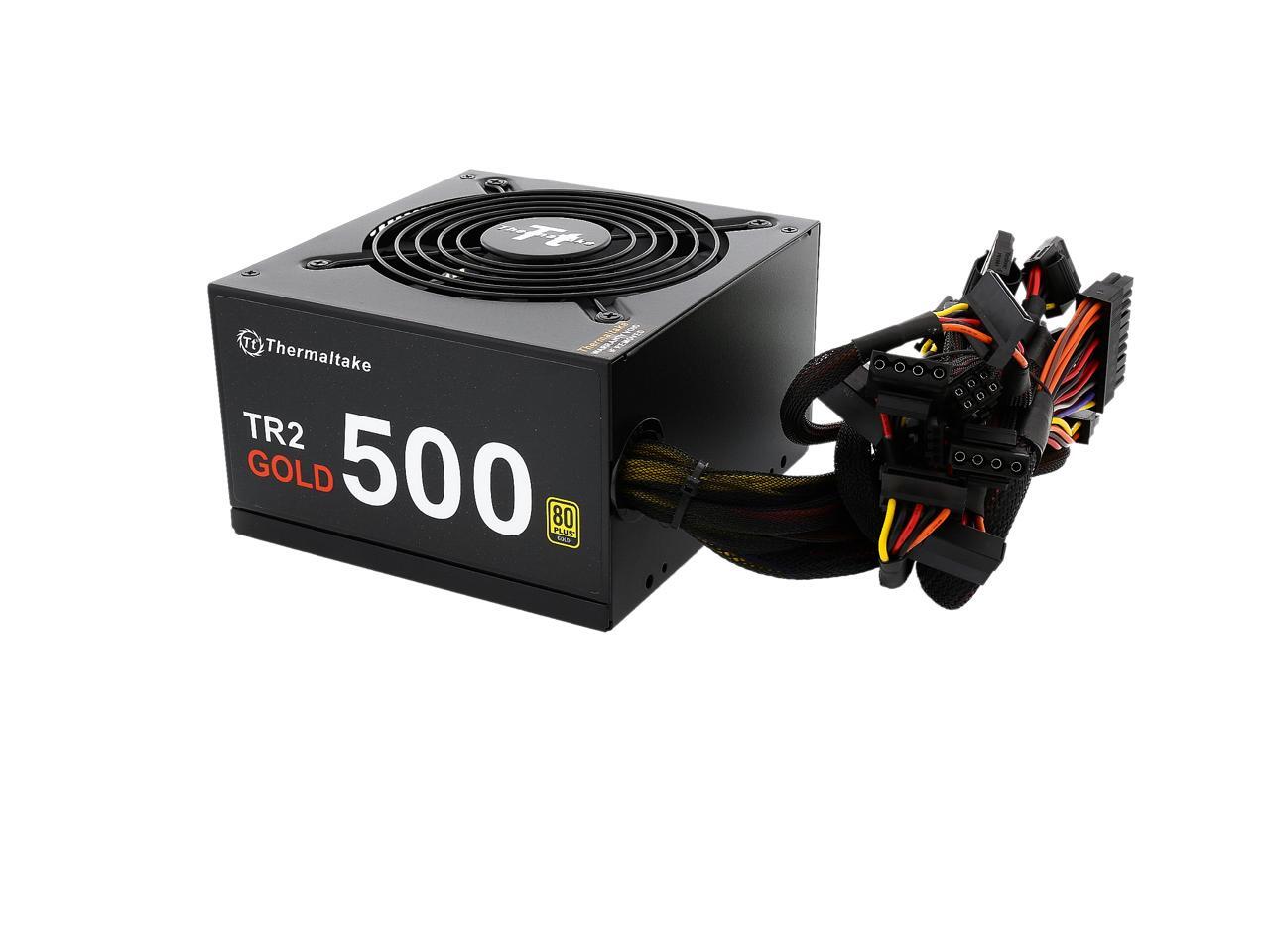

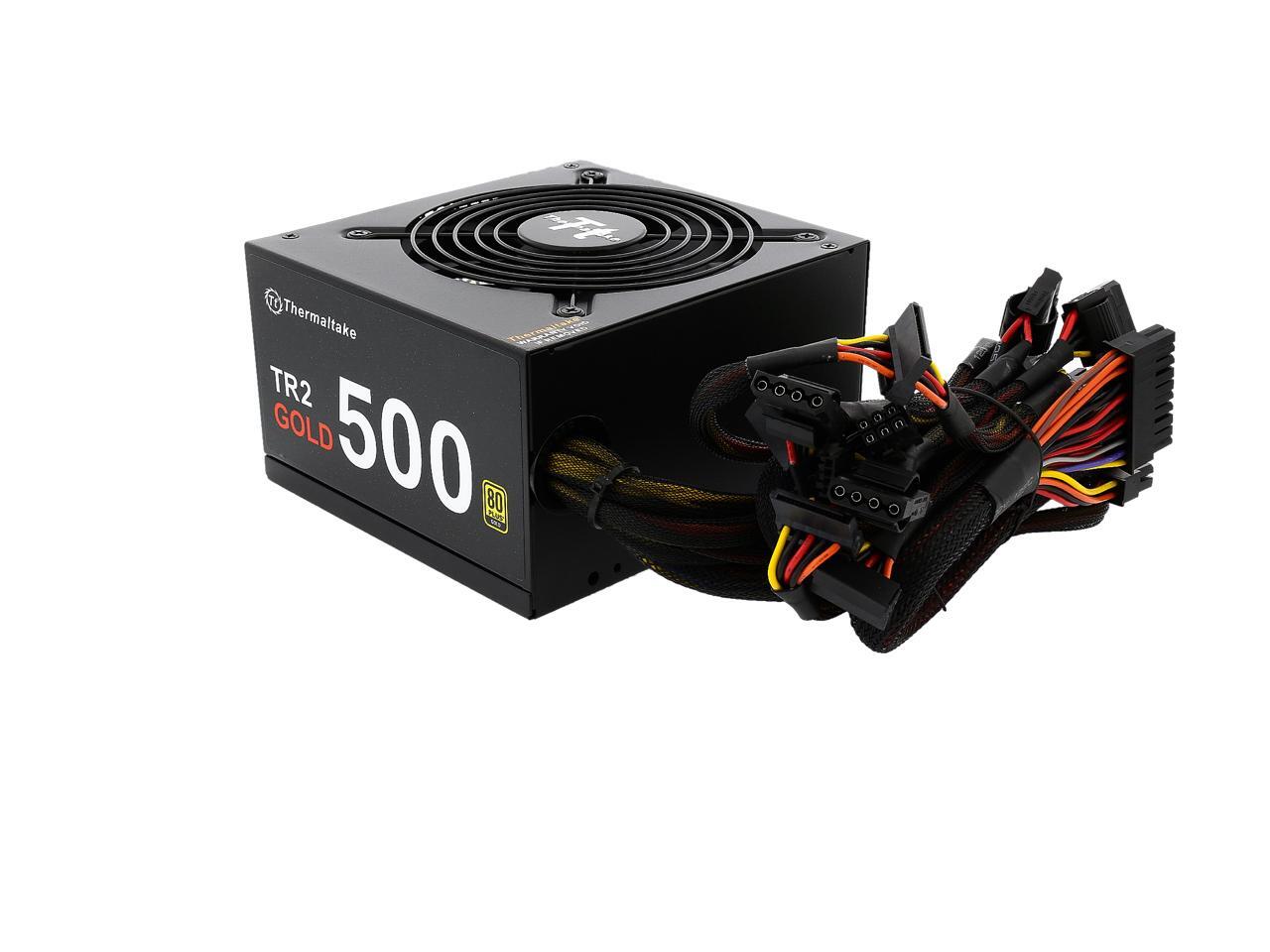

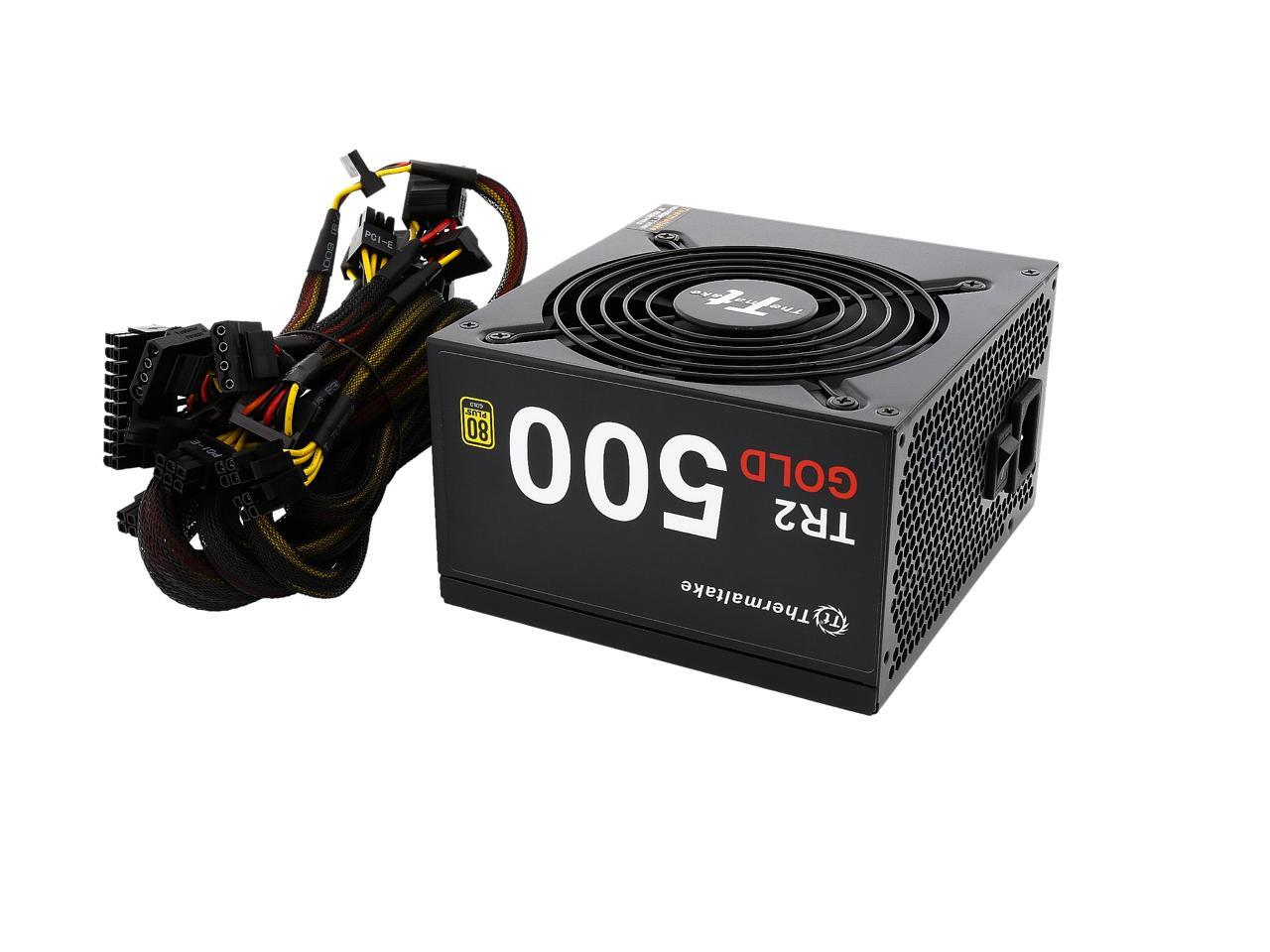

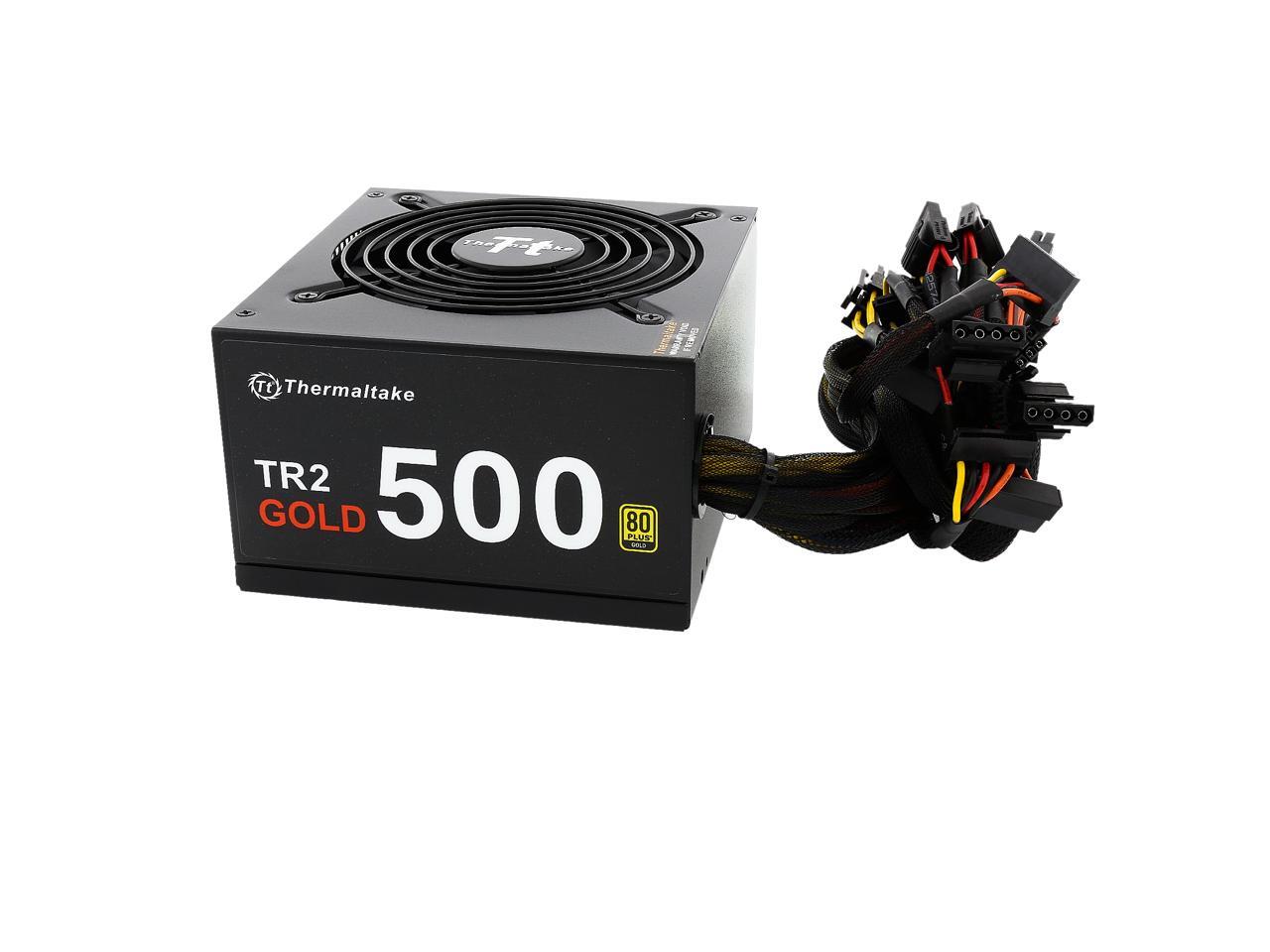

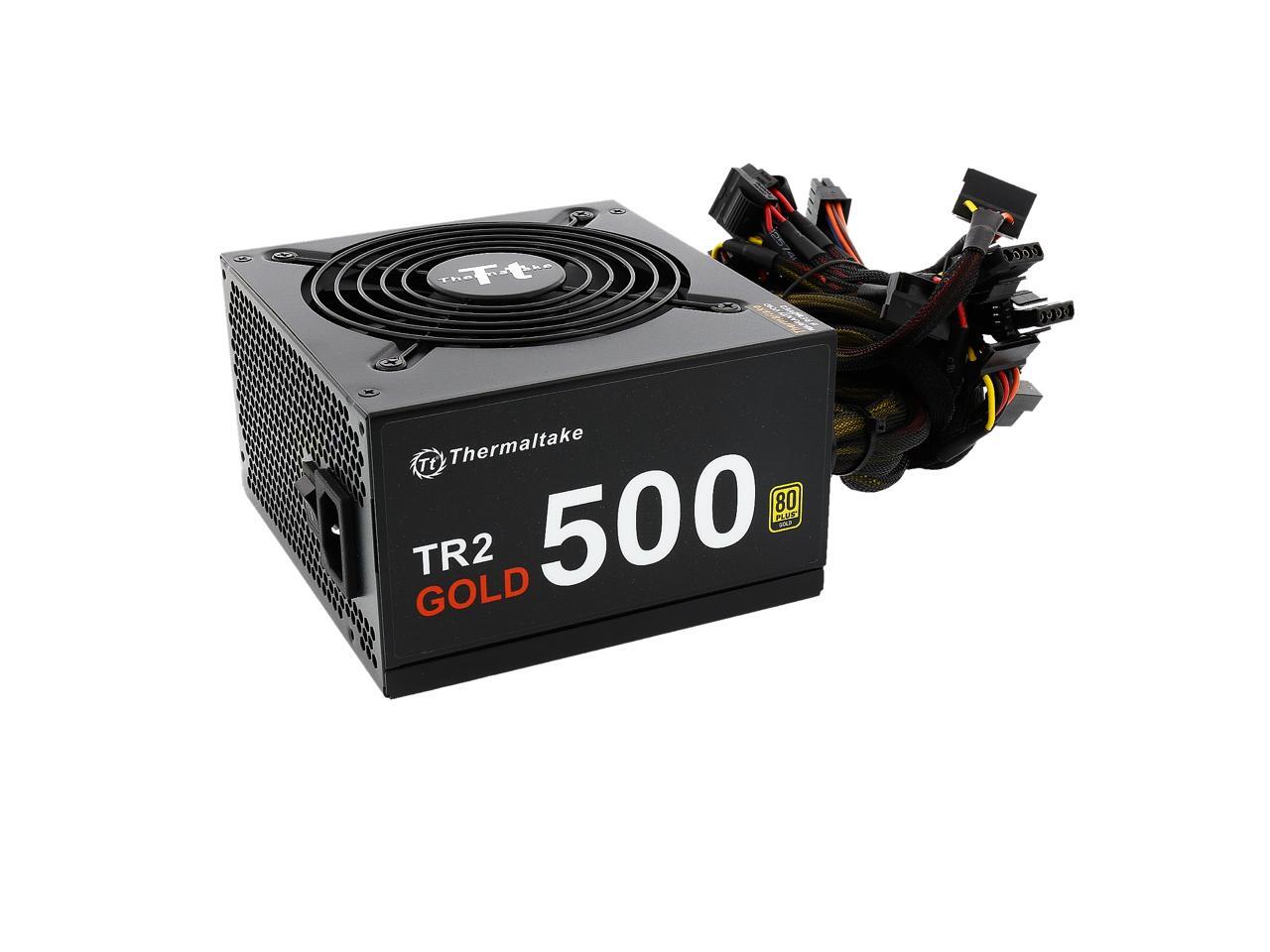

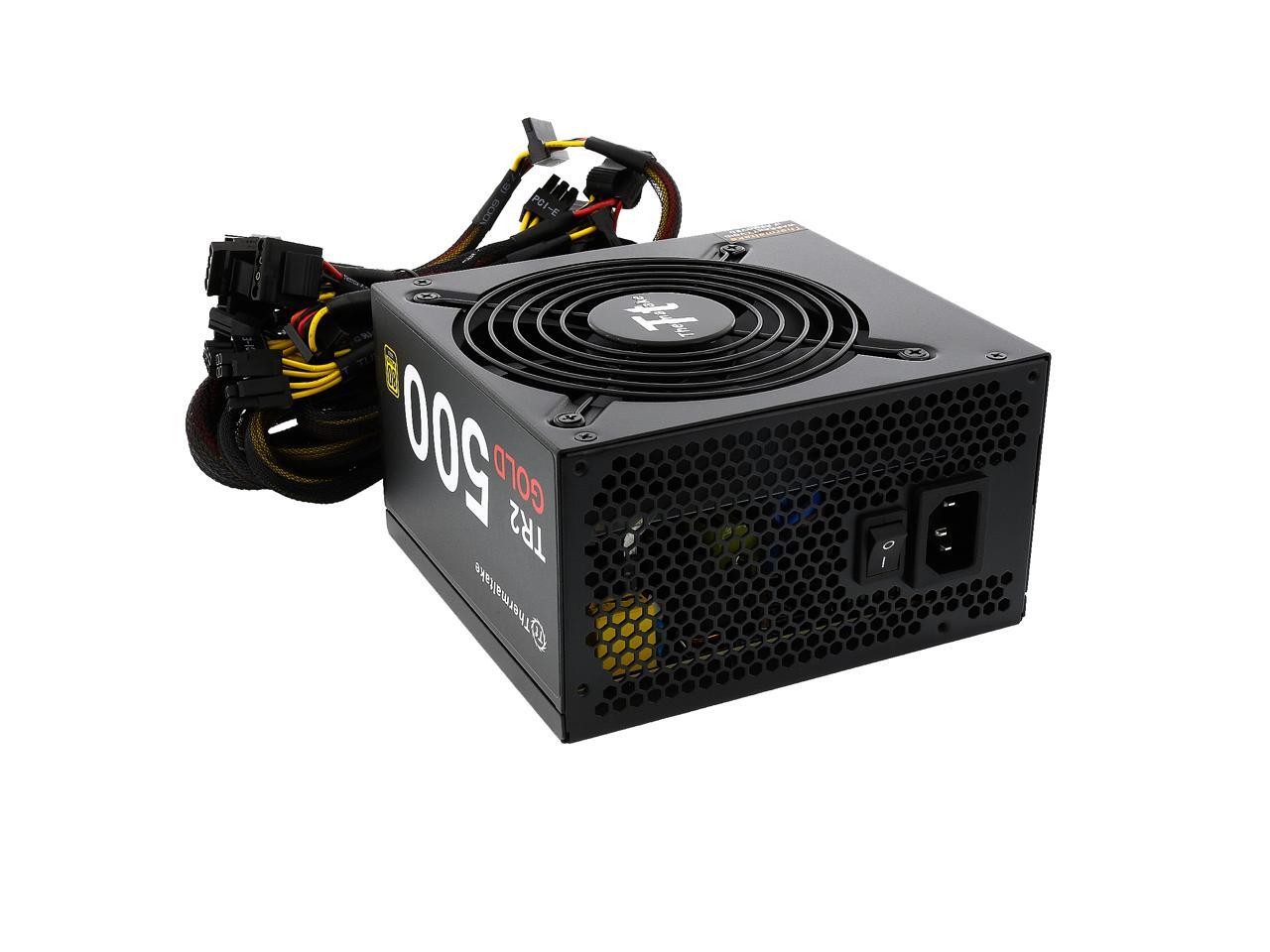

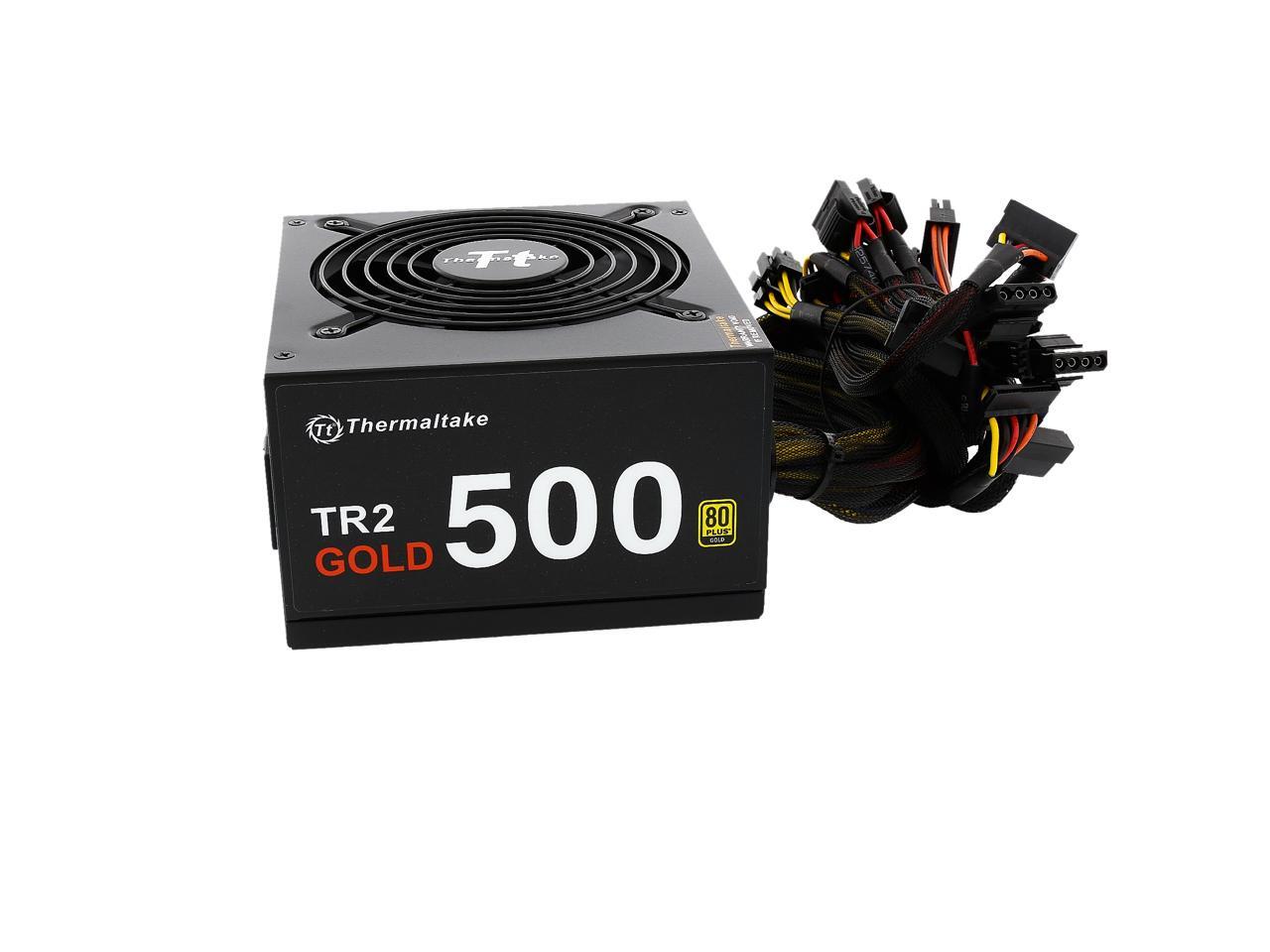

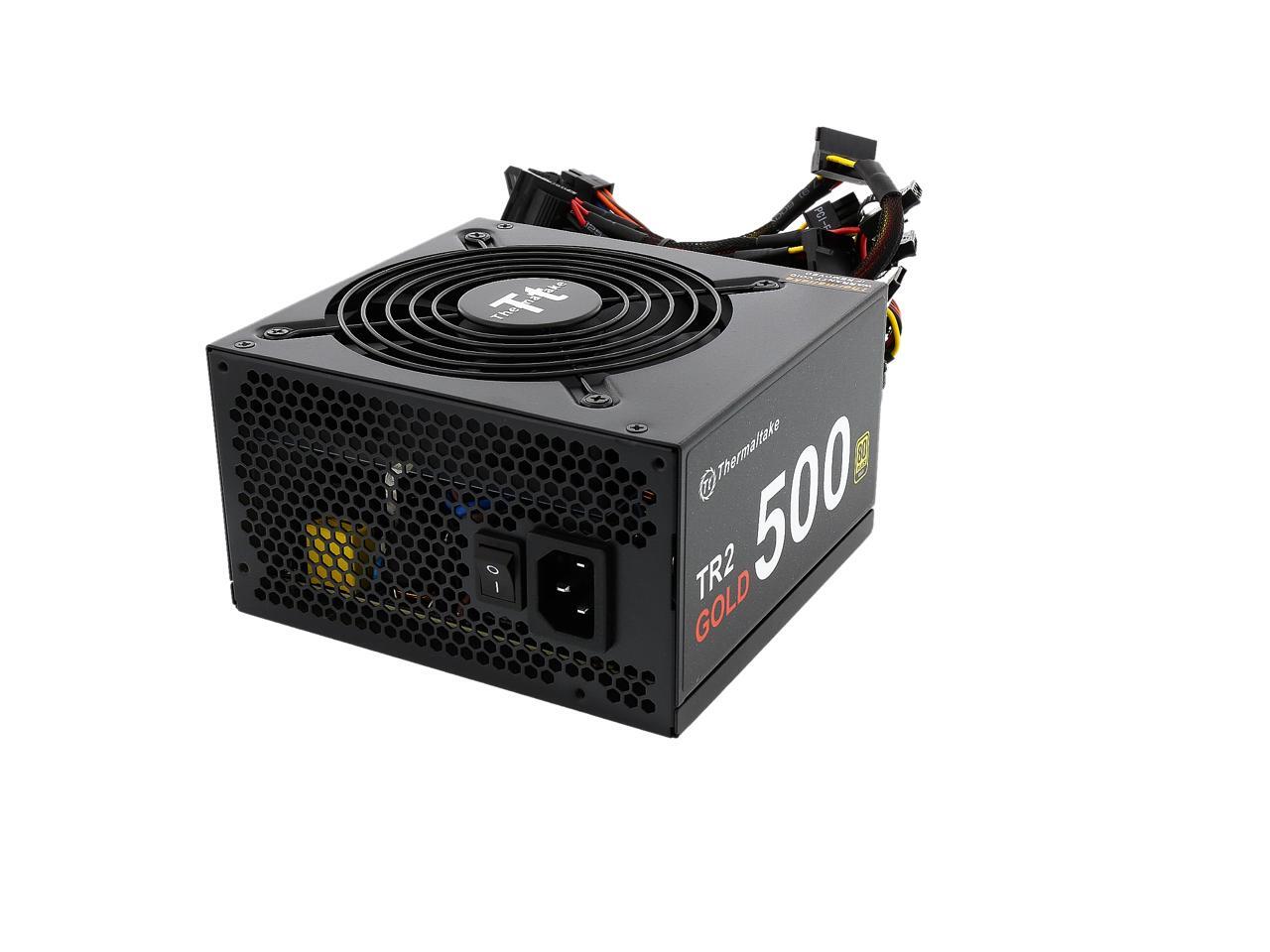

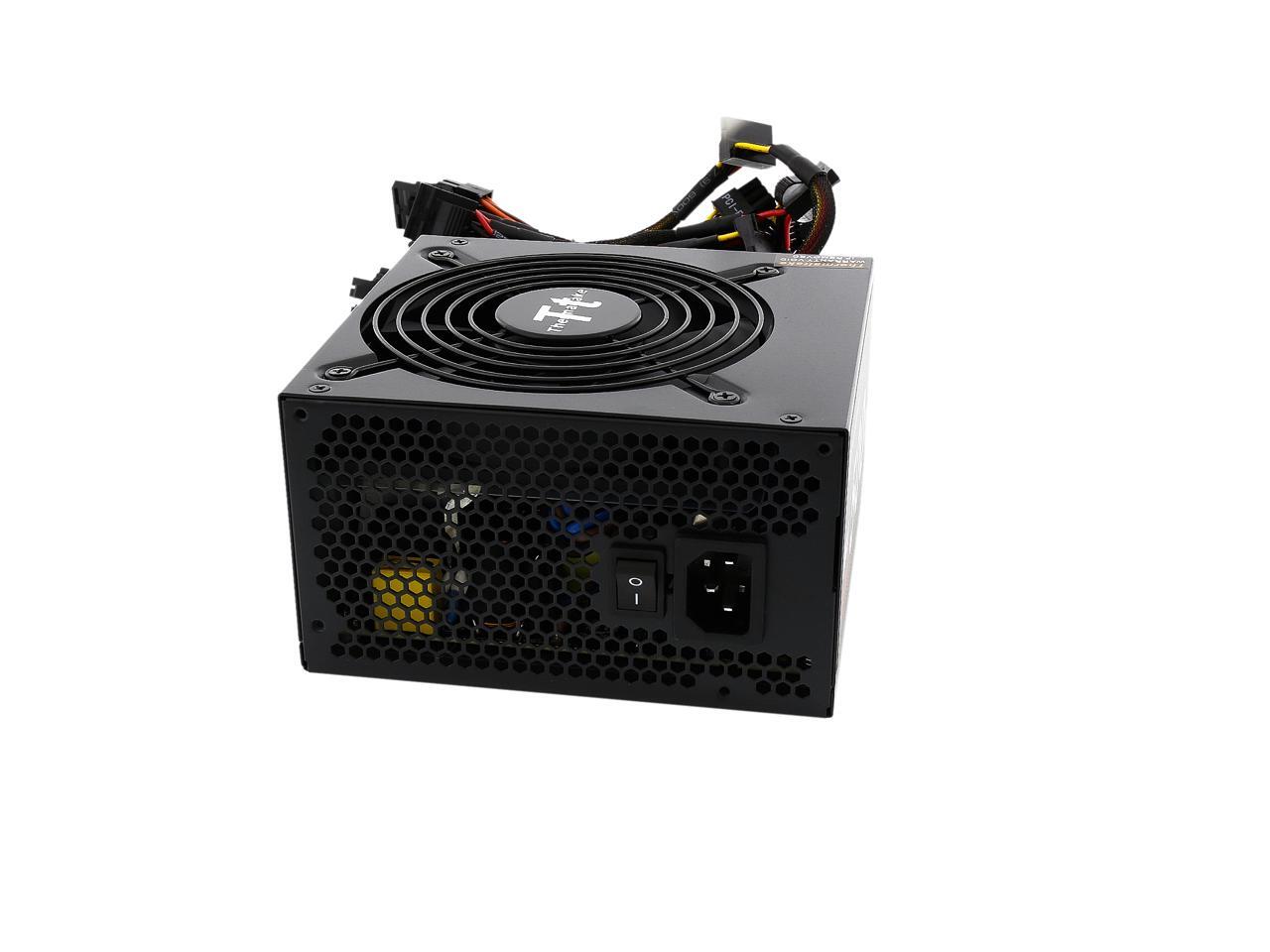

Thermaltake TR2 Gold 500W SLI/CrossFire Ready Continuous Power ATX12V v2.31 / EPS v2.92 80 PLUS GOLD Certified 5 Year Warranty Active PFC Power Supply Haswell Ready PS-TR2-0500NPCGUS-G
- ATX12V / EPS12V
- 80 PLUS GOLD Certified
- 100 - 240 V 50/60 Hz
+
+
Overview
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Thermaltake TR2 Gold 500W 80 PLUS GOLD Certified Active PFC Power Supply
Incorporating various high-quality components, the new TR2 Gold – models are rated from 450W to 700W – saves energy through its high efficiency of up to 90% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
Features

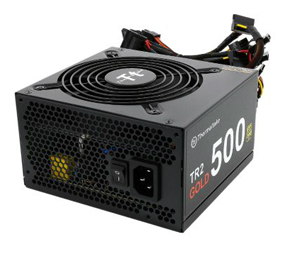

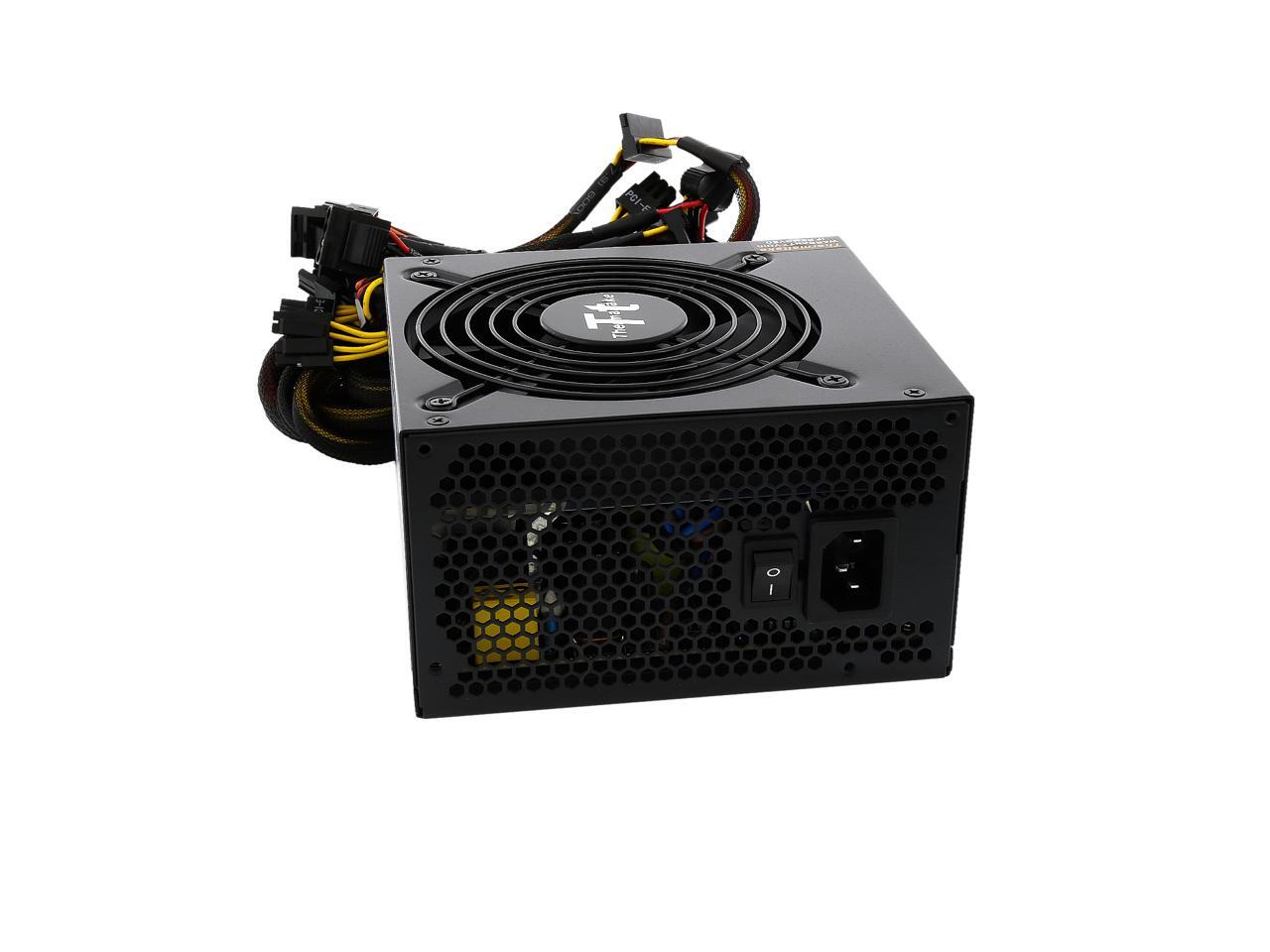

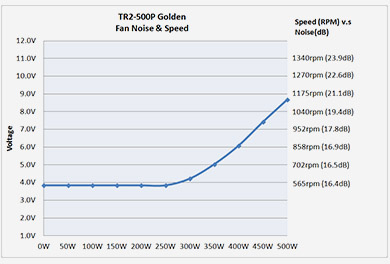

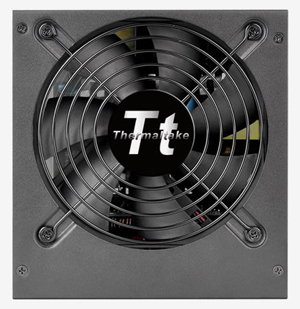

Ultra Quiet Fan
TR2 Gold Series adopts 12cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
Multiple Connectors

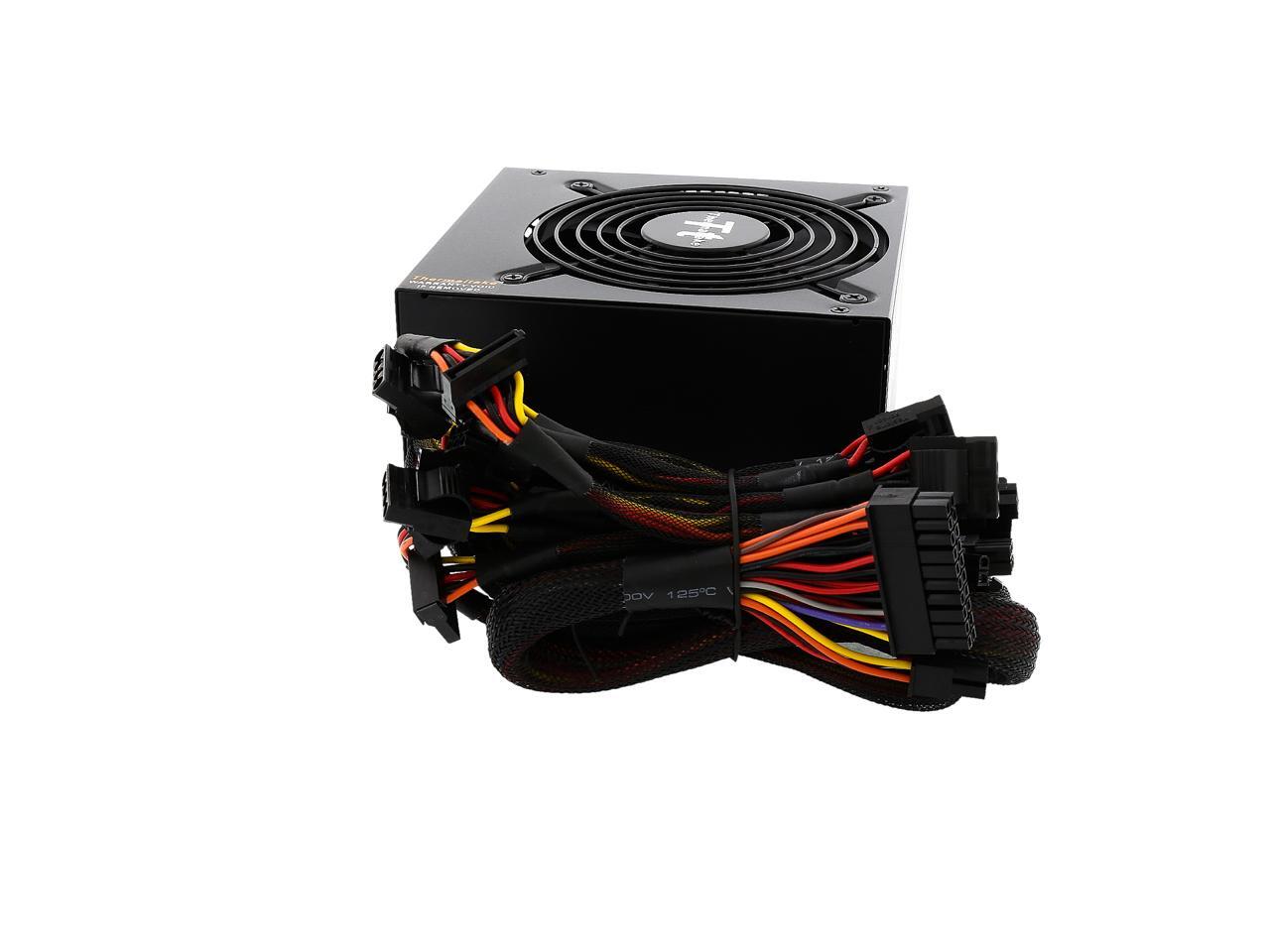

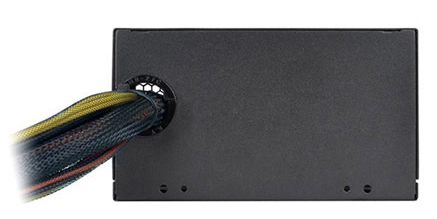

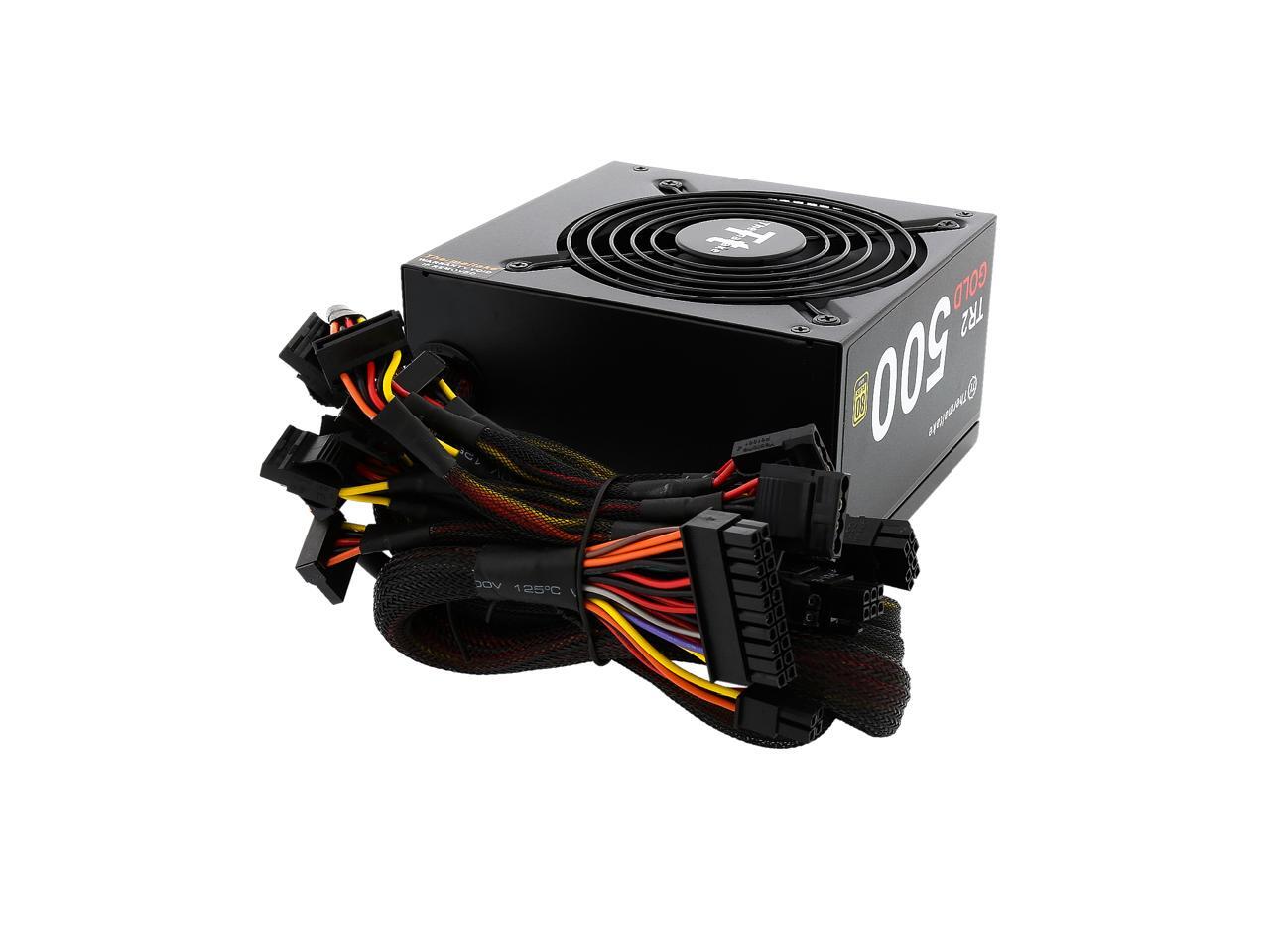

The cables used for TR2 Gold are all sleeved. TR2 500W Gold connector's specification as below:
| P/N | MODEL |  Main Power Connector (20+4Pin) |
 ATX 12V (4+4Pin) |
 Peripheral (4Pin) |
 SATA (5Pin) |
 PCI-E (6+2Pin) |
 Floppy (4Pin) |
| TR2-0500P-G | TR2 500W Gold | 1 | 1 | 4 | 6 | 2 | 1 |
80 PLUS Gold Certified and Haswell Ready
TR2 Gold Series saves energy through its high energy efficiency of up to 90% and is 80 PLUS® Gold certified.

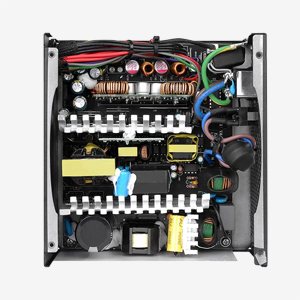

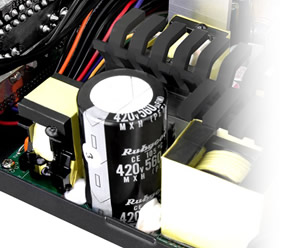

High Quality Capacitors
High quality capacitors enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Massive and Dedicated Single +12V Output

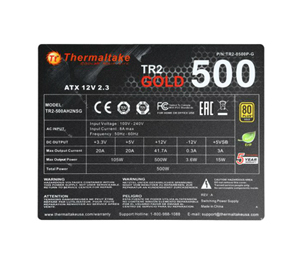

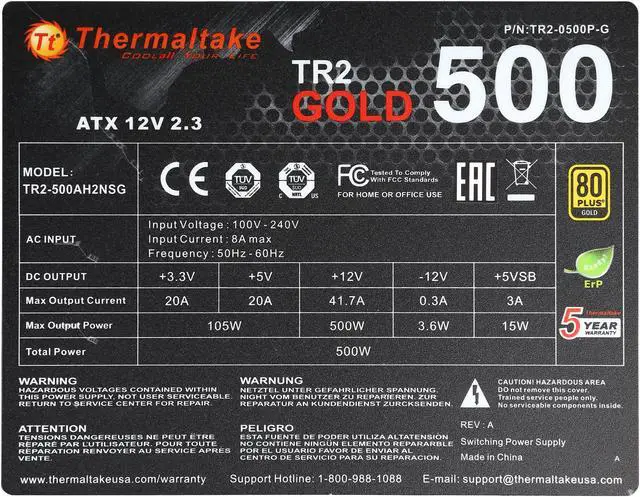

TR2 Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below
| AC INPUT | Input Voltage: 100V-240V Input Current: 8A max Frequency: 50Hz-60Hz |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 41.7A | 0.3A | 3A |
| Max Output Power | 105W | 500W | 3.6W | 15W | |
| Continuous Power | 500W | ||||
TR2 Series Comparison Chart
| This Product | ||||
 |
 |
 |
 |
 |
| TR2 450W | TR2 500W | TR2 600W | TR2 700W | |
| Product Info | ||||
|---|---|---|---|---|
| Model | TR2 Gold 450W | TR2 Gold 500W | TR2 Gold 600W | TR2 Gold 700W |
| P/N | PS-TR2- 0450NPCB-G | PS-TR2- 0500NPCB-G | PS-TR2- 0600NPCB-G | PS-TR2- 0700NPCB-G |
| Type | ATX 12V V2.3 & EPS 12V |
ATX 12V V2.3 & EPS 12V |
ATX 12V V2.3 & EPS 12V |
ATX 12V V2.3 & EPS 12V |
| Specification | ||||
| Wattage | 450W | 500W | 600W | 700W |
| Active PFC | ✔ | ✔ | ✔ | ✔ |
| +12V Rail | 37.5A | 41.7A | 50A | 58.4A |
| Dimension | 140mm(L)x 150mm(W)x 86mm(H) 5.51"(L) x 6"(W) x 3.38"(H) |
180mm(L)x 150mm(W)x 86mm(H) 5.51"(L) x 6"(W) x 3.38"(H) |
180mm(L)x 150mm(W)x 86mm(H) 5.51"(L) x 6"(W) x 3.38"(H) |
180mm(L)x 150mm(W)x 86mm(H) 5.51"(L) x 6"(W) x 3.38"(H) |
| Fan Size | 120mm | 120mm | 120mm | 120mm |
| SLII/CrossFire Ready | - | - | ✔ | ✔ |
| Modular | Fixed | Fixed | Fixed | Fixed |
| Haswell Support | ✔ | ✔ | ✔ | ✔ |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
| Efficiency | ||||
| 80 PLUS Certified | GOLD | GOLD | GOLD | GOLD |
| Efficiency Rating | 90% | 90% | 90% | 90% |
| Connections | ||||
| ATX | 1 | 1 | 1 | 1 |
| EPS | 1 | 1 | 1 | 1 |
| PCI-E(6+2Pin) | 1 | 2 | 2 | 4 |
| SATA | 4 | 6 | 2 | 8 |
| Peripheral | 3 | 4 | 4 | 4 |
| Floppy | 1 | 1 | 1 | 1 |
Gallery

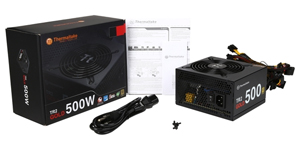

What's in the Box
- User Manual
- PS-TR2-0500NPCGUS-G Power Supply
- AC Power Cord
- Mounting Screws
