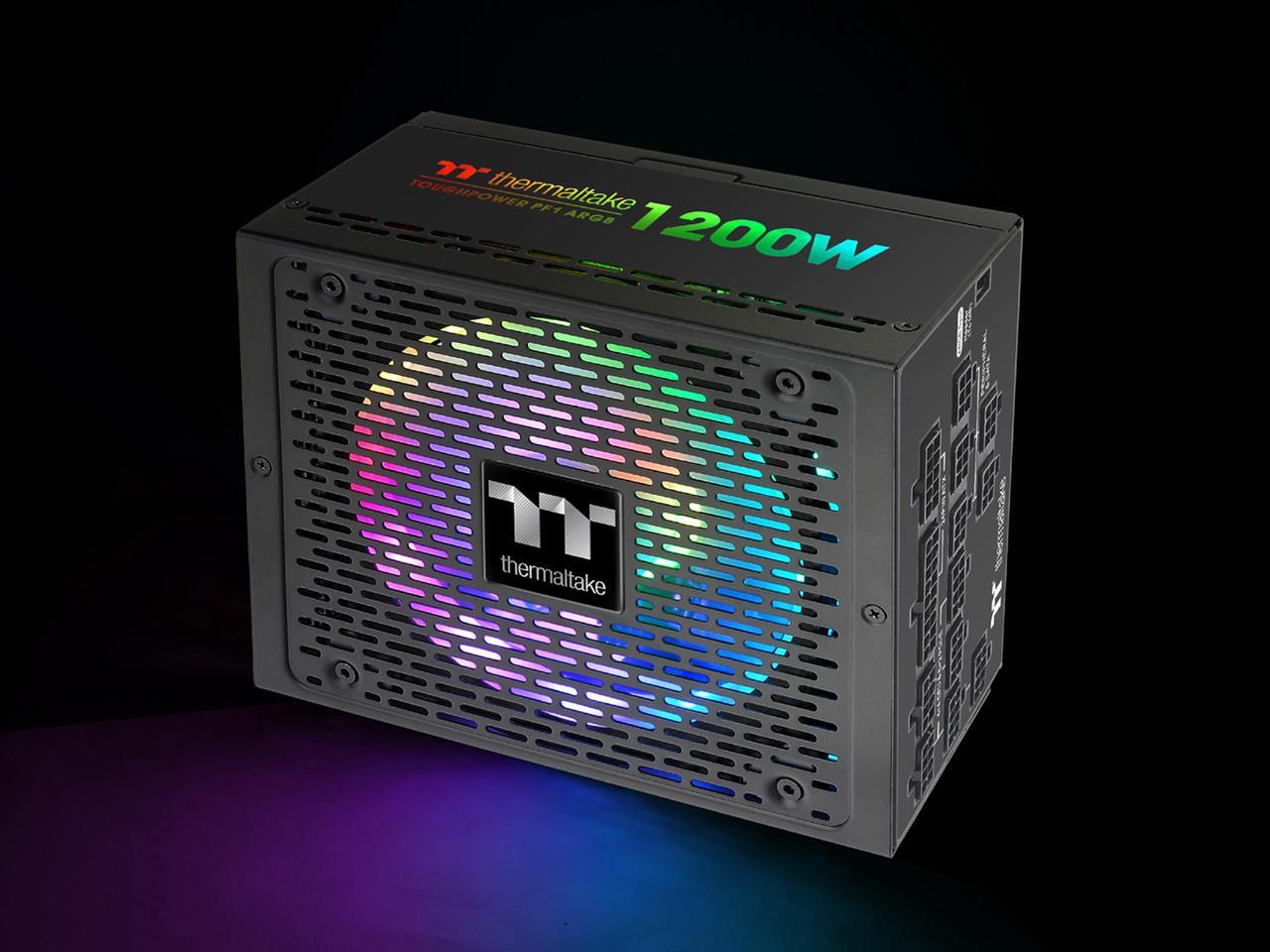

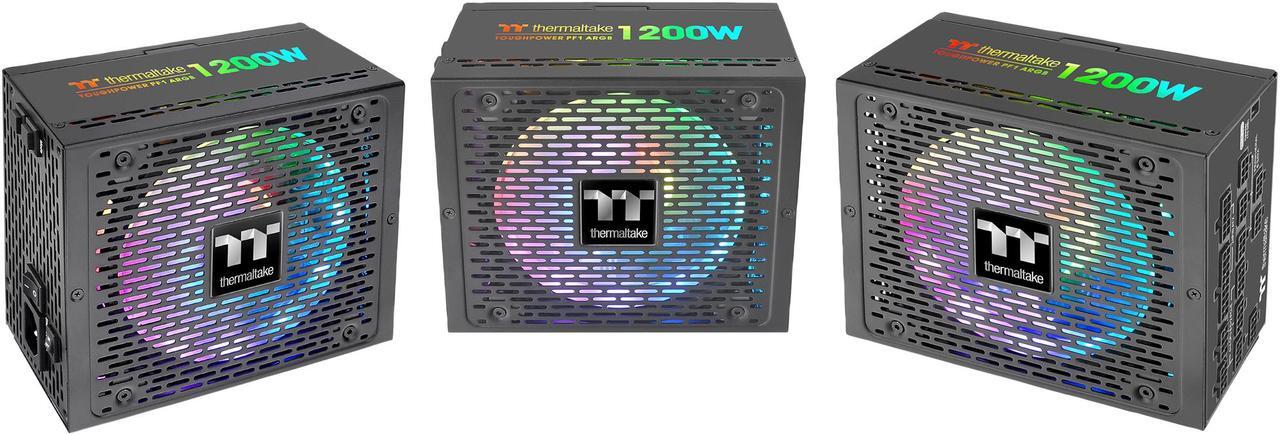

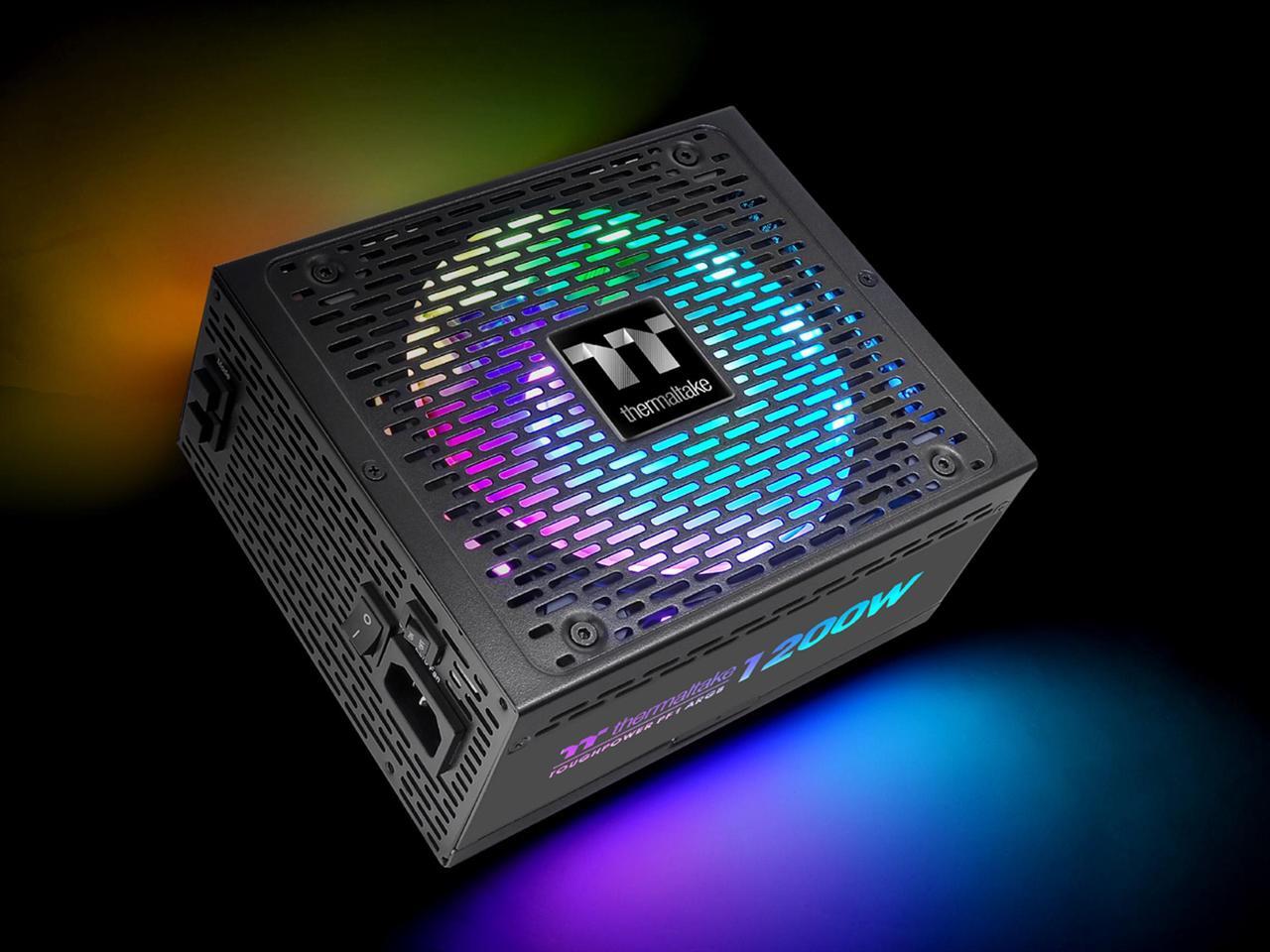

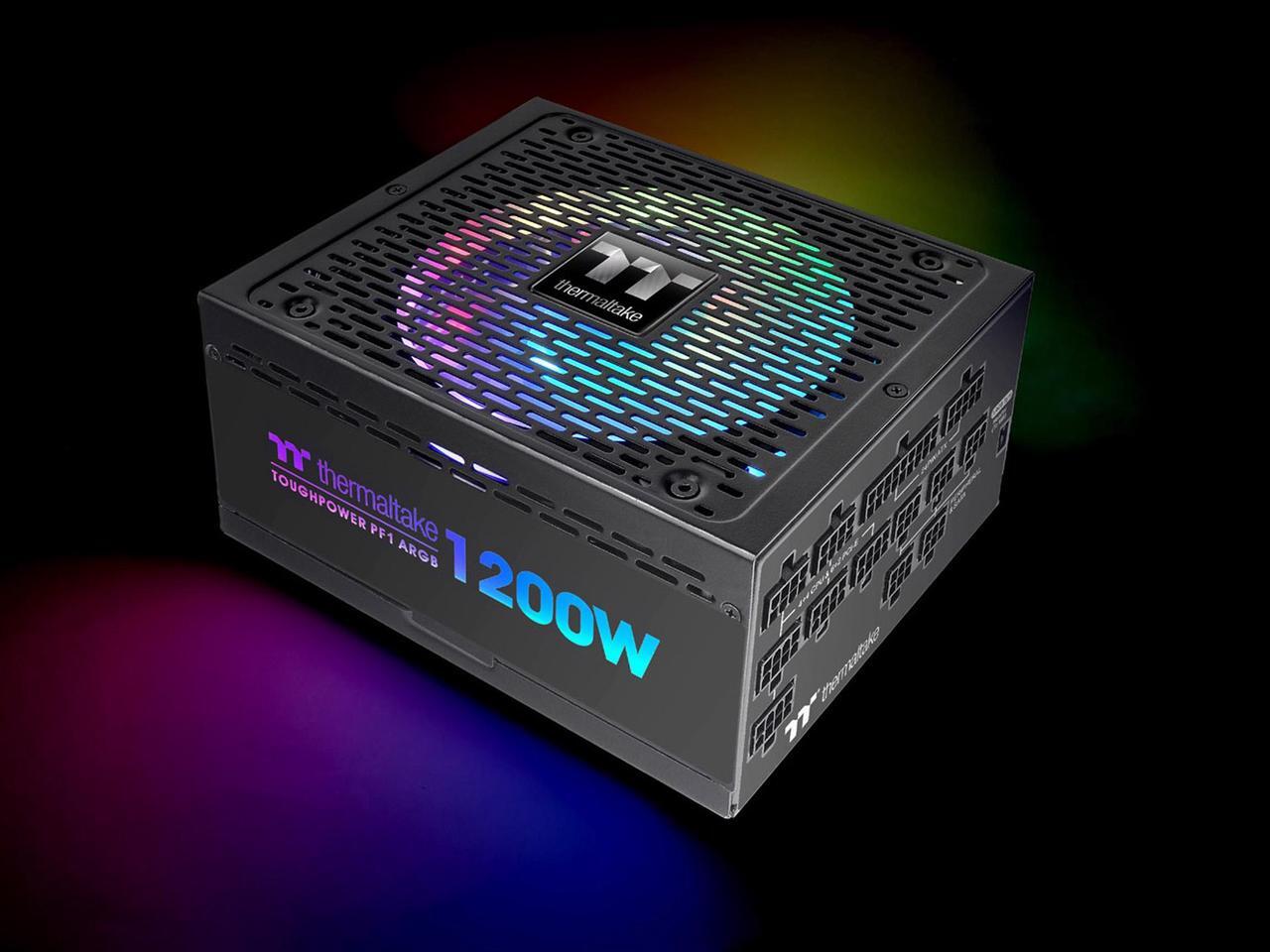

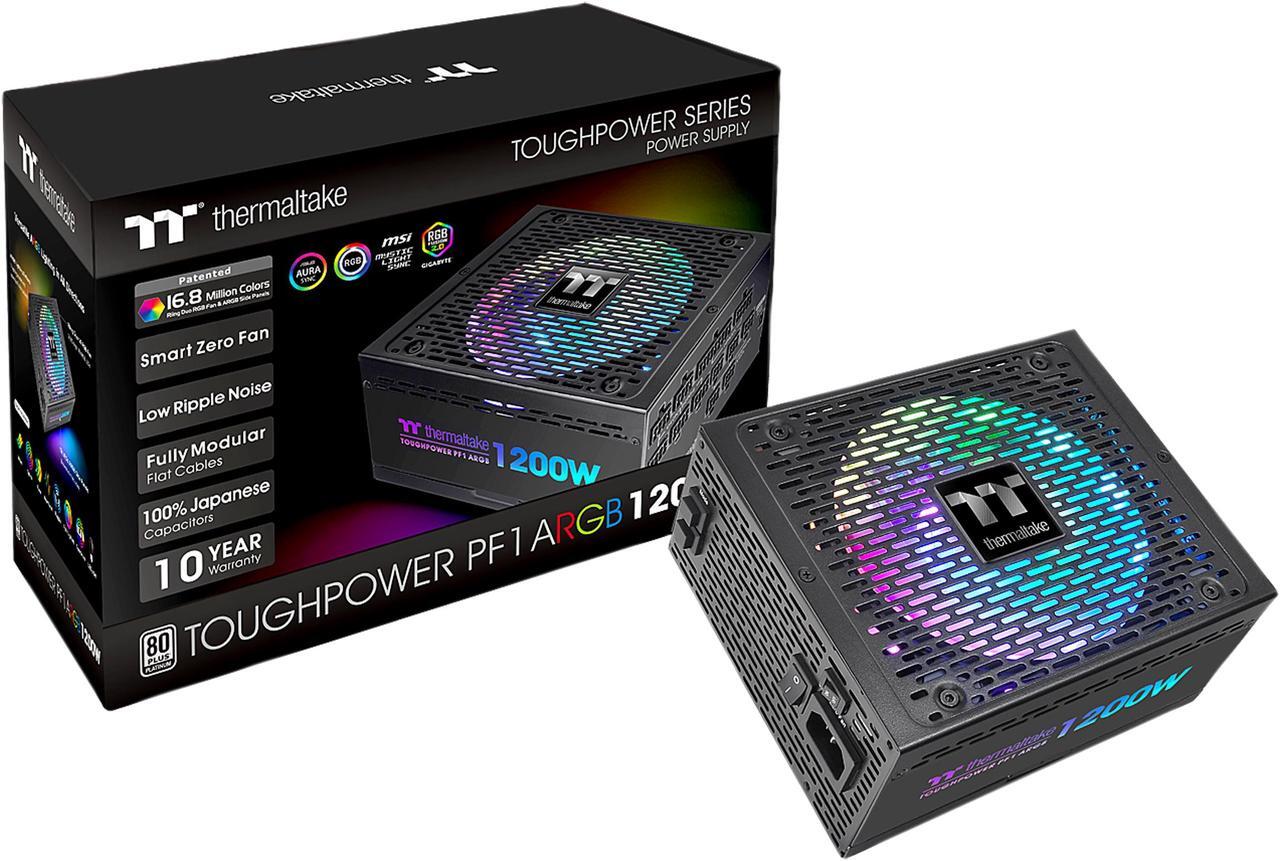

Thermaltake Toughpower PF1 ARGB 1200W 80+ Platinum 16.8 Million Colors 18 Addressable LEDs 5V Motherboard Sync/Analog Controlled SLI Full Modular Power Supply PS-TPD-1200F3FAPU-1
- ATX12V
- Full Modular
- 80 PLUS PLATINUM Certified
- 100 - 240 V 50/60 Hz
- +3.3V@25A, +5V@25A, +12V@100A, [email protected], +5VSB@3A
+
+
Specs
Reviews (229)
Learn more about the Thermaltake PS-TPD-1200F3FAPU-1
| Brand | Thermaltake |
|---|---|
| Series | Toughpower PF1 ARGB Platinum |
| Model | PS-TPD-1200F3FAPU-1 |
| Type | ATX12V |
|---|---|
| Maximum Power | 1200 W |
| Fans | 1 x 140mm RGB Hydraulic Bearing Fan |
| Fan LED | ARGB |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 12 |
| Max PSU Length | 180 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | > 16msec at 100% of full load |
| Efficiency | > 92% |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| PSU Noise Level | Cybenetics Standard + |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 14A |
| Output | +3.3V@25A, +5V@25A, +12V@100A, [email protected], +5VSB@3A |
| MTBF | >120,000 Hours |
| Approvals | CE / cTUVus / TÜV / FCC / BSMI / CCC / EAC / S-Mark |

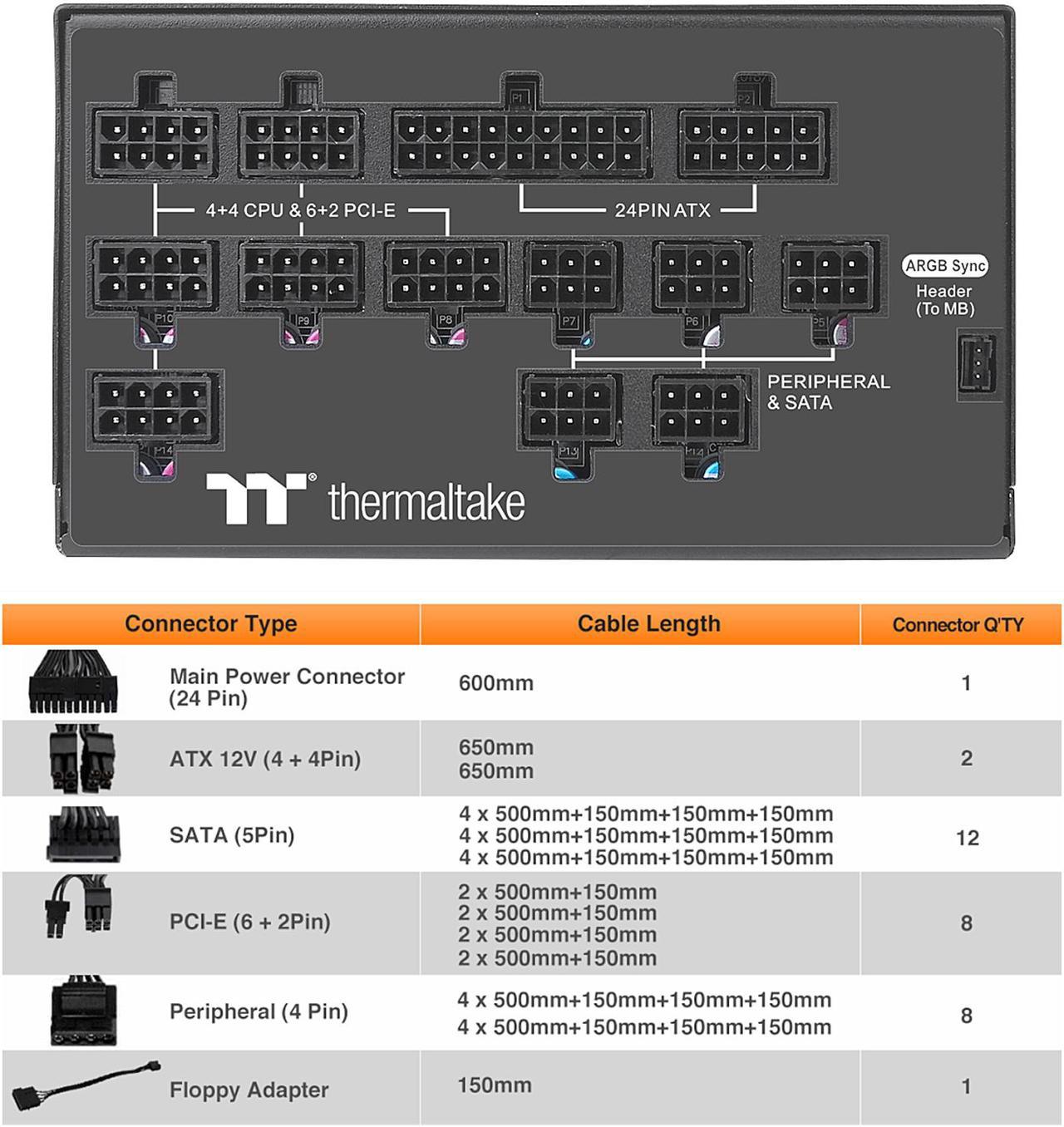

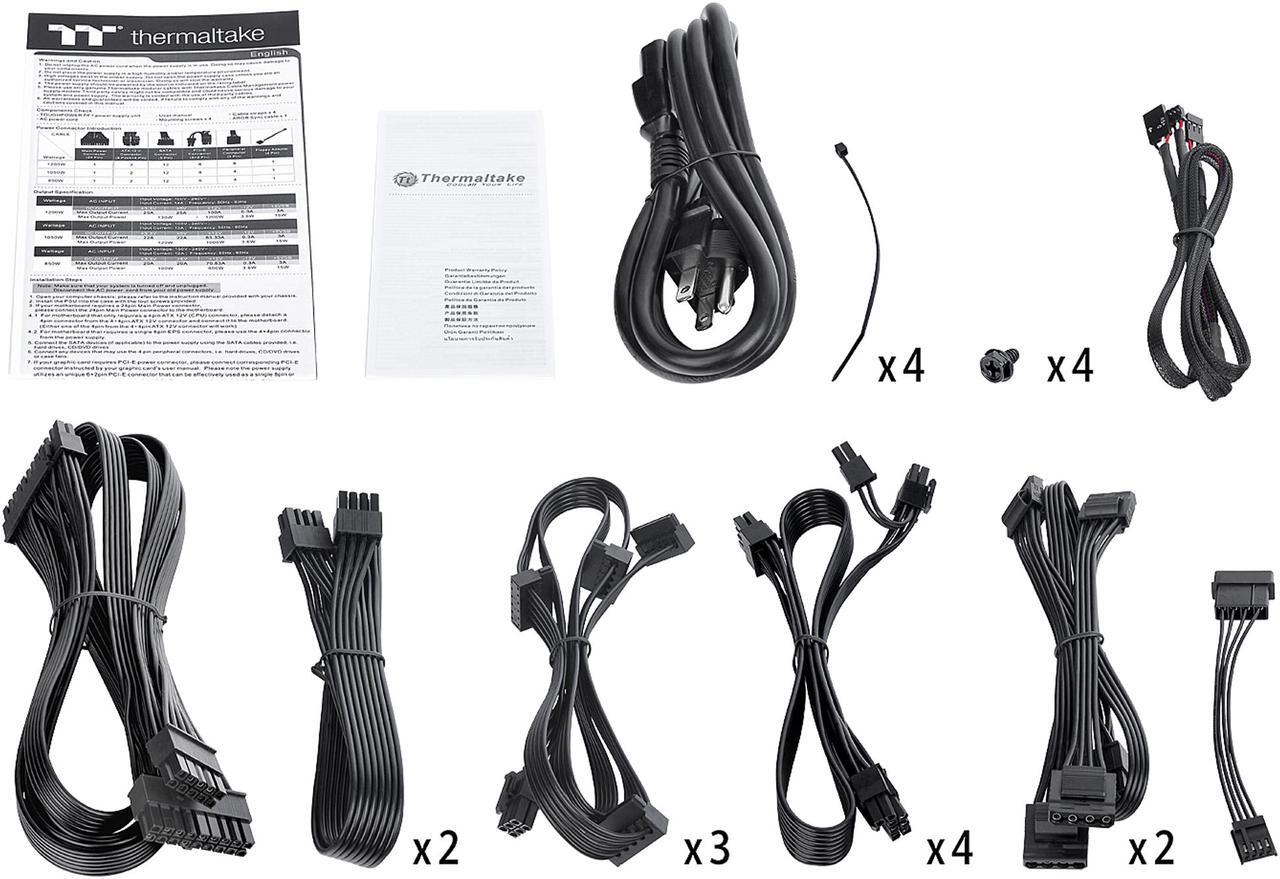

| Connectors | 1 x 24Pin Mian Power 2 x ATX 12V (4+4Pin) 12 x SATA (5Pin) 8 x PCI-E (6+2Pin) 8 x Peripheral (4Pin) 1 x Floppy Adapter |

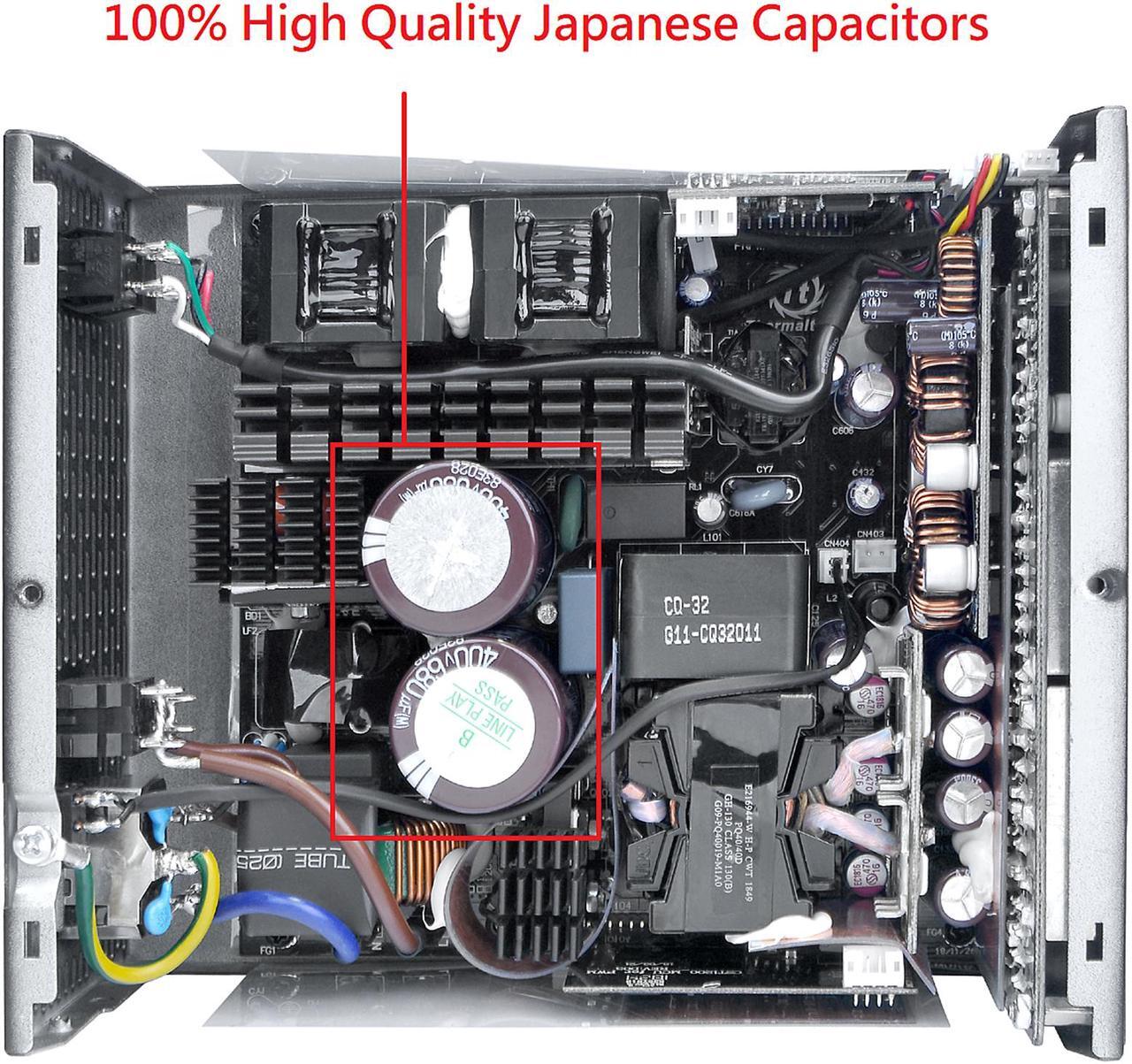

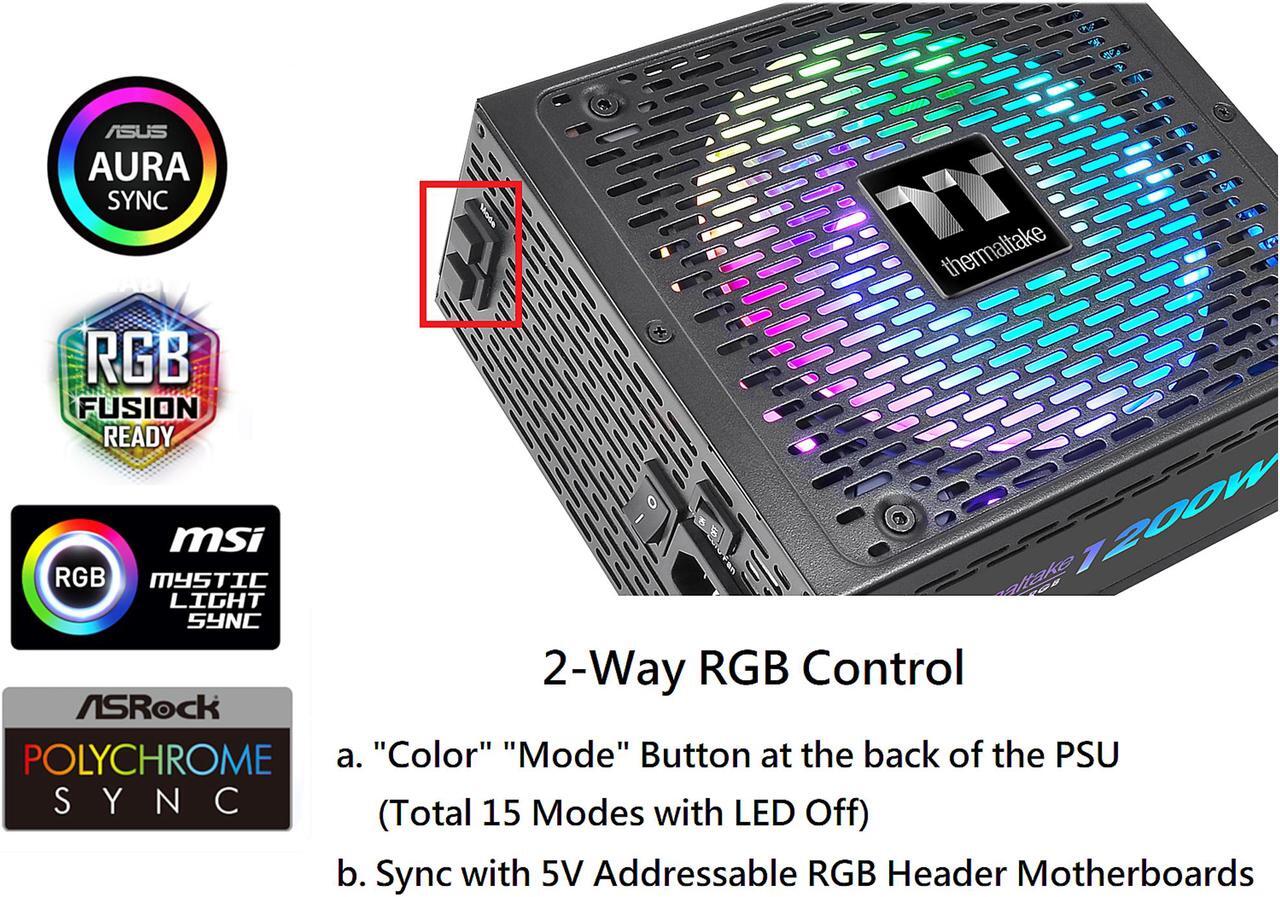

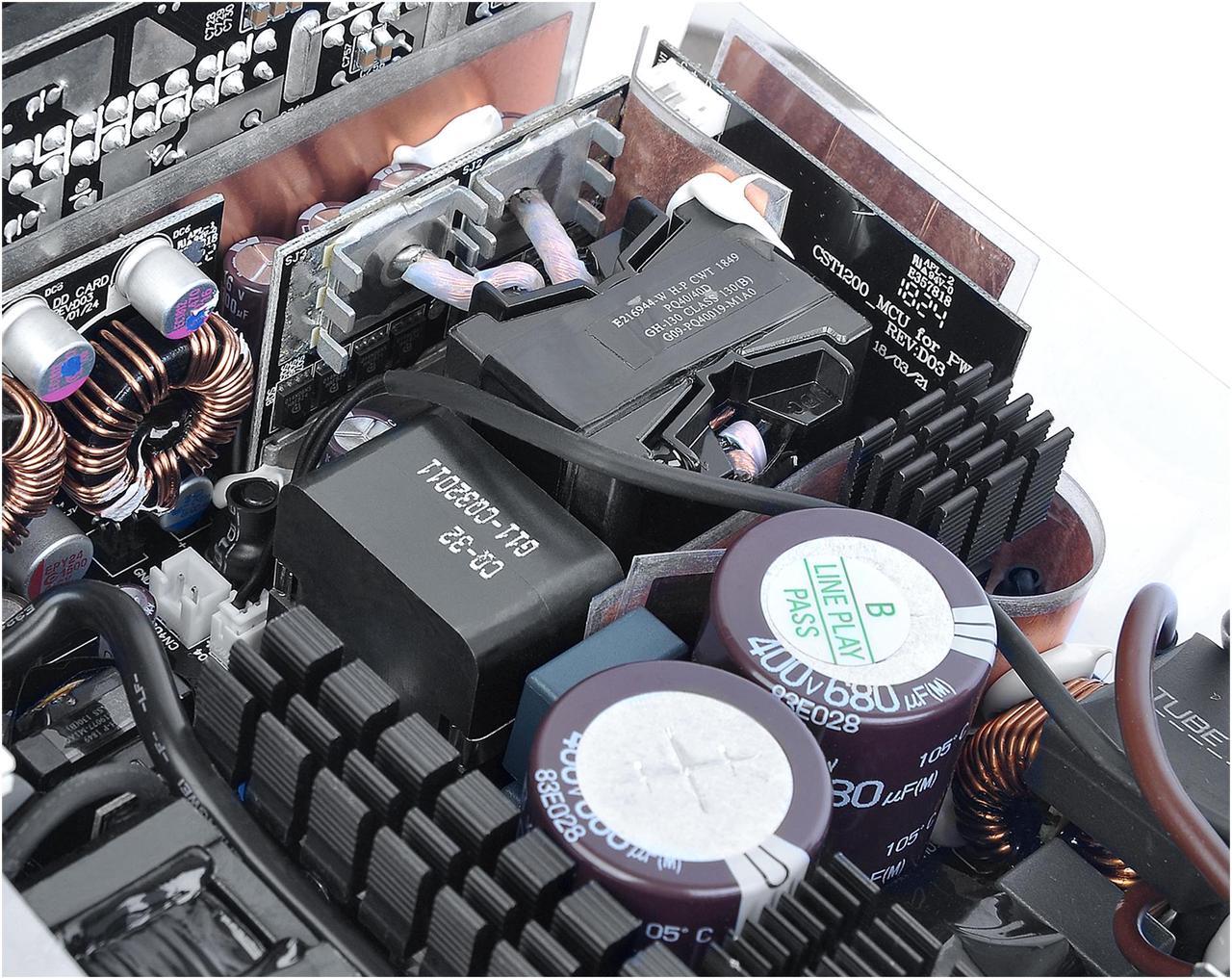

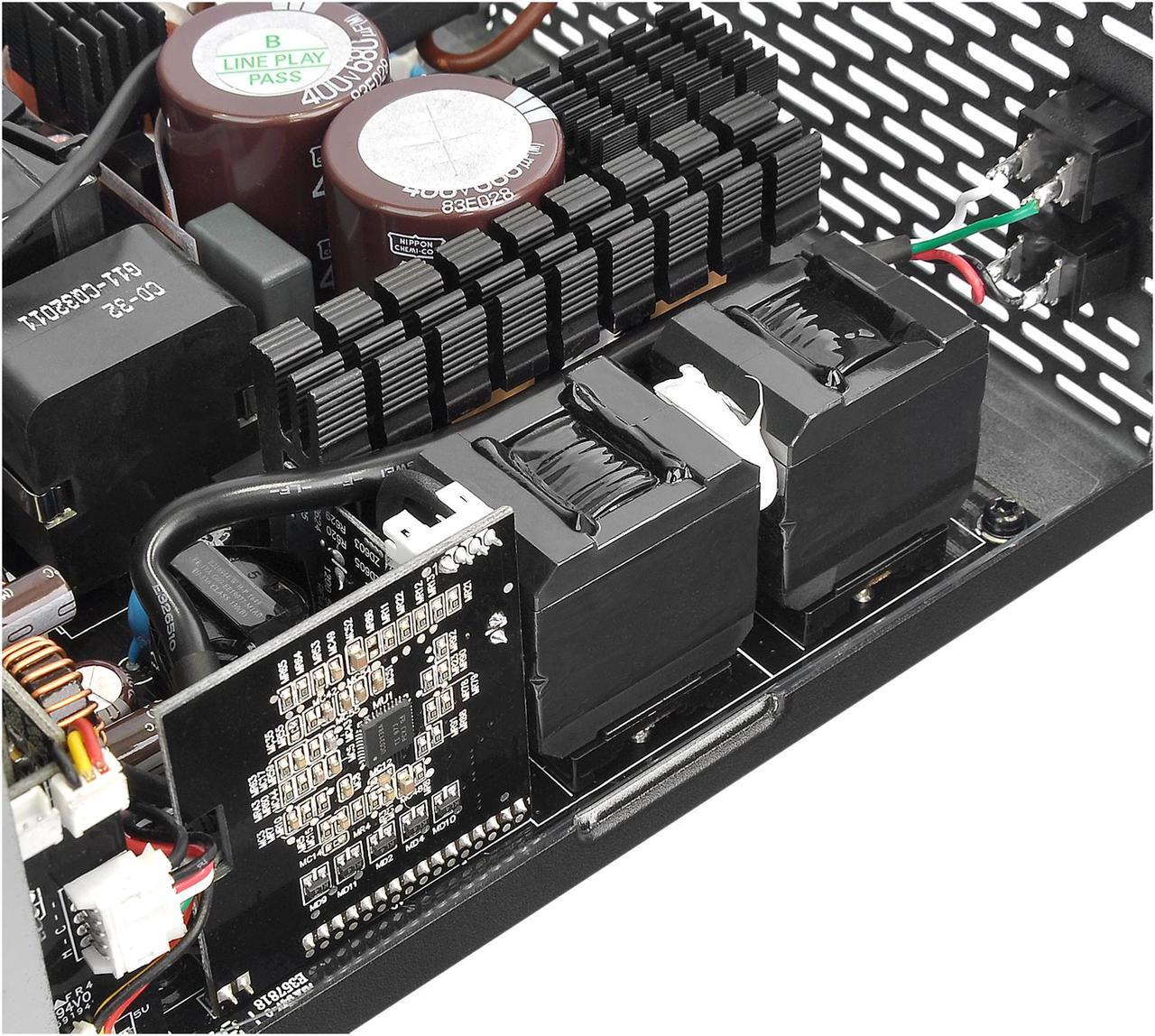

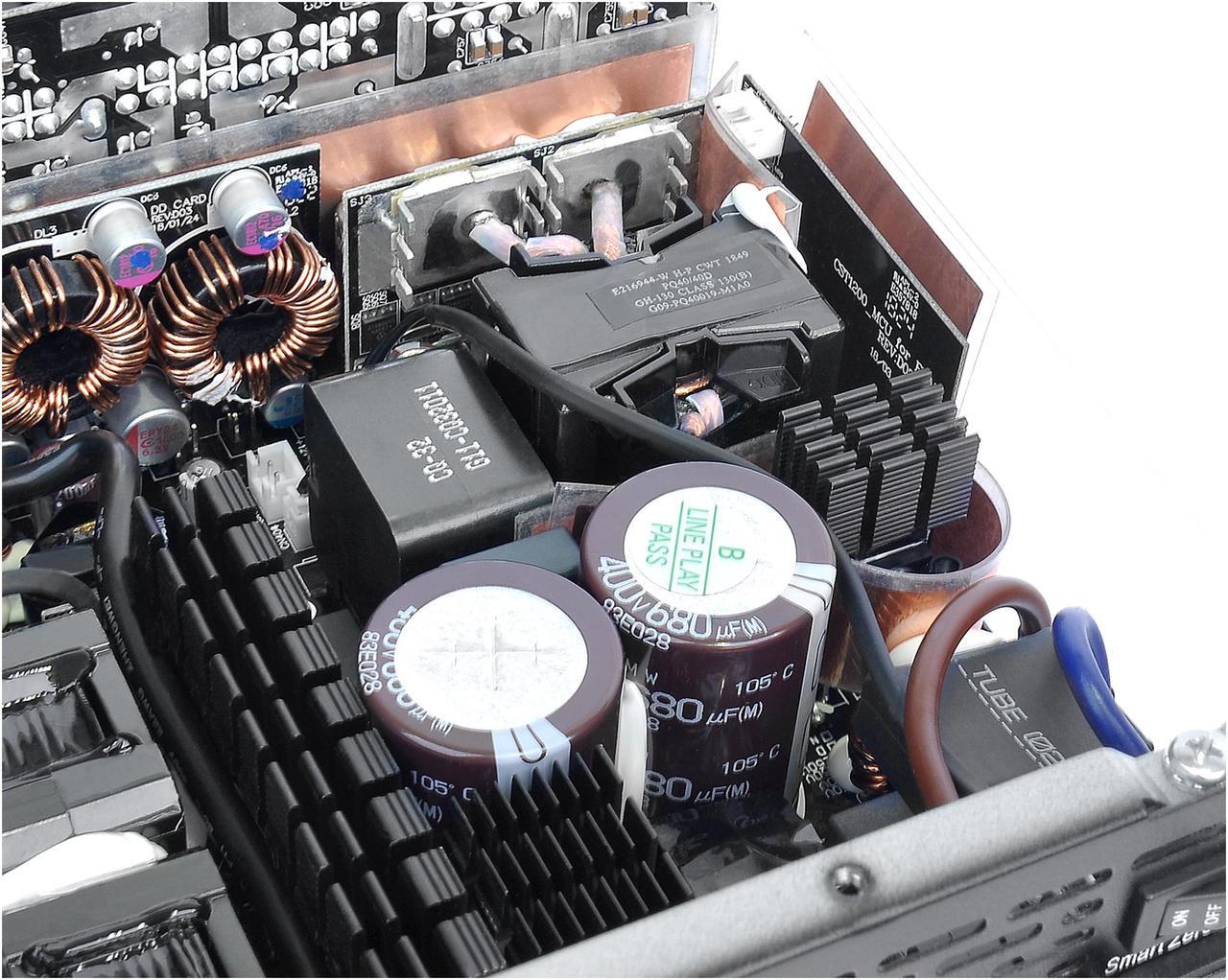

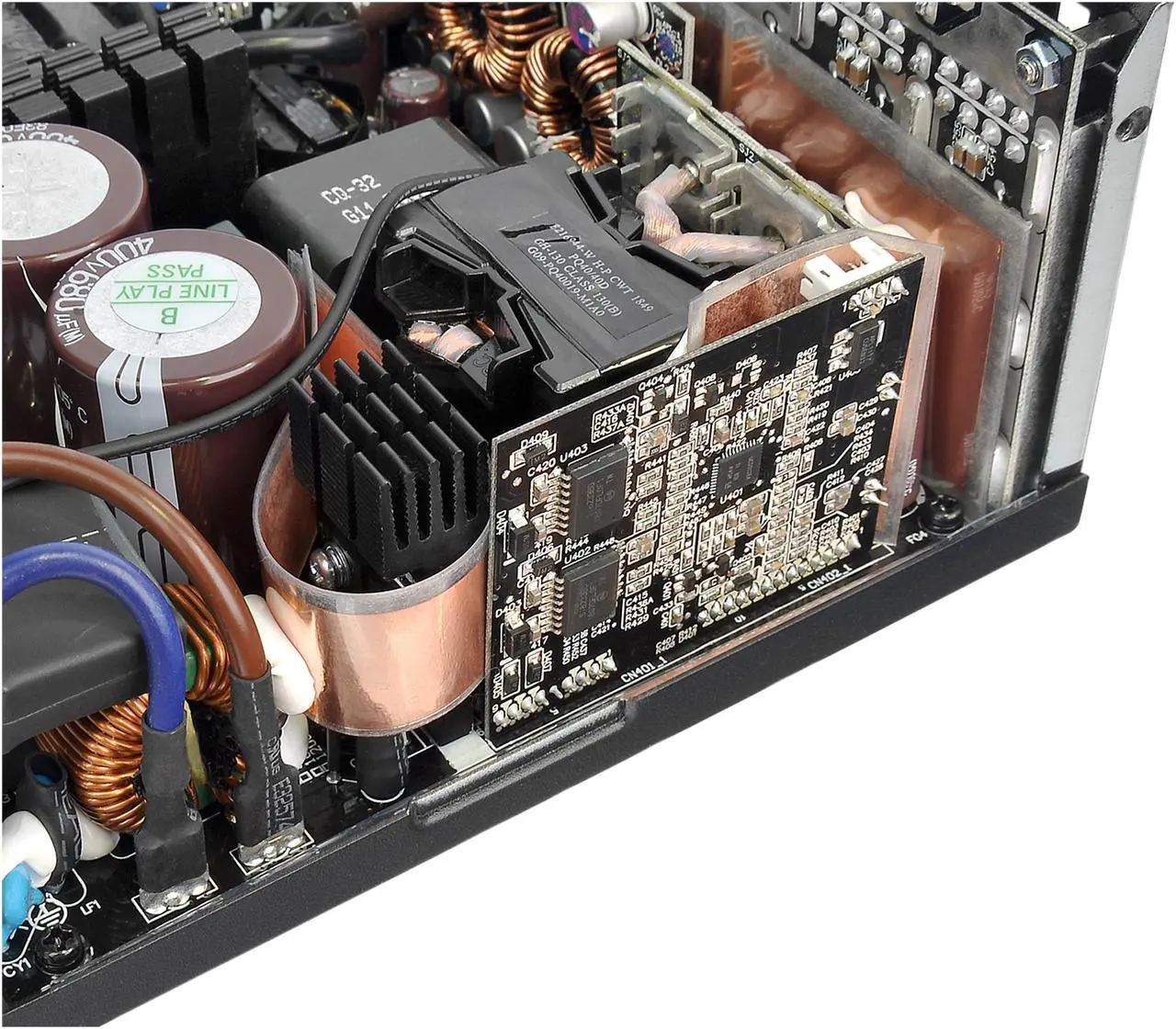

| Features | The built-in Riing Duo 14 RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors. Show off the glamorous illumination through the unique ARGB Side Panel design and add the Wow factor to you build. Sync with Motherboard RGB Software Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality With Smart Zero Fan starting to operate when the power supply working load goes over 40%, the undesired noise will be minimized. A user-friendly switch is set on the back panel for those who prefer the fan to spin constantly. All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure an excellent performance and a reliable operation. 100% High Quality Japanese 105°C/221°F Capacitors Fully Modular Low-profile Flat Black Cables High Amperage Single +12V Rail Design 80 PLUS Platinum Certified and Intel C6/C7 States Ready |
|---|

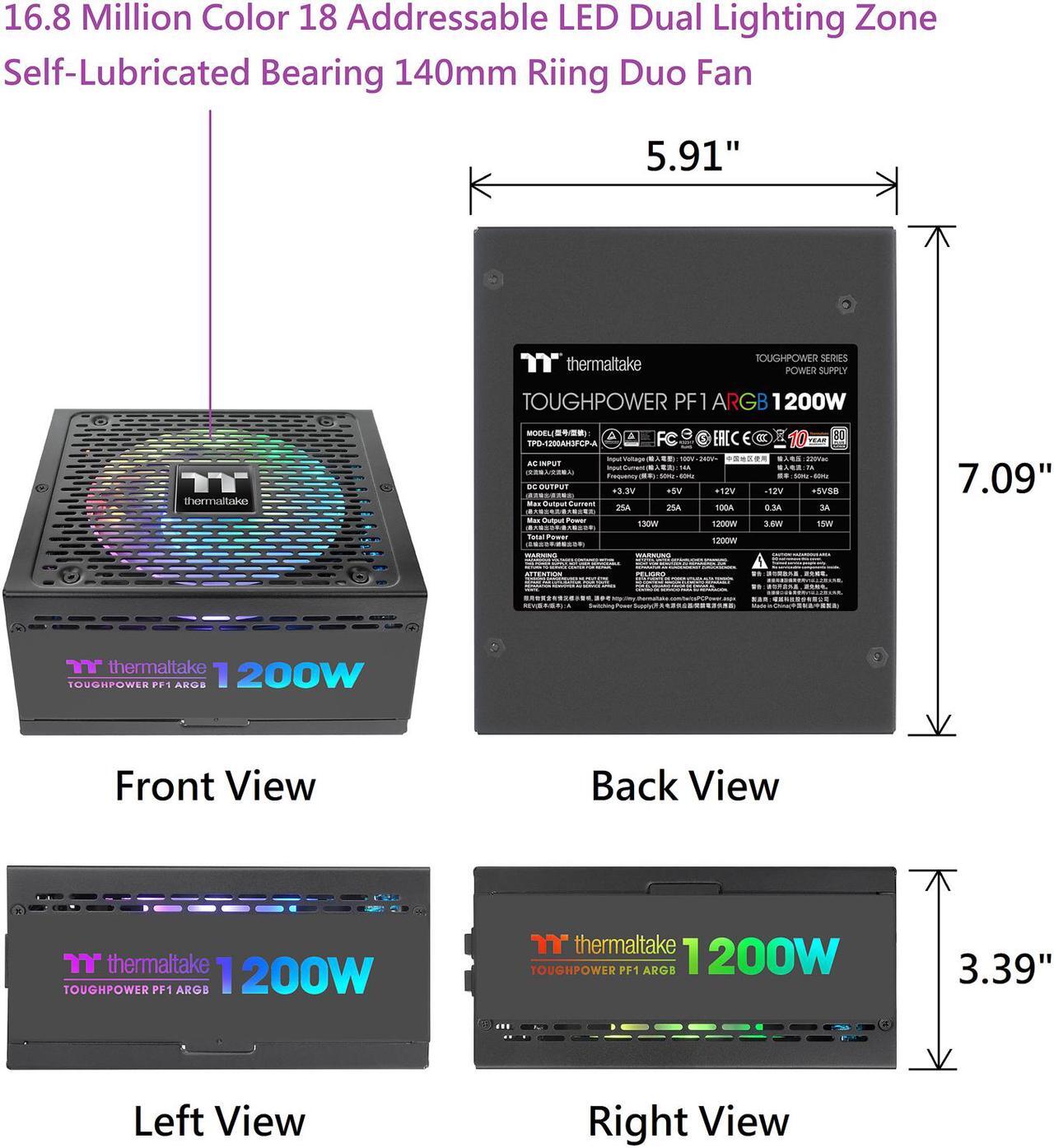

| Dimensions | 3.39" x 5.91" x 7.09" |
|---|
| Date First Available | November 15, 2023 |
|---|
