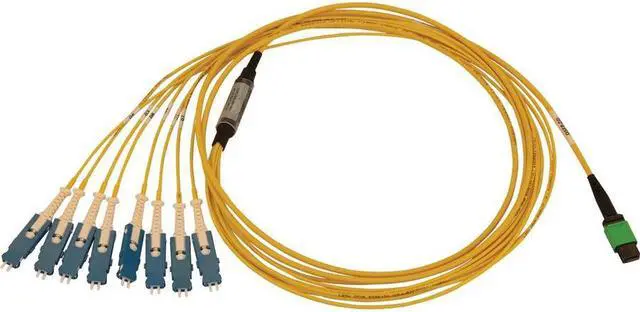

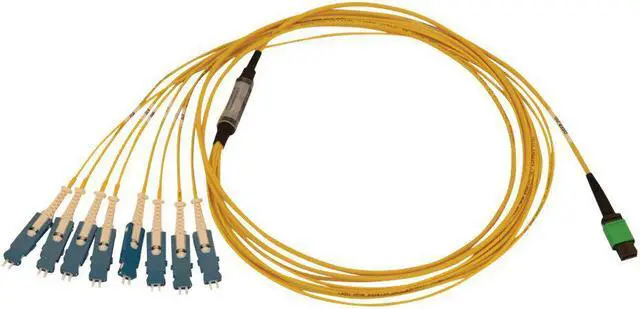

Tripp Lite N390-02M-8S-AP 40/100/400G Singlemode 9/125 OS2 Breakout Fiber Optic Cable (16F MTP/MPO-APC to 8x Duplex SN-UPC F/M), LSZH, Yellow, 2 m (6.6 ft.)
- 9 Connector Number
- Yellow
- Female to Male
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Tripp Lite N390-02M-8S-AP
| Brand | Tripp Lite |
|---|---|
| Model | N390-02M-8S-AP |
| Type | Fiber |
| Type | Others |
| Color | Yellow |
| Length | 6.56 ft. |
|---|---|
| Connector Number | 9 |

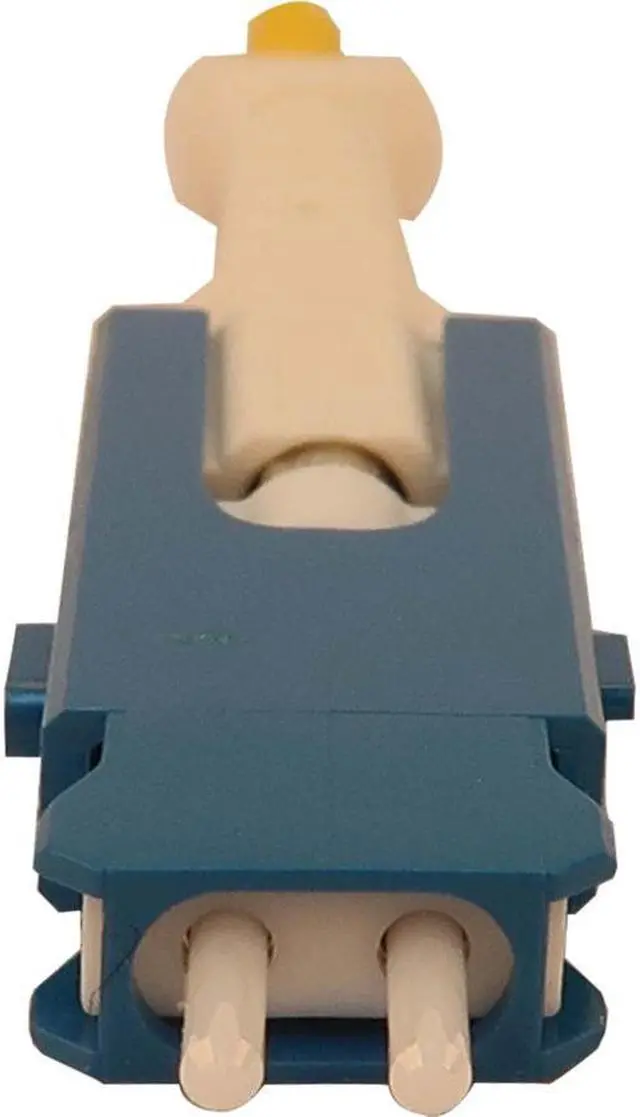

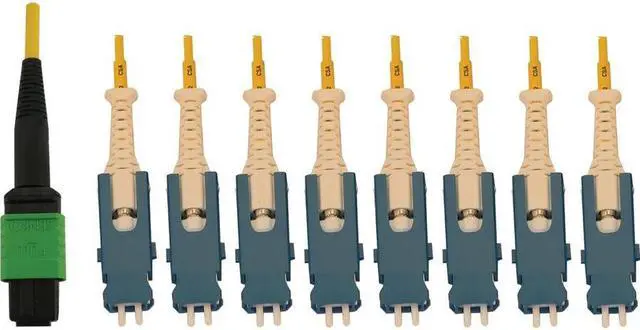

| Connector Detail | Side A - Connector 1: 16-STRAND MTP/MPO (FEMALE) Side B - Connector 1: (8) SN DUPLEX (MALE) |
| Terminal Gender | Female to Male |
| Specifications | OVERVIEW Technology: Singlemode Optical Mode: OS2 Mode Type: Singlemode PHYSICAL Cable Jacket Color: Yellow Connector Color: Black; Blue; Green; White Cable Jacket Material: LSZH Cable Jacket Rating: OFNR Cable Outer Diameter (OD): 3.0MM Clad Diameter (microns): 125.0 Core Diameter (microns): 9.0 Primary Coating Diameter (microns): 245.0 Number of Fibers: 16 Minimum Bend Radius: 20MM (DYNAMIC); 10MM (STATIC) ENVIRONMENTAL Operating Temperature Range: 14 TO 140 F (-10 TO 60 C) Storage Temperature Range: 14 TO 140 F (-10 TO 60 C) Operating Humidity Range: 5% TO 85% RH, NON-CONDENSING Storage Humidity Range: 5% TO 85% RH, NON-CONDENSING COMMUNICATIONS Network Compatibility: 40 Gbps; 100 Gbps; 400 Gbps Wavelength: 1310nm; 1550nm Attenuation @ 1310NM: 0.40dB/KM Attenuation @ 1550NM: 0.30dB/KM Insertion Loss: MTP/MPO: <0.70dB; SN: <0.30dB CONNECTIONS Endface Polish: APC; UPC FEATURES & SPECIFICATIONS Optical Port: MPO/MTP; SN Breakout: Yes STANDARDS & COMPLIANCE Product Certifications: UL 1651 Product Compliance: RoHS; CE (Europe); REACH |
| Features | 40/100/400 GbE Ethernet cable supports high bandwidths necessary for next-gen cloud services, hyperscale data centers and telecom carriers. Duplex SN connector optimized for the latest 400 Gb OSFP/QSFP-DD transceivers Space-saving SN plug is 4x smaller than duplex LC for easier cable management MTP/MPO APC connector minimizes back reflection with low insertion loss Backward compatible with 40/100 Gb networks to facilitate future-proofing Yellow LSZH jacket allows fast, easy identification in a crowded switch or patch panel |
|---|
| First Listed on Newegg | May 16, 2022 |
|---|
