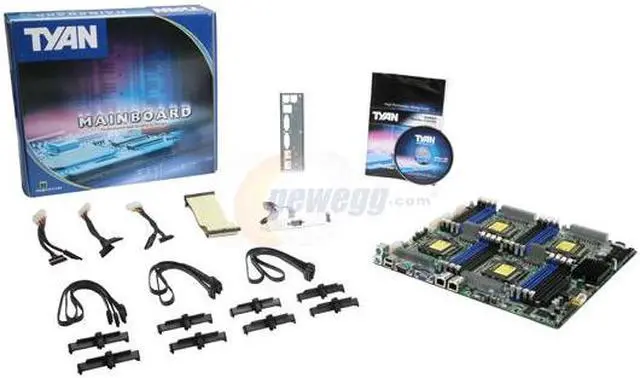

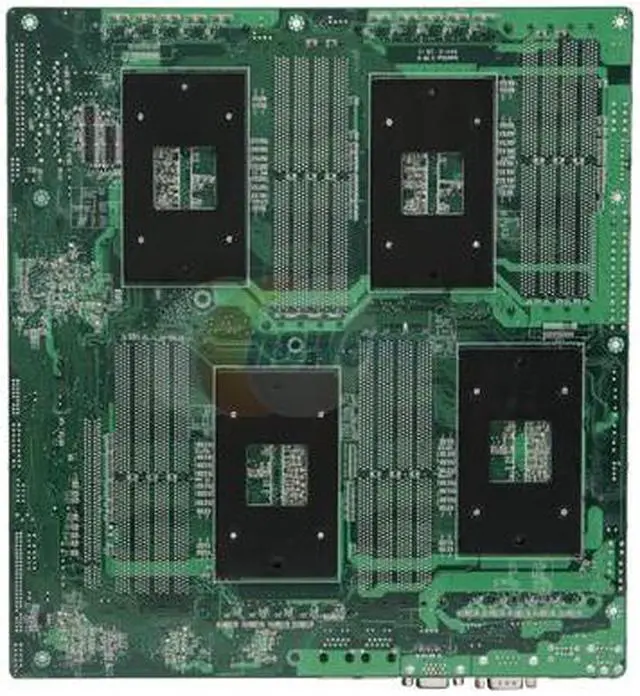

TYAN S4980G2NR Thunder n3600QE Quad 1207(F) NVIDIA nForce Professional 3600 Extended ATX Four AMD Opteron (Rev.F) 8000 series Server Motherboard
- Quad 1207(F)
- NVIDIA nForce Professional 3600 SMSC SCH5017
- 16 x 240Pin
+
+
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S4980G2NR
| Brand | TYAN |
|---|---|
| Model | S4980G2NR |
| CPU Socket Type | Quad 1207(F) |
|---|---|
| CPU Type | Four AMD Opteron (Rev.F) 8000 series |
| System Bus | Up to 1.0GHz Hyper-Transport link support |
| North Bridge | NVIDIA nForce Professional 3600 |
|---|---|
| Other Chipset | SMSC SCH5017 |
| Number of DDR2 Slots | 16 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x16 | 1 x PCI-E x16 slot (2nd slot, 2x controller) |
|---|
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | 0/1/0+1/5 JBOD |
| Onboard Video Chipset | XGI Volari Z7 |
|---|
| LAN Chipset | Marvell 88E1116 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Marvell 88E1116 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | May 10, 2019 |
|---|
