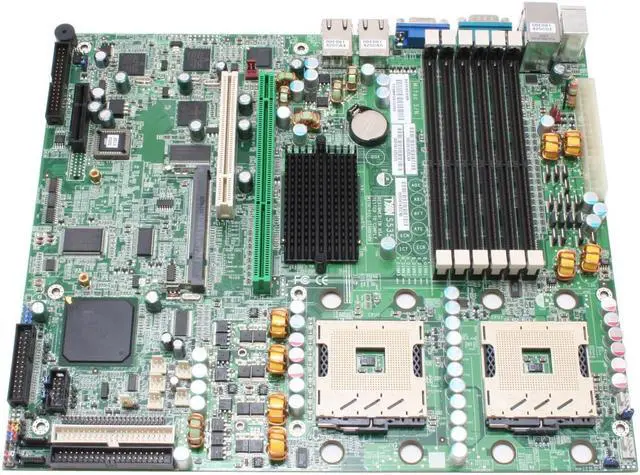

    TYAN S5353G3NR SSI CEB Server Motherboard Dual mPGA604 Intel E7320 DDR2 400

    (1) Write a Review
    • Dual mPGA604
    • Intel E7320 SMSC DME1737 LPC super I/O chip
    • 6 x 240Pin
    +
    +
    Specs
    Reviews (1)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the TYAN S5353G3NR

    Model
    Brand TYAN
    Model S5353G3NR
    Supported CPU
    CPU Socket Type Dual mPGA604
    CPU Type Dual Intel Xeon
    System Bus 800 MHz
    Chipsets
    North Bridge Intel E7320
    South Bridge Intel 6300ESB
    Other Chipset SMSC DME1737 LPC super I/O chip
    Memory
    Number of DDR2 Slots 6 x 240Pin
    DDR2 Standard DDR2 400
    Maximum Memory Supported 12GB
    Channel Supported Dual Channel
    ECC Supported Yes
    Registered Yes
    Expansion Slots
    PCI Express x16 None
    PCI Express x4 1 x PCI Express x4
    PCI-X Slots (64-bit 66MHz) 1
    PCI Slots 1 x PCI Slot
    Other Slots One Tyan TARO SO-DIMM socket
    Storage Devices
    PATA 2 x ATA 100 4 Dev. Max
    SATA 2 x SATA 1.5Gb/s
    SATA RAID 0/1
    Onboard Video
    Onboard Video Chipset XGI Volari Z7
    Onboard LAN
    LAN Chipset Broadcom BCM5721
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Broadcom BCM5705(W)
    Second LAN Speed 10/100/1000Mbps
    Third LAN Chipset Intel 82551QM
    Third LAN Speed 10/100Mbps
    Max LAN Speed 2 x 1Gbps + 100Mbps
    Rear Panel Ports
    PS/2 2
    COM 1
    Video Ports 1
    USB 1.1/2.0 2 x USB 2.0
    Onboard Ports
    Onboard USB 2 x USB 2.0
    Dimensions
    Form Factor SSI CEB
    Dimensions (W x L) 12.0" x 10.2"
    Packaging
    Package Contents S5353G3NR
    User Manual
    Software Disk

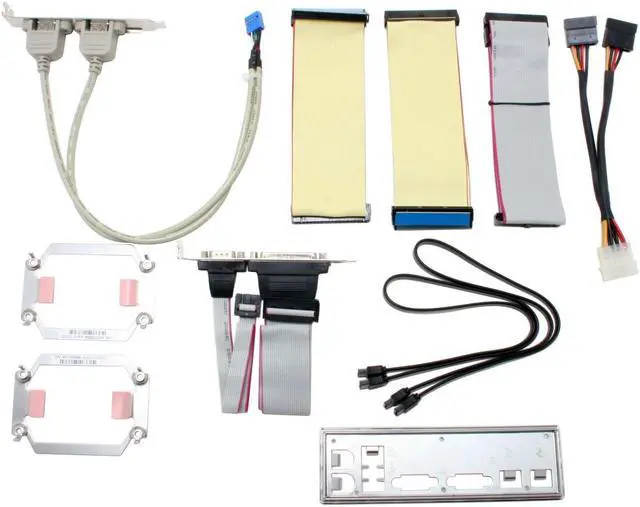

    2 x IDE Cable
    FDD Cable
    Power Cable
    LPT and COM Port Bracket
    2 x SATA Cable
    Rear I/O Panel Shield
    Other Accessories
