Name: Ubiquiti Standard 48 PoE, 48-port Layer 2 PoE Switch (USW-48-POE (195W))
Brand: Ubiquiti Networks
SKU: 0XP-000A-00565
Price: 589.00 USD
Availability: InStock
Rating: 5 (3 reviews)

Ubiquiti Standard 48 PoE, 48-port Layer 2 PoE Switch (USW-48-POE (195W))

Model: Standard 48 PoE

Standard 48 PoE
Standard 24 PoE
Standard 16 PoE
Standard 48
Standard 24

Fiber Connectivity: SFP ports enable network uplinks of up to 1 Gbps.
Fanless, Silent Cooling: The UniFi PoE Switch features fanless, silent thermal cooling, so it can be deployed in areas where fan noise would be distracting.
Switching Performance: The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
802.3af/at PoE: PoE support simplifies your network infrastructure and cabling. PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras.

Standard 48 PoE

USW-48-POE

Layer 2 Switch

Fanless Design: The Standard 48 PoE switch offers clean and silent operation.
Value Switch: Ideal for medium to large networks requiring PoE+ support.
PoE+ Support: Deploy easily with power and data in one cable.

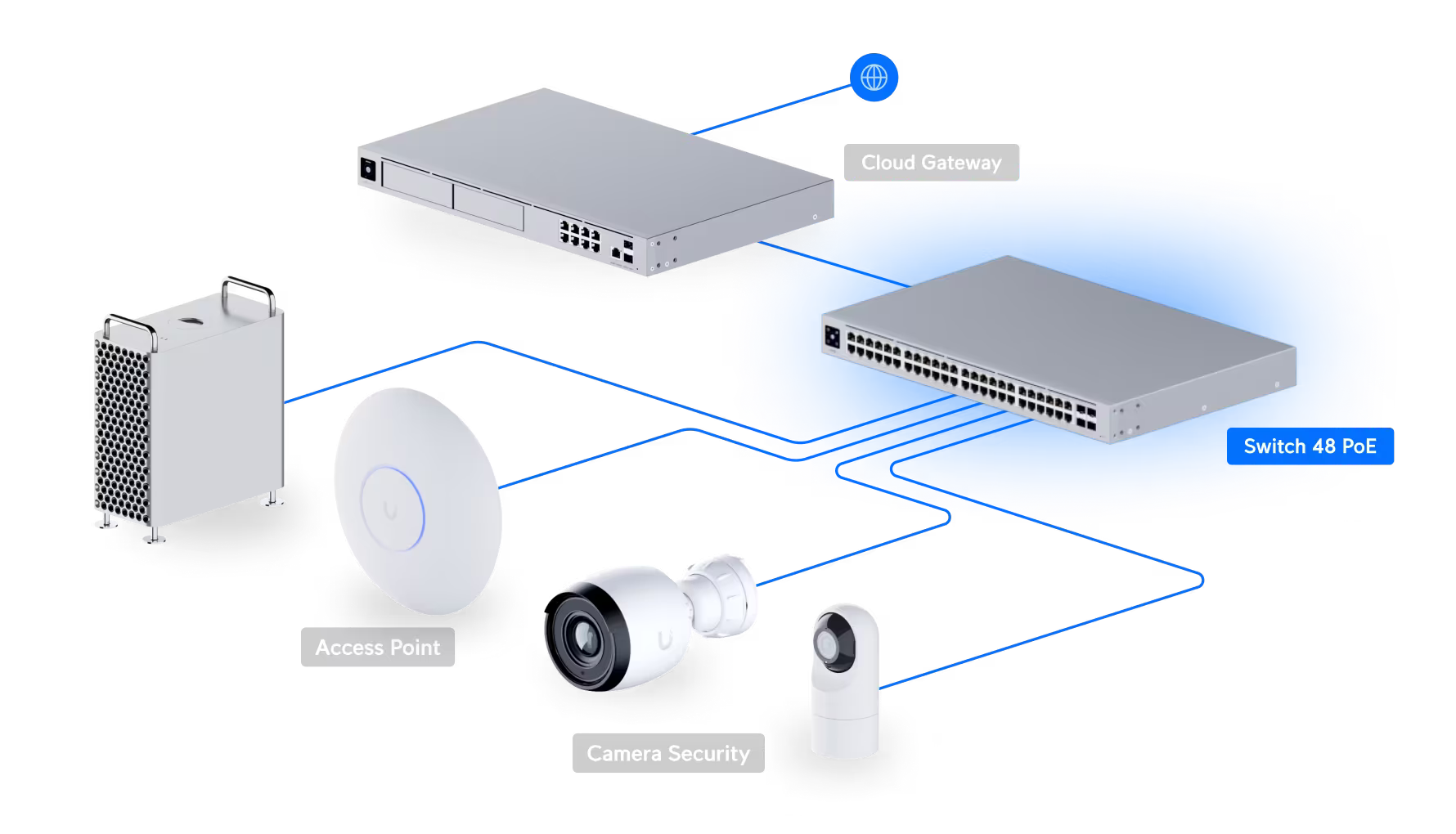

Deployment

The Standard 48 PoE switch offers seamless deployment, ideal for devices such as access points and security cameras.

Package Content

Included:

(1) Switch
(1) Mounting Accessories

Product Comparison

	Aggregation Designed for 10G SFP+ connections	Standard 48 PoE 48-port (32 PoE+) L2 PoE switch with fanless cooling	Standard 48 48-port L2 PoE switch with fanless cooling	Standard 24 PoE 24-port (16 PoE+) L2 PoE switch with fanless cooling	Standard 24 24-port L2 PoE switch with fanless cooling
Dimensions	442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")	442 x 285 x 44 mm (17.4 x 11.2 x 1.7")	442 x 285 x 44 mm (17.4 x 11.2 x 1.7")	442 x 200 x 44 mm (17.4 x 7.9 x 1.7")	442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
Port Count	8	48	48	24	24
Downlink Speed	10 Gbps	1 Gbps	1 Gbps	1 Gbps	1 Gbps
Uplink Speed	10 Gbps	1 Gbps	1 Gbps	1 Gbps	1 Gbps
PoE Output	-	Up to PoE+	-	Up to PoE+	-
PoE Availability	-	195 W	-	95 W	-

Format	Rackmount
Network Management Type	Managed

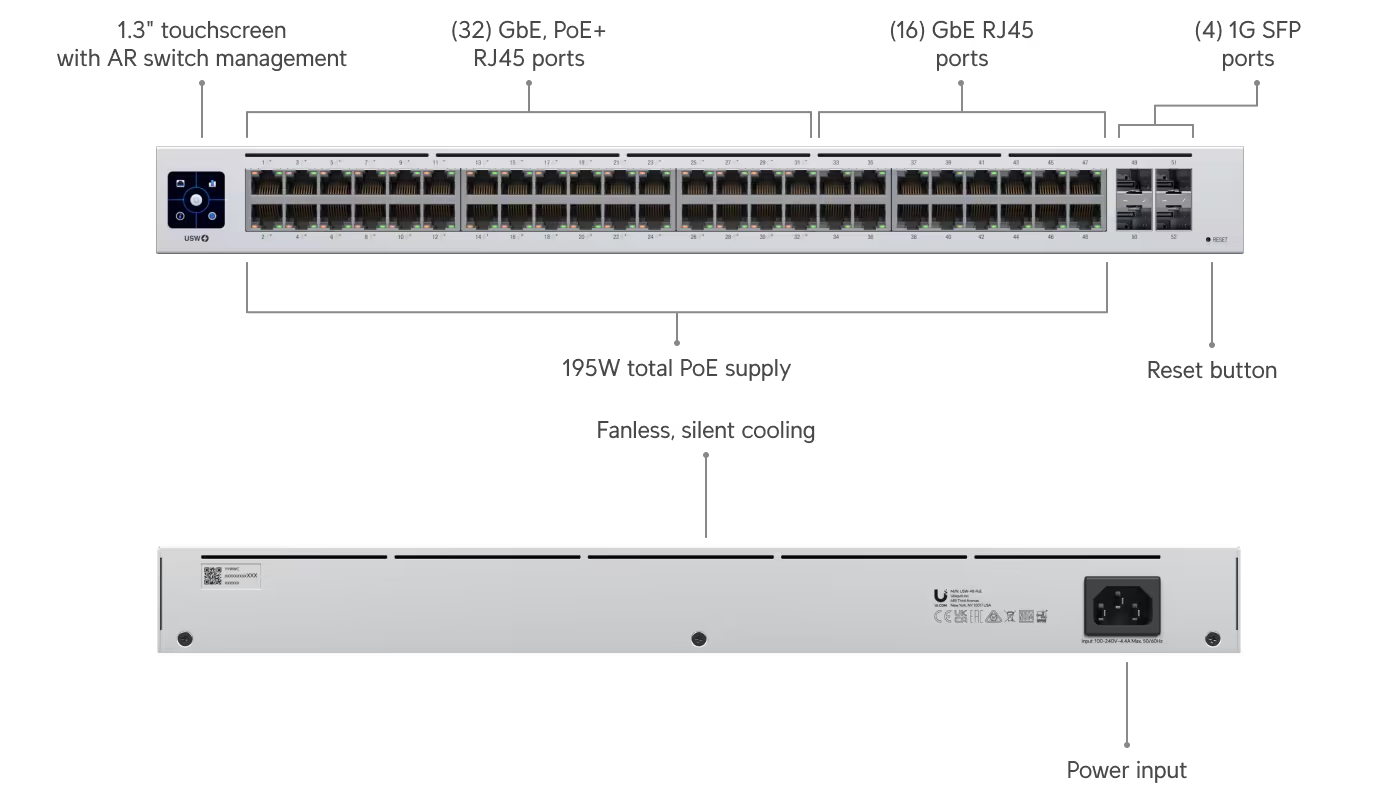

Primary Ports	48 x RJ45 + 4 x SFP
Primary Port Speed	Total non-blocking throughput 52 Gbps Switching capacity 104 Gbps Forwarding rate 77.38 Mpps
Primary Port Type	(48) GbE RJ45 ports (4) 1G SFP ports

Management Interface	Ethernet In-Band
VLAN Support	Yes
Jumbo Frames	Yes

PoE	Yes
Layer	2
Layer 2 Features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Port Mirroring	Yes
LEDs	System Status Ethernet PoE Speed/link/activity SFP Link/activity

PoE Ports	(32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
PoE Power Budget	195W
Power	Universal input, 100—240V AC, 50/60 Hz
Max Power Consumption	45W (Excluding PoE output)
