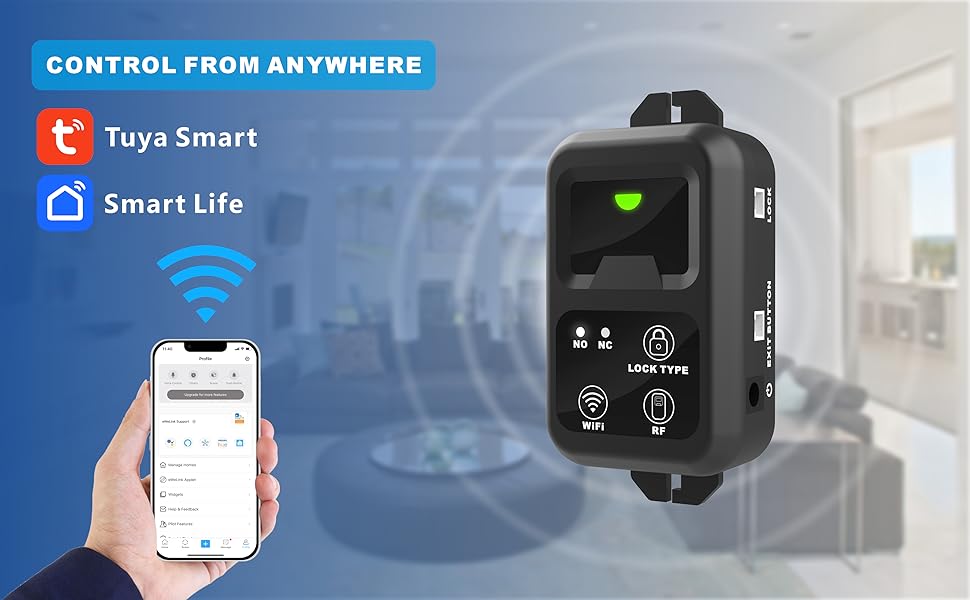

TUYA SMART or Smart Life APP
- Smartphone remote control from anywhere at anytime
- Phone APP remotely control the device and manage users from anywhere
- View door opening records

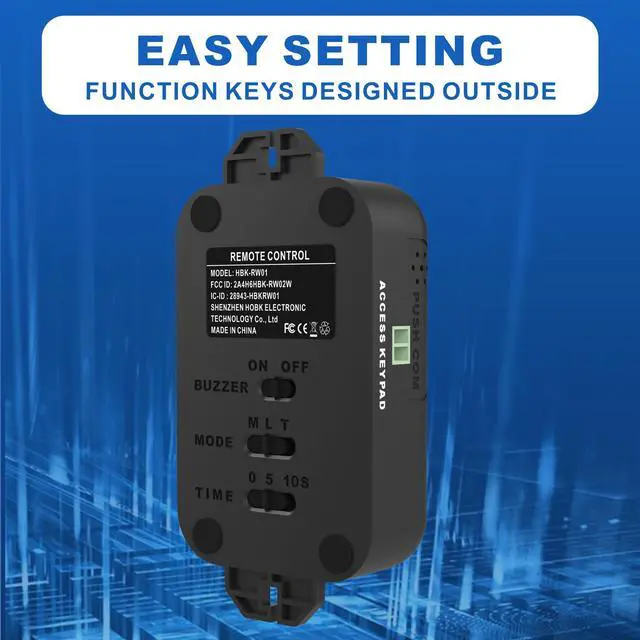

EASY SETTINGS
- Human friendly: Function switches designed outside the device, easy to set the sound effects, working mode and delay time.
- Sound effects feedback: Built-in buzzer provides feedback on operation and can be turned off as needed.
- Expansion port: The expansion port support to add a access control keypad. Please search ASIN B00UX03JCS, B00X56ALEG or B00UX03A7W to get the keypad.

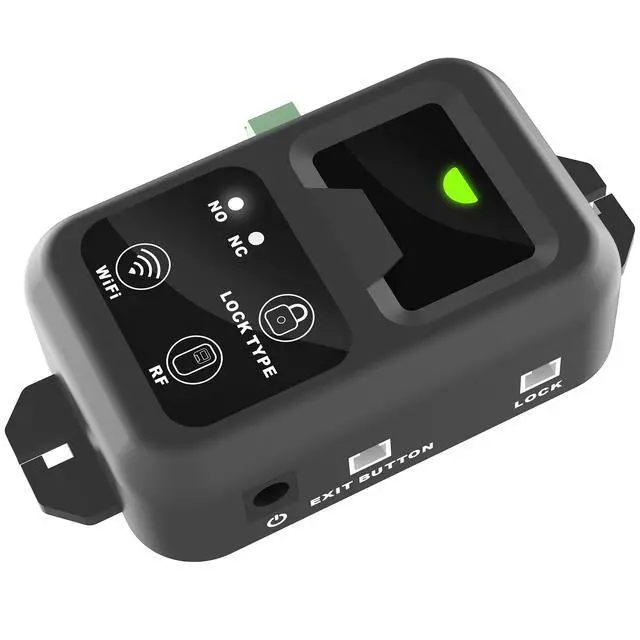

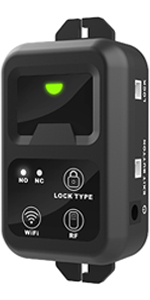

Wi-Fi REMOTE CONTROL RECEIVER
- Working Voltage: 12VDC
- WIFI Standard: Wi-Fi 2.4GHz
- Frequency: 433.92MHz
- RF Channels: 1
- DC Encoding Type: Learning code
- Transmitter Support: Max. 40
- Firing Range: 160 feet (open) in theory, 15%-30% in reality
- Working Mode: Momentary/Toggle
- Built-in DC power connector, wiring easy
- Modulation: OOK/ASK (Less interference)

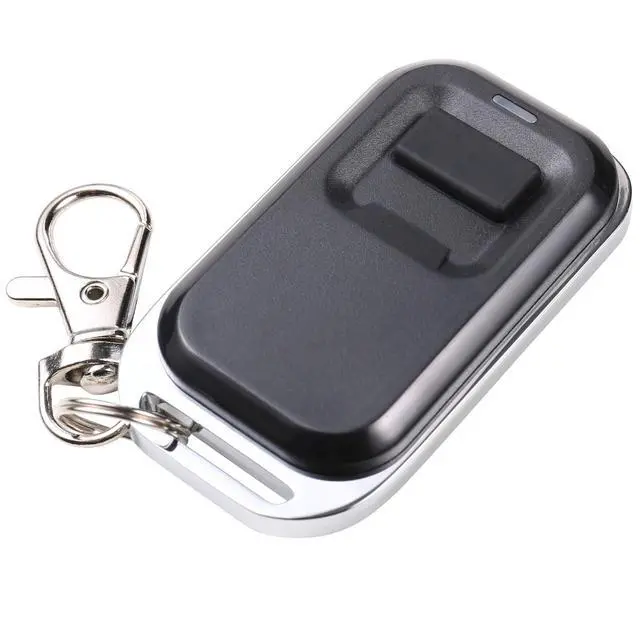

REMOTE TRANSMITTER
- Working Voltage: 6VDC
- Operating Current: 3mA
- Powerd By: 2 pcs CR2016 batteries (Built-in)
- Service Life of the Battery: 50000 cycles tests
- Transmitting Frequency: 433.92MHZ
- Case Material: ABS plastic
- Button: 1
- EncodingType: Fixed code
- Tips: Please search ASIN B07DVY4BB2 to get more transmitters.

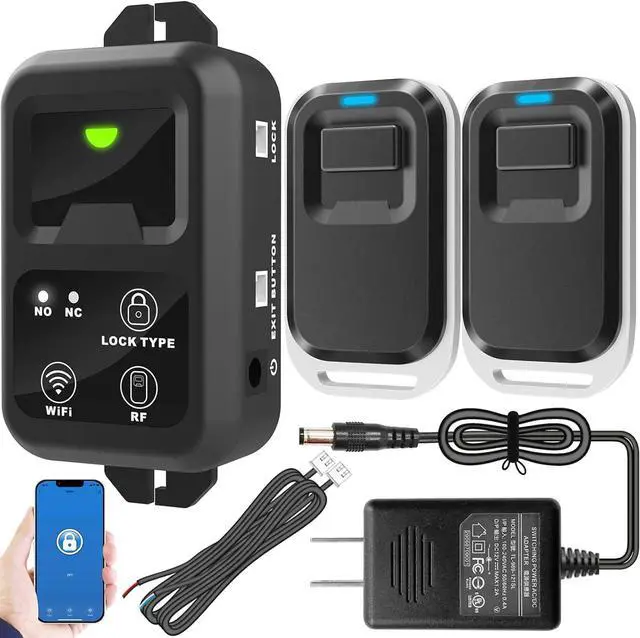

PACKAGE LIST
- 1 x Remote Control
- 2 x Transmitter
- 1 x Power Adapter
- 2 x Connection Cable
- 1 x English User Manual
Warm Tips
- This remote control is specialized for the access control lock and unable to be applied to other fields.
- Please search ASIN B07DVY4BB2 to get more Transmitters.

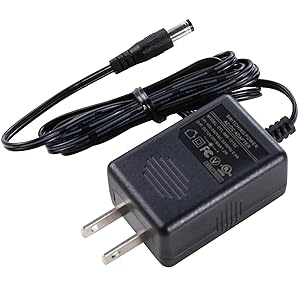

POWER ADAPTER
- Type: 12V/1A Power Supply Wall Charger
- Input: AC100V-240V 50/60Hz
- Max Output: DC12V / 1.2A (1200mA)
- AC Cord Length: 4 feet (1.2 meters)
- Wire Type: 22AWG
- Output Transformer Adapter : 5.5x2.1 mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
- Net Weight: 2.3oz (66g)

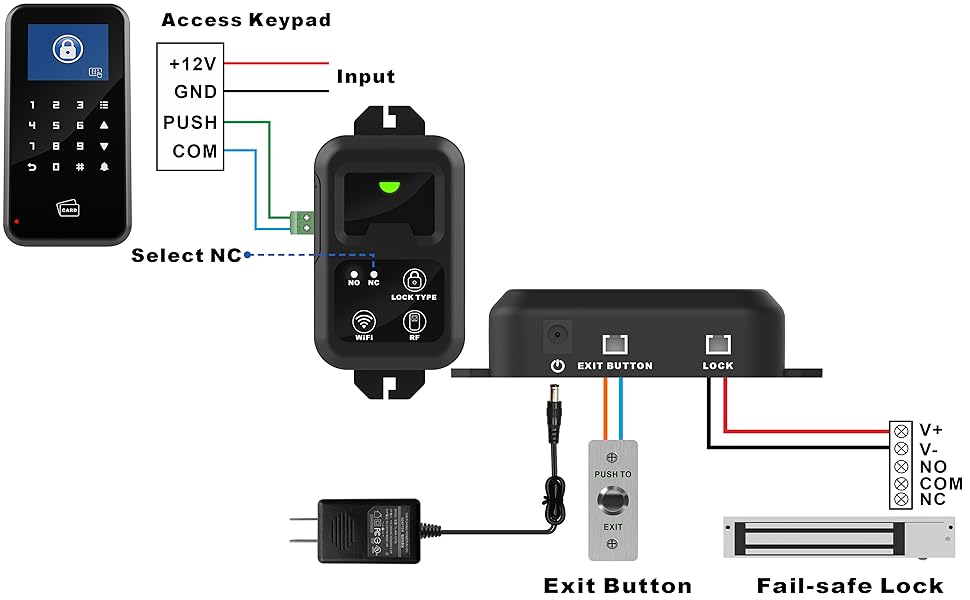

WIRING DIAGRAM
OPERATING SETTING
- Clear Code: Tap and hold RF icon for 8 seconds until the indicator changes from green to red, indicating the clear code is successful.
- Pairing Transmitter and Receiver: Tap RF icon followed by press the button on the remote transmitter within 20 seconds.
Warm Tips:
- Lock, exit button and access keypad shown on the diagram are not included.
APP INSTRUCTION
- Download “Tuya” or "Smart Life" app in APP Store for iOS or in Google play for Android.
- Cut off the power before installing the device. Then power it up after completing the installation.
- Tap and hold the WIFI icon for 8 seconds until the green LED flashing fast.
- The APP will auto-search and connect remote receiver around you.
- Input home WiFi SSID & password. (If no password, keep it blank).
- Tuya Smart will search the device and add it to your account, it takes 1-3 minutes. When this complete, you can give your device a name.

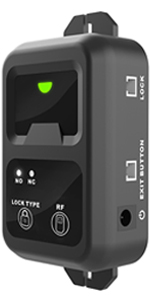

 433.92MHz Remote Control |  WI-FI Remote Control |  2.4-inch Touch Screen |  Supports External Buzzer | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| 433.92MHz RF | ? | ? | ? | ? |
| 2.4GHz Wi-Fi | no data | ? | ? | ? |
| TFT Screen | no data | no data | ? | no data |
| External Access Keypad | ? | ? | ? | no data |
| External Buzzer | no data | no data | no data | ? |
