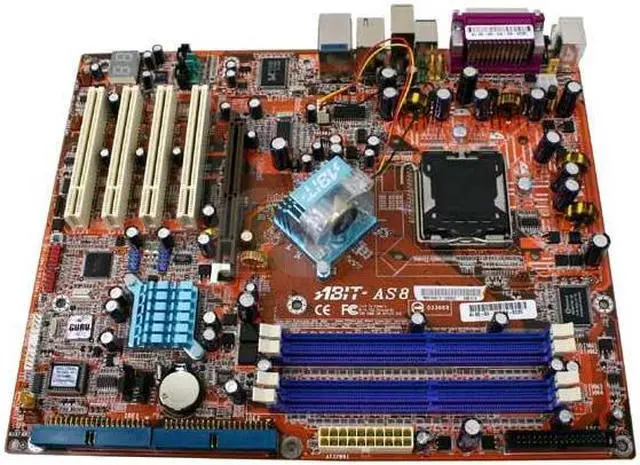

ABIT AS8 LGA 775 Intel 865PE ATX Intel Motherboard
- Intel 865PE
- Pentium 4 EE / Pentium 4 HT / Celeron D
- DDR 400
Specs
Reviews (20)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Universal abit USA AS8
| Brand | ABIT |
|---|---|
| Model | AS8 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium 4 EE / Pentium 4 HT / Celeron D |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 865PE |
|---|---|
| South Bridge | Intel ICH5R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 4 x PCI Slots |
| SATA RAID | 0/1/Matrix RAID |
|---|
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 100Mbps |
|---|
| Back I/O Ports | 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical |
| S/PDIF In | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 2 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 20 Pin |
| First Listed on Newegg | June 21, 2004 |
|---|
