VideoSecu Heavy Duty Tilt TV Wall Mount Bracket for most 26-60 inch Phillips JVC Insignia Seiki Changhong Westinghouse LCD LED Plasma Flat Panel Screens BG3

Video

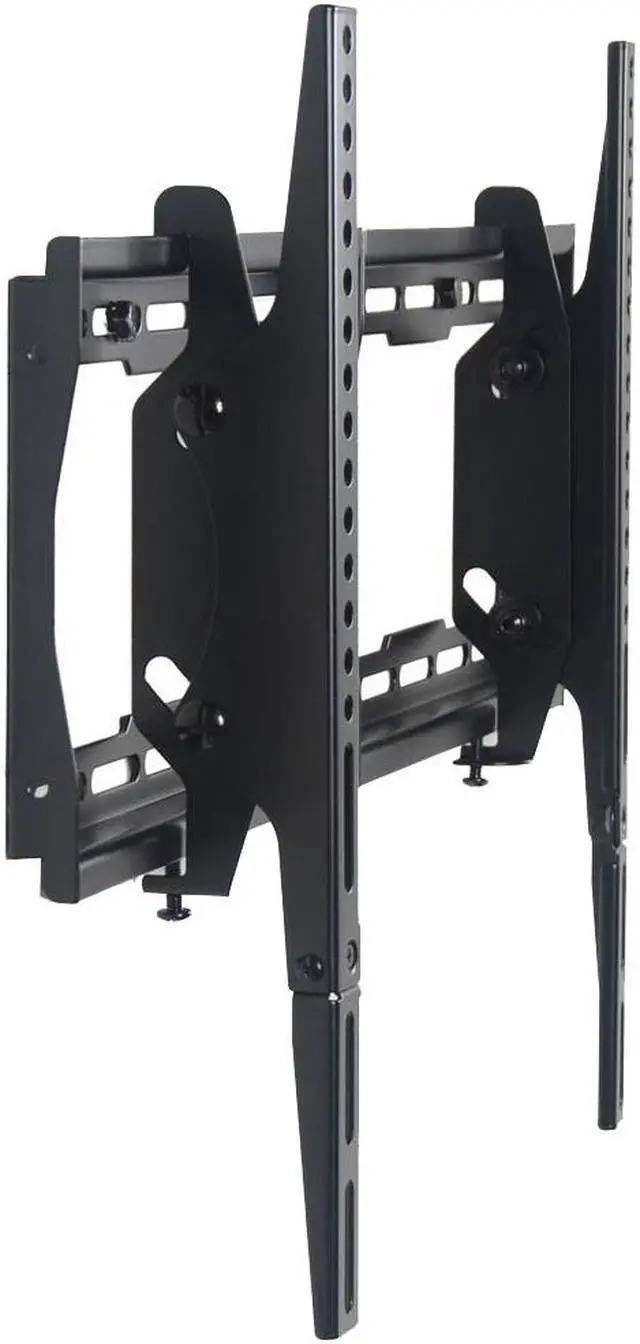

Secu supplies a wide selection of high-quality, well-designed and easy-installed mounts at cost-effective prices. The MF608B tilt TV wall mount fits most 26 - 58 inch LCD LED Plasmas, some LED screens up to 65 inch with VESA mounting hole pattern from 200x100mm up to 600x400mm. Heavy duty steel construction supports loading capacity up to 165lbs. Easy adjustable one touch tilt places flat panel displays in a perfect viewing angle without the use of tools. Lift and lock design secures the TV into place for additional safety. Cables and cords are easily managed behind the screen with large access ports in the wall plate.

For perfect screen positioning, center the screen by smoothly sliding it along the wall plates horizontal rails. Free 10ft HDMI cable and 6 inch 3-Axis Magnetic bubble level to save your money. Assembly required. Absolutely your best choice!

Technical Details:
*Fits TV size: most 26-58" TVs, some LED up to 65" (please check VESA and weight)

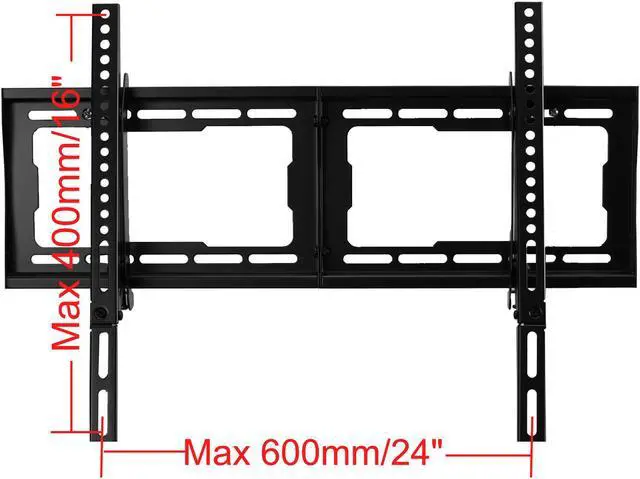

*Fits VESA mounting hole patterns: 600x400 /600x300 /500x300 /400x400 /400x300 /400x200 /300x300 /300x200 /200x200 /200x100mm or any hole patterns within 200-600mm wide and 100-400mm high
*Loading capacity: up to 165lbs / 75kg

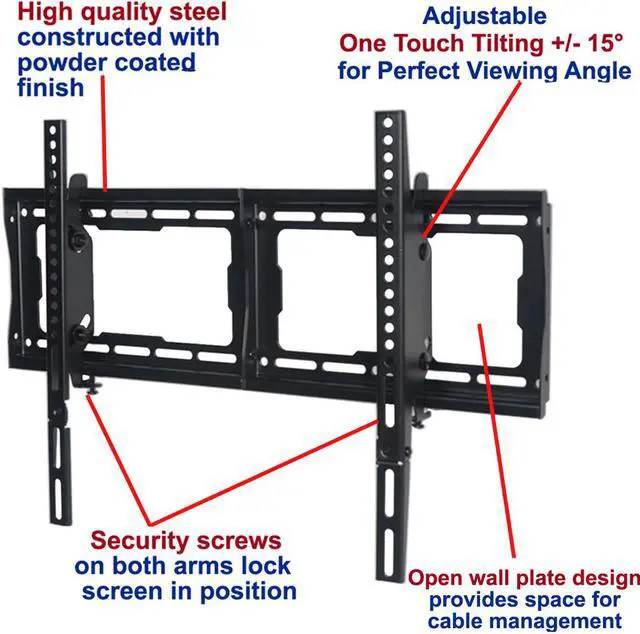

Features:
*Adjustable tilt: one touch tilt 15º forward or backward for perfect viewing angle without the use of tools
*Lift and lock system secures the TV into place for additional safety
*Horizontal movement adjustment for perfect screen positioning
*Cable management design: Cables and cords are easily managed behind the screen with large access ports in the wall plate
*Constructed with heavy duty steel with powder coated black finish
*Free 6" 3-axis magnetic bubble level for accurate and easy installation
*Note: This mount does not fit certain Panasonic Plasma TV from 42" with VESA 684x300mm

Package contents:
TV Mount, Free 10ft HDMI Cable, 6" 3-Axis Magnetic Bubble Level, Standard Mounting Hardware, User Manual

Please check the compatibility of the mount for your TV:

1. Please check the weight of your TV; it must be less than 165 lbs.

2. Look at the back of your TV, find the mounting holes and measure width and height, if the width is within 24", height is within 16", then the bracket will work perfect for you.
*Warning: This mount does not fit 65" or above TVs which were manufactured before 2013

It is compatible with the following displays as well as other TV brands, some models may not be listed:
For Insignia 32-50 inch TVs: NS-32D311NA15 NS-32D512NA15 NS-32DD310NA15 NS-32D201NA14 NS-32D310NA15 NS-32D510NA15 NS-37D20SNA14 NS-39D310NA15 NS-39D40SNA14 NS-39E400NA14 NS-39L240A1 NS-39L400NA14 NS-40D510NA15 NS-42D510NA15 NS-46D40SNA14 NS-48D510NA15 NS-50D550NA15
For JVC 32-65 inch TVs: JLC32BC3002 EM37T JLC37BC3002 EM39T JLC42BC3002 JLE42BC3500 SL42B-C EM42FTR LT-46AM73 JLC47BC3002 JLE47BC3500 SL47B-C EM48FTR BC50R SP50M-C JLE55SP4000 JLE55SP4000B SP55M-C DM65USR EM65FTR
For Phillips 32-65 inch TVs: 32PFL3508/F7 32PFL4908/F7 32PFL3506/F7 32PFL5708/F7 39PFL5708/F7 39PFL2608/F7 39PFL2708/F7 39PFL2908/F7 40PFL4609/F7 40PFL4909/F7 40PFL4708/F7 40PFL4908/F7 40PFL5708/F7 40PFL4707/F7 46PFL3608/F7 46PFL3708/F7 46PFL3908/F7 46PFL5907 47PFL5708/F7 49PFL4609/F7 50PFL3708/F7 50PFL3908/F7 65PFL9708S/12
For Seiki 32-65 TVs: SE32HY10 SE32HY27 SE40FY19 SE60GY24 SE39HE02 SE40FH03 SE55GY19 SE65GY25 SE65UY04
For Changhong TVs: LED32YC1600UA LED40YC1700UA LED40YD1100UA LED49YD1100UA
For Westinghouse TVs: DWM40F1Y1 DWM48F1Y1 DWM55F2Y1 DW39F1Y1 DWM55F1Y1
