VideoSecu Full Motion TV Wall Mount for VIZIO 19 22 23 24 26 28 29 inch LED LCD Tilt Swivel Articulating Bracket E240AR E261VA E280-A1 E280I-B1 E291i-A1 BHP

Video

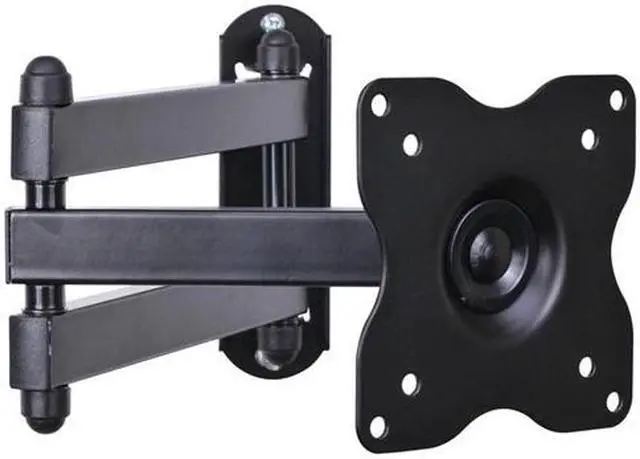

Secu TV wall mount ML12B fits most 15"-24" LED LCD TV monitors, some LED up to 29" with VESA mounting hole patterns 75x75/100x100mm. Durable steel construction with black powder coated finish supports loading capacity up to 44lbs. Post-installation level adjustment allows the TV to perfectly level. This swing arm wall mount gives you 15" long extension from the wall with maximum flexibility. You can also fold it close to your wall for a low-profile appearance. Adjustable tilt 5° forward or backward, swivel 180° provide smooth adjustment for all directions. Absolutely your best choice!

*Warning: This mount does not fit 27" or above TVs which were manufactured before 2013

Product Specifications:
*Fits most 15-24 inch TV monitors, some up to 29 inch (please check VESA and weight)
*Fits VESA mounting hole patterns: 100x100/75x75 (4"x4"/3"x3")
*Loading capacity: 44lbs

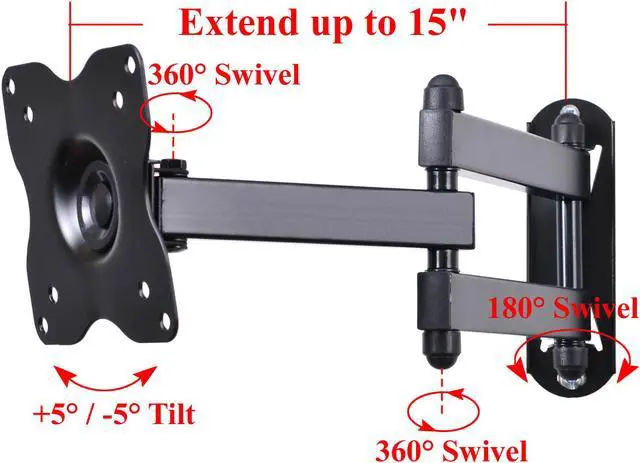

*Tilt: 5 degrees forward or backward

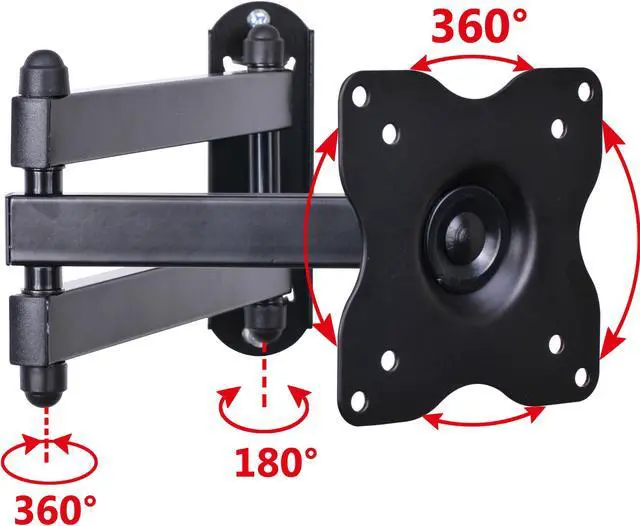

*Swivel: 180°
*Extend: up to 15"

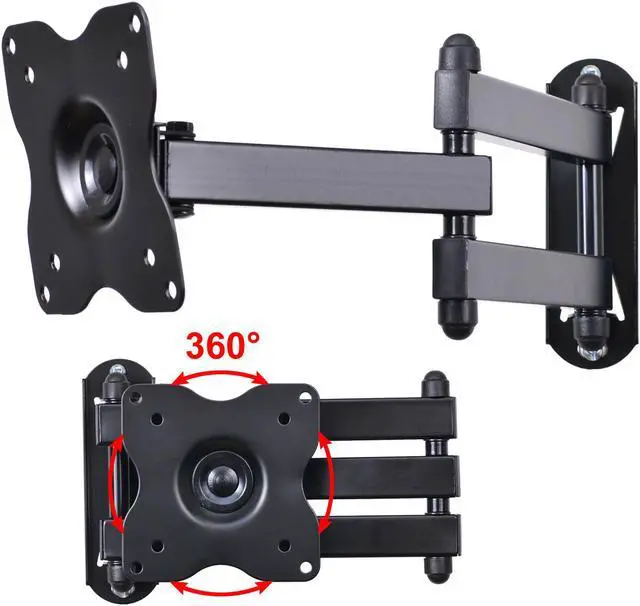

*Rotate 360 degrees
*Depth: retract to 2.4" for low profile application

Features:
*Multi-directional smooth adjustment tilt, swivel and extend for perfect viewing angle
*Nesting arm design allows display to be folded parallel to the wall to save space
*High quality steel construction with durable powder-coated finish
*Post-installation level adjustment for TV perfect level even after installed
*Removable TV plate designed for single-person installation

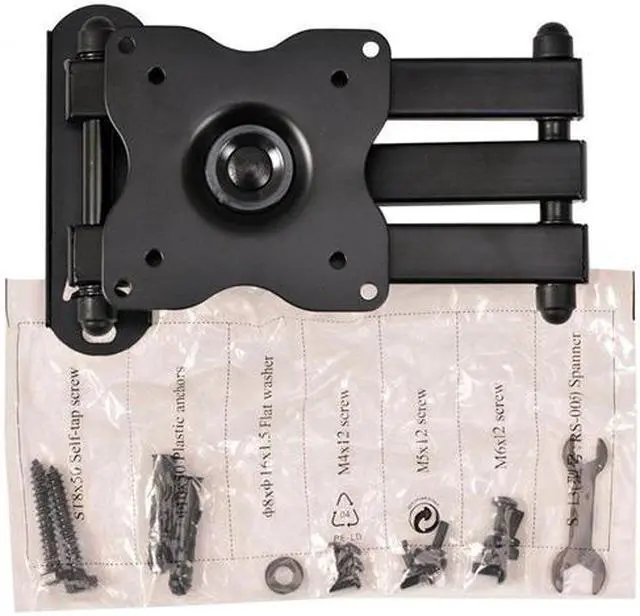

Package contents:
TV wall mount, standard mounting hardware and user manual

Will this mount fit your screen?

1. Do not use the size of the screen to determine if the mount will fit.

2. Please check the weight of your TV monitors, it must be less than 44 lbs.

3. Please look at the back of your TV or monitor, find the mounting holes and measure horizontal and vertical distance, if the pitch-row is one of the following data then the bracket will work for your screen, 100x100mm(4"x4"), 75x75mm(3"x3").

This mount fits the following VIZIO TV as well as other TV brands, some displays that may not be listed (please check VESA and weight):
For VIZIO 19-26" TV monitors: M190MV E191VA M221NV E220VA E221-A1 E221VA E231-B1 E231I-B1 E240AR E241-A1 E241-B1 E241i-A1 E241i-A1W E241I-B1 E260MV E261VA
For VIZIO 28-32" TV monitors: E280-A1 E280-B1 E280I-A1 E280I-B1 E291-A1 E291i-A1 D320-B1 E320-A0 E320-A1 E320-B0 E320-B0E E320-B1 E320-B2 E320FI-B2 E320i-A0 E320i-A2 E320I-B0 E320I-B1 E320I-B2 E320VP M321i-A2 M322i-B1
