VideoSecu Articulating Full Motion Swivel Tilt Rotate TV Wall Mount for most VIZO 15-39" LCD LED HDTV D32-D1 D32h-D1 D32hn-D0 D32hn-D1 D32hn-E1 D32hnx-E1 D32x-D1 E32-D1 E32h-D1 D39h-D0 D39hn-E0 WS2

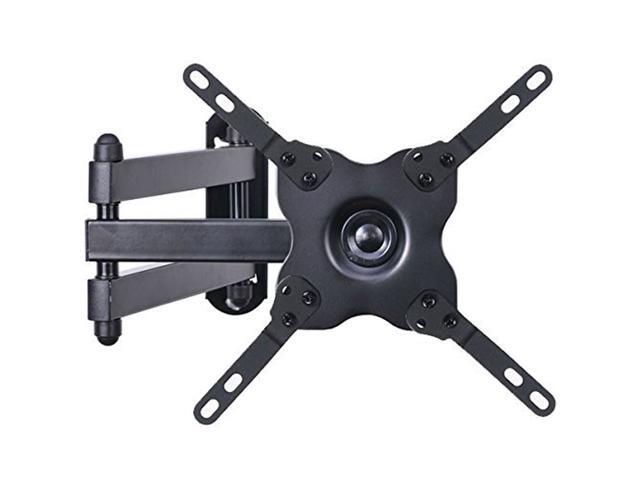

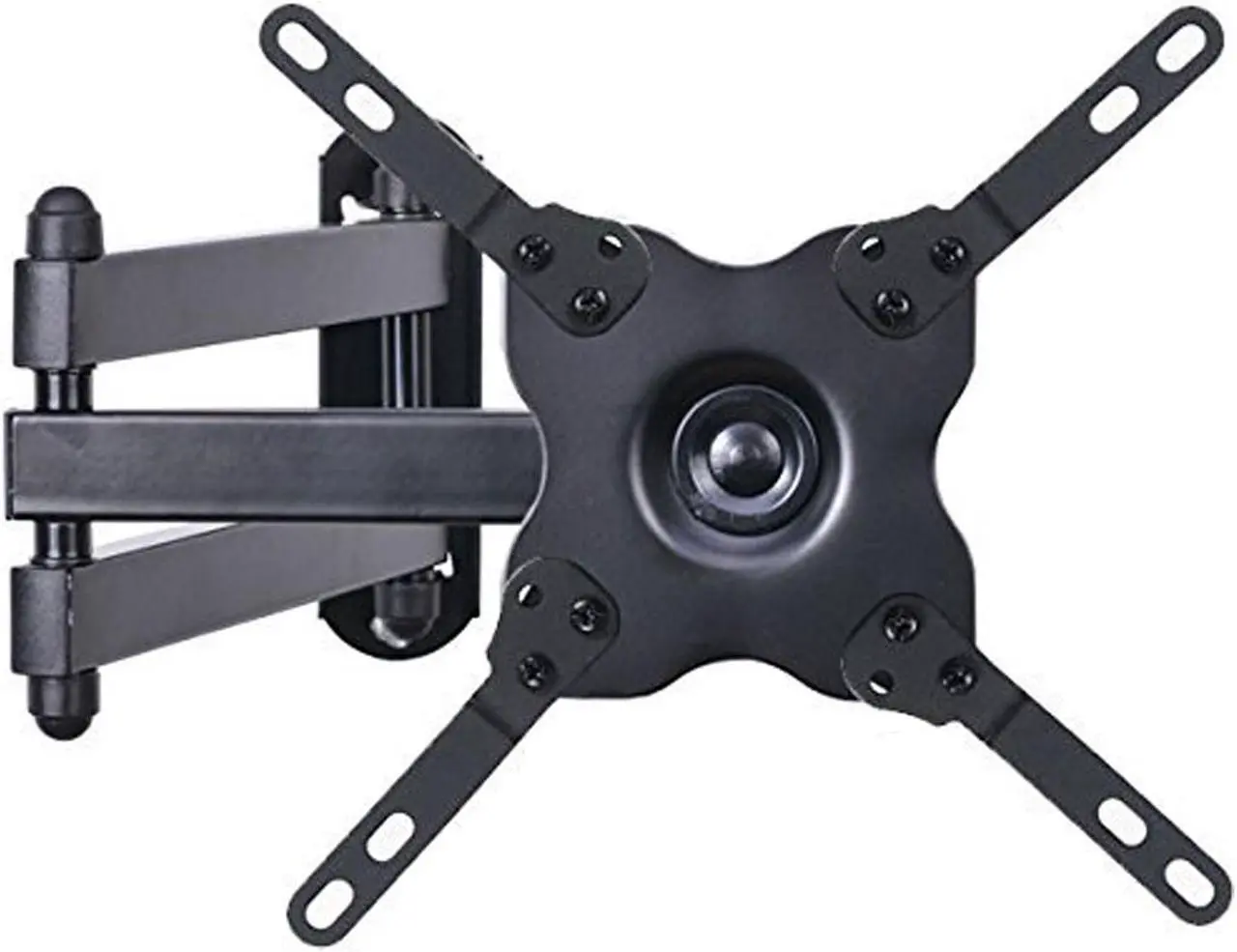

The mount ML14B is a full motion TV wall mount. It fits most 15 19 22 23 24 26 28 29 32 37" TV Monitor (please check VESA and weight). With the 4 mount adapters included, the mount VESA mounting hole pattern can extend from 100/75mm to 200/200x100mm now. The mount supports screen weight up to 44lbs/20kg. This full motion technology allows the mount to tilt 5 degrees forward or backward, swivel 180 degrees from side to side, rotate 360 degrees for optimal viewing directions. Extension with fluid motion in every direction possible up to 15 inch from the wall or retracts to the wall to save space.

Post-installation level adjustment allows the TV to perfectly level. Constructed with high quality steel material ensures more security and stability. Go ahead and order it now! *Warning: This mount does not fit 32" or above TVs which were manufactured before 2013
Specification: *Compatible with most 15 19 22 23 24 26 28 29 32 37" TV Monitor (Please check VESA and weight) *Fits

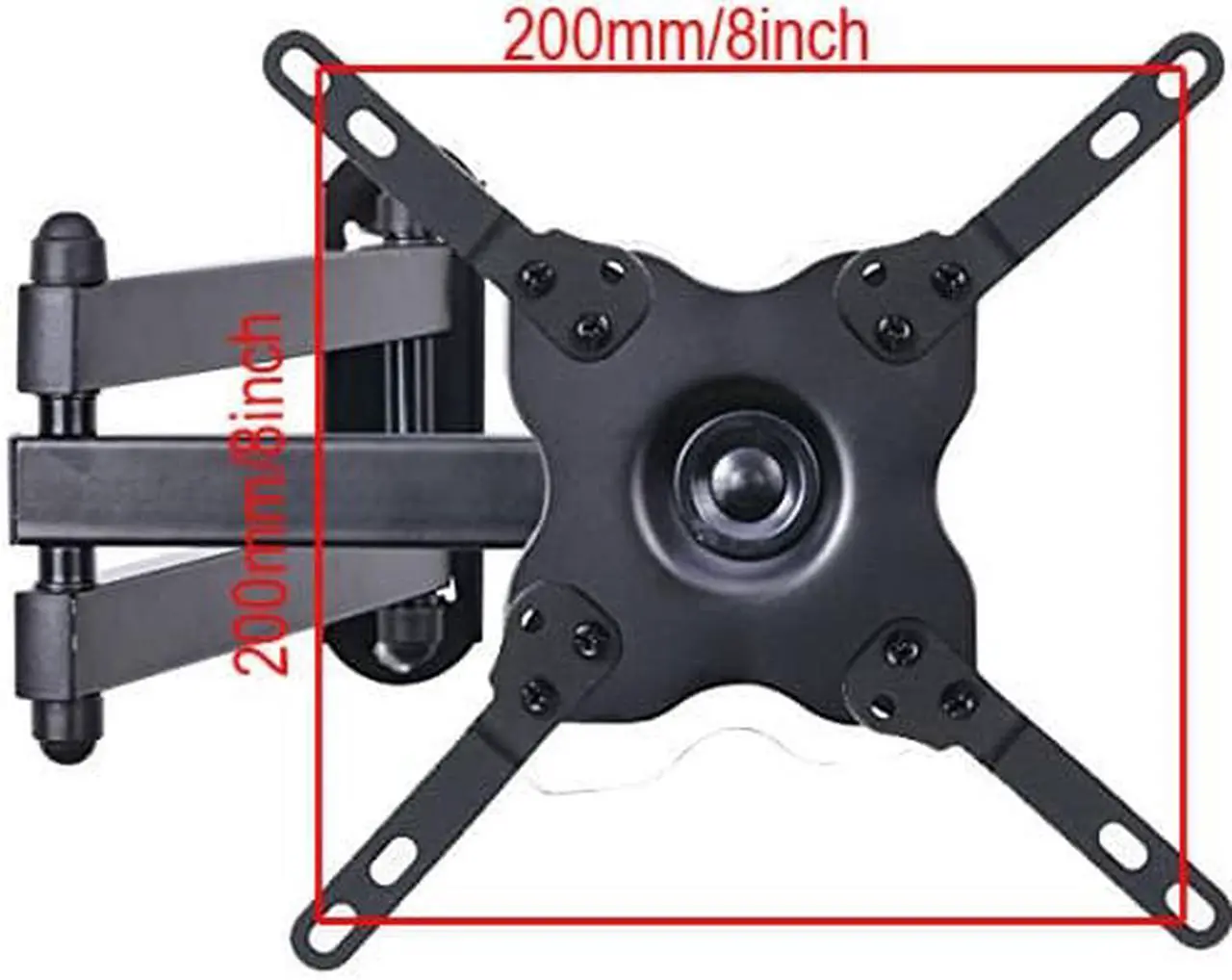

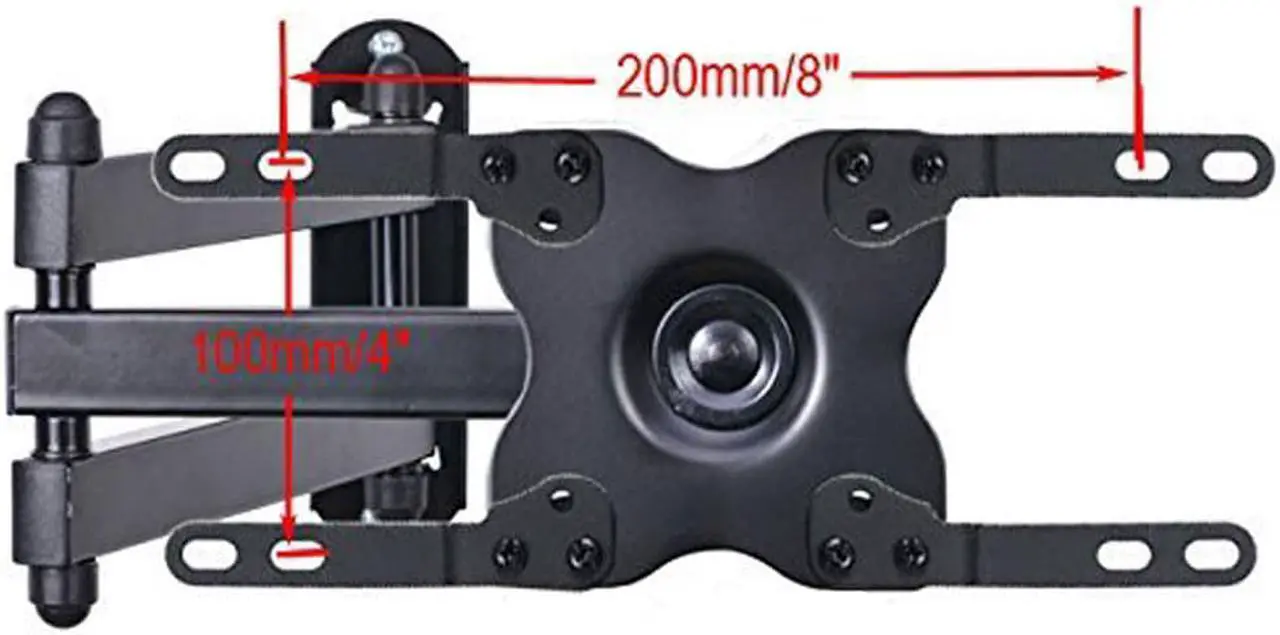

VESA mounting hole patterns: 75x75/ 100x100/ 200x100/ 200x200 (with the 4 mount adapter plate) *Loading capacity up to 44lbs/20kg *Adjustable tilt 5 degrees forward or backward to get perfect viewing angle *Adjustable swivel
& rotate: 180 degrees of swivel and 360 degrees rotation *Extension: Optimum viewing positions with extension 15" off the wall *Depth: retract to 2.2" off the wall to save space

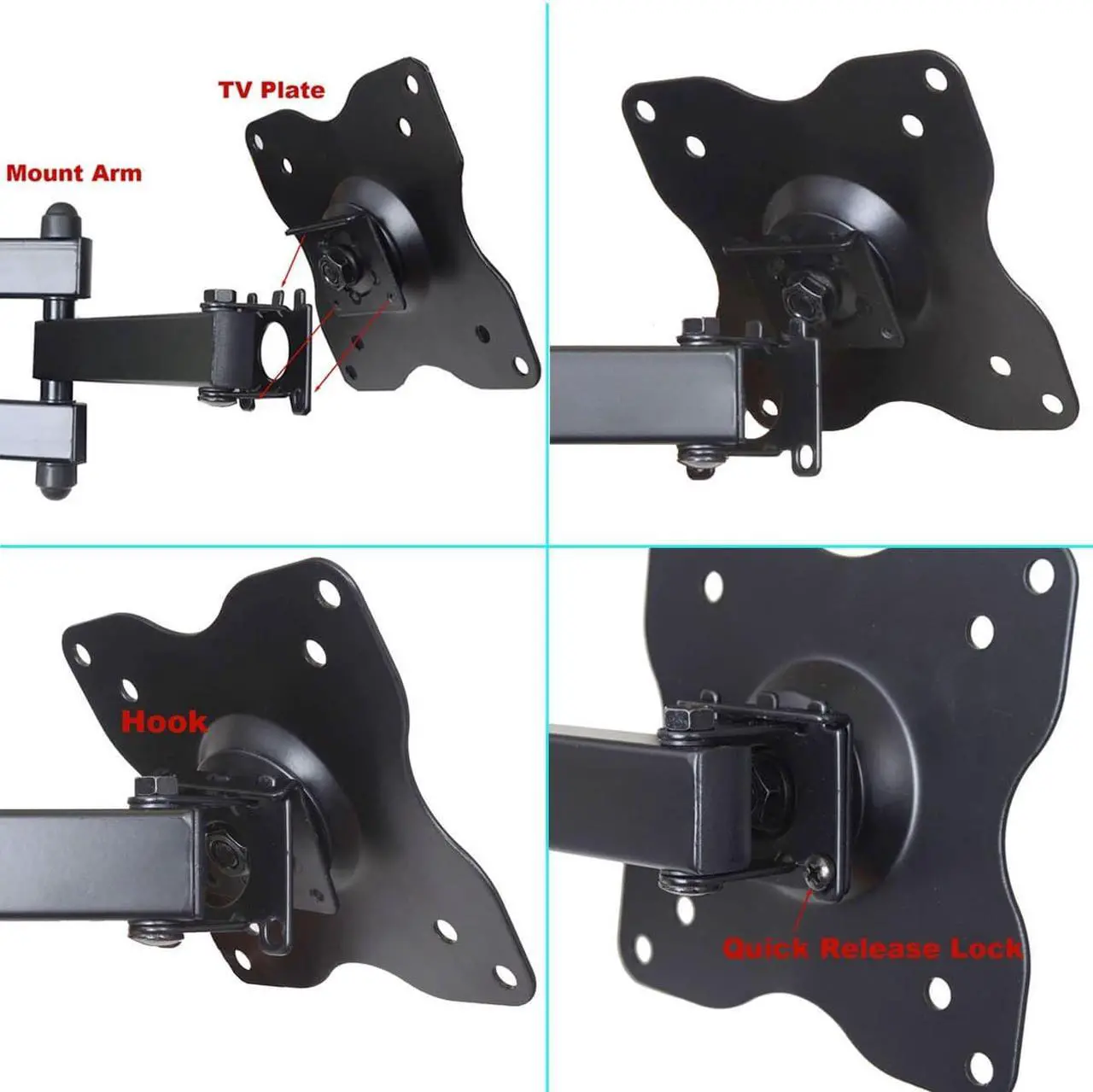

Features: *Post-installation level adjustment allows the TV to perfectly level *Durable steel construction with powder coated black finish *Single stud mounting for quick and easy installation *Removable TV plate designed for single-person

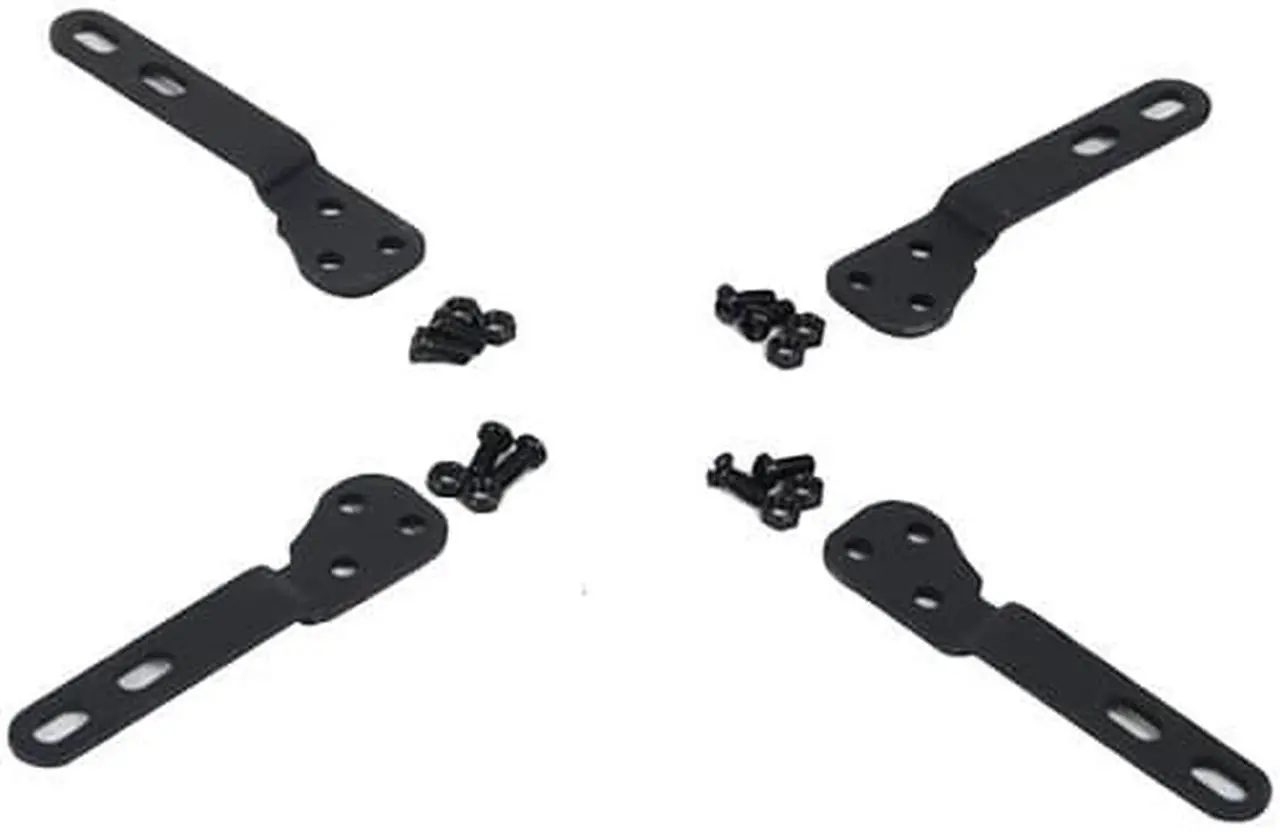

installation *Mount adapters: The universal wall mount adapter converts VESA 100/75mm to 200/200X100mm; *Note: For some LG and SONY TVs, please check the area inside the 4 mounting holes to make sure there are not any plugs. Otherwise, the plate may block the plugs
Package contents: TV wall mount, standard mounting hardware and user manual, the set includes 4 adapter plates, standard hardware screw for attaching to the wall mount. Will this mount fit your screen?
1. Do not use the size of the screen to determine if the mount will fit.
2. Please check the weight of your TV monitors, it must be less than 44 lbs.
3. Please look at the back of your TV or monitor, find the mounting holes and measure horizontal and vertical distance, if the pitch-row is one of the following data then the bracket will work for your screen. 200x200mm(8"x8"), 200x100mm(8"x4"), 100x100mm(4"x4"), 75x75mm(3"x3"). It is compatible with the following displays as well as other TV brands, some models may not be listed: VIZIO 23-39 inch
TVs: E231-B1 E231I-B1 E240AR E241-A1 E241-B1 E241i-A1 E241i-A1W E241I-B1 D24h-C1 E24-C1 E260MV E261VA E280-A1 E280-B1 E280I-A1 E280I-B1 D28h-C1 E28h-C1 E291-A1 E291i-A1 D320-B1 E320-A0 E320-A1 E320-B0 E320-B0E E320-B1 E320-B2 E320FI-B2 E320i-A0 E320i-A2 E320I-B0 E320I-B1 E320I-B2 E320VP M321i-A2 M322i-B1 E321VT E321MV E321VL E322AR E3D320VX M320SL D32h-C0 D32h-C1 E320-B2 E32-C1 E32h-C1 E370-A0 E370VL E370VLE E371VL M370SL E390-A1 E390-B0 E390-B1 E390i-A1 E390I-
