VideoSecu Heavy Duty Tilt Swivel TV Wall Mount for most 26 29 32 37 39 40 43 46 48 50 55" LCD LED UHD HDTV with loading 88lbs, Max VESA 400x400mm, long extension 20" bxp

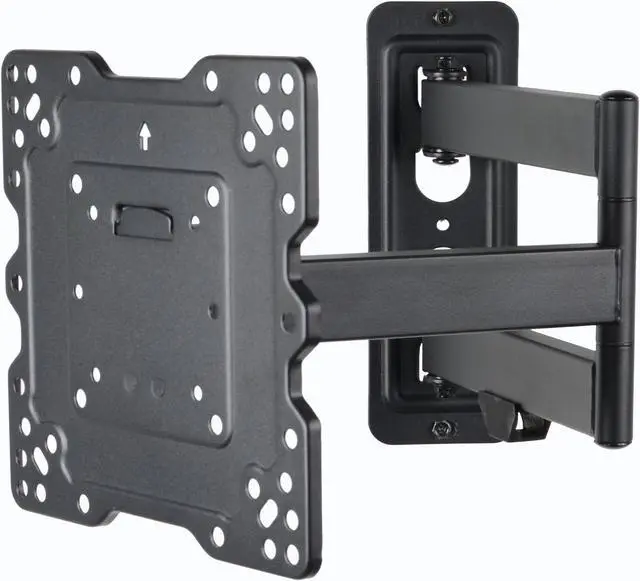

The articulating TV wall mount ML531BE2 fits most 22-50 inch LED LCD plasma, some LED up to 55 inch with VESA mounting hole patterns 400/ 300/ 200/ 150/ 100mm. Heavy duty steel construction supports screen weight up to 88lbs. Multi-directional adjustable tilt 15 degrees forward or 5 degrees backward, swivel up to 180 degrees and smooth long extension up to 20" provide optimum viewing angle in different positions. Heavy duty steel construction offers a smooth surface and high tech look while providing strength and stability. Nesting arm design allows display to be folded parallel to the wall only 2.2" for low profile application.



The removable VESA plate can be taken off for quick and easy installation. Absolutely your best choice!



*Warning: This mount does not fit 42" or above TVs which were manufactured before 2013





Specification:

*Fits most 22 - 50" TV, some LED up to 55" (please check VESA and weight)

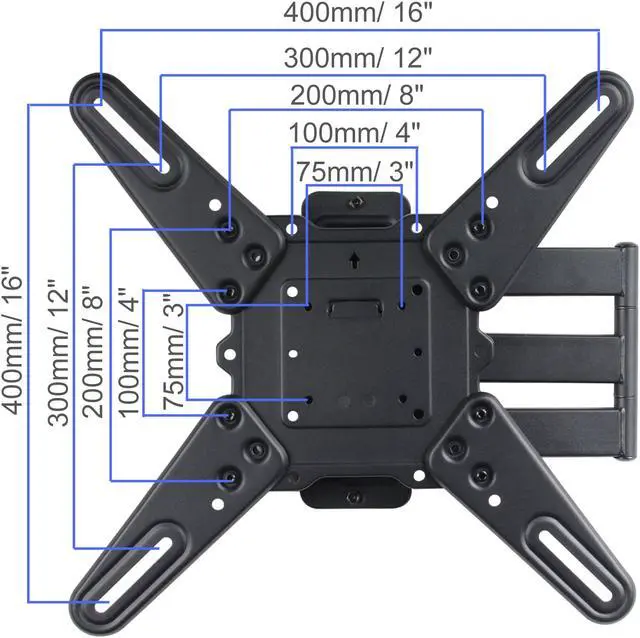

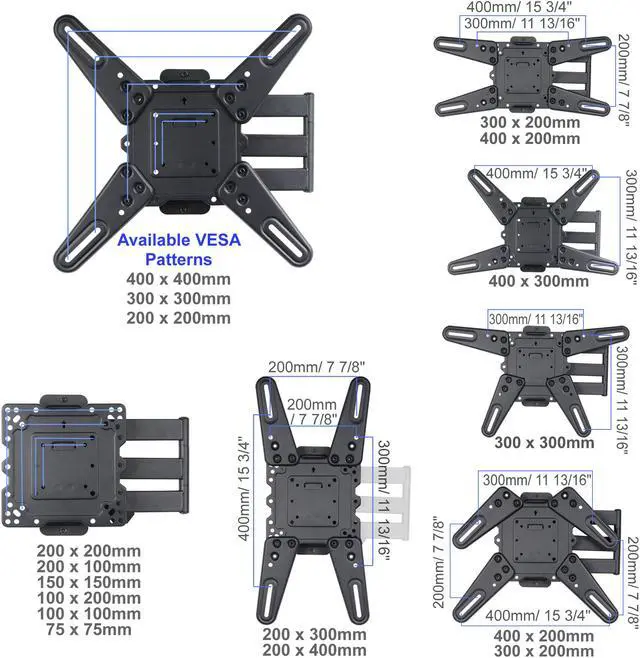

*Fits VESA mounting holes patterns: 400x400/400x300/300x300/400x200/200x200/300x200/200x100/150x150/100x100mm

*Loading capacity to 88lbs/40kg

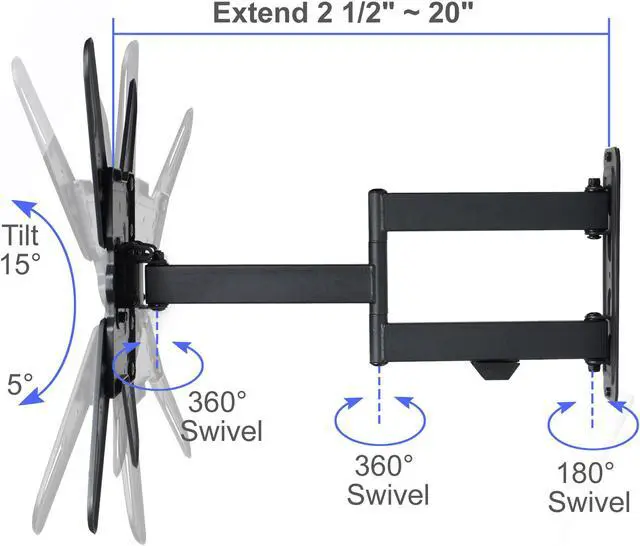

*Tilt +5° or -15º for perfect viewing angle

*Swivel up to 180 degrees (depending on TV size)

*Smooth long extension up to 20" with maximum flexibility

*Depth: the mount retracts to the wall about 2.2" for low profile application





Features:



*With 4 VESA adapters VESA mounting hole patterns up to 400x400mm/16"x16"

*Multi-directional adjustment tilt, swivel and extend for perfect viewing angle

*Integrated cable management design on articulating arm keeps wire out of the way

*Premium quality: constructed with thick, heavy duty durable steel with powder-coated black finish

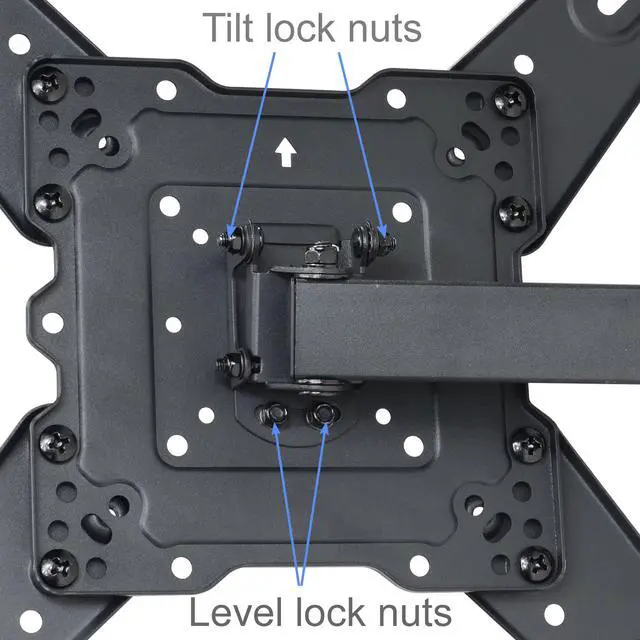

*Post-installation level adjustment allows the TV to perfectly level

*Nesting arm design allows display to be folded parallel to the wall to save space

*Note: For some LG and SONY TVs, please check the area inside the 4 mounting holes to make sure there are not any plugs. Otherwise, the plate may block the plugs





Package Contents:

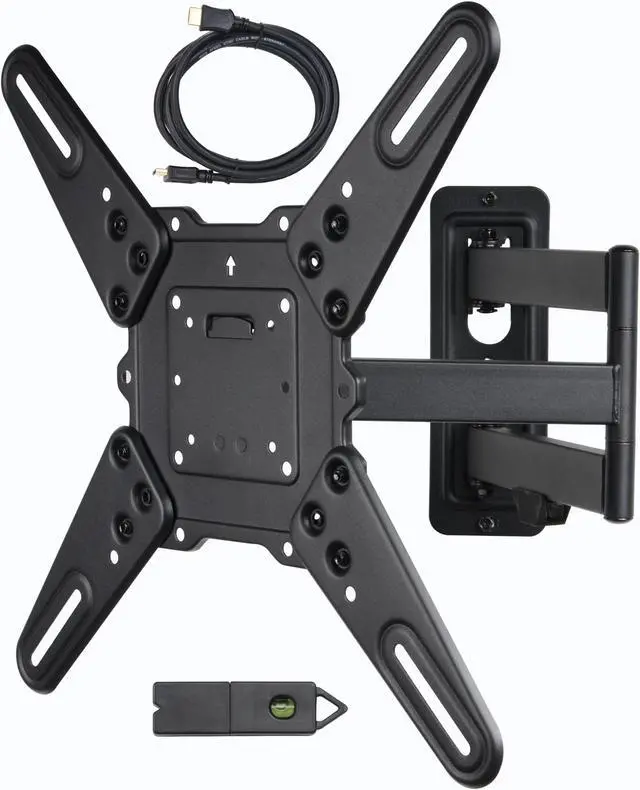

TV wall mount, 4 VESA adapters, free HDMI cable, magnetic bubble level, standard mounting hardware, user manual



Please check whether the mount is suitable for your TV:



1. Do not use size of your TV to determine if the wall mount will fit.



2. Please check the weight of your TV displays, it must be less than 88 lbs.



3. Please look at the back of your TV, find the mounting hole and measure width and height, if the pitch-row is one of the following data, then the mount will work perfect for you, 400x400/400x300/300x300/400x200/200x200/300x200/200x100/150x150/100x100mm
