VideoSecu Tilt TV Wall Mount for Samsung 60 64 65 75 78 85" Large Size LCD LED HDTV Plasma with VESA 800x400/ 684x300/ 600x400/ 400x400mm, Heavy Duty TV Bracket with loading 220lbs MZ8

Video Secu supplies a wide selection of high-quality, well-designed and easy-installed mounts at cost-effective prices. The big TV wall mount MP804B fits most 60 65 70 75 77 78 79 80 84 85 inch large size TVs with mounting hole patterns from 200x200 to 860x480mm (please check VESA and weight). Heavy duty steel construction supports loading capacity up to 220lbs. Lift and lock design secures the TV into place for additional safety. Cables and cords are easily managed behind the screen with large access ports in the wall plate. Absolutely your best choice!

Specification:

*Fits most 60-85 inch large size TVs LCD LED Plasma UHD (please check VESA and weight)

*Fits VESA mounting hole patterns 800x400/ 700x400/ 684x300/ 600x400/ 500x300/ 400x400/ 400x300/ 400x200/ 300x300/ 200x200mm or any hole pattern within 200-860mm wide and 200-480mm high

*Heavy duty TV mount supports loading capacity up to 220lbs

*Tilt +/-15 degrees forward or backward

*Low profile 2.5 inch depth from the back of TV to the wall

*Mounting stud size: fits 16", 24" stud size, and larger studs distance up to 34"

Features:

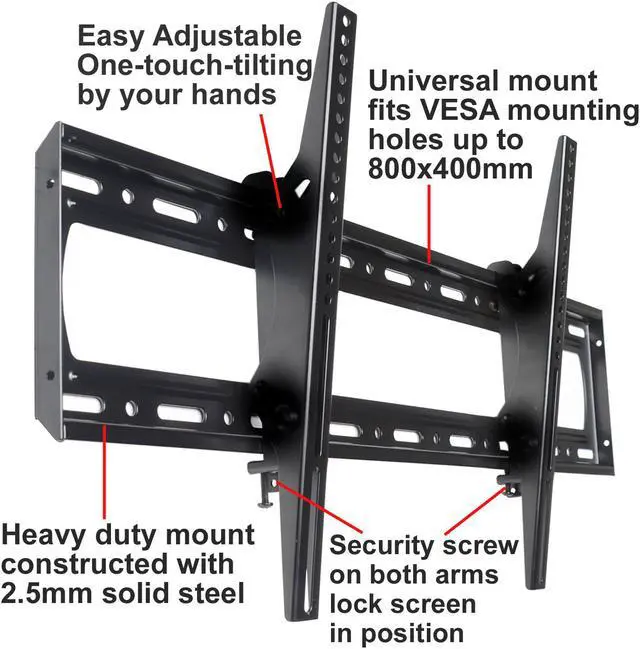

*Constructed with high quality 2.5 mm thick steel with black powder-coated finish

*Adjustable tilt forward or backward for perfect viewing angle

*Lift and lock design secures the TV into place for additional safety

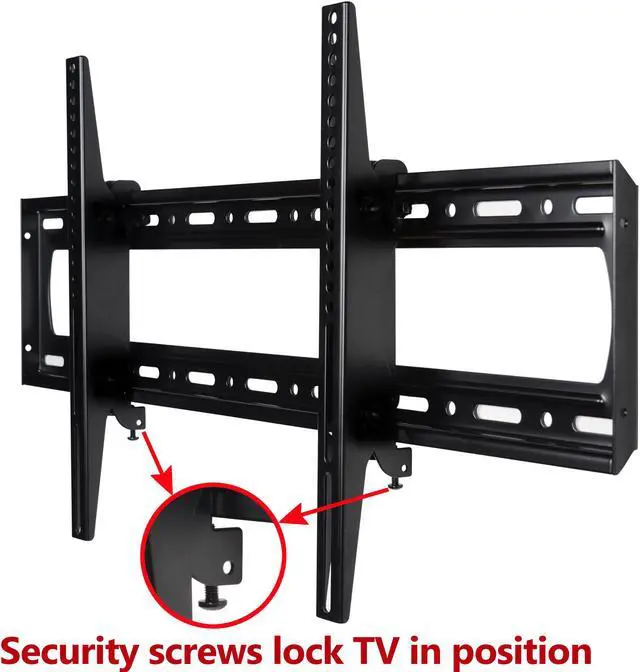

*Security screws on both mounting arms lock screen in position

*Cables are easily managed behind the screen with large access ports in the wall plate

*Horizontal movement adjustment for perfect screen positioning

Package contents:

TV wall mount, standard mounting hardware, user manual

Please check the compatibility of the mount for your TV:

1. Please check the weight of your TV, it must be less than 220lbs.

2. Look at the back of your TV, find the mounting holes and measure horizontal and vertical distance, if the horizontal distance is within 31.5", vertical distance is within 16.5", then the mount will work perfect for you.
