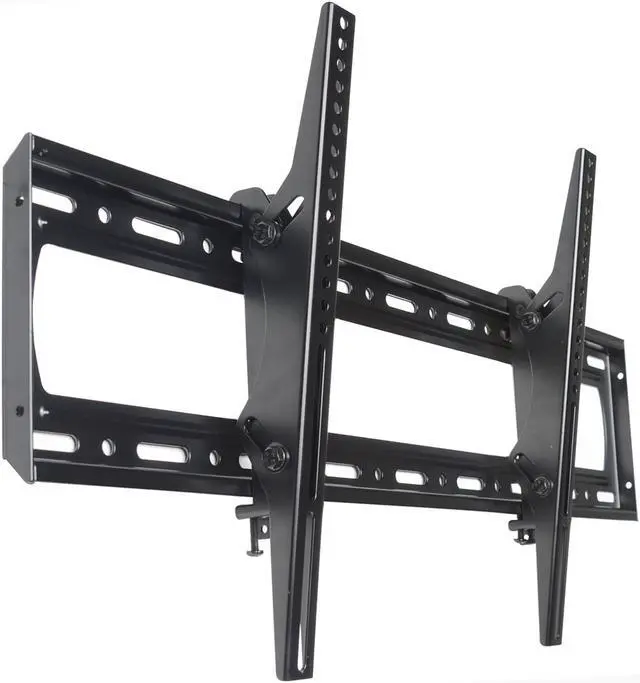

    VideoSecu Tilt TV Wall Mount Heavy Duty Bracket for most 60 65 70 80 85 inch LED LCD Plasma UHD 3D HDTV Flat Panel Screens Displays with loading 220lbs, VESA 800x400mm b08

    Be the first to review this product...
    • Premium quality heavy duty steel construction in black finish
    • Load capacity 220lbs
    • One-touch-tilting +/-15 degree
    • VESA mounting holes up to 800x400mm (684x300/600x400/400x400/400x300/200x200mm)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Features:

  • Premium quality - Constructed with high quality 2.5 mm thick steel with black powder-coated finish
  • Heavy duty mount loading capacity up to 220lbs

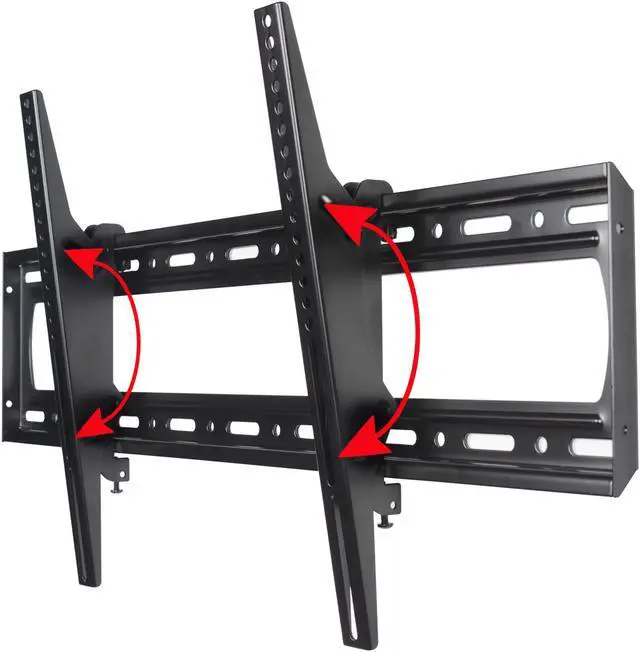

  • Adjustable one-touch-tilting forward or backward for perfect viewing angle without the use of tools
  • Lift and lock design secures the TV into place for additional safety
  • Security screws on both mounting arms lock screen in position
  • Cables are easily managed behind the screen with large access ports in the wall plate
  • Horizontal movement adjustment for perfect screen positioning


    Technical Details:

  • Fits most 60-90 inch large size TVs LCD LED Plasma UHD (please check VESA and weight)

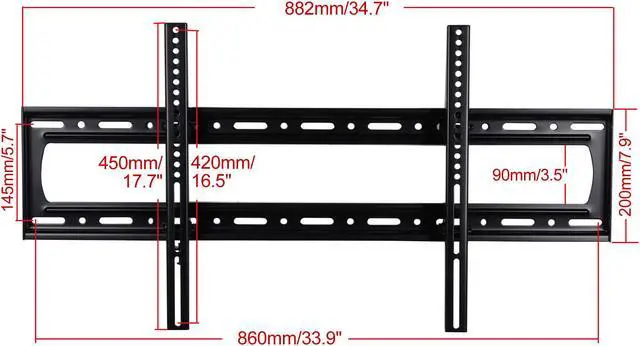

  • Supports VESA mounting hole patterns:
    800x400mm ( 31.5" x16")
    684x300mm (27"x12")
    600x400mm (24"x16")
    500x300mm (20"x12")
    400x400mm (16"x16")
    400x300mm (16"x12")
    400x200mm (16"x8")
    300x300mm (12"x12")
    200x200mm (8"x8")
    or any hole patterns between 200x200mm (8"x8") and 860x480mm (34"x19")
  • Loading capacity up to 220lbs / 100kg
  • Tilt +/-15 degrees forward or backward
  • Low profile 2.5 inch depth from the back of TV to the wall
  • Mounting stud size: fits 16", 24" stud size, and larger studs distance up to 34"


    Package Contents:

  • TV Wall Mount
  • Standard Mounting Hardware
  • User Manual


    Product Description:

    Video
    Secu supplies a wide selection of high-quality, well-designed and easy-installed mounts at cost-effective prices. The big TV wall mount fits most 60 65 70 75 77 78 79 80 84 85 88 90 inch large size TVs with mounting hole patterns from 200x200 to 860x480mm (please check VESA and weight). Heavy duty steel construction supports loading capacity up to 220lbs. Lift and lock design secures the TV into place for additional safety. Cables and cords are easily managed behind the screen with large access ports in the wall plate. Absolutely your best choice!

    Please check whether this mount is suitable for your TV:

  • Please check the weight of your TV, it must be less than 220 lbs.
  • Look at the back of your TV, find the mounting holes and measure horizontal and vertical distance, if the horizontal distance is within 31.5", vertical distance is within 16.5", then the mount will work perfect for you.
