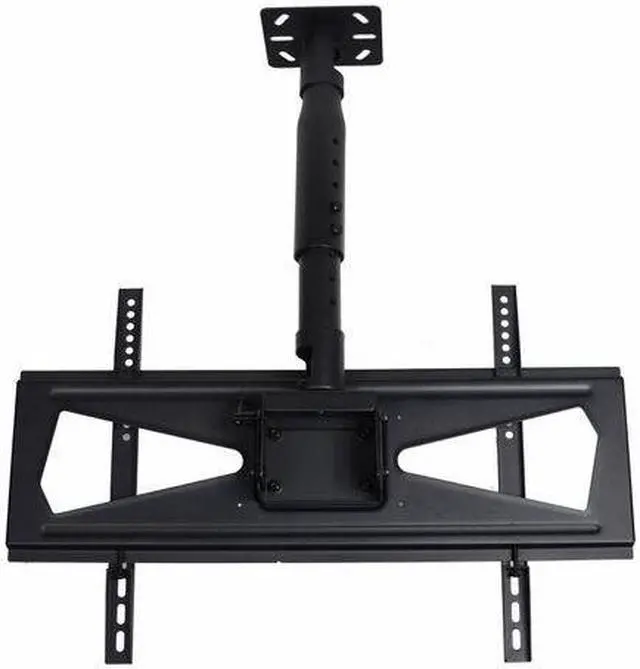

VideoSecu Tilt TV Ceiling Mount for most 39-65 inch LCD LED HDTV Plasma with VESA 600x400/ 400x400mm, Loading 135lbs, Height Adjustment/ Cable Management bt9

Specialized in high-quality, well-designed mounting solutions, Video
Secu supplies easy-installed mount at cost-effective prices. The ceiling mount fits most 39 - 60 inch TVs, some LED up to 65 inch with VESA mounting holes patterns up to 600x400mm. This TV ceiling mount is constructed with high grade steel providing reliability and durability. It provides optimum viewing positions with 12 degrees tilt forward or 5 degrees tilt backward. The height adjustment from 280 to 370mm meets your specific needs. Go ahead and order it now!

*Note: This mount plate does not fit certain Panasonic Plasma TV with VESA 684x300mm

Specification:

*Fits most 39-60" LCD LED HDTV, some LED up to 65" (please check VESA and weight)

*Fit VESA mounting patterns 600x400/ 500x300/ 400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200/ 200x100mm or any holes patterns from 200x100mm to 600x400mm

*Loading capacity 135 lb

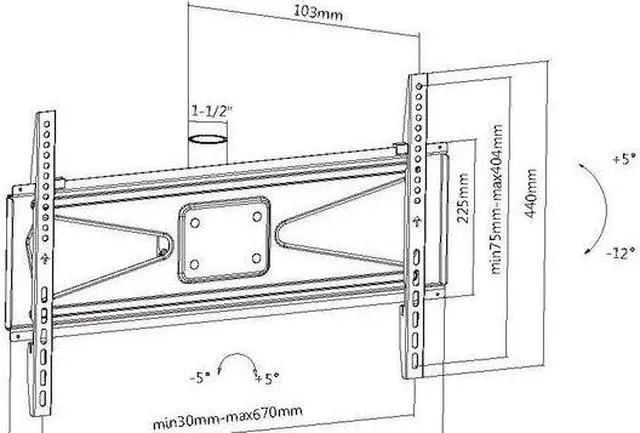

*Adjustable tilt 12 degrees forward or 5 degrees backward for perfect viewing angle

*Height adjustment from 280 to 370mm

*The ceiling pole designed for 1.5" Video
Secu pipe mount

*Ceiling Plate Size: 150x120 x 90.5 mm

Features:

*Cable through ceiling pole keep wires hidden to keep a clean look

*Lift and twist for height adjustment and lock into place

*Premium quality: Heavy gauge steel construction with powder coated black finish

*Post-installation level adjustment allows the TV to perfectly level

*Mfg. part# MPC3B

Package Contents:

TV Ceiling mount, standard mounting hardware, user manual

Please check the compatibility for the mount to the TV:

1. Please check the weight of your TV. It must be less than 135 lbs.

2. Please look at the back of your TV, find mounting holes on the back of the screen, measure the horizontal and vertical distance between the holes, if the horizontal distance is within 200-600mm, vertical distance within 100-400mm, then the bracket will fit.

3. The width of your TV should be above 32". Otherwise the mount is too wide to hide behind your TV.
