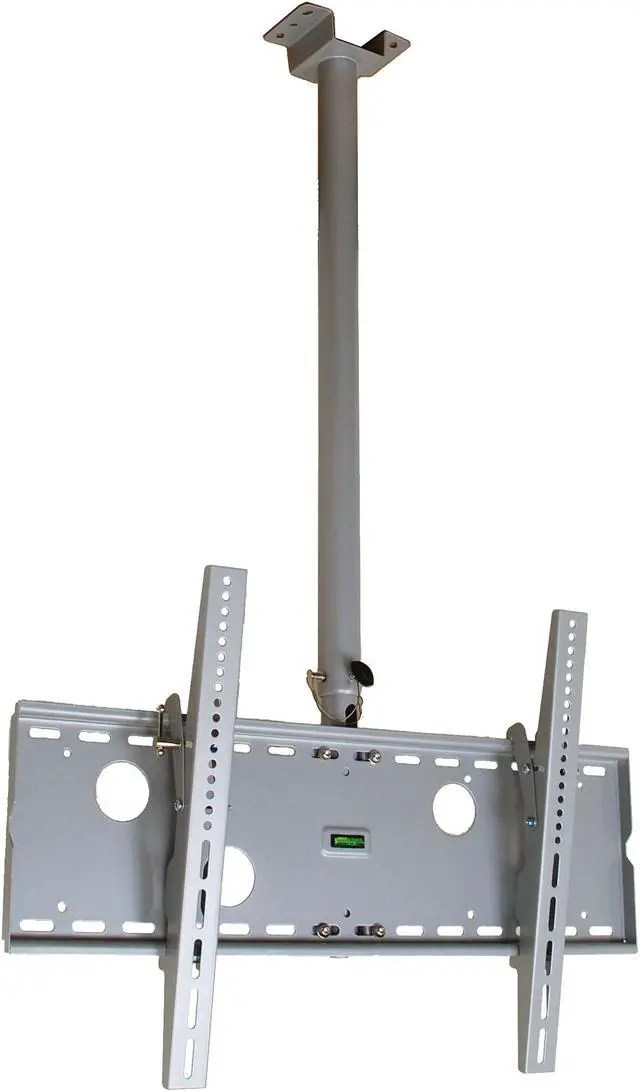

VideoSecu Swivel Tilt Silver Ceiling TV Mount Bracket for 40 42 46 47 49 50 55 58 60 65 70 inch LCD LED HDTV Plasma Flat Panel Screens UHD with loading 132lbs, VESA 700x400mm, Cable Management 1XC

Specialized in high-quality, well-designed mounting solutions, Video
Secu supplies easy-installed mount at cost-effective prices. The TV ceiling mount bracket MP501S fits most 40 - 65 inch (37 40 42 45 46 50 52 54 55 58 60 65 inch) Plasma LCD LED HDTV flat panel screen, some up to 70 inch (Please check VESA and weight). The tilt ceiling mount features a high capacity of 132lbs / 60kg, ceiling plate dimensions 5 inch x 6.9 inch (130x175mm). The telescopic pole extends from 39 inch to 63 inch (1000-1600mm) and can be made in 4 inch increments. Easy installation and adjustable tilt forward 15 degrees, 360 degrees pan for optimal viewing, which make the mount the best choice for your screen.

*Note: This mount will not work for some 55-70 inch TVs manufactured 2013 years ago

Specification:

*Fits most 40-65 inch TVs, some up to 70 inch (Please check VESA and Weight)

*Fits TVs VESA mounting hole patterns 200x100/ 200x200/ 300x300/ 400x200/ 400x400/ 500x300/ 600x200/ 600x300/ 600x400/ 684x300/ 700x200/ 700x400 or any hole patterns within 200mm to 710mm (8 to 28 inch) wide and 100mm to 450mm (4 to 17.7 inch) high

*Durable steel construction supports displays up to 132lbs / 60kg in silver finish

*Easy adjustment of tilt forward 15 degrees

*360 degrees pan

*Telescopic pole extends from 39 to 63 inch (1000-1600mm)

*The height adjustment can be made in 4 inch increments

*Ceiling plate dimensions 5 x 6.9 inch (130 x 175mm)

Features:

*The TV plate can rotate along the center pole

*Built in bubble level for accurate and easy installation

*Simple cable management by going through hollow pole

*Lift and lock design safety locking system secure the TV in position as needed

*Rail design allows TVs to shift left and right for TV placement adjustment

*Security screws on both arms lock the TV into place for additional safety

Package contents:

Ceiling mount bracket, standard mounting hardware, user manual

Please check whether the mount is suitable for your TV:

1. Please check the weight of your TV displays, it must be less than 132 lbs.

2. Look at the back of your TV, find the mounting hole and measure horizontal and vertical distance, if the horizontal distance within 27.95", vertical distance is within 17.7", then the bracket will work perfect for you.

3. The width of your TV should be at least 32". Otherwise the mount is too wide to hide behind your TV.
