VideoSecu Swivel Tilt Ceiling TV Mount for 40 42 43 46 47 48 50 51 55 58 60 65" LCD LED UHD Plasma Flat Panel Screen Display HDTV with VESA 700x405mm bxq

Specialized in high-quality, well-designed mounting solutions, VideoSecu supplies easy-installed mount at cost-effective prices. The ceiling mount MPC53BE2 fits most 40 - 65 inch TVs, some LED up to 70 inch with VESA mounting holes patterns up to 700x405mm. This TV ceiling mount is constructed with high grade steel providing reliability and durability. It provides optimum viewing positions with 15 degrees tilt forward or 5 degrees backward and 360 degrees pan. The height adjustment can be made in 1.5 inch increments to meet your specific needs. The adjustable swivel design makes it flexibly fit flat ceiling, vaulted ceiling.

*Note: This mount does not fit certain Panasonic Plasma TV from 42" with VESA 684x300mm

*Warning: This mount does not fit 47" or above TVs which were manufactured before 2013

Specification:

*Fits most 40-65" TVs, some LED up to 70" (please check VESA and weight)
*Fits VESA mounting holes patterns: 200x100/ 200x200/ 300x200/ 300x300/ 400x200/ 400x300/ 400x400/ 500x300/ 600x400mm or any holes pattern within 200-700mm wide and 100-405mm high
*Durable steel construction supports screen weight up to 110 lbs/50kg

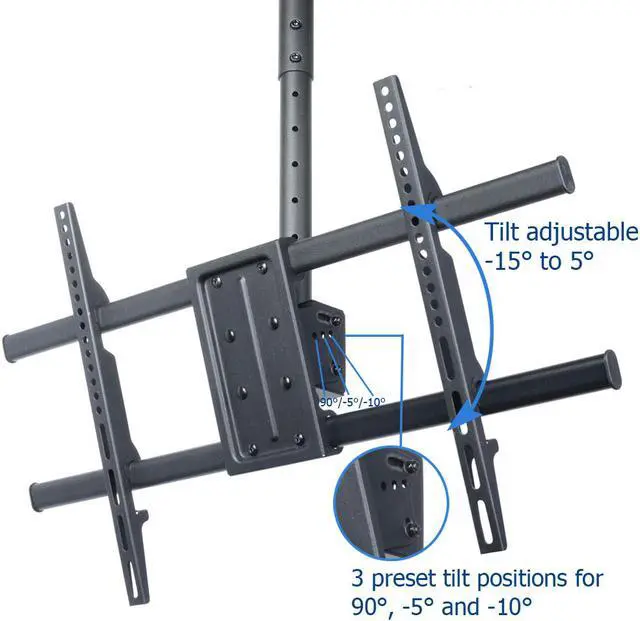

*Tilt 15 degrees forward or 5 degrees backward
*Adjustable pan 360 degrees

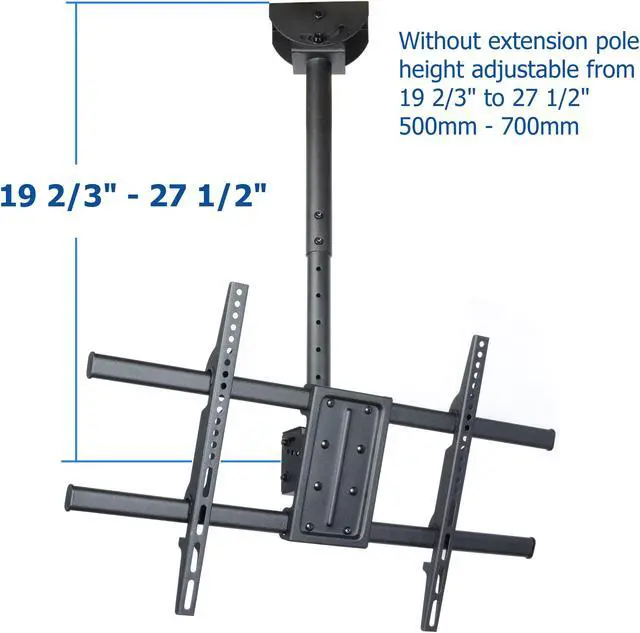

*Height adjustment: extends from 19 2/3" to 27 1/2" (without extension pole); 31" to 39" (with one extension pole); up to 50" (with two extension poles)
*The height adjustment can be made in 1.5 inch incrementss

Features:

*The TV plate can rotate along the center pole
*Compatibility: Adjustable ceiling plate fits flat or vaulted ceiling
*Cable through ceiling pole keep wires hidden to keep a clean look
*Premium quality: Heavy gauge steel construction with powder coated black finish

Package Contents:
TV Ceiling mount, extension pole, standard mounting hardware, user manual

Please check the compatibility for the mount to the TV:

1. Please check the weight of your TV. It must be less than 110 lbs.
2. Please look at the back of your TV, Find mounting holes on the back of the screen, measure the horizontal and vertical distance between the holes, as shown below. If the horizontal distance is within 27 1/2", vertical distance within 16", then the bracket will fit.
3. The width of your TV should be above 28". Otherwise the mount is too wide to hide behind your TV.
