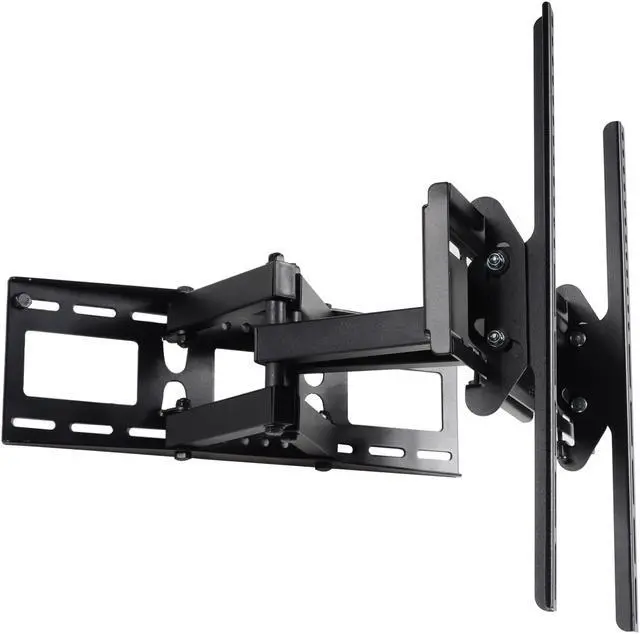

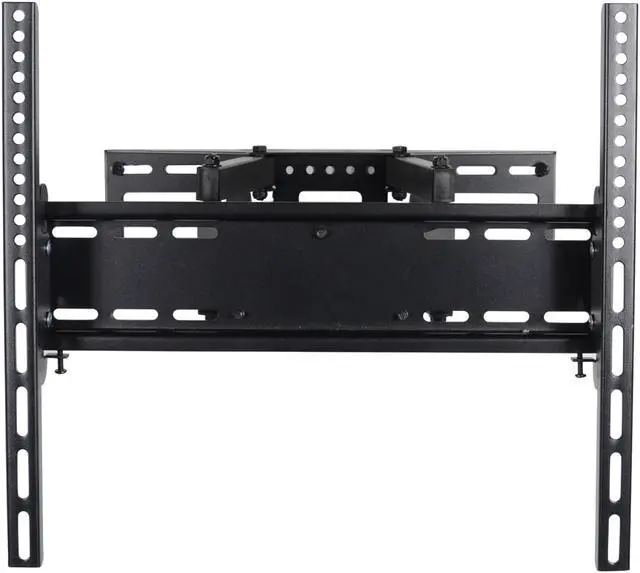

VideoSecu Articulating Dual Arm Full Motion TV Wall Mount for Samsung 32 37 39 40 46 47 48 50 51 55" LCD LED Plasma 3D HDTV Flat Panel Screen Display Tilt Swivel Extend Bracket BH8

Video
Secu provides a broad variety of high-quality, well-designed and easy-installed mounts at cost-effective prices. The full motion TV wall mount MW340B fits most 32-50 inch TVs, some LED up to 55 inch with VESA mounting hole pattern up to 400x400mm. Multi-directional adjustable swivel, rotate, tilt and extension offers you perfect TV positioning and flexible adjustments. Constructed with heavy duty solid steel structure provides reliability and durability. Security screws on both arms lock the screen in position for additional security. Nesting arm design allows display to be folded parallel to wall to save place.

Post-installation level adjustment allows the TV to perfectly level. Absolutely your best choice!

*Warning: This mount does not fit 42" or above TVs which were manufactured before 2013

Specification:
*Fits most 32-50 inch TVs, some up to 55 inch (Please check VESA and weight)
*Fits VESA mounting hole pattern 100x100/ 200x100/ 200x200/ 300x200/ 300x300/ 400x200/ 400x300/ 400x400mm or any hole pattern within 100 - 400mm (4- 15.7 inch) wide and 100 - 400mm (4- 15.7 inch) high
*Heavy duty steel construction supports TV screen up to 135lbs / 61kg
*Tilt forward 15 degrees or backward 5 degrees adjustment
*Adjustable swivel from side to side for comfortable viewing angle
*Rotate 10 degrees for level adjustment

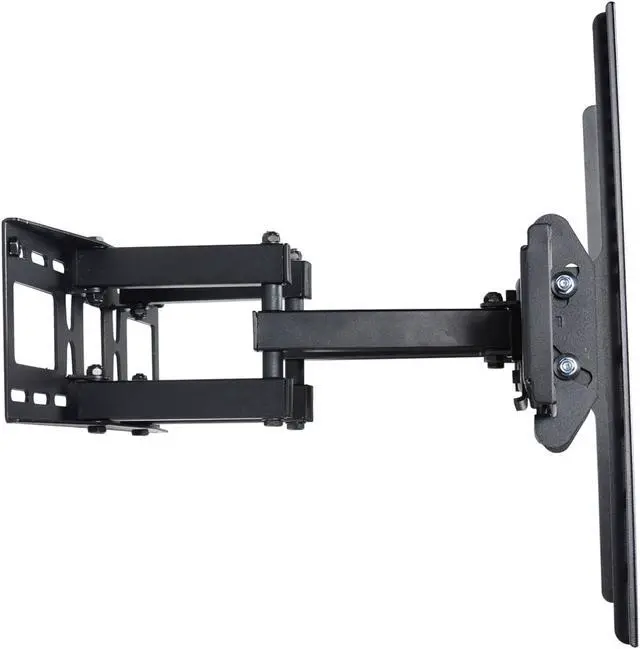

*Smooth long extension up to 16 inch with maximum flexibility

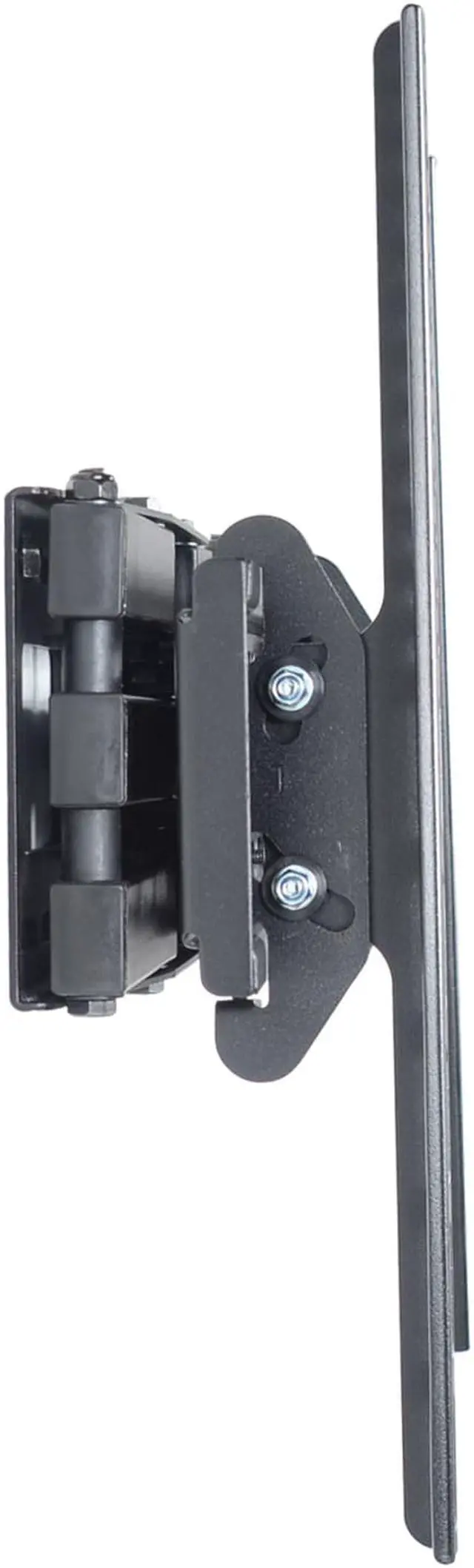

*Retract to the wall about 4.3" depth off the wall to save space
*Mount to wall studs up to 16" on center
*Wall plate width: 17"

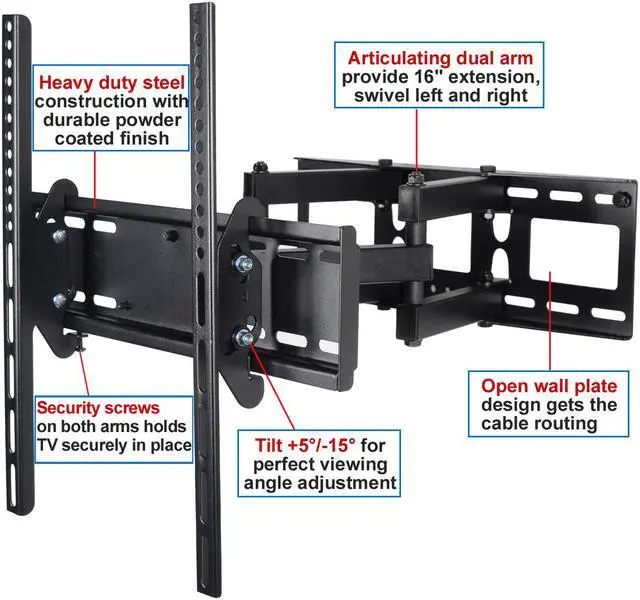

Features:
*Premium quality - constructed with heavy duty solid steel structure provides reliability and durability
*Multi-directional adjustment tilt, swivel, rotate and extend for perfect viewing angle
*Post-installation level adjustment allows TV to perfectly level
*Security screws on both arms lock the screen in position for additional security
*Nesting arm design allows display to be folded parallel to the wall to save space
*Cable management: open wall plate design gets the cable routing

Package contents
TV wall mount, standard mounting hardware, Free HDMI Cable, user manual

Please check whether the mount is suitable for your TV (Do not use the size of your TV to determine if the mount fit)

1. Please check the weight of your TV; it must be less than 135 lbs.

2. Look at the back of your TV, find the mounting holes and measure width and height, if the width is within 400mm (16"), height is within 400mm (16"), then the mount will work perfect for you.

3. The width of your TV should be more than 20" and height more than 17". Otherwise you will see the mount.
