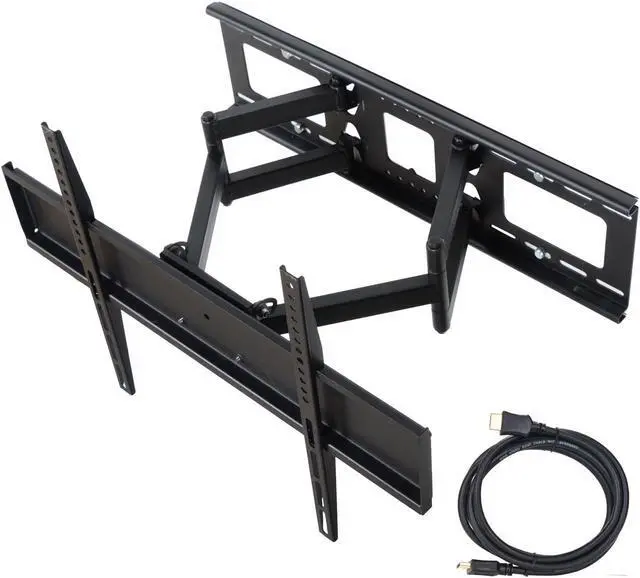

VideoSecu Dual Arm Full Motion TV Wall Mount 40 46 47 49 50 55 60" LCD LED HDTV Plasma for Sony XBR-55X800B KDL60R510A KDL-60R510A Tilt Swivel TV Mount Bracket with VESA 600x400mm, loading 135lbs BK7

Video
Secu supplies a broad variety of universal high-quality, well-designed and easy-installed mounts at cost-effective prices. The full motion mount fits most 32-55 inch TVs, some LED up to 60 inch with VESA mounting hole patterns within 200-600mm wide and 100-400mm high. Constructed with heavy duty solid steel structure provides reliability and durability. Multi-directional adjustable swivel, tilt and smooth long extension offers you perfect TV positioning and flexible adjustments. Security screws on both arms lock the screen in position for additional security. Nesting arm design allows display to be folded parallel to wall to save place.

Post-installation level adjustment allows the TV to perfectly level. Go ahead and order it now!

*Warning: This mount does not fit 46" or above TVs which were manufactured before 2013

Specification:
*Fits most 32-55" TVs, some LED up to 60" (please check VESA and weight)

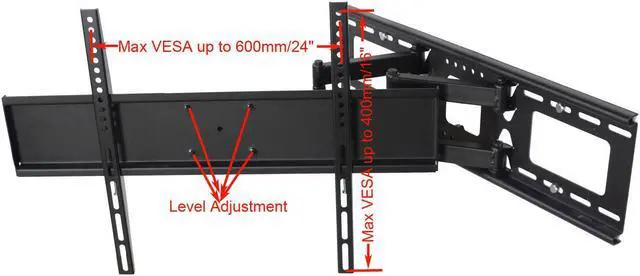

*Fits VESA mounting hole patterns 600x400/ 600x300/ 500x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole patterns within 200-600mm wide and 100-400mm high
*Supports screen weight up to 135 lbs / 61kg
*Tilt 15 degrees forward or 5 degrees backward

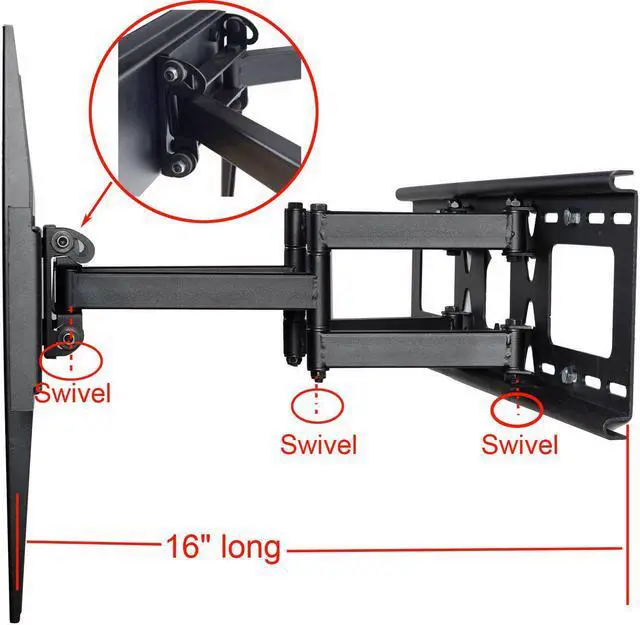

*Swivel 180 degrees (depending on TV size)
*Rotate 10 degrees adjustment for perfect TV level
*Extend up to 16" or folds 3" to the wall to save space
*Mounting studs distance up to 24"

Features:
*Constructed with heavy duty solid steel structure provides reliability and durability
*Post-installation level adjustment for TV perfect level

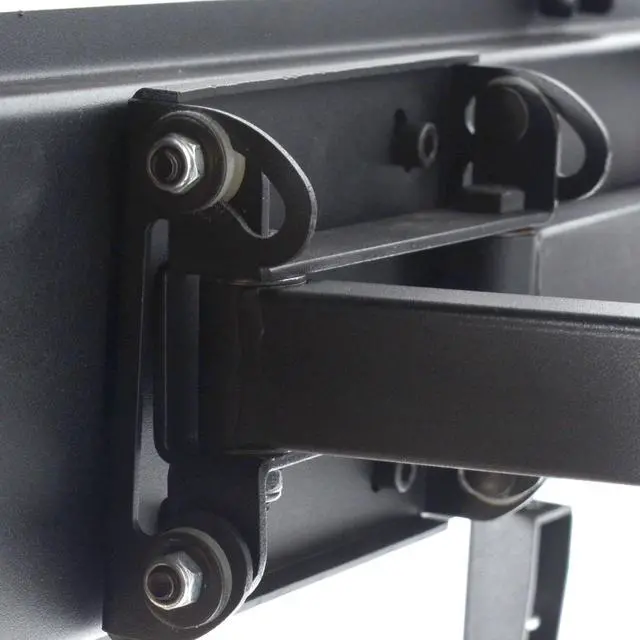

*Safety screws on both VESA arms hold screen in position for security
*Open holes on wall plate for cable access
*Nesting arm design allows display to be folded parallel to wall to save place
*Note: For some Panasonic Plasma TV with VESA 684x300mm, this mount does NOT fit

Package contents:

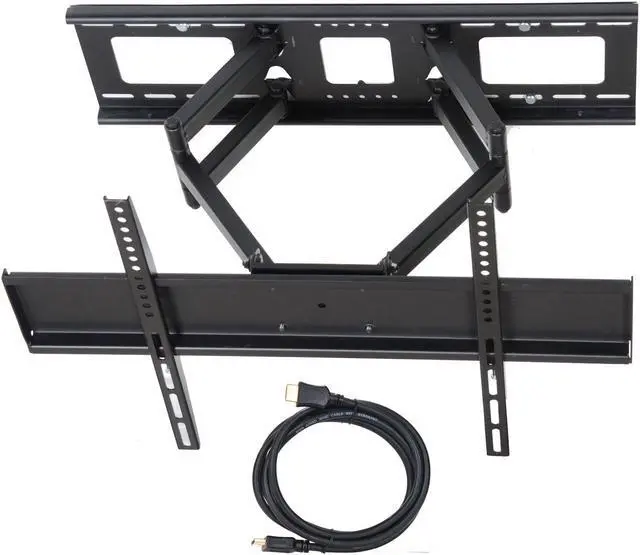

TV mount, standard mounting hardware and user manual

Please check whether the mount is suitable for your TV: (Do not use size of your TV to determine if the wall mount will fit)

1. Please check the weight of your TV; it must be less than 135 lbs.

2. Look at the back of your TV, find the mounting holes and measure horizontal and vertical distance, if the horizontal distance is within 600mm (24"), vertical distance is within 400mm (16"), then the mount will work perfect for you.

3. The size of your TV should be at least 32". Otherwise the mount is too big to hide behind your TV.

It is compatible with the following displays as well as other TV brands, some models may not be listed:
Sony 40-60 inch TVs: KDL-40R450A KDL-40R471A KDL40R380B KDL-46BX450 KDL-46R450A KDL-46R453A KDL-47W802A XBR-49X850B KDL-50R450A KDL-50R550A KDL-55W802A KDL-55W900A KDL-55W800B KDL-55W950B XBR-55X850A XBR-55X850B XBR-55X900A XBR-55X900B XBR-55X800B KDL-60R550A KDL-60W630B KDL-60W850B KDL60R510A KDL-60R510A
