VideoSecu Articulating Tilt Swivel TV Wall Mount for Samsung 32-55" LED LCD HDTV UHD Plasma, Heavy Duty Full Motion TV Mount BK7

Video
Secu supplies a broad variety of universal high-quality, well-designed and easy-installed mounts at cost-effective prices. The full motion mount MW365B2H-A4 fits most 32-55 inch TVs, some LED up to 60 inch with VESA mounting hole patterns within 200-600mm wide and 100-400mm high. Constructed with heavy duty solid steel structure provides reliability and durability. Multi-directional adjustable swivel, tilt and smooth long extension offers you perfect TV positioning and flexible adjustments. Security screws on both arms lock the screen in position for additional security. Nesting arm design allows display to be folded parallel to wall to save place.

Post-installation level adjustment allows the TV to perfectly level. Go ahead and order it now!

*Warning: This mount does not fit 46" or above TVs which were manufactured before 2013

Specification:
*Fits most 32-55" TVs, some LED up to 60" (please check VESA and weight)

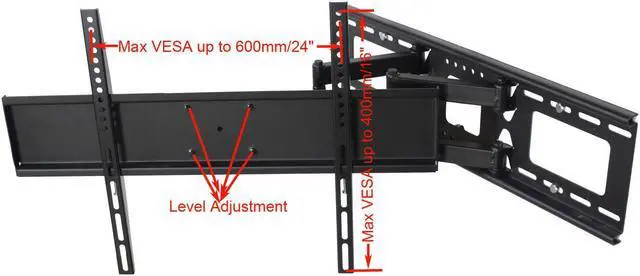

*Fits VESA mounting hole patterns 600x400/ 600x300/ 500x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole patterns within 200-600mm wide and 100-400mm high
*Supports screen weight up to 135 lbs / 61kg

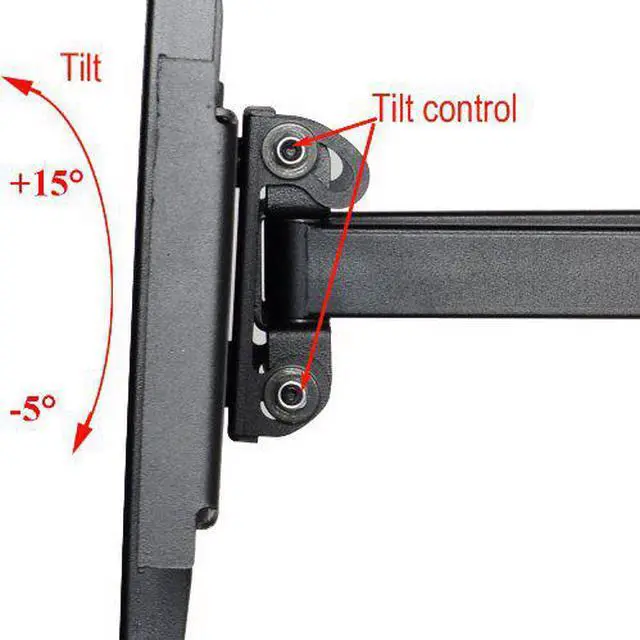

*Tilt 15 degrees forward or 5 degrees backward

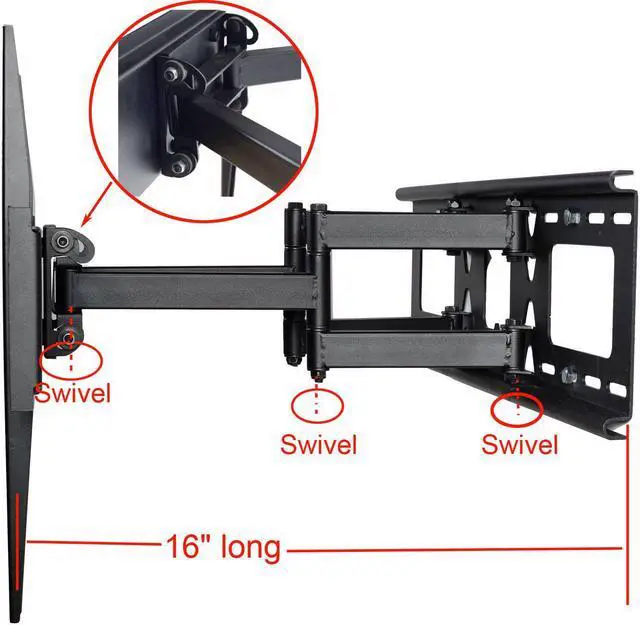

*Swivel 180 degrees (depending on TV size)
*Rotate 10 degrees adjustment for perfect TV level
*Extend up to 16" or folds 3" to the wall to save space
*Mounting studs distance up to 24"

Features:
*Constructed with heavy duty solid steel structure provides reliability and durability
*Post-installation level adjustment for TV perfect level
*Safety screws on both VESA arms hold screen in position for security
*Open holes on wall plate for cable access
*Nesting arm design allows display to be folded parallel to wall to save place
*Note: For some Panasonic Plasma TV with VESA 684x300mm, this mount does NOT fit

Package contents:
TV mount, standard mounting hardware and user manual

Please check whether the mount is suitable for your TV: (Do not use size of your TV to determine if the wall mount will fit)

1. Please check the weight of your TV; it must be less than 135 lbs.

2. Look at the back of your TV, find the mounting holes and measure horizontal and vertical distance, if the horizontal distance is within 600mm (24"), vertical distance is within 400mm (16"), then the mount will work perfect for you.

3. The size of your TV should be at least 32". Otherwise the mount is too big to hide behind your TV.
