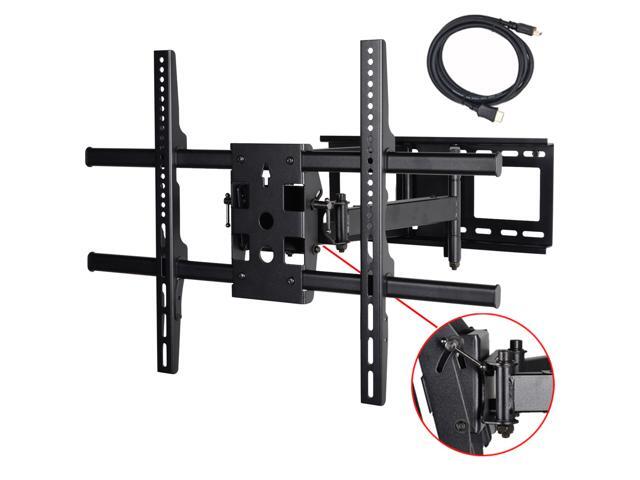

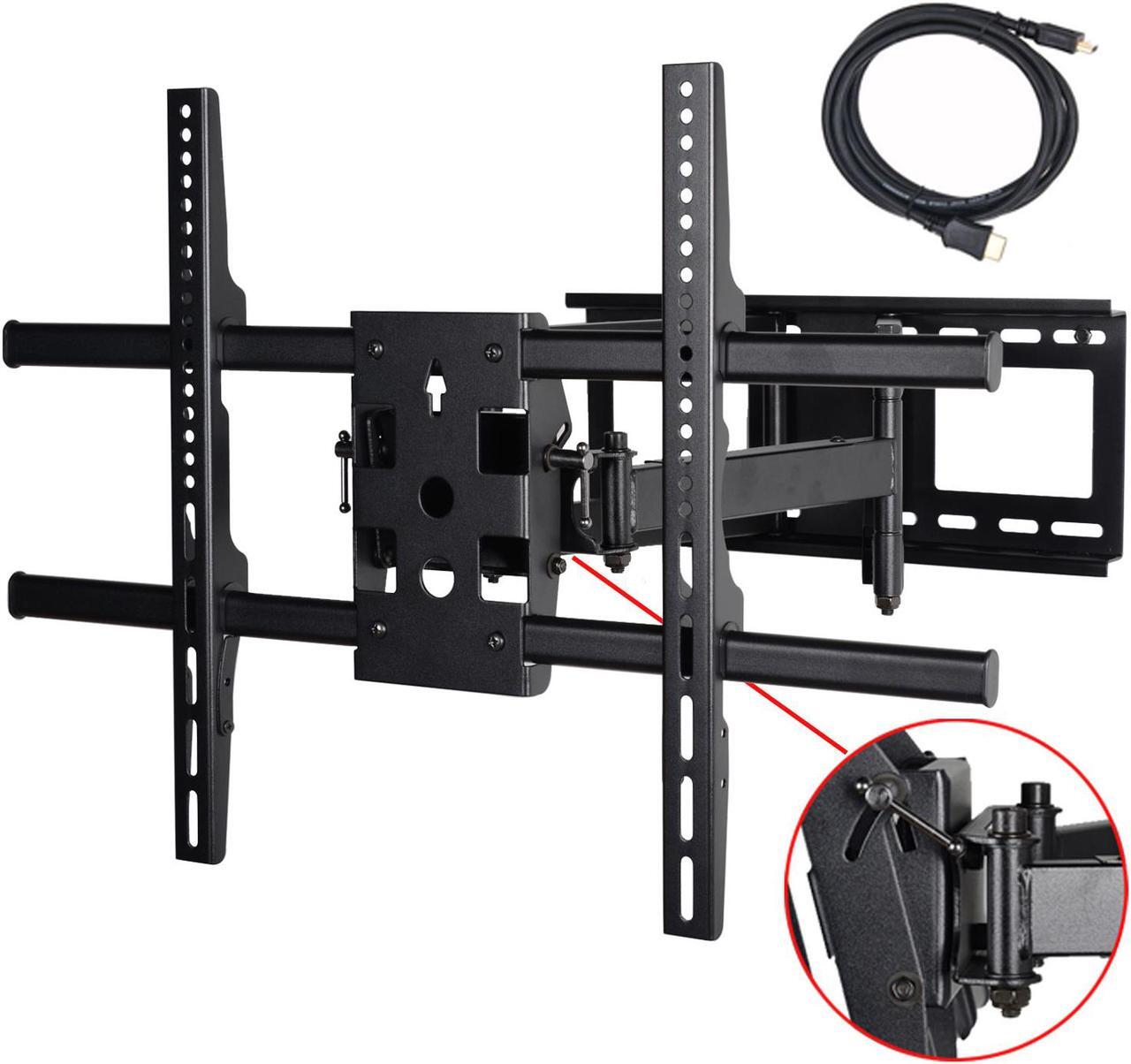

VideoSecu Tilt Swivel Articulating Dual Arm Full Motion TV Wall Mount Bracket for most 40-70" LCD LED Plasma 3D HDTV with loading 165lbs, Max VESA 684x400mm/ Cable Management/ Free 10ft HDMI Cable A37

The Video
Secu articulating heavy duty TV wall mount MW380B2 fits most 40-65" LED LCD Plasma flat panel screen, some LED up to 70" with VESA mounting hole patterns up to 684x400mm. This TV mount is constructed with thick high grade steel providing security and stability. Adjustable tilt, swivel, rotate and extension place your TV in multiple viewing angles. The lock and release design secures the TV into place for additional security and offers convenient installation. Cable management design brings more convenience. Free 10 feet HDMI cable included in package. Go ahead and order it now!

*Warning: This mount does not fit 65" or above TVs which were manufactured before 2013

Specification:
*Fits most 40 - 65 inch TV displays, some LED up to 70 inch (Please check VESA and weight)

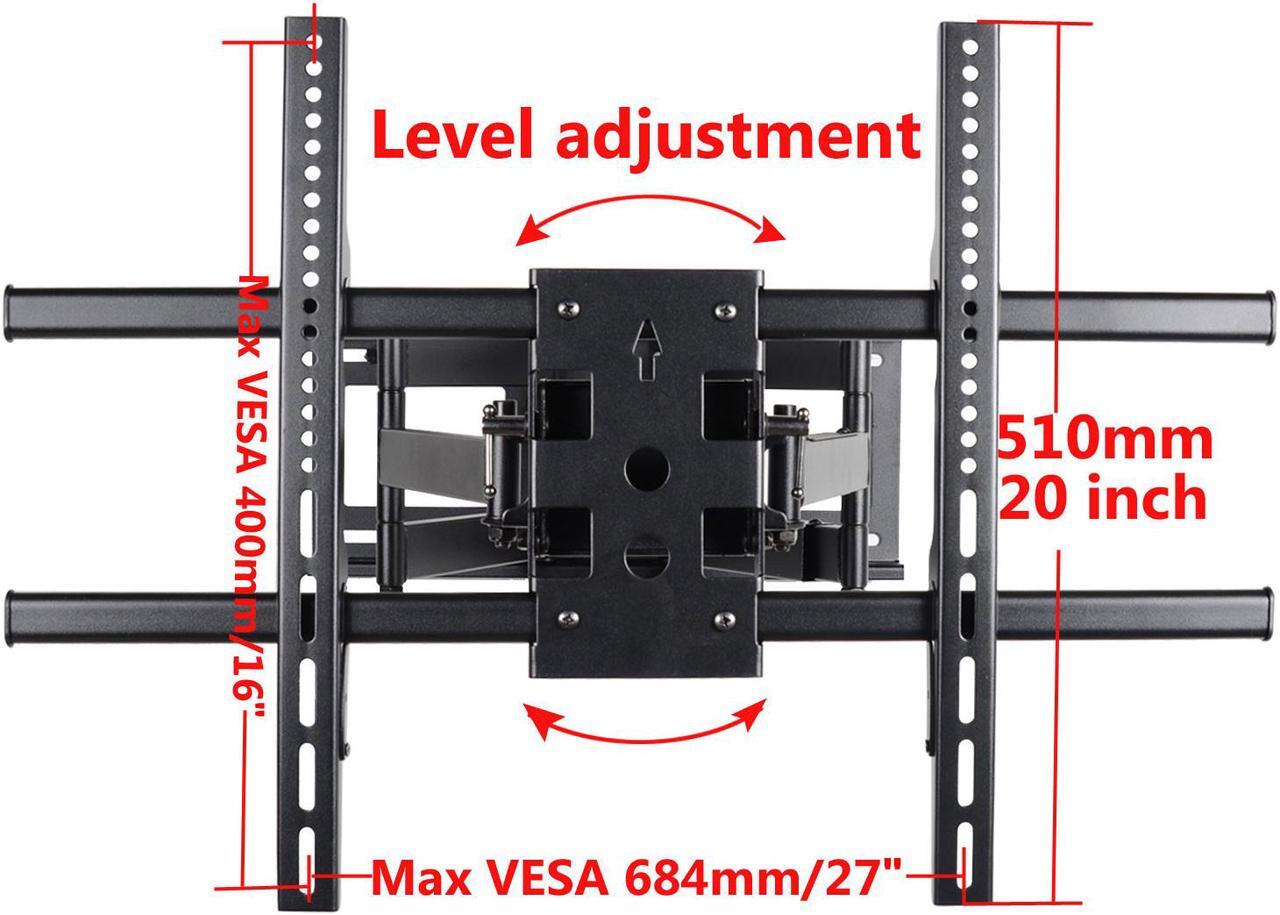

*Fits VESA mounting hole patterns 684x400/ 684x300/ 600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole patterns within 200-684mm wide and 100-400mm high
*Loading capacity up to 165lbs/75kg
*Adjustable 15 degrees tilt forward or backward for perfect viewing angle
*Rotate 6 degrees for level adjustment

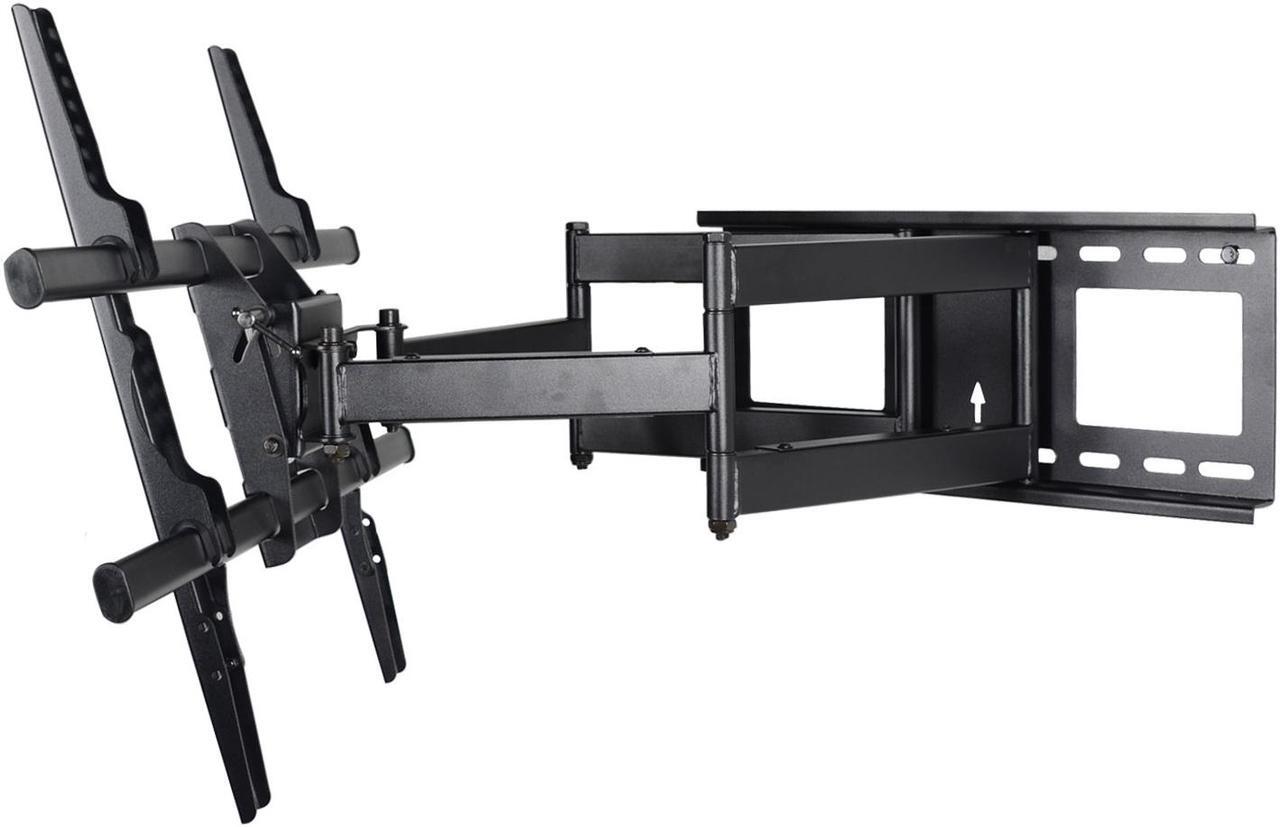

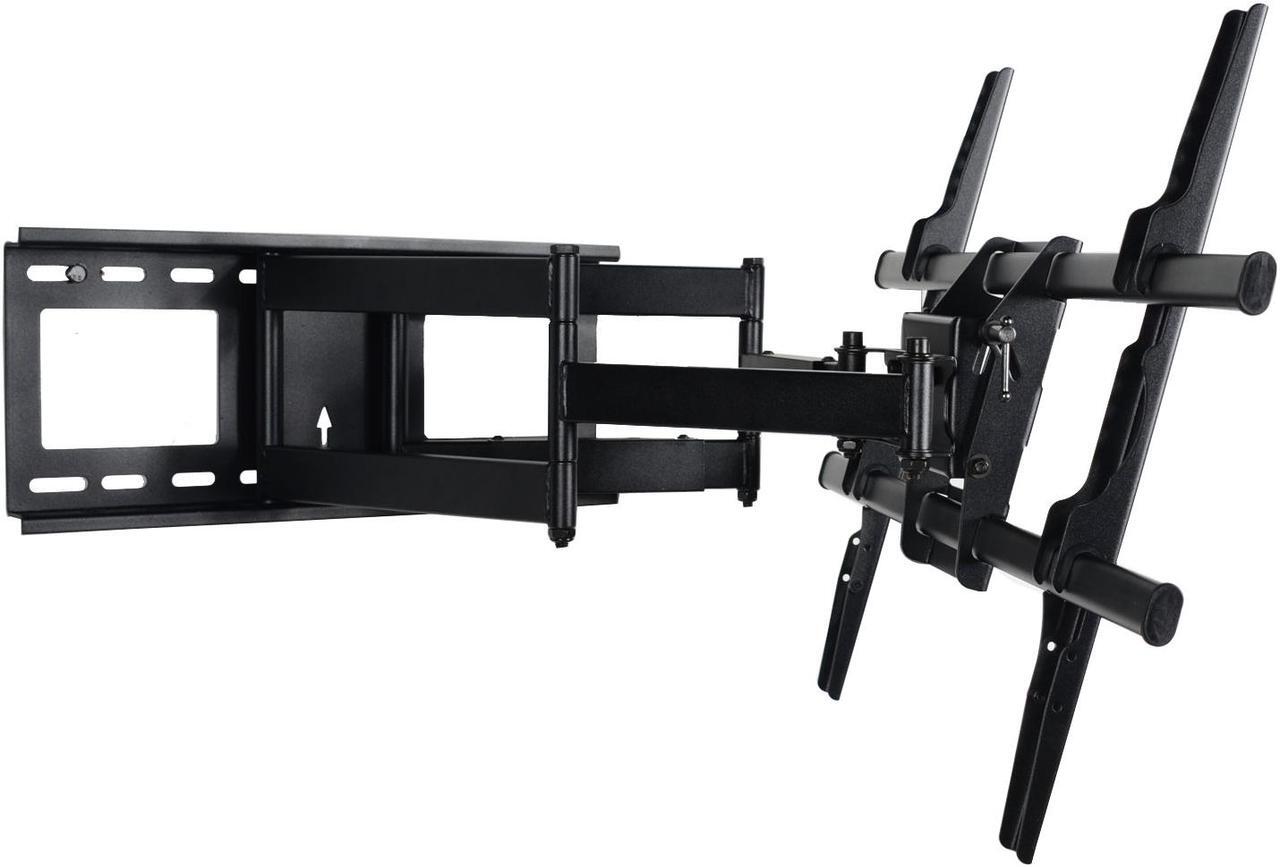

*Swivel up to 160 degrees left and right for comfortable view angle in different positions (depending on TV model)

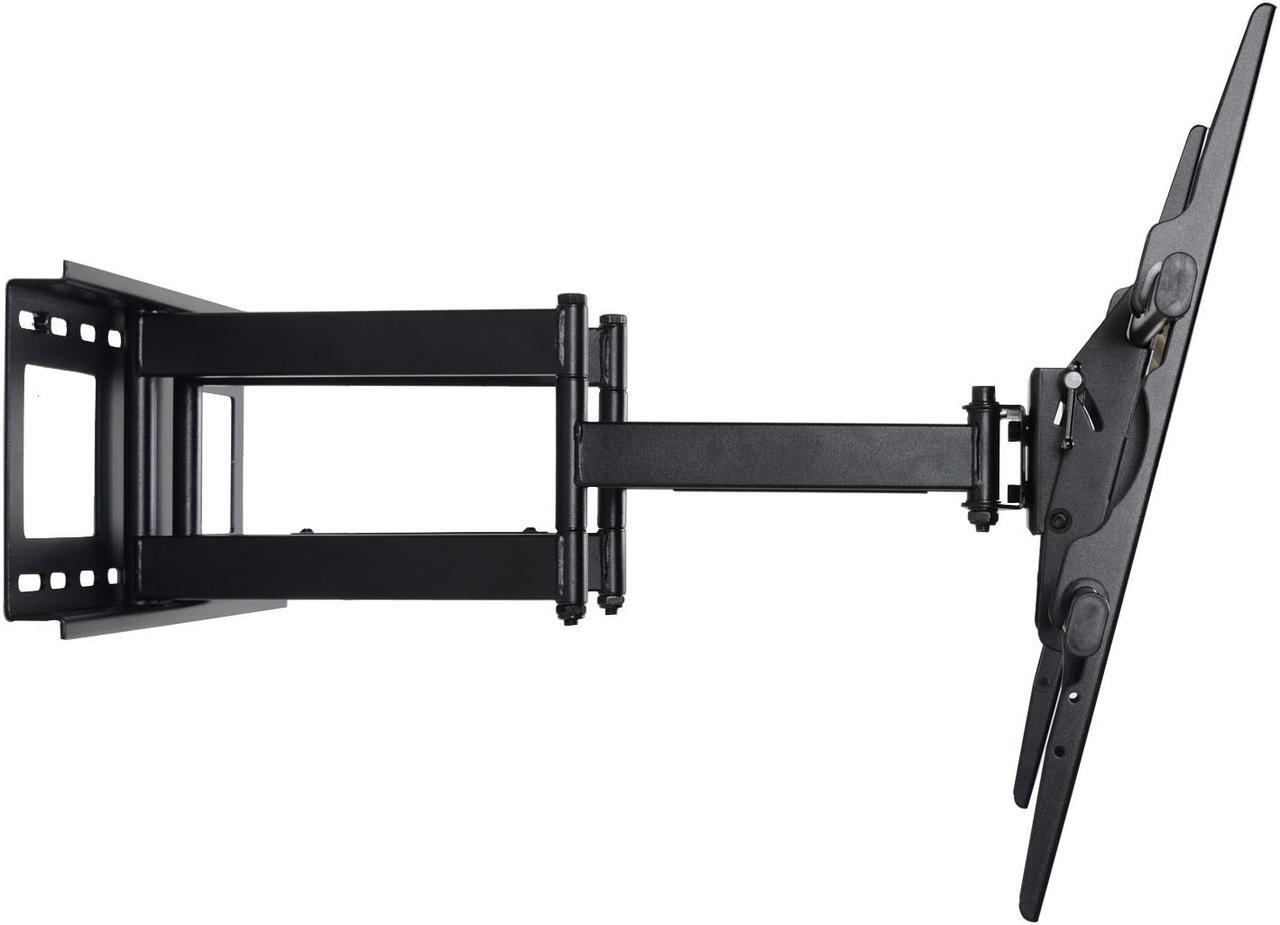

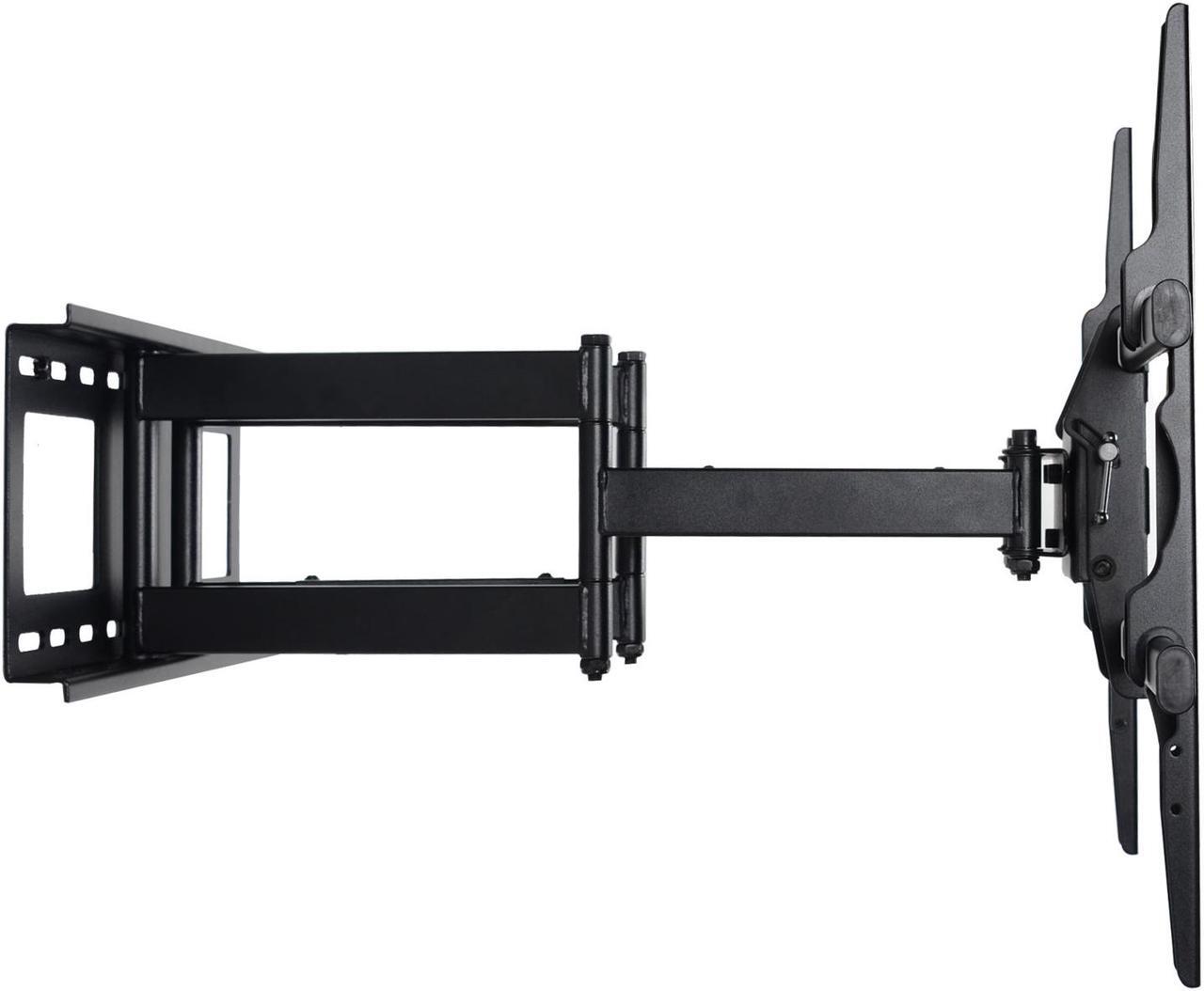

*Extension & Depth: the mount pulls out up to 25 inch from the wall or to be folded parallel to the wall less than 4 inch to save space
*Mounts to studs up to 17.8 inch
*Wall plate dimension: 490x213mm (19"x 8.4" )

Features:

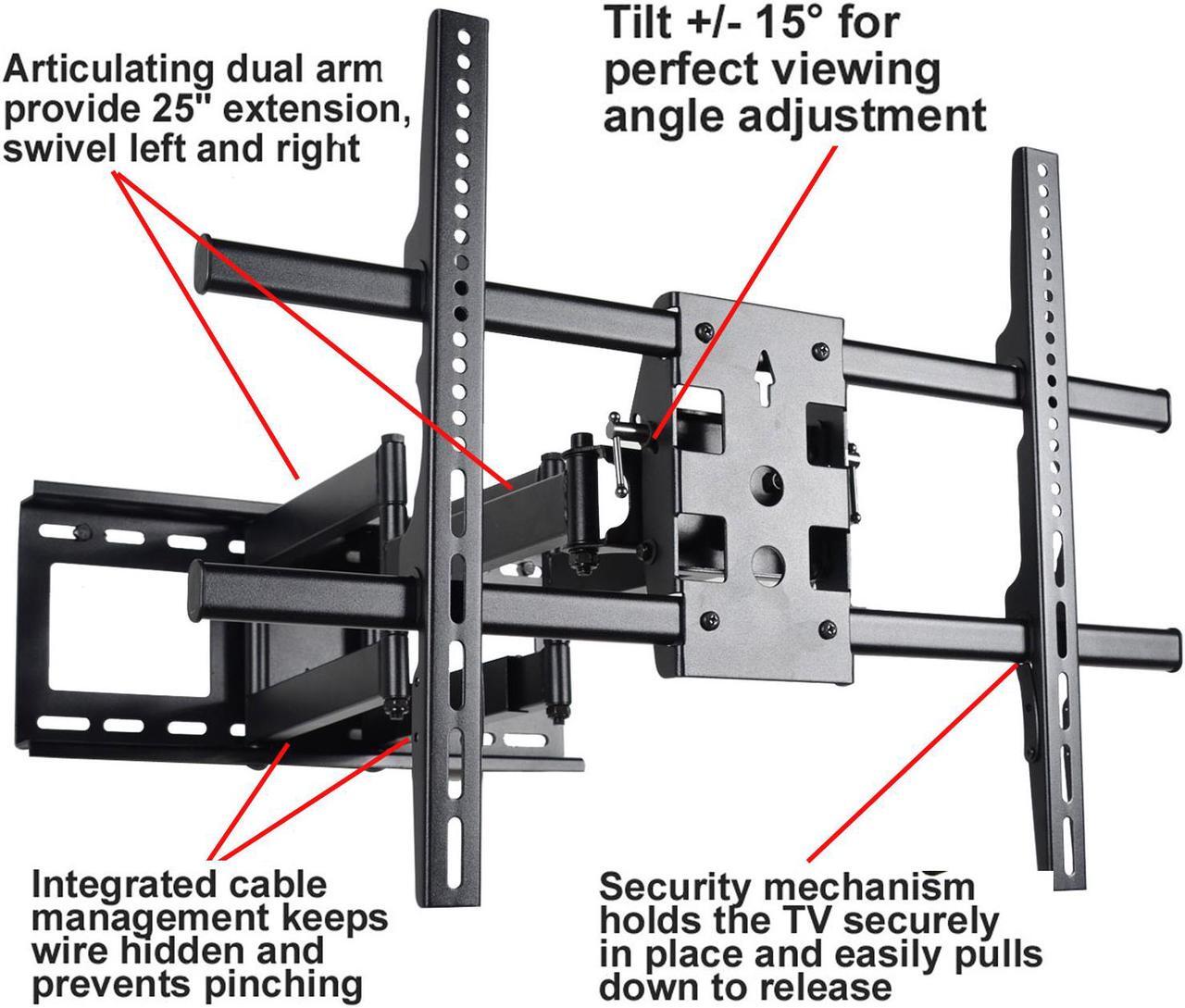

*Premium quality - heavy duty steel construction with powder coated black finish
*Multi-directional adjustment tilt, swivel and extend for perfect viewing angle
*Post-installation level adjustment allows the TV to perfectly level
*This mount can add a locker to prevent TV to be removed or stolen (locker not include)
*Lock and release design on arms secure the display in position for additional security
*Integrated cable management design on articulating arm keep wires out of the way
*Nesting arm design allows display to be folded parallel to wall to save place

Package contents:
TV wall mount, 10ft HDMI cable, standard mounting hardware, user manual

Please check whether the mount is suitable for your TV.

1. Please check the weight of your TV; it must be less than 165 lbs.

2. Look at the back of your TV, find the mounting holes and measure width and height, if the width is within 27", height is within 16", then the mount will work perfect for you.

3. The width of your TV should be at least 32". Otherwise the mount is too wide to hide behind your TV.
