VideoSecu Tilt Swivel Full Motion TV Wall Mount for Panasonic 65 inch TC-65AX900U TC-65CX650U TC-65CX800U LCD LED HDTV UHD Flat Panel Screens Articulating Dual Arm TV Mount Bracket A37

The Video

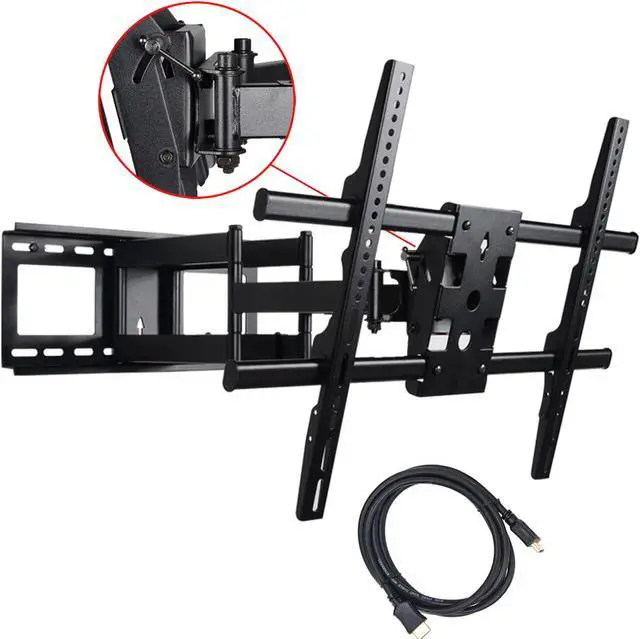

Secu articulating heavy duty TV wall mount MW380B2 fits most 40-65" LED LCD Plasma flat panel screen, some LED up to 70" with VESA mounting hole patterns up to 684x400mm. This TV mount is constructed with thick high grade steel providing security and stability. Adjustable tilt, swivel, rotate and extension place your TV in multiple viewing angles. The lock and release design secures the TV into place for additional security and offers convenient installation. Cable management design brings more convenience. Free 10 feet HDMI cable included in package. Go ahead and order it now!

*Warning: This mount does not fit 65" or above TVs which were manufactured before 2013

Specification:
*Fits most 40 - 65 inch TV displays, some up to 70 inch (Please check VESA and weight)
*Fits VESA mounting hole patterns 684x400/ 684x300/ 600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole patterns within 200-684mm wide and 100-400mm high
*Loading capacity up to 165lbs/75kg
*Adjustable 15 degrees tilt forward or backward for perfect viewing angle
*Rotate 6 degrees for level adjustment
*Swivel up to 160 degrees left and right for comfortable view angle in different positions (depending on TV model)
*Extension & Depth: the mount pulls out up to 25 inch from the wall or to be folded parallel to the wall less than 4 inch to save space
*Fits 16" apart wood studs, up to 17.8" stud
*Wall plate dimension: 490x213mm (19"x 8.4" )

Features:
*Premium quality - heavy duty steel construction with powder coated black finish

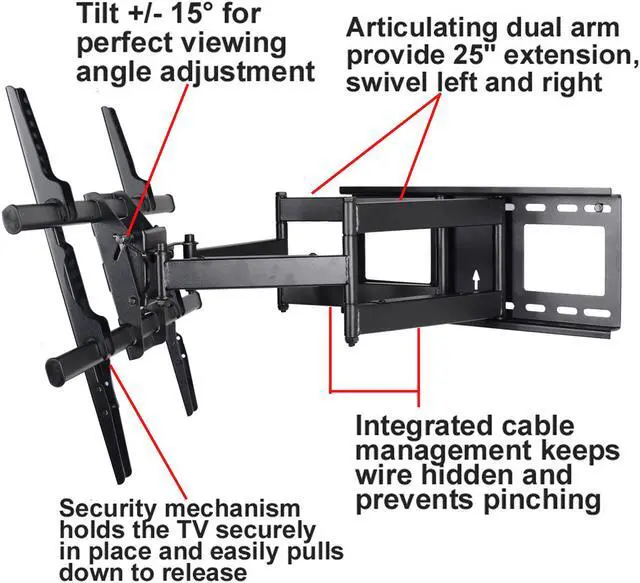

*Multi-directional adjustment tilt, swivel and extend for perfect viewing angle
*Post-installation level adjustment allows the TV to perfectly level
*This mount can add a locker to prevent TV to be removed or stolen (locker not include)
*Lock and release design on arms secure the display in position for additional security
*Integrated cable management design on articulating arm keep wires out of the way
*Nesting arm design allows display to be folded parallel to wall to save place

Package contents:
TV wall mount, 10ft HDMI cable, standard mounting hardware, user manual

Please check whether the mount is suitable for your TV.

1. Please check the weight of your TV; it must be less than 165 lbs.

2. Look at the back of your TV, find the mounting holes and measure width and height, if the width is within 200-684mm, height is within 100-400mm, then the mount will work perfect for you.

3. The width of your TV should be at least 32". Otherwise the mount is too wide to hide behind your TV.

It is compatible with the following displays as well as other TV brands, some models may not be listed:
Panasonic 42-65 inch TVs: TC-P42S2 TC-P42S60 TC-P42X60 TC-L42E60 TC-L42ET5 TC-L42ET60 TC-L47DT50 TC-L47ET5 TC-L47E5 TC-L47E50 TC-L47ET60 TC-L47WT60 TC-50A400U TC-50AS530U TC-50AS530UE TC-50AS650UE TC-50LE64 TC-L50E60 TC-L50EM60 TC-50PS64 TC-P50GT50 TC-P50S60 TC-P50ST50 TC-P50ST60 TC-P50UT50 TC-P50X60 TC-P50XT50 TC-L50B6 TC-L50ET60 TC-50CX600U TC-55CX650U TC-55CX800U TC-55AS530U TC-55AS650U TC-55AS680U TC-L55DT60 TC-L55E50 TC-L55ET60 TC-L55WT60 TC-P55S60 TC-P55ST60 TC-P55VT60 TC-58AX800U TC-58LE64 TC-L58E60 TC-60CX650U TC-60CX800U TC-60AS530U TC-60AS640U TC-60AS650U TC-L60DT60 TC-P60GT50 TC-P60S60 TC-P60ST50 TC-P60ST60 TC-P60UT50 TC-P60VT60 TC-P60ZT60 TC-65AX900U TC-65CX650U TC-65CX800U TC-65AX800U TC-L65E60 TC-65PS64 TC-P65S60 TC-P65ST60 TC-65AX900U TC-65CX650U TC-65CX800U.
