Note: The product is Taiwan product, please prepare the adapter by yourself

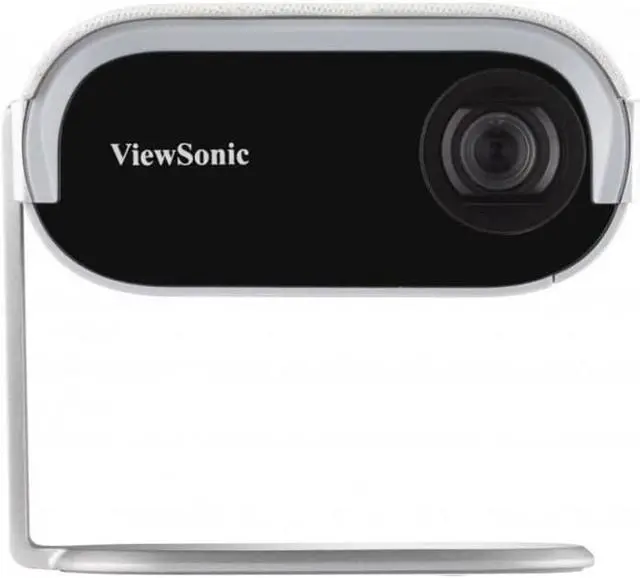

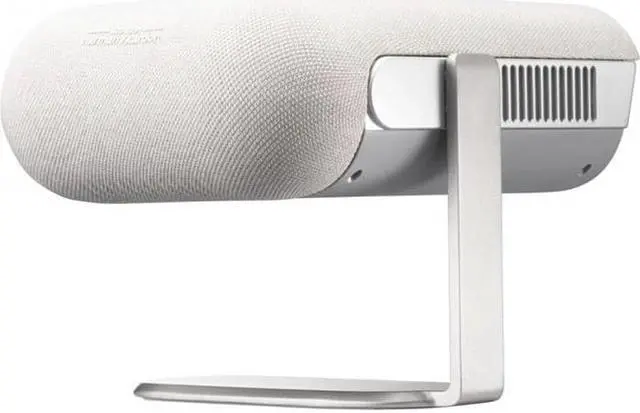

360° Projection 3-in-1 Smart Dock
Built-in battery supports mobile power supply
Harman Kardon Stereo Surround Sound
Smart Wi-Fi connection Screen mirroring to share device screen
Support Bluetooth connection
1.4 m can project a 60-inch image, and a maximum of 150 inches can be projected
Specification information
Original resolution: 1280x720
Brightness: 600 (LED Lumens)
Contrast ratio: 120000:1
Display Color: 1.07 Billion Colors
Light source type: LED
Light Source Life (hours) with Normal Mode: 30000
Lens: F= 1.7, f= 7.4 mm
Projection Offset: 100%+/-5%
Throw Ratio: 1.07
Optical Zoom: Fixed
Digital zoom: 0.8 x- 1.0 x
Image size: 40"-150"
Projection distance: 0.94 m- 3.52 m
( 42.6" @1m)
Keystone: H: +/-40°, V: +/-40°
Noise standard (normal): 26dB
Audible Noise (Eco): 25dB
Local storage space: Total 16GB
(12GB storage)
Input Latency: 68ms
Support resolution: VGA (640 x 480) to FullHD (1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal frequency: 15K-102KHz
Vertical scan rate: 23-120Hz
enter
HDMI: 1
(HDMI 1.4 /HDCP 1.4 )
USB Type C: 2 (Video/5V/2A out *1,
DC in /15V/3A *1)
Audio input (Bluetooth): 1 (BT 4.2 )
USB Type A: 1
(USB 2.0 )
WiFi input: 1 (5Gn)
output
Audio-out (
3.5 mm): 1
Audio output (Bluetooth): 1 (BT 4.2 )
Speaker: 3W Cube x2
(Full range x2)
USB Type A (Power Delivery): 1
(USB 2.0 - 5V/ 1.5A,
share with USB A Input)
adjustment options
USB Type A (Services): 1
(share with USB A Input)
other
Power supply voltage: Power adapter:
Input: 100~240V
Output: 19VDC / 3.42A
Battery:
12000mAh (4000mAh 3.7V x3)
( 1.4 hrs@Normal, 2hrs@Eco)
Power Consumption: Normal: 45W
Standby: <0.5W
Working temperature: 0~40
Carton: Color
Net weight: 0.95K g
Gross Weight: 2.8K g
Dimensions (W x H x D, including
adjustable base): 182x140x62mm
Packing Dimensions: 453x242x94mm
OSD Languages: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungary Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
Standard Accessory
Power cord: 1
USB-C cable: 1 (1m)
remote control: 1
Quick Start Guide: Yes
Warranty Card: Yes (CN & JP)
Carrying case: Yes
