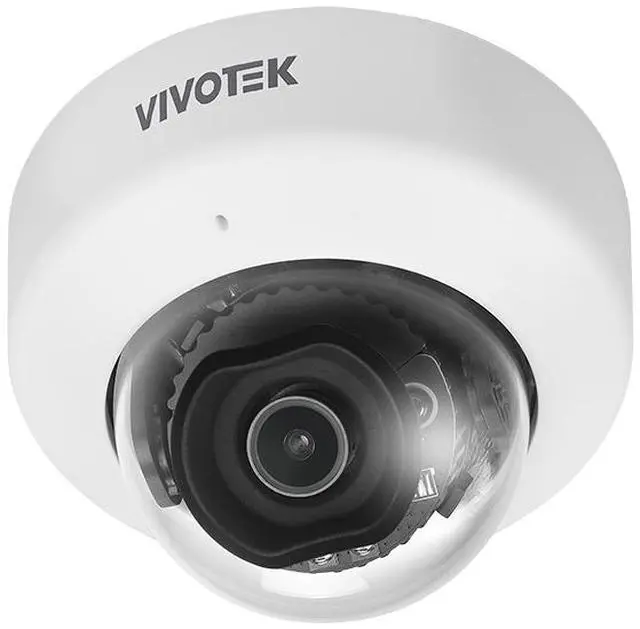

Vivotek FD9186-H 5MP Mini Indoor Fixed Dome Camera
- Compact and low-profile design
- Detect people & vehicles with Vision Object Analytics
- Accurate alarm with Smart VCA
- Built-in IR illuminators, effective up to 30 meters
- Cyber protection via Trend Micro IoT Security
- Dome Camera
- RJ45
- 2880 x 1616 MAX Resolution
+
+
Learn more about the VIVOTEK Inc. FD9186-H
| Brand | Vivotek |
|---|---|
| Series | C-Series |
| Model | FD9186-H |
| Network Camera | Yes |
|---|---|
| Type | Dome Camera |
| Connection Type | RJ45 |
| Color | White |
| Micro SD Slot | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) |
| Networking Protocol | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
|---|---|
| ONVIF | Yes |
| Pan/Tilt | Pan Range: 350° Tilt Range: 65° Rotation Range: 200° |
|---|---|
| Sensor & Detector | 1/2.7" Progressive CMOS |
| Pixels | 5 MP |
| HD Resolution | 2K |
| MAX Resolution | 2880 x 1616 |
| Frame Rate | 30fps |
| Lens Type | Focal Length: f = 2.8 mm Aperture: F1.6 Iris Type: Fixed iris Field of View - 111.0° (Horizontal) - 59.0° (Vertical) - 133.0° (Diagonal) |
| Shutter Control | 1/5 sec. to 1/32,000 sec. |
| Security | Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Night Vision | Yes |
| Audio | One-way Audio Built-in microphone |
| Power over Ethernet | IEEE 802.3af PoE Class 3 DC 12V |
|---|---|
| Power | PoE: Max. 6.9W/ 5.8W (IR on/off) typical 4.1W/3W (IR on/off) DC12V: Max 6.5W/ 5.4W (IR on/off) |
| Humidity | 90% RH (non-condensing) |
|---|---|
| Temperature | Starting Temperature: -10°C ~ 55°C (14°F ~ 131°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) (IR on), -10°C ~ 55°C (14°F ~ 131°F) (IR off) |
| Dimension | 91 x 91 x 63 mm |
|---|---|
| Weight | 156 g |
| Operating Systems Supported | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
|---|
| First Listed on Newegg | July 30, 2025 |
|---|
