C13S Specifications:
System:
Operation system: Embedded Linux OS
Online visitor: Support 4 visitors at the same time
Image Capture
Image sensor: 1/2.7 inch 1080p Progressive Scan CMOS
Minimum Illumination: 0.5Lux(color mode), 0.1Lux(B&W mode)
Lens:
[email protected]View Angle: 85°(Diagonal)
Nightvision: Dual Filter,IR-Cut,4pcs 850nm SMD IR LED, IR irradiation distance:10~15m
Video
Encode format: H.264 main profile@levels:4.0/Motion-JPEG
Three Stream: Main Stream:1080p(1920X1080)@15fps Sub Stream:360p(640X360)@15fps Third Stream:180p(320X180)@10fps
Bit Rate: 128~4096kbps
Maximum frame rate: 15fps
Image adjustment: Contrast?Brightness?Saturation?Hue
Audio
Output: Built-in Siren, Max 95 Db
Network
Ethernet:10Base-T / 100Base-TX, RJ45 connector
Protocols:TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc
Wireless LAN:IEEE802.11b/g/n
Wireless LAN Frequency:2.4~ 2.4835GHz
Wireless LAN security:64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
Memory

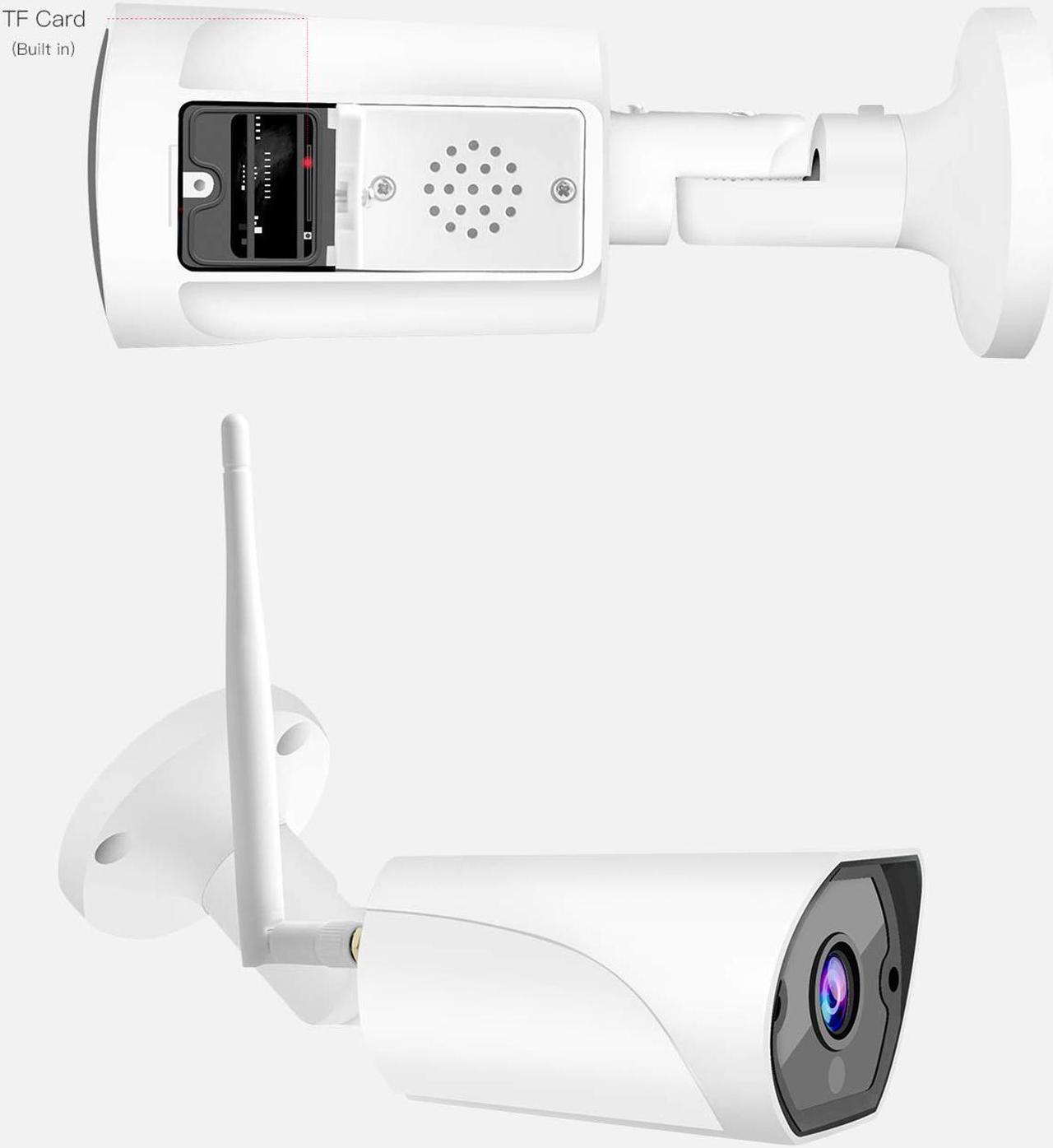

Socket:TF Push-push socket,Maximum support 128GB; Cloud Storage
Alarm:Alarm Trigger:Motion detection
Physical Environmental
Rated voltage:DC12V±5%
Power consumption:Related power:1.44W(IR not on)
Operating condition:Temperature:-10~50?,humidity:<90%
Weight:Gross:607g Net:378.5 g(Note: in kind prevail)
Package size:245*107*80mm(L×W×H)
Product size:70X144X187mm(L×W×H)
Others:Built-in RTC Chip, internet-free video recording and viewing
