Wavlink USB-C Universal Triple 4K Display Laptop Docking Station, USB 3.0 Dock Supports 3 Monitors, Max 130W PD Charging, Dual DP, HDMI, 4*Type-A, Type-C, RJ45, Mic/Audio, For Windows Mac OS

This USB C docking station is designed for those who want to upgrade their USB C computer in a single port.

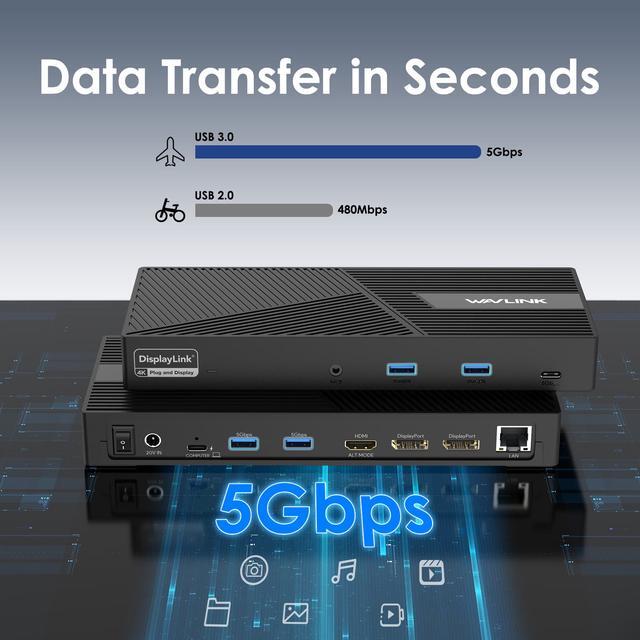

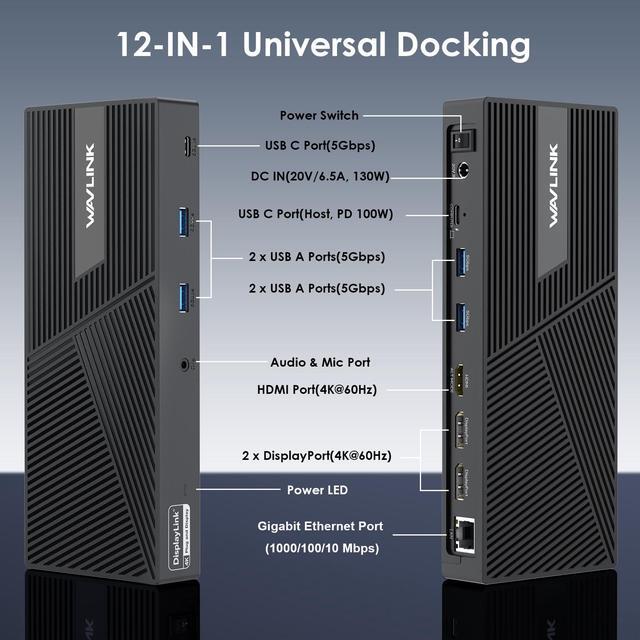

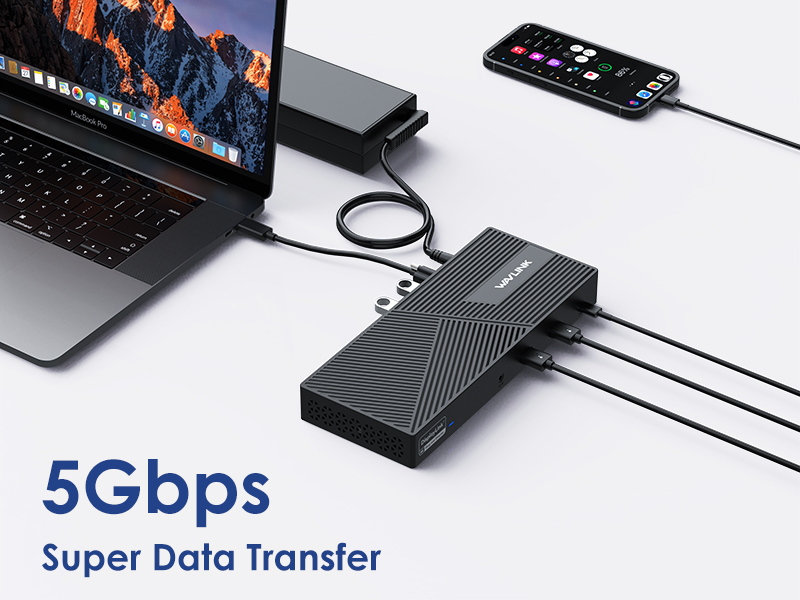

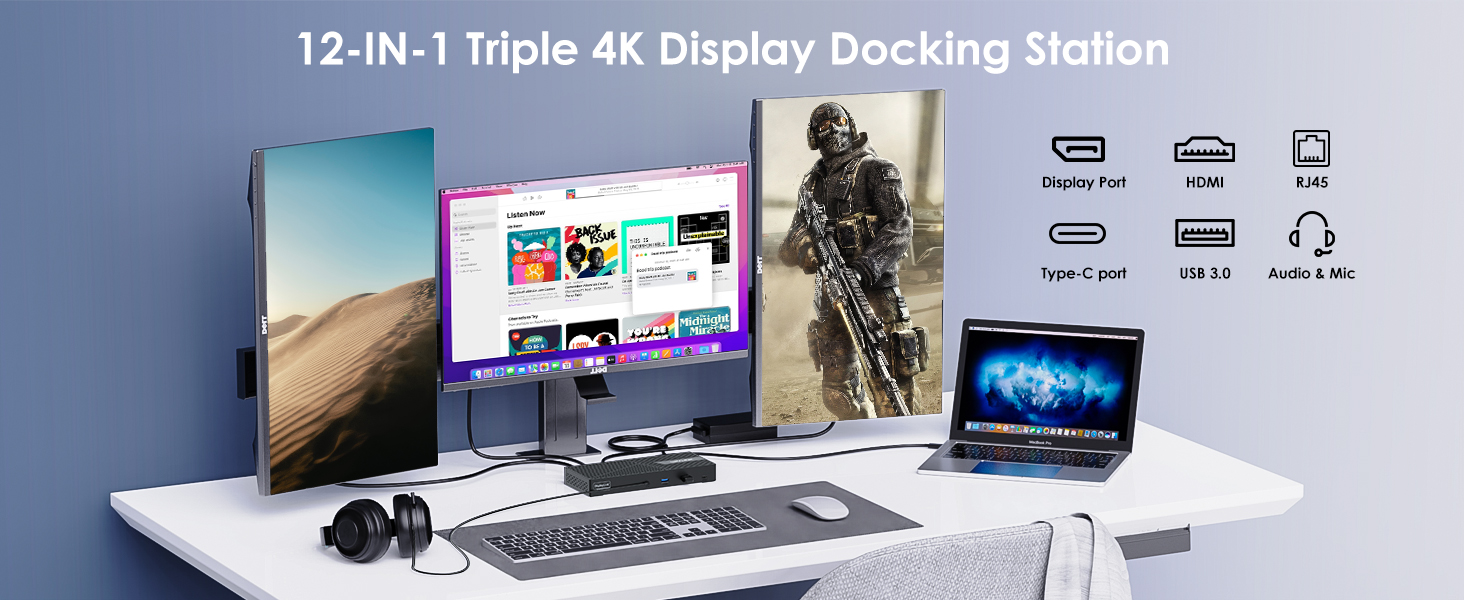

The Wavlink 12-in-1 docking station perfectly meets your computer port needs and enhances your productivity with its powerful multiple ports. Dual DP ports and one HDMI port allow you to expand 1-3 monitors that are capable of 4K@60Hz HD quality. 130W PD charging reduces charging time. 4 USB 3.0 and one USB-C port allow you to connect more peripherals while providing up to 5Gbps data transfer rate.

Next-Gen Universal Dock Solution - DL-6950

Equipped with the built-in DisplayLink DL-6950 chip and the industry-leading DL3 compression technology, this dock could extend the benefits of low-latency, pixel-perfect graphics to high-resolution displays


Come and enjoy crystal-clear videos and more efficient productivity with Wavlink triple 4K docking station.

With this USB-C Dock, both Windows- and Mac OS-based computers can expand three displays to show different content as long as your device's Type-C port supports data transfer and video output, which is especially suitable for M1/2-based Mac users.

NOTE: Please install the latest DisplayLink driver before use.

Applicable for Multiple Use

2 x DP ports can fully meet your daily office, web browsing, file processing and other needs. When you want to enjoy HD gaming experience or do other image-intensive work, the HDMI port on this docking station provides you with higher-quality video output. Note: ONLY when the Type-C port of your computer supports video output can the HDMI port be used normally.

Note: ONLY when the Type-C port of your computer supports video output can the HDMI port be used normally.

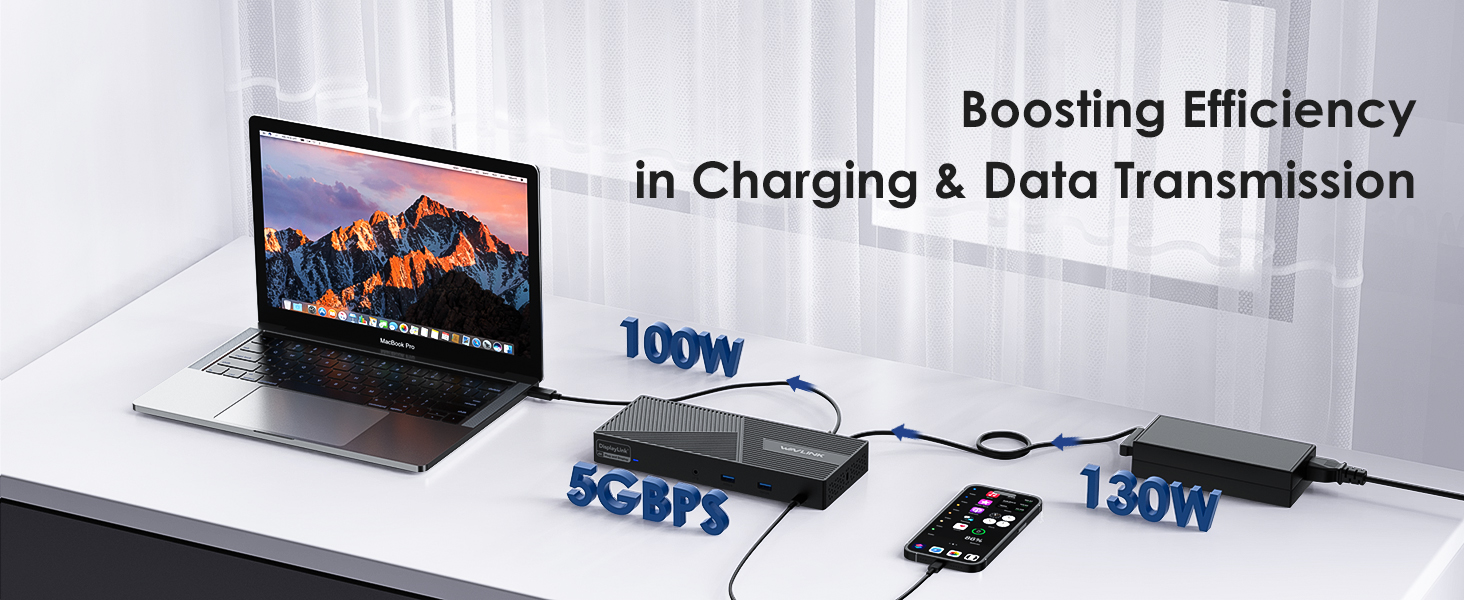

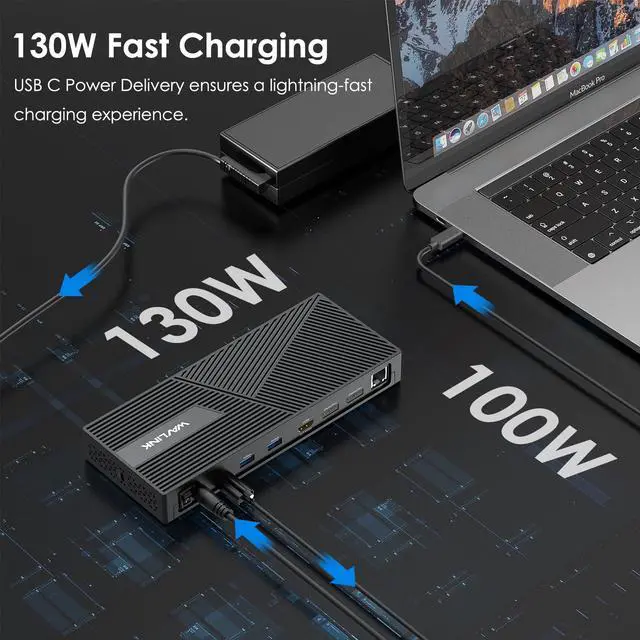

Please connect the supplied power adapter when using this product. The maximum input of 130W for the hubs operation allows the hub to give your laptop up to 100W pass-through charge.

Note: Please make sure the USB-C port on your device supports the PD protocol, otherwise, your device can not be charged.

1.Single Display(Max. Resolution)

Under DP1.2 Source: HDMI(Alt Mode): 3840x2160@30Hz ; DisplayPort1/2: 3840x2160@60Hz;

Under DP1.4 Source: HDMI(Alt Mode): 3840x2160@60Hz ; DisplayPort1/2: 3840x2160@60Hz.

2.Dual Display(Max. Resolution)

a. HDMI(Alt Mode)+ DisplayPort1/2:

Under DP1.2 Source: 3840x2160@30Hz+ 3840x2160@60Hz;

Under DP1.4 Source: 3840x2160@60Hz + 3840x2160@60Hz.

b. DisplayPort1+ DisplayPort2:

Under DP1.2/1.4 Source: 3840x2160@60Hz+ 3840x2160@60Hz.

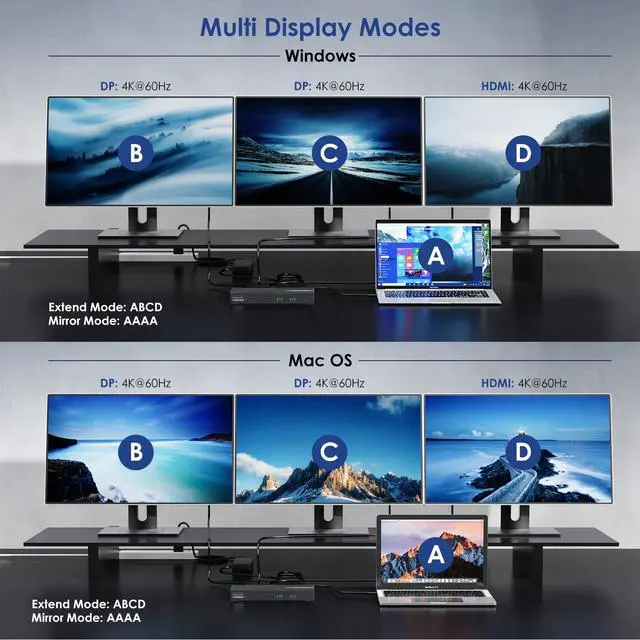

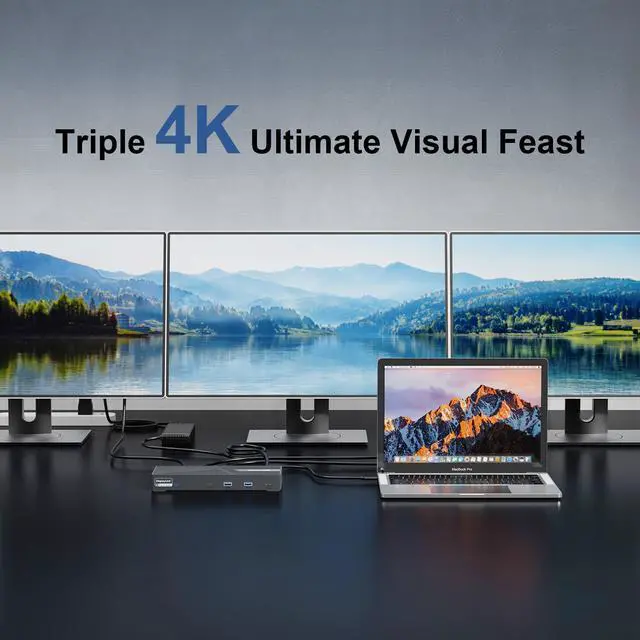

3.Triple Display(Max. Resolution)

HDMI(Alt Mode) + DisplayPort1+ DisplayPort2

Under DP1.2 Source: 3840x2160@30Hz+ 3840x2160@60Hz+3840x2160@60Hz;

Under DP1.4 Source: 3840x2160@60Hz+ 3840x2160@60Hz+3840x2160@60Hz.

When the Type-C port of your device:

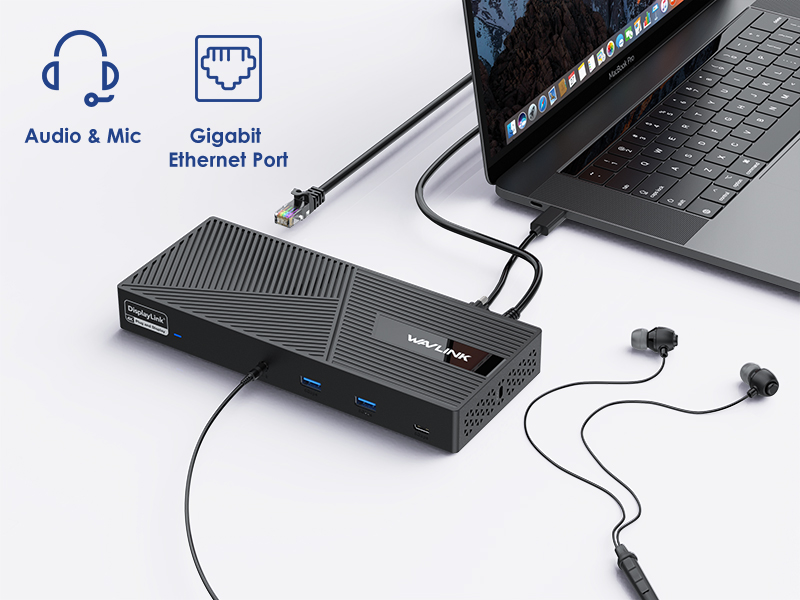

Supports data transmission: The Type-A, Type-C, Audio&Mic, RJ45 and DP ports of the product can be used normally.

Supports power delivery: The charging function of the product can be used normally.

Supports DP Alt Mode: The HDMI port of the product can be used normally.

If you are not sure whether the Type-C port of your device supports these functions, please feel free to contact our technical support staff.
