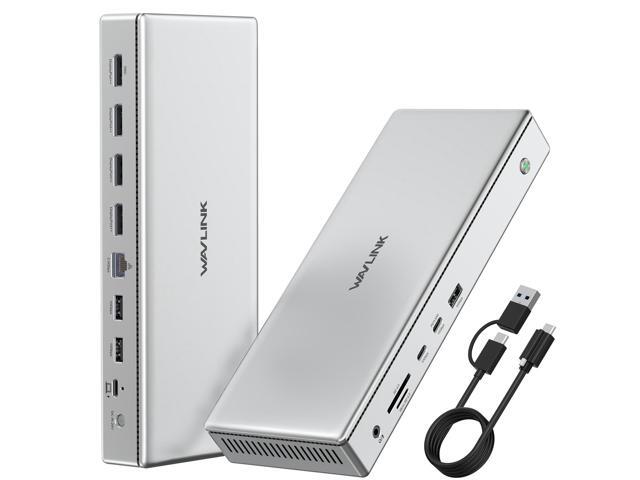

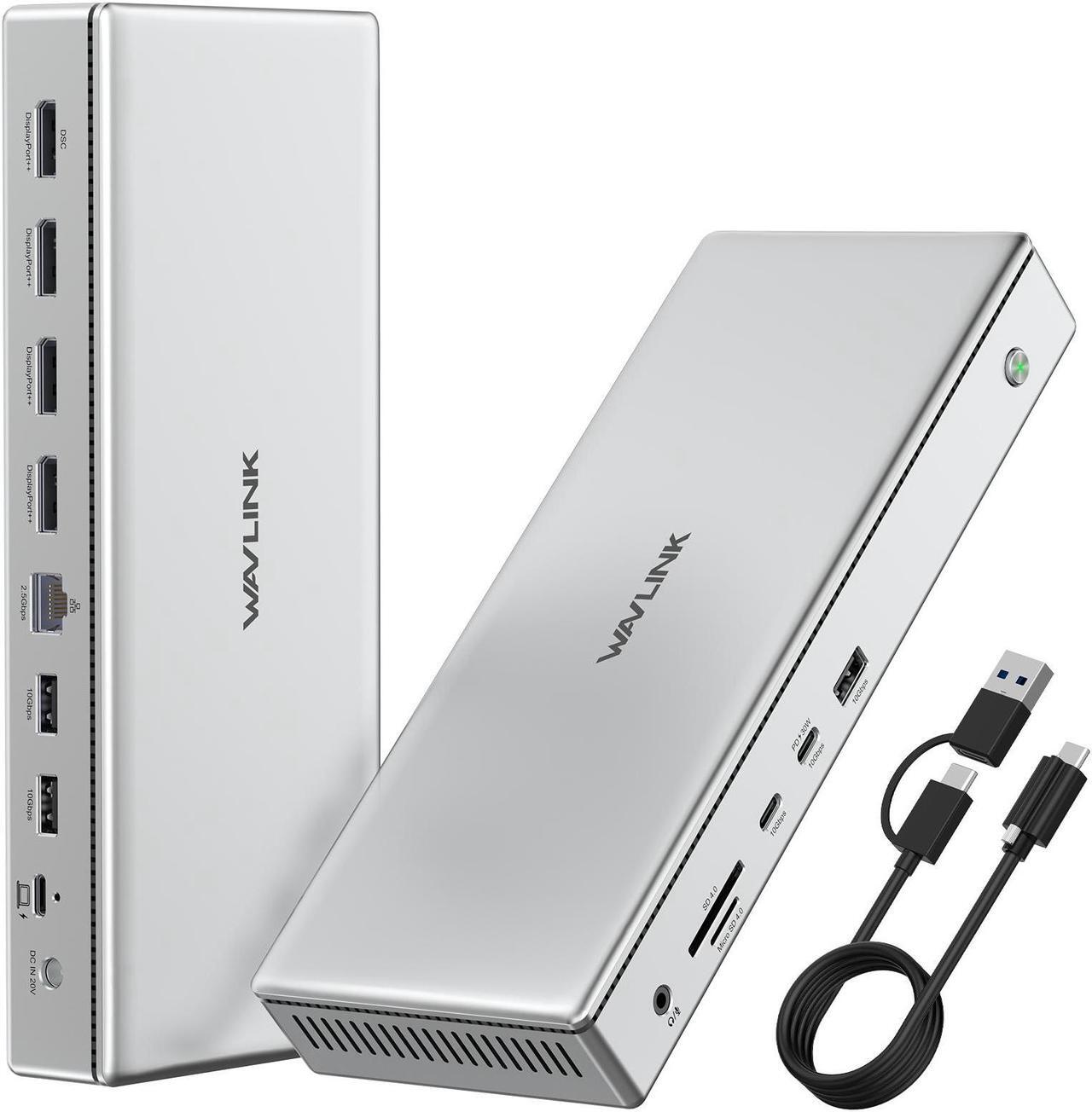

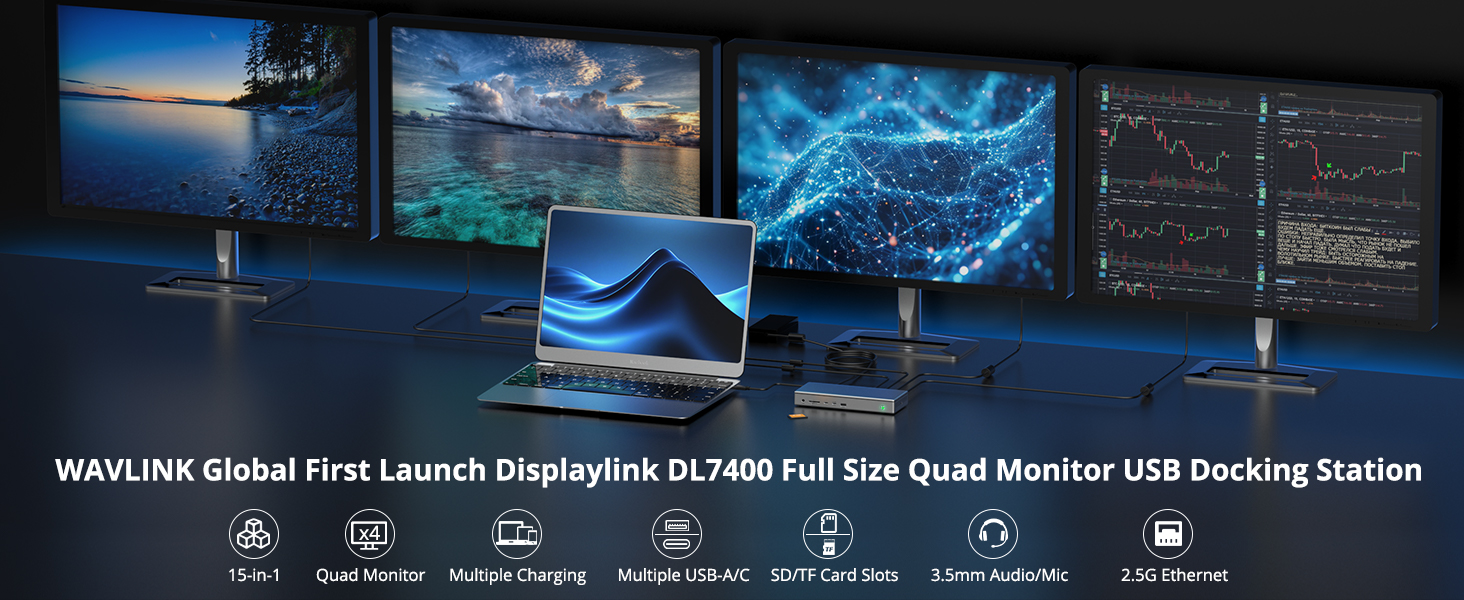

UG75PD1-4D2 is the first blockbuster product released by WAVLINK team, this quad 4K@120Hz USB-C docking station is a powerful 15 in 1 tool that can expand your work-from-home laptop's capabilities, reduce wire clutter, and leave your chargers behind!
With the UG75PD1-4D2, you're not just adding screens, you're also getting a whole host of extra ports. Starting with the innovative display array, you can add up to dual 8K displays at 60Hz or four 4K displays at 120Hz in the configuration of four DisplayPort to USB4 / Thunderbolt 3/4 hosts.
Driver required for this product, pls go to the displaylink website to download the driver.
Multiple Display Resolution
1.Single Display(Max. Resolution)
DP(DSC): 10K@60Hz/8K@60Hz/4K@144Hz
DP 2/3/4: 8K@60Hz/4K@120Hz

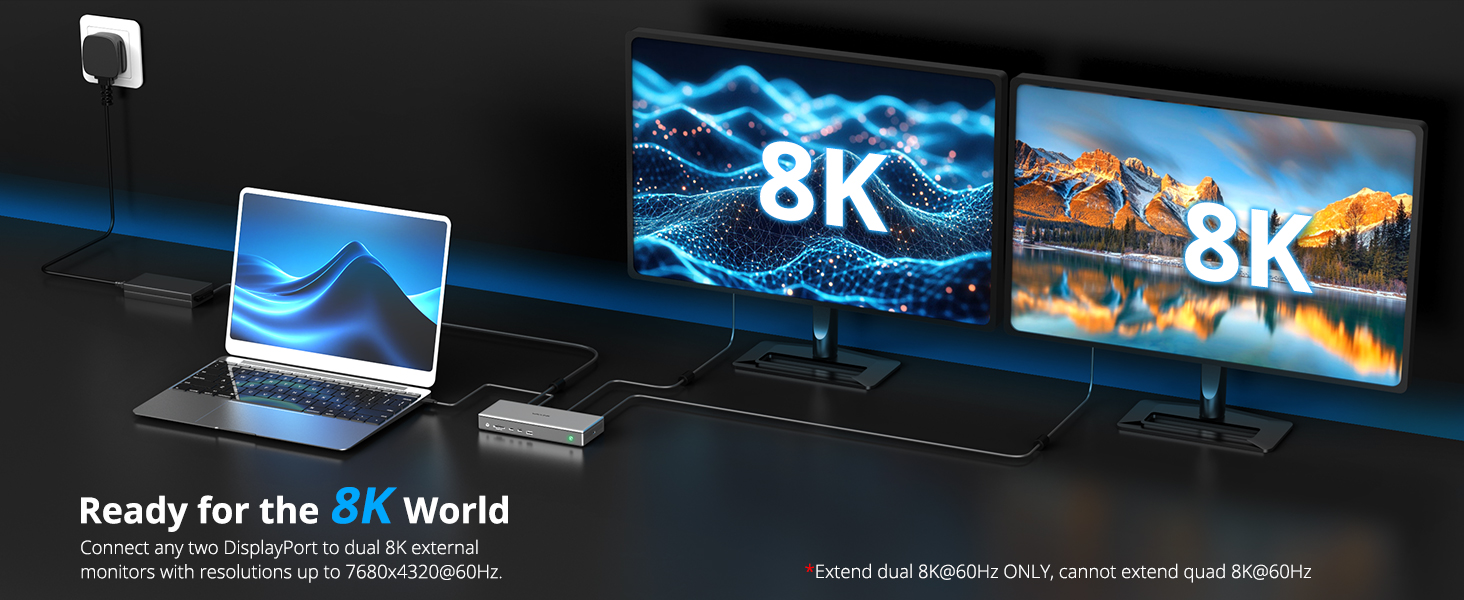

2.Dual Display(Max. Resolution)
DP(DSC)+DP 2: 2*8K@60Hz
DP(DSC)+DP 3: 2*8K@60Hz
DP(DSC)+DP 4: 2*8K@60Hz
DP 2+DP 3: 2*8K@60Hz
DP 2+DP 4: 2*8K@60Hz
DP 3+DP 4: 2*8K@60Hz
3.Triple Display(Max. Resolution)
DP(DSC)+DP 2+DP 3: 8K@60Hz+2*4K@120Hz
DP(DSC)+DP 2+DP 4: 8K@60Hz+2*4K@120Hz
DP(DSC)+DP 3+DP 4: 8K@60Hz+2*4K@120Hz
DP 2+DP 3+DP 4: 8K@60Hz+2*4K@120Hz/4K@120Hz+8K@60Hz+4K@120Hz/2*4K@120Hz+8K@60Hz

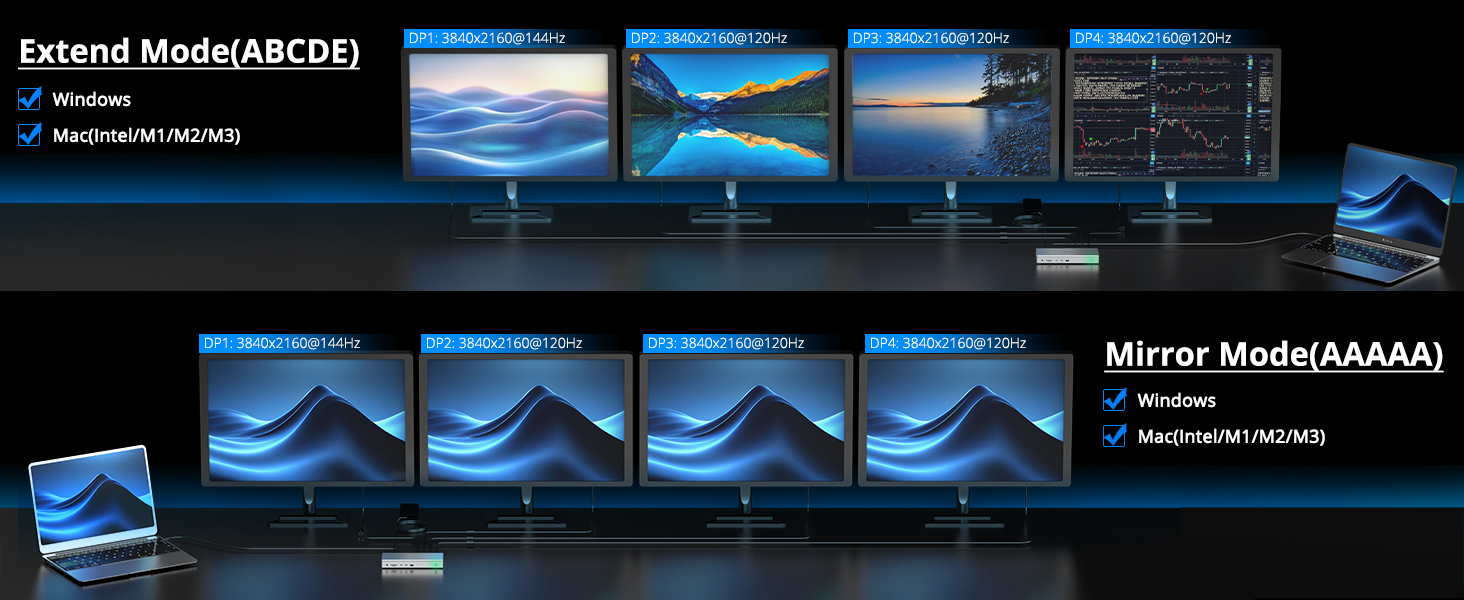

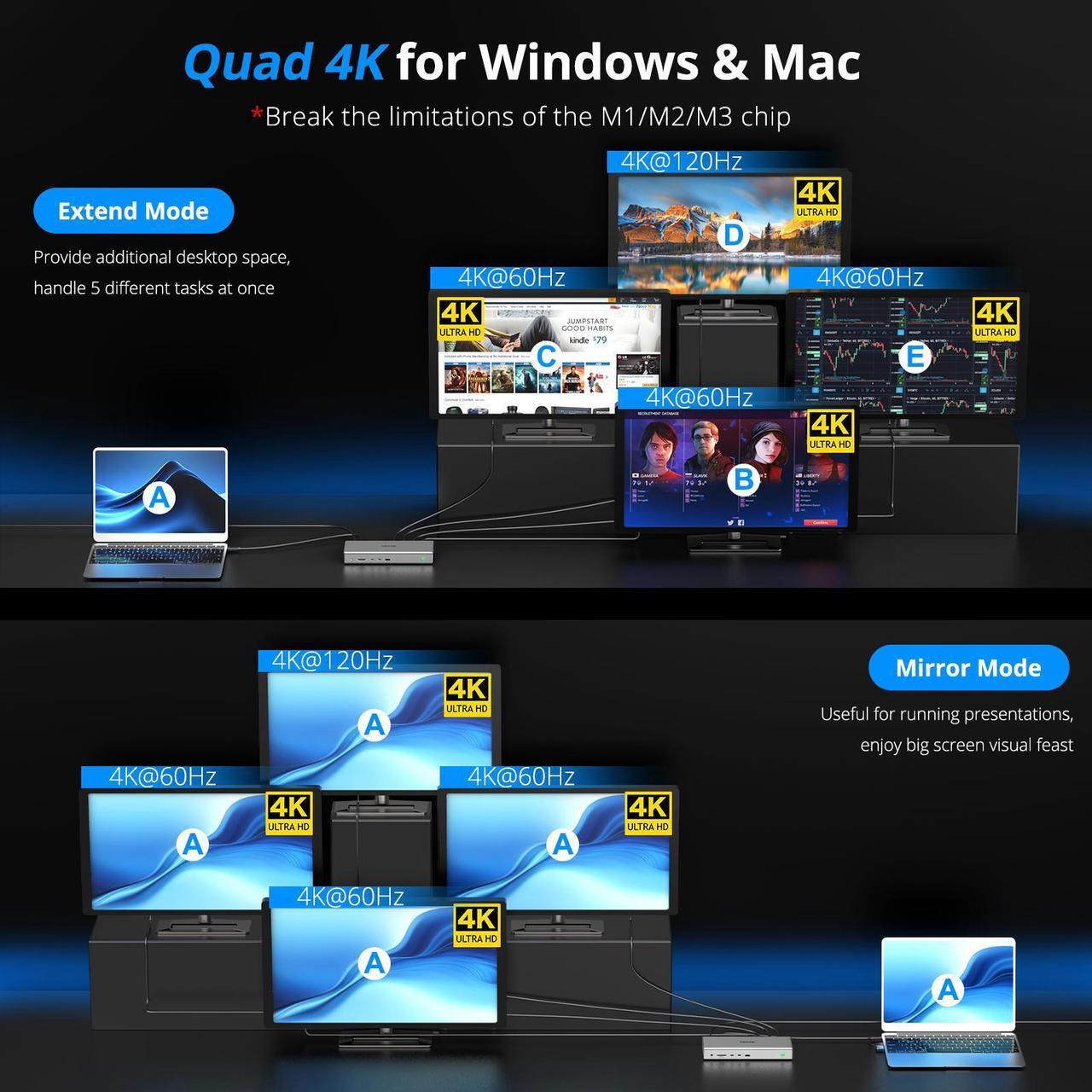

4.Quadruple Display(Max. Resolution)
DP(DSC)+DP 2+DP 3+DP 4: 4*4K@120Hz or 1*4K@144Hz+3*4K@120Hz

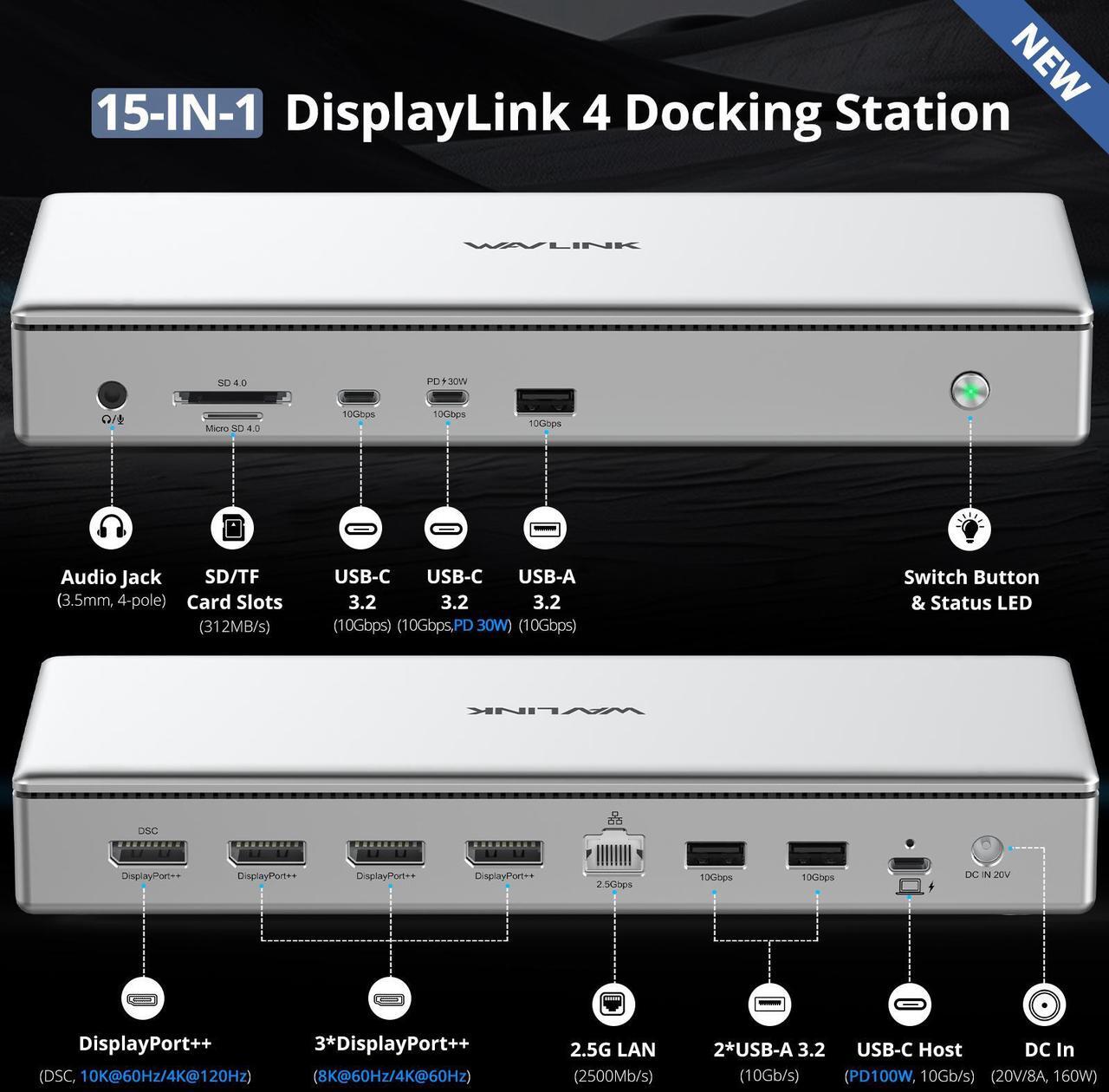

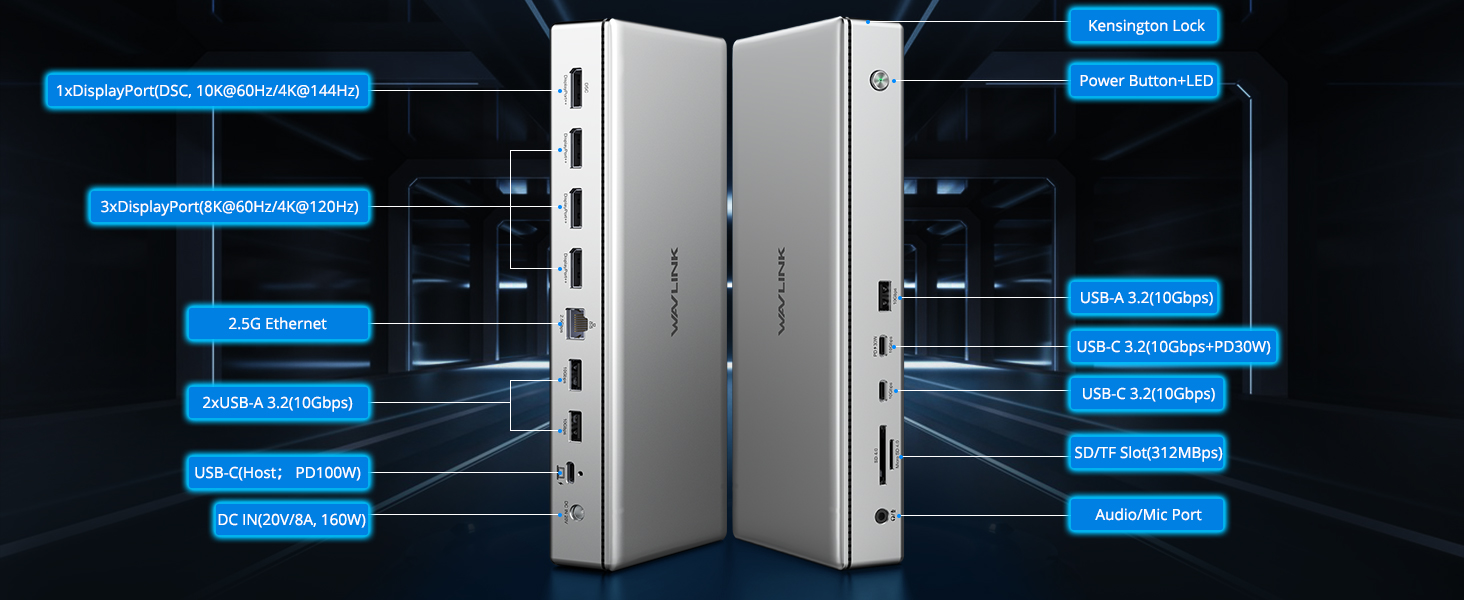

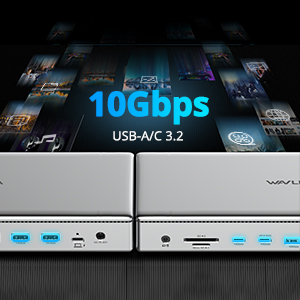

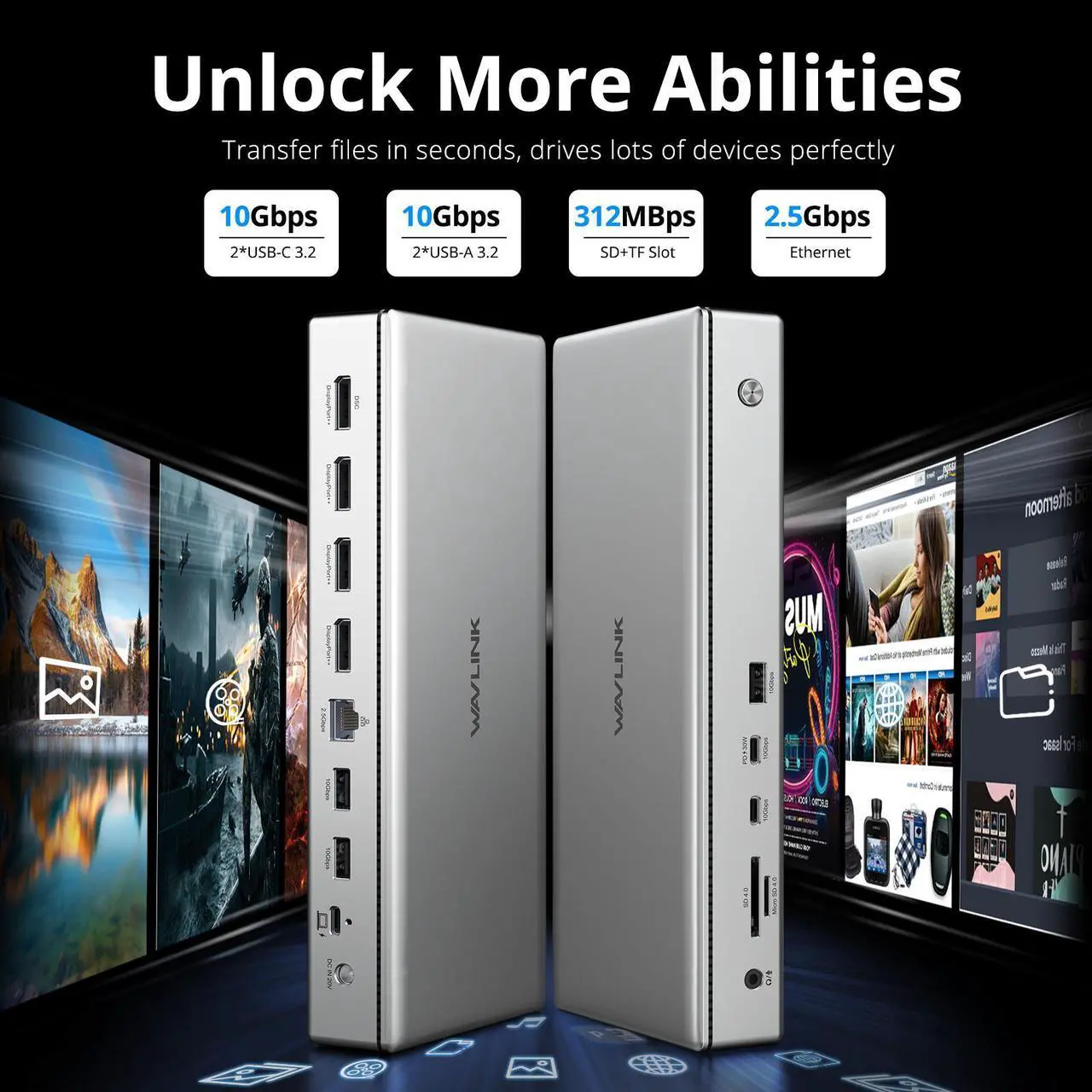

5 USB 3.2-A/C ports provide effortless data transfer up to 10Gbps, supporting connectivity for various devices and enhancing overall system performance and efficiency.

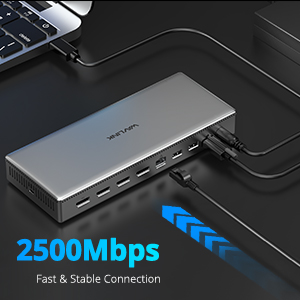

This LAN port offers stunning and stable wired network connection to new Type-C/Thunderbolt 3 laptops that are lack of RJ45 network port, backwards compatible with 10/100/1000Mbps.

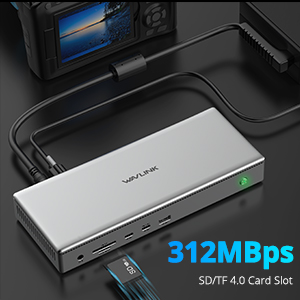

You can conveniently browse videos or photos instantly on your PCs/laptops and transfer large files in seconds with highest speed up to 312MB/s. (The SD/TF card is not included).

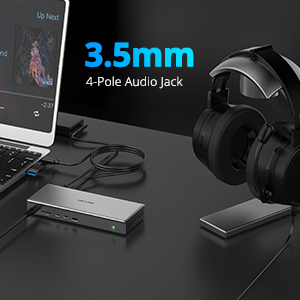

Connect a microphone, headphones or mini stereo to this audio out & mic in port when accessing audio files or needing to speak, which can make listening, talking or recording a breeze.
On Windows, screen rotation and clamshell mode are both available. On Mac, screen rotation and clamshell mode are only available on macOS 12.x above.

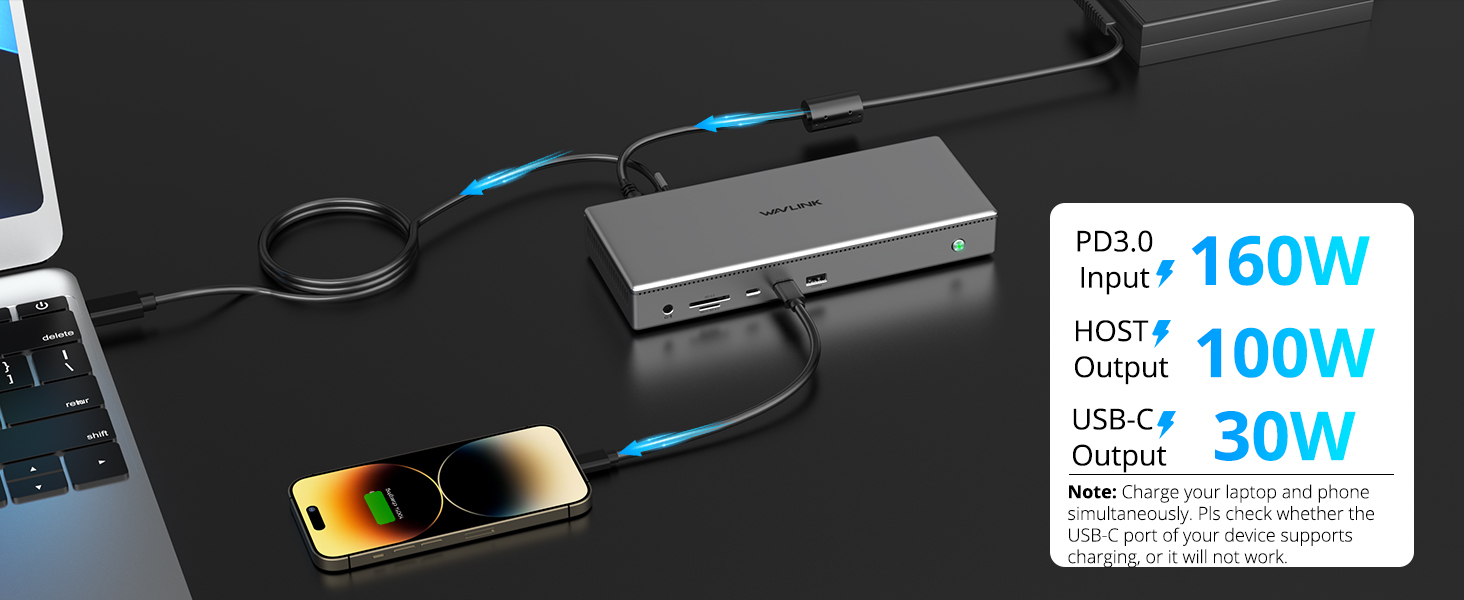

1.The dock is self-powered and needs to be connected to the power adapter to work normally.
2.This dock works with Thunderbolt 3 laptops with maximum 10Gbps data transfer rate, cannot reach 40Gbps.

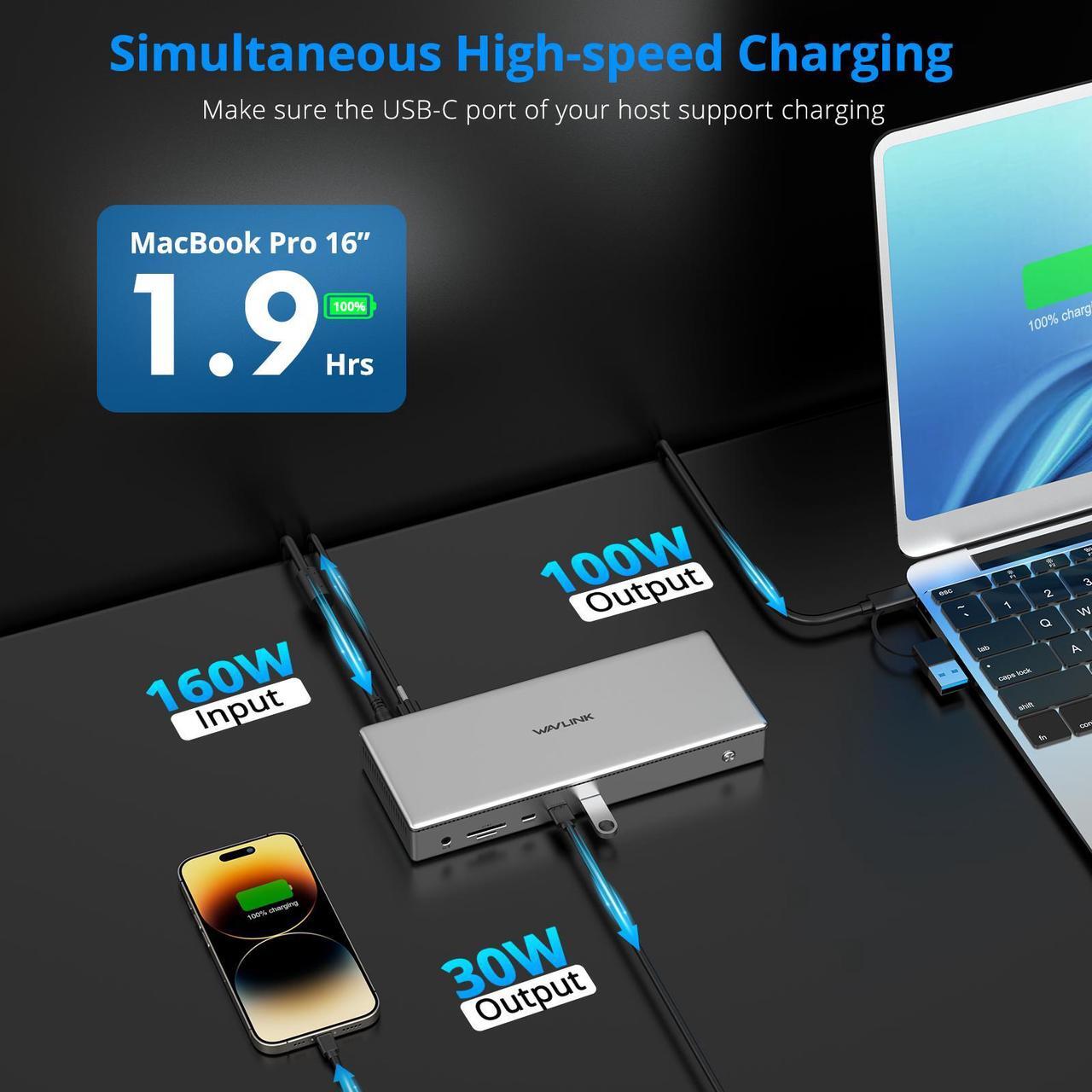

3.Please confirm that the type-c port of your laptop supports charging, or the docking station's host charging function may not work.
4.Not for Ubuntu, Linux, Android, HarmonyOS or iPadOS systems. Does not support Steam Deck.

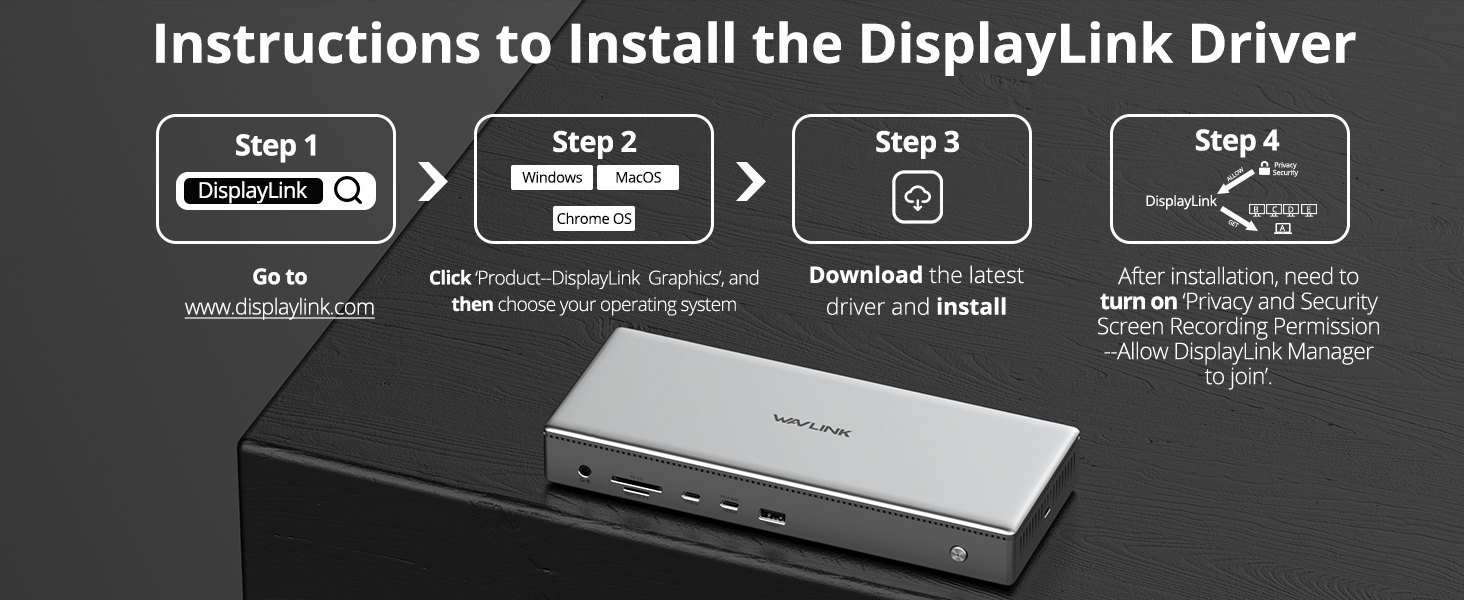

5.Driver required for this product, does not support plug and play. Please follow the instructions to download the latest DisplayLink driver from the official website before use.
6.Not recommended for gaming or video clips.
7.Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
8.10K is only available on Windows PC.
