1. Before you connect two or three monitors, we suggest you lower monitor resolution, please check Q3 in Quick Start Guide for details.
2. Before you connect three monitors, we suggest you disconnect laptop/PC first, please check Q2 in Quick Start Guide for details.

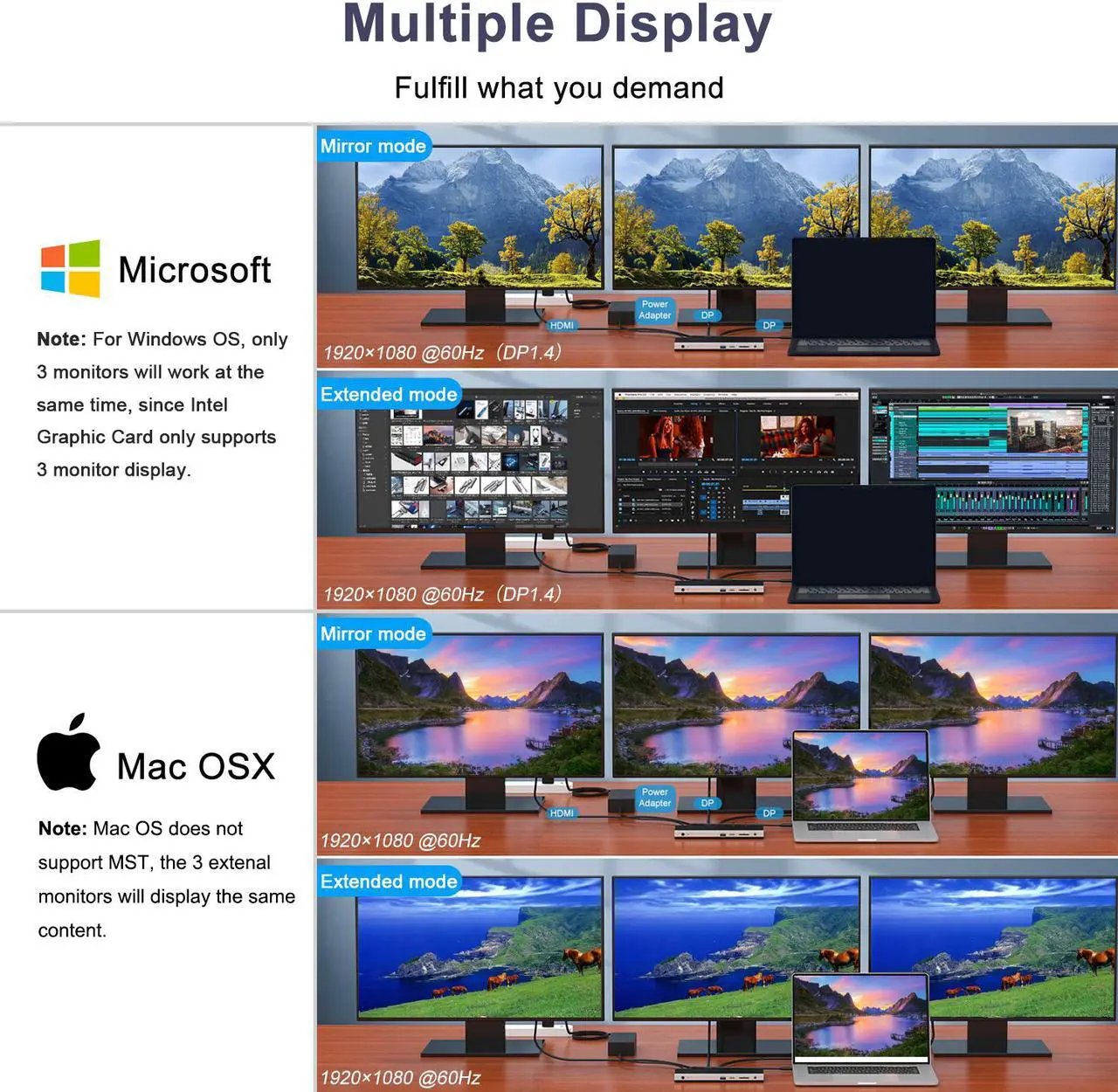

Remarks for Mac based PC/laptops:
1. When you connect only one external monitor to the dock, the extend and duplicate modes are both available.
2. If you have two or three monitors connected to the dock, then you can only extend to one monitor while the other one or two monitor(s) will copy the same content on your extended monitor.
Note:

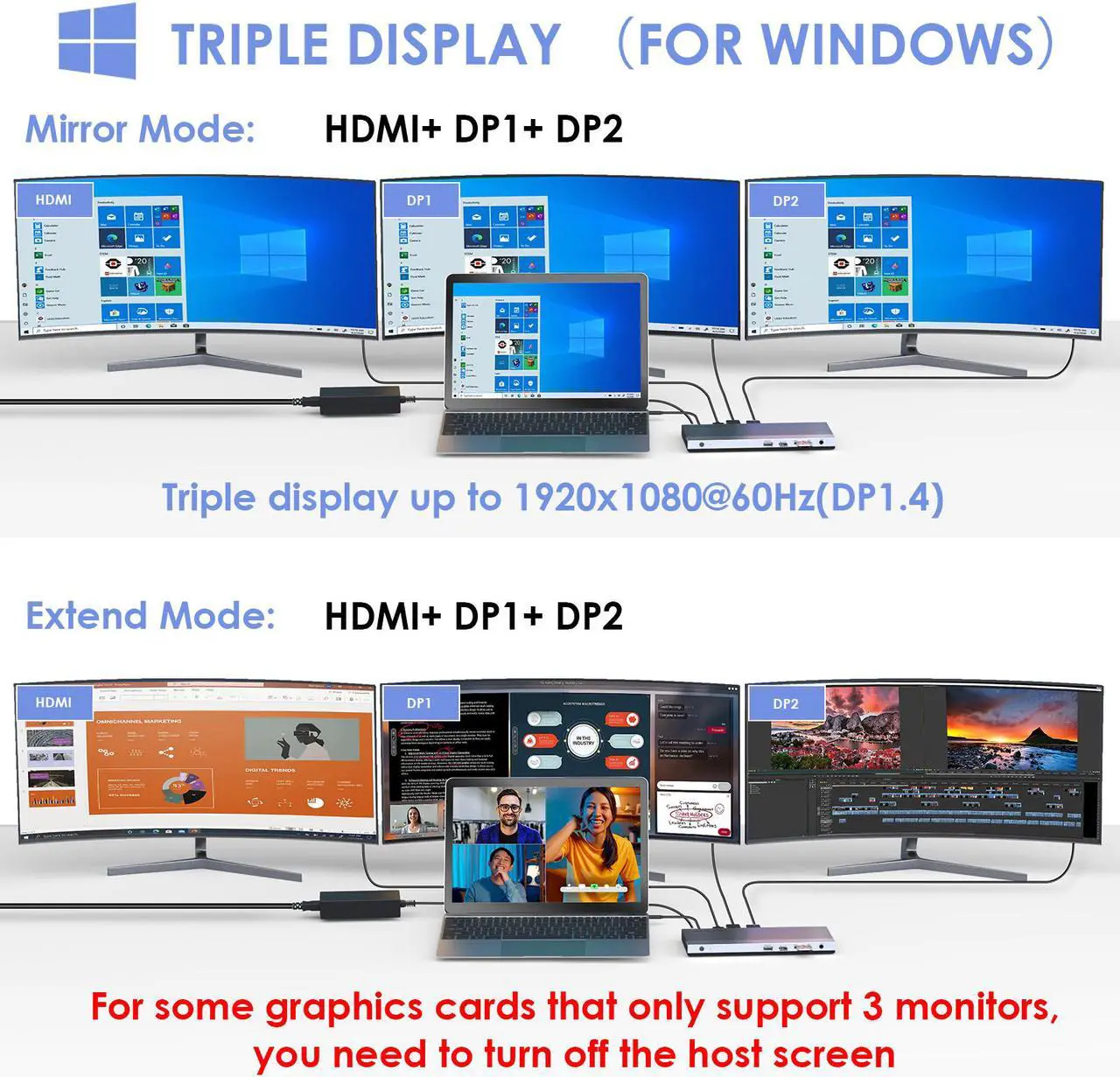

1. When expanding three screens and your graphics card only supports three monitors, you need to turn off the built-in screens.

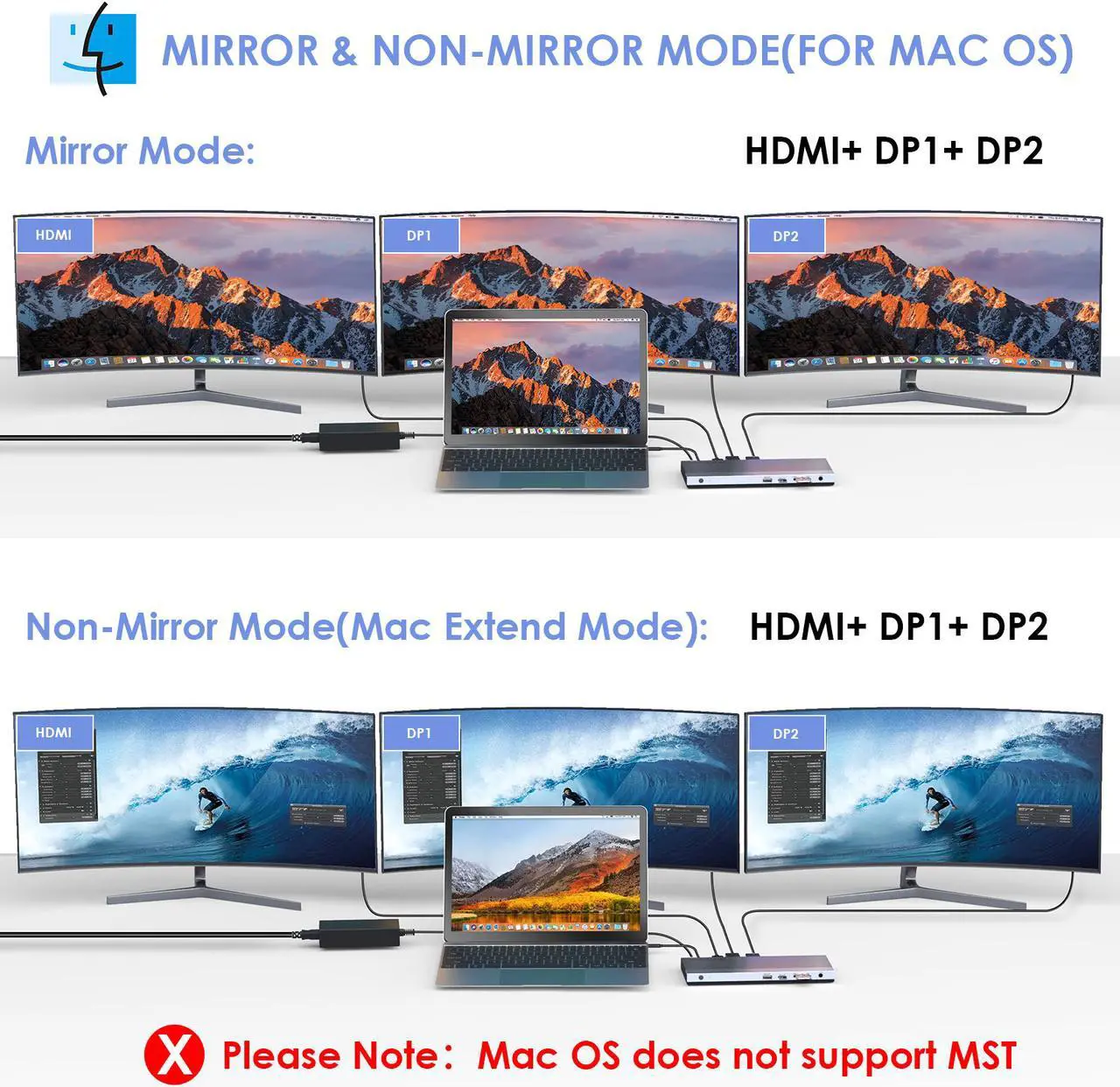

2. Mac OS does not support MST, the 3 external monitors will display the same content.

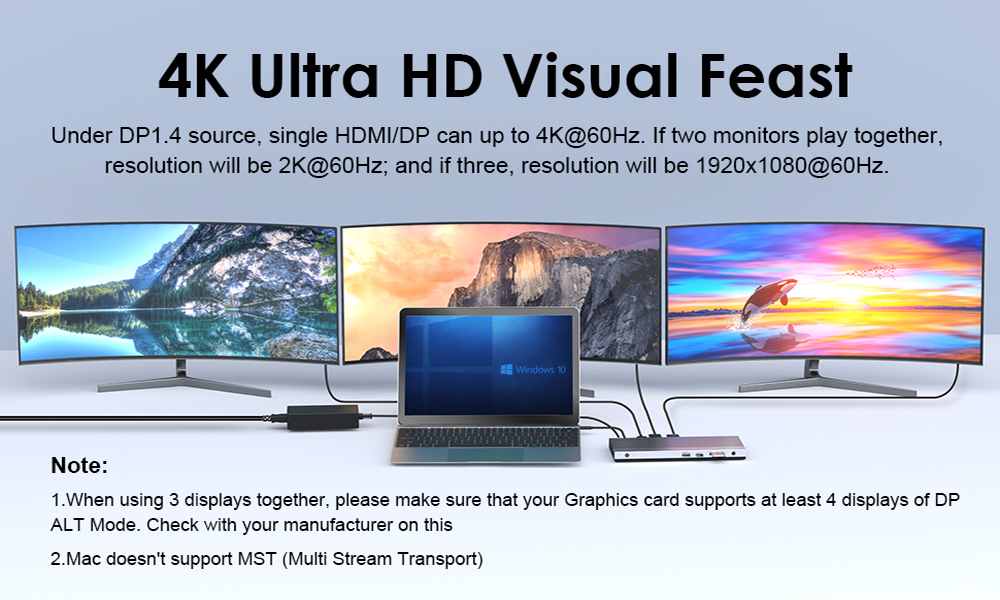

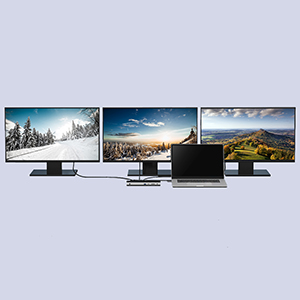

Triple display modes boost your efficiency 3 times. Wavlink triple display hub supports single HDMI/DP display up to 3840x2160@60Hz, dual display up to 2560x1440@60Hz, or triple displays up to 1920x1080@60Hz. It also has almost all the ports that you need for work or home life.

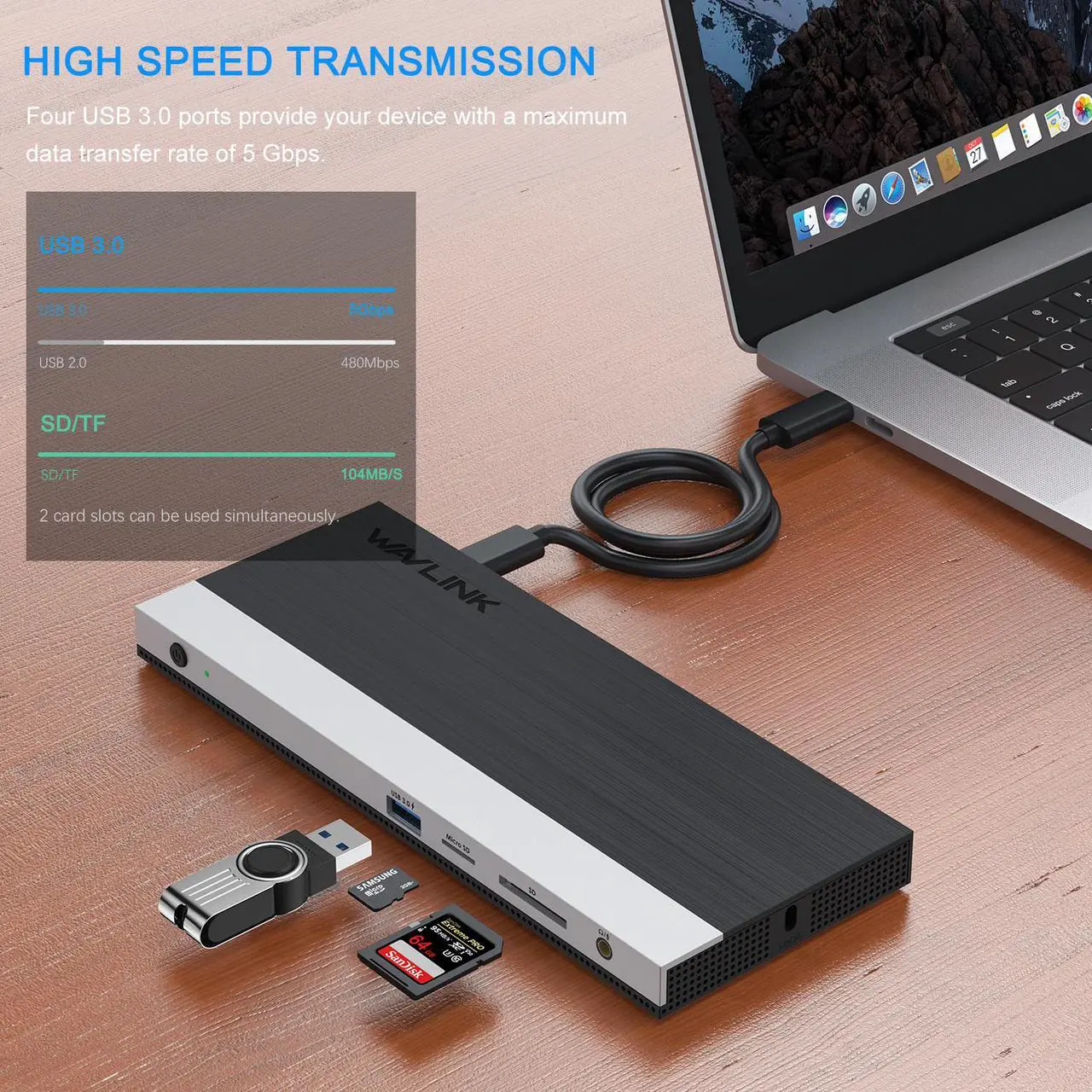

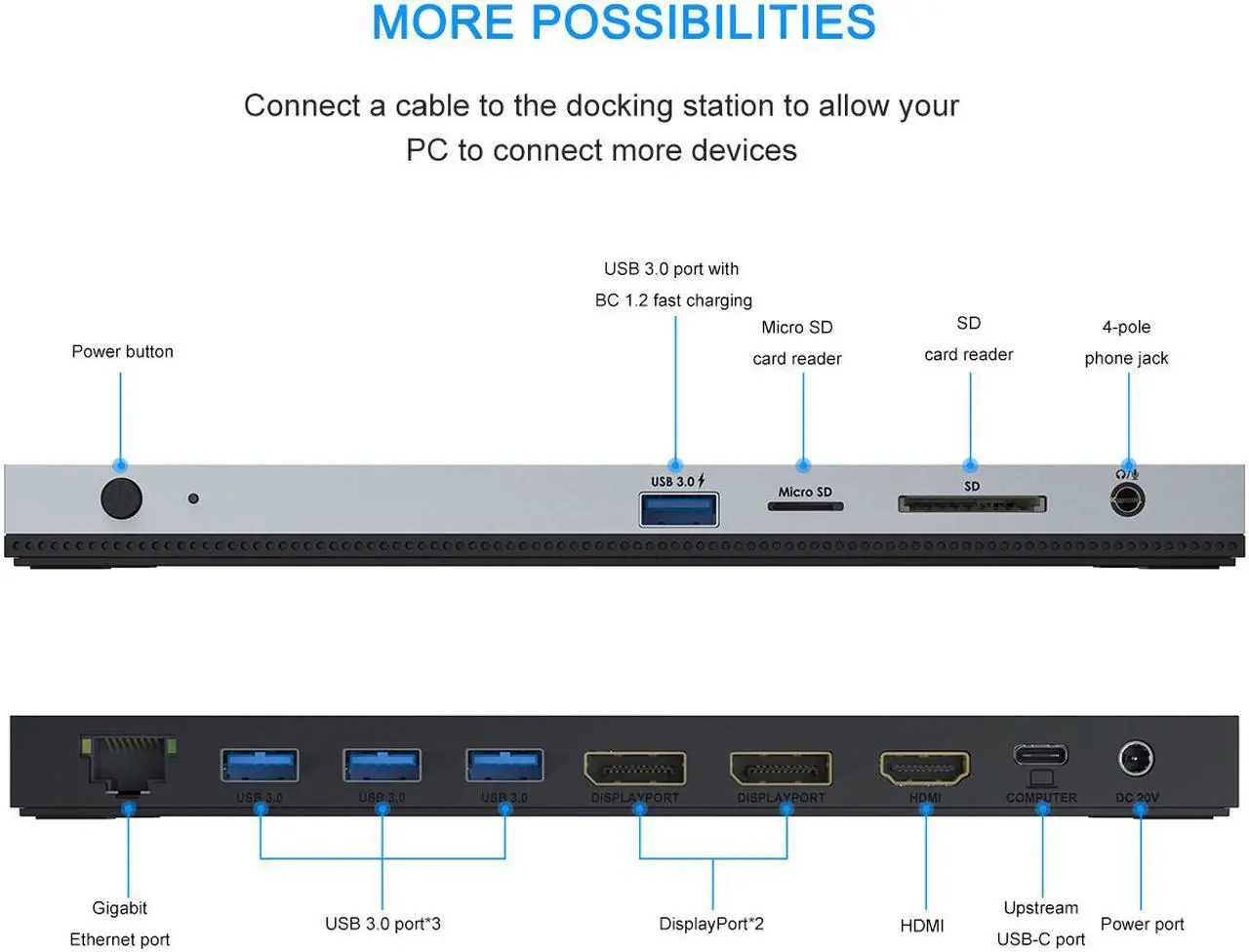

With 4*USB3.0 ports, you can simultaneously transfer files in seconds with USB 3.0 ports that bring data transfer speeds up to 5Gbps and connecting wireless devices like keyboard and mouse. SD and Micro SD Card Readers allow you to take photos off your DSLR and edit them on your laptop.
With a 3.5mm Audio Jack, you can enjoy Hi-Fi music like before. The RJ45 Ethernet brings you an unparalleled oniline-surfing experience and a power port let you connect your fast charging PD power adaptor while using other ports.

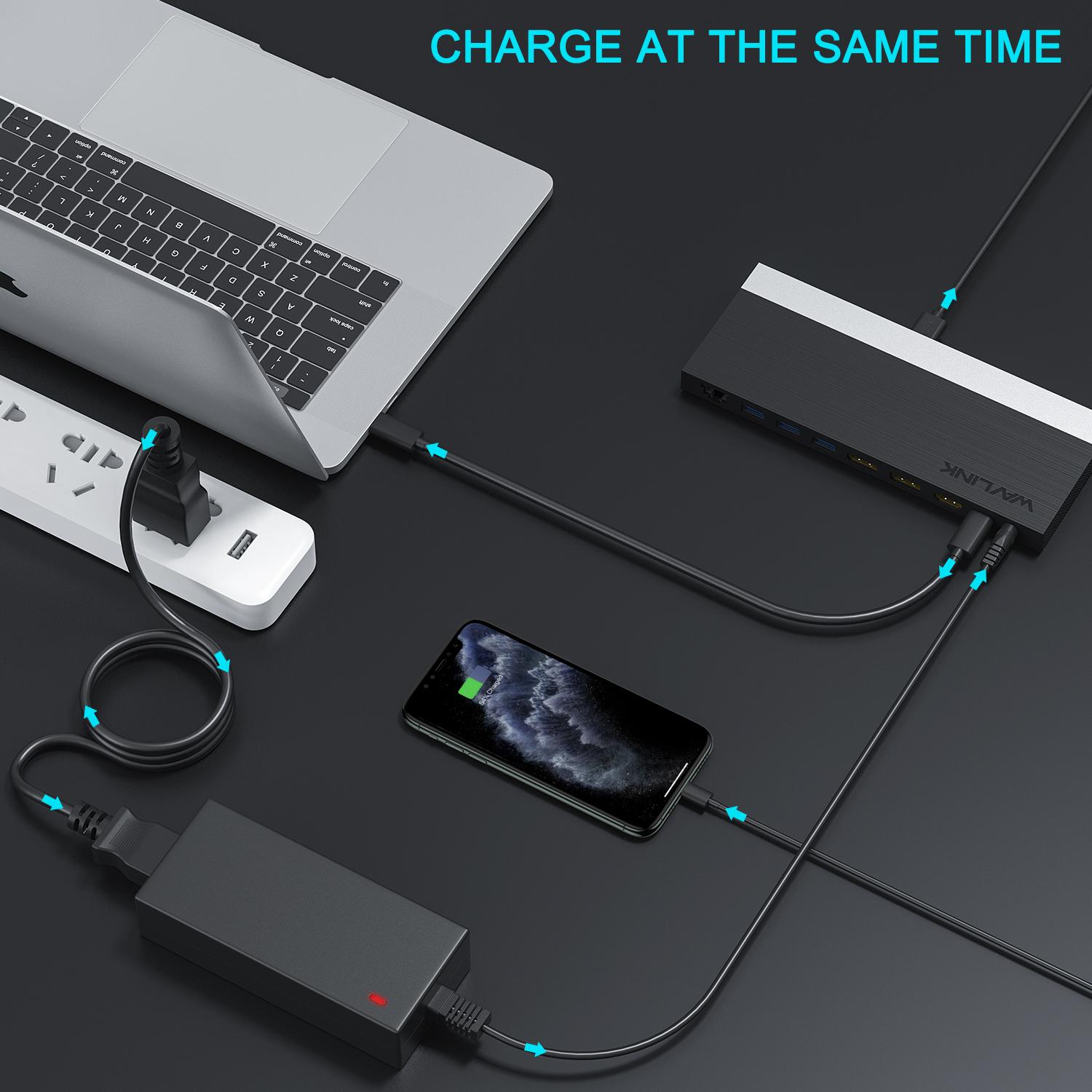

The Wavlink type-c hub supports a high-level of charging up to 100W (Maximum 65W to laptop and 35W to other ports), allowing you to charge up your laptop at high-speed while retaining full function of the hubs other ports. (Charger included)

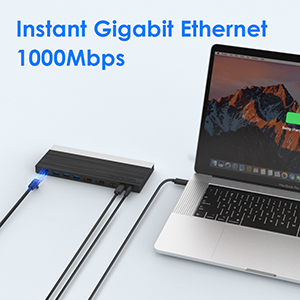

Obtain stable connection speeds up to 1Gbps; downward compatible with 100Mbps/10Mbps networks. Our Type-C to LAN Gigabit Ethernet (RJ45) Network Adapter supports large downloads at maximum speeds without interruption. (To reach 1Gbps, make sure to use CAT6 & up Ethernet cables.)

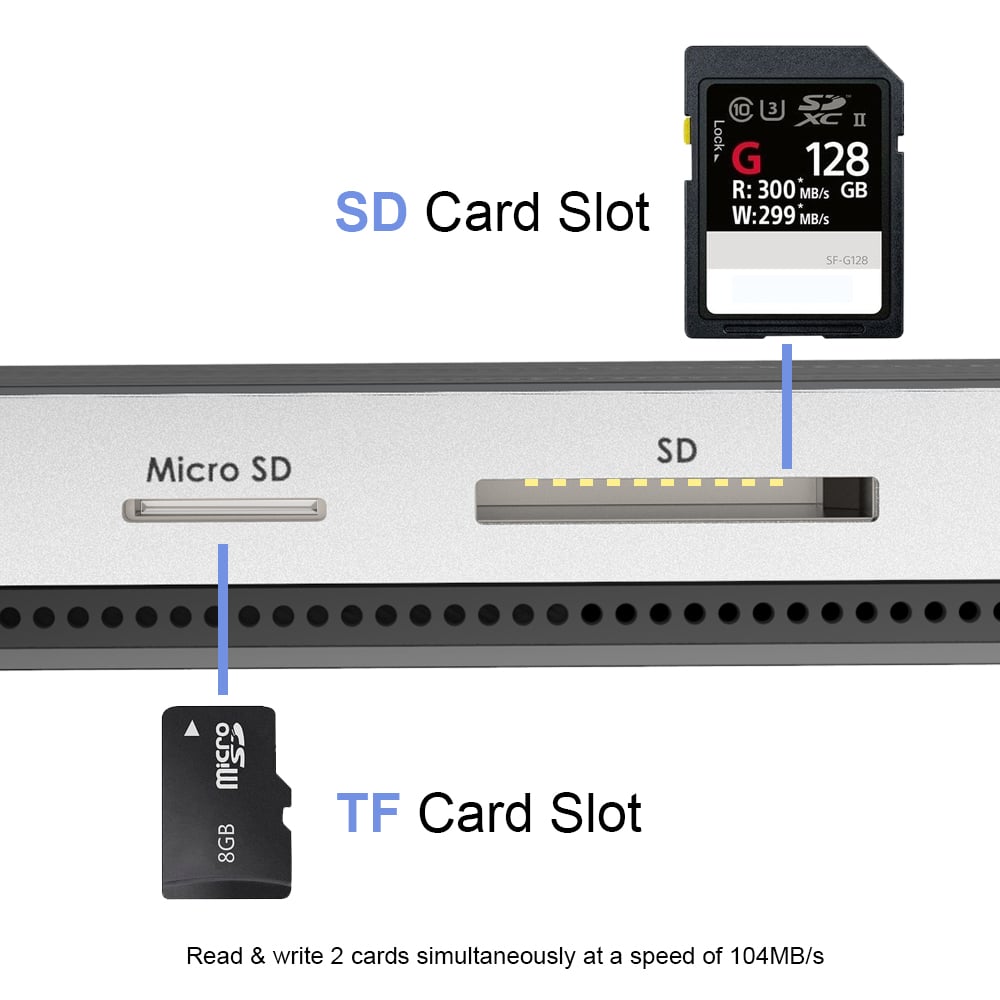

Speed up to 104MBps. SD and Micro SD card slots can be used simultaneously.
Compatible with SD, SDHC, SDXC, RS-MMC, MMC Micro, Micro SD, Micro SDHC, Micro SDXC cards.

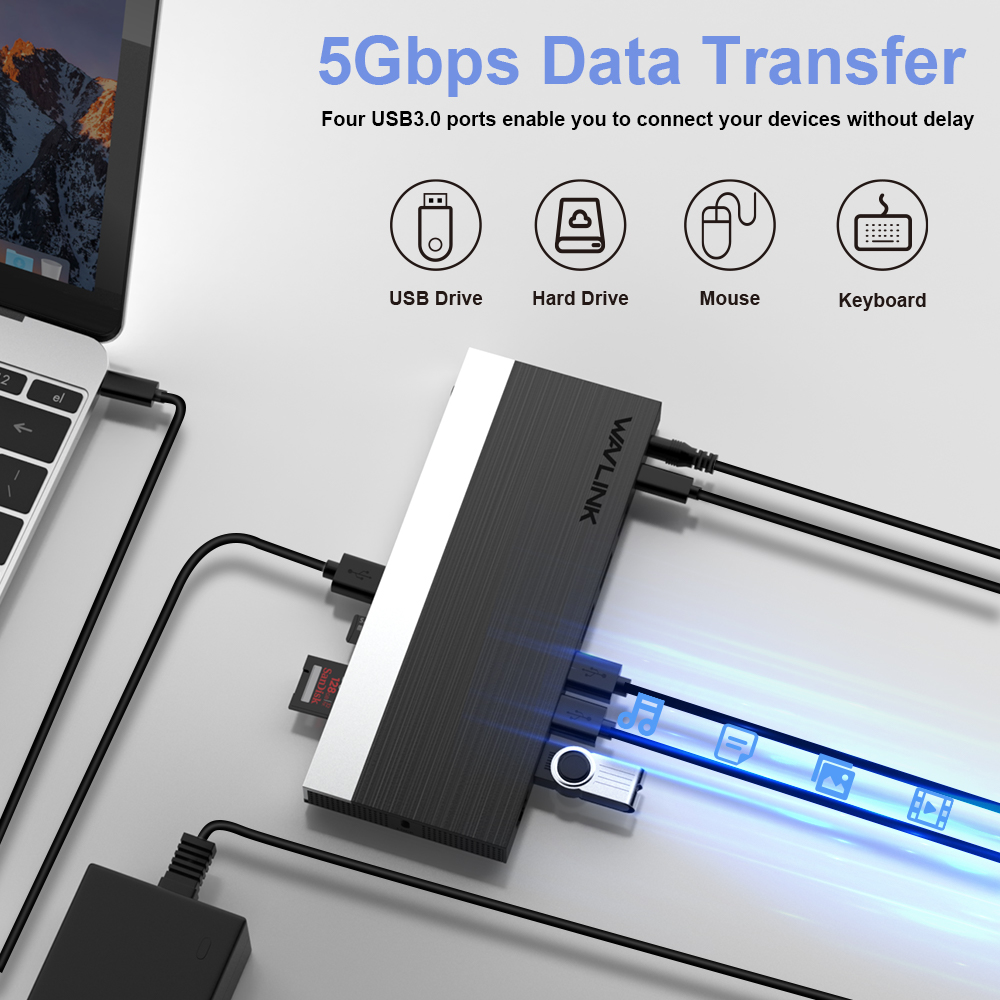

4 USB 3. 0 ports sync data at blazing speeds up to 5Gbps, up to 10x faster than USB 2. 0; SD & TF slots support data transfer speeds up to 104Mbps; SD & TF cards can be read simultaneously.

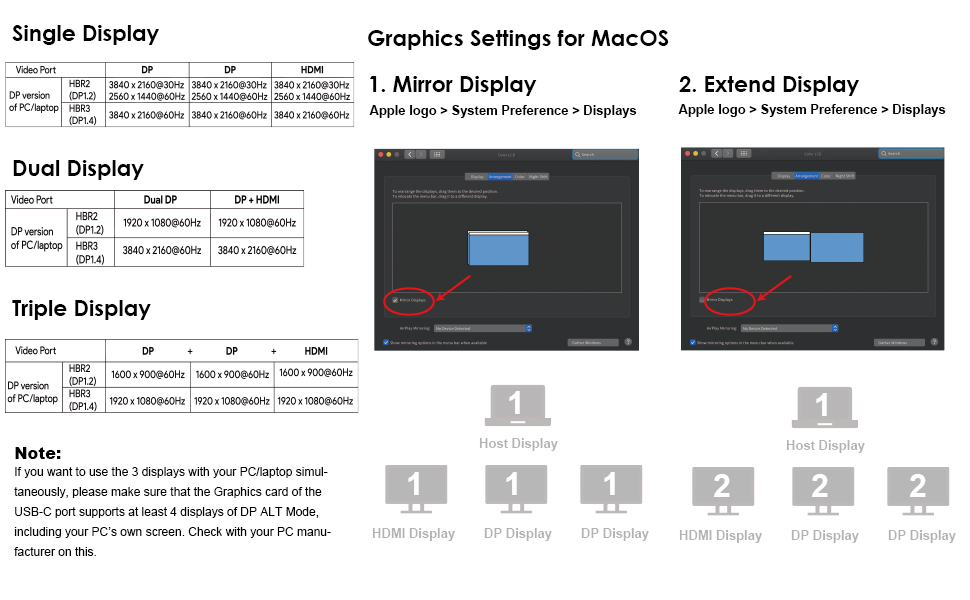

- Host on DP1.4:
- DP/HDMI: 3840X2160@60hz
- Host on DP1.2:
- DP/HDMI: 3840X2160@30hz
For Mac Os

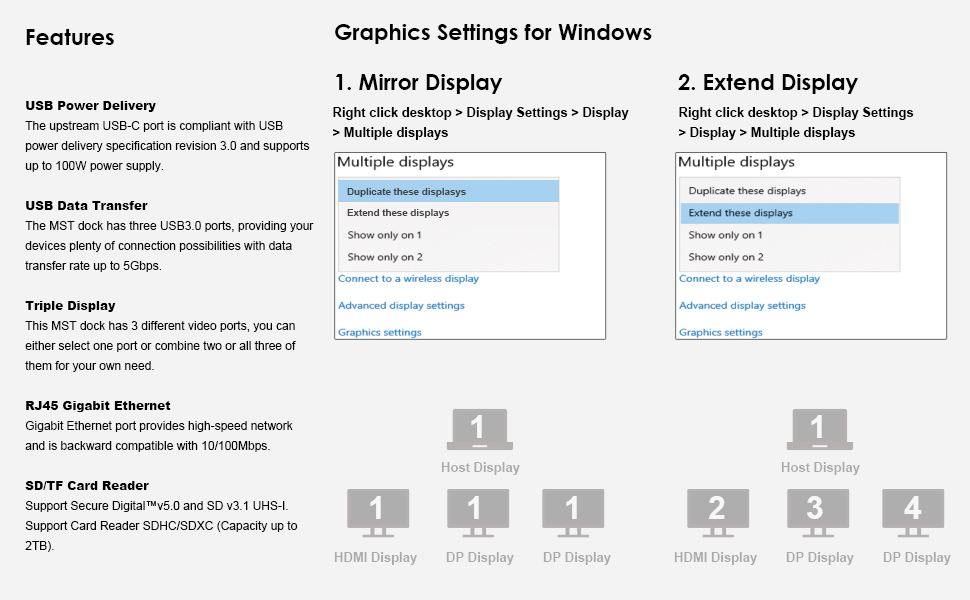

Extend Mode: ABB
Dual DP or HDMI+DP
3840X2160@60Hz
For Windows
Extend Mode: ABC
Dual DP or HDMI+DP
2560x1440@60hz
For Mac Os
Extend Mode: ABBB
Dual DP +HDMI
3840X2160@30Hz
For Windows
Extend Mode: ABCD
Dual DP +HDMI
1920X1080@60hz

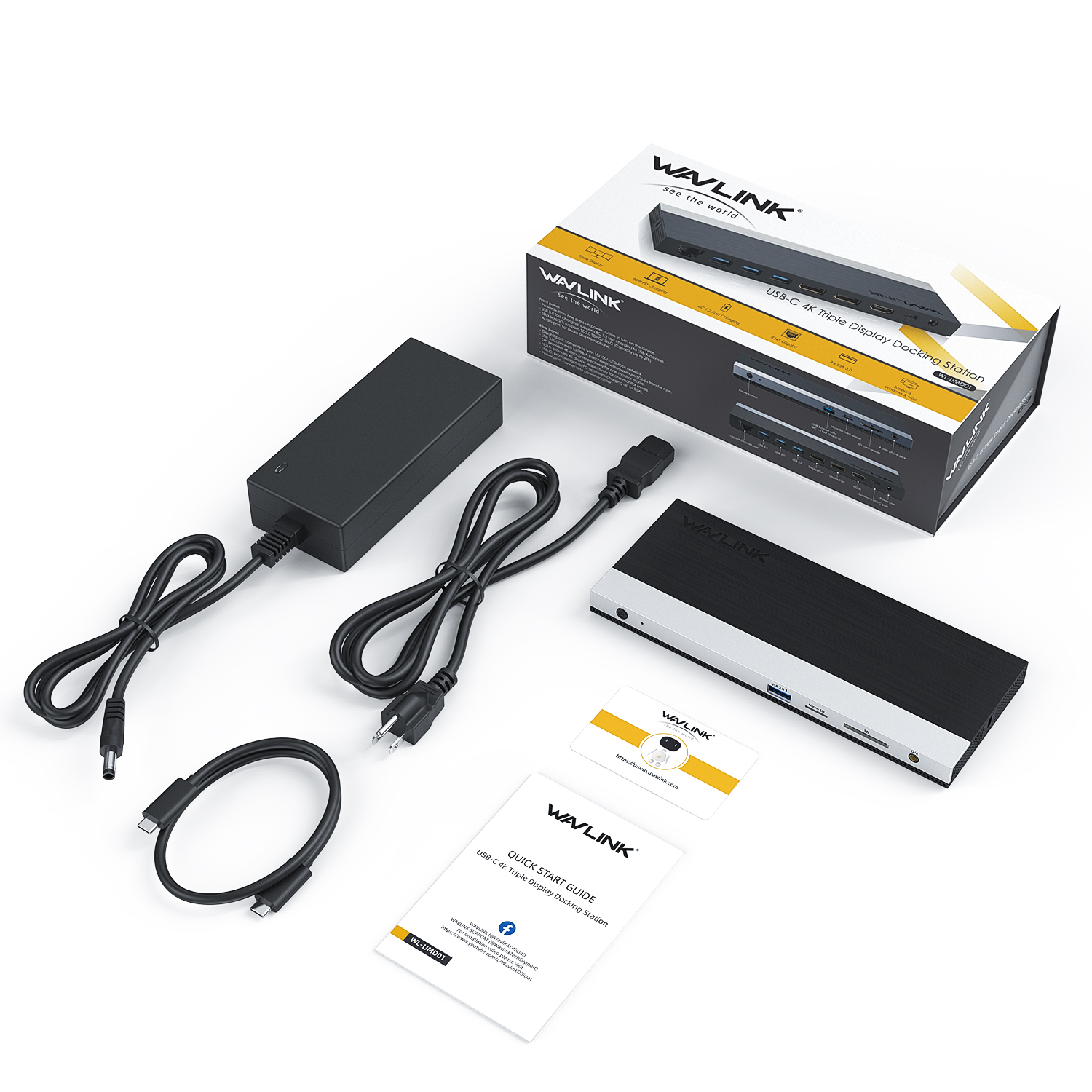

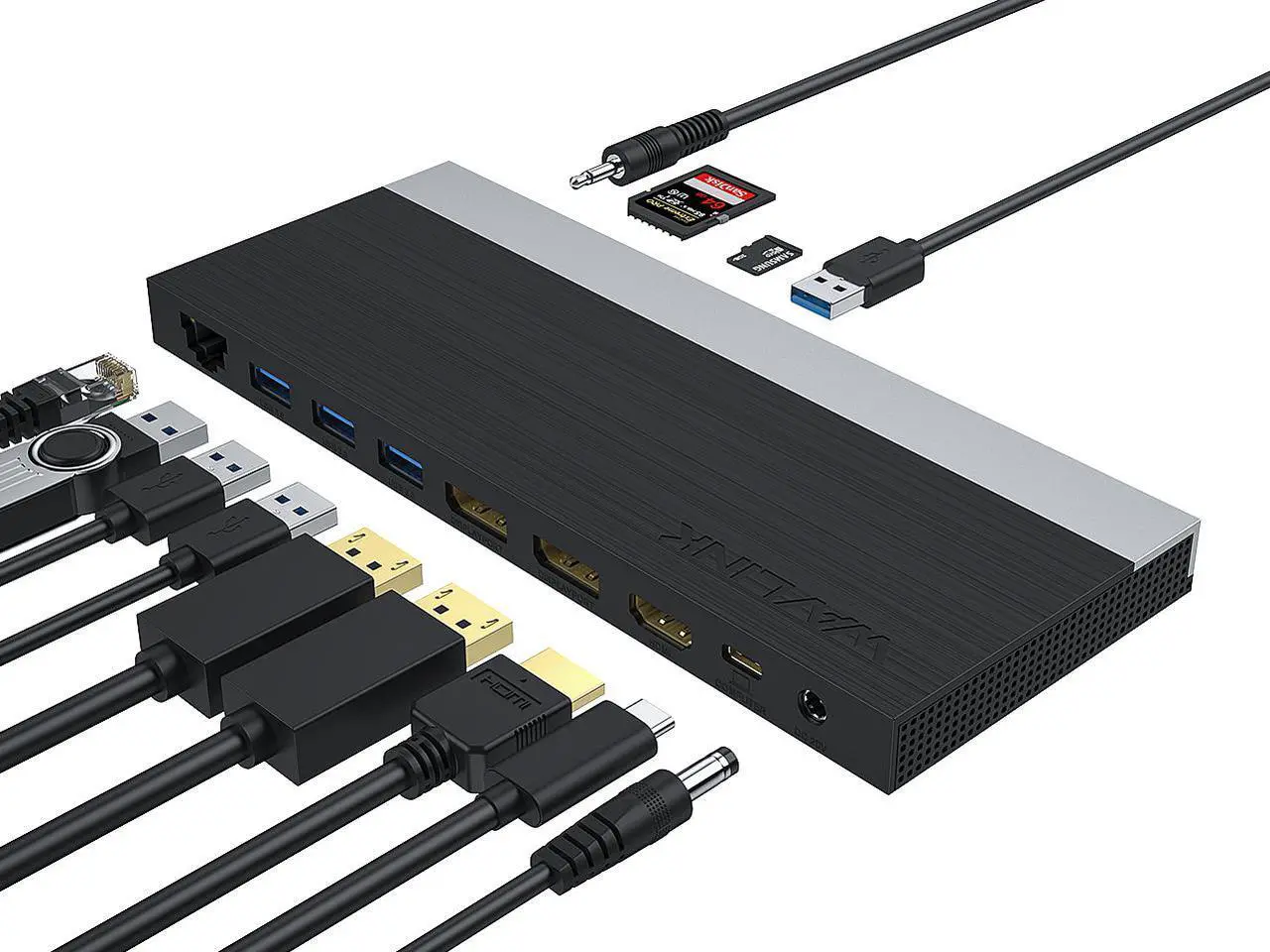

Wavlink 13-port USB C hub, 1xUSB-C Triple Display Docking Station, 1xUSB-C to C cable, 1x130W Power Adapter, 1xAC Power Cable, 1x Quick Start Guide
One monitor:
DisplayPort((DP1.4): Resolution up to 4K@60Hz(HBR3,DP1.4)
HDMI(HDMI 2.0): Resolution up to 4K@60Hz(HBR3,DP1.4)

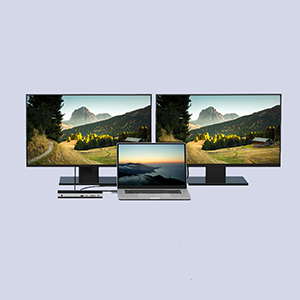

Dual monitors:
Dual DisplayPort(DP1.4): Resolution up to 4K@60Hz(HBR3,DP1.4),
DisplayPort(DP1.4) + HDMI(HDMI 2.0): Resolution up to 4K@60Hz(HBR3,DP1.4)
Triple monitors (simultaneously):
DisplayPort 1(DP1.4): Resolution up to 1080P@60Hz
DisplayPort 2(DP1.4): Resolution up to 1080P @60Hz
HDMI (HDMI 2.0): Resolution up to 1080P @60Hz

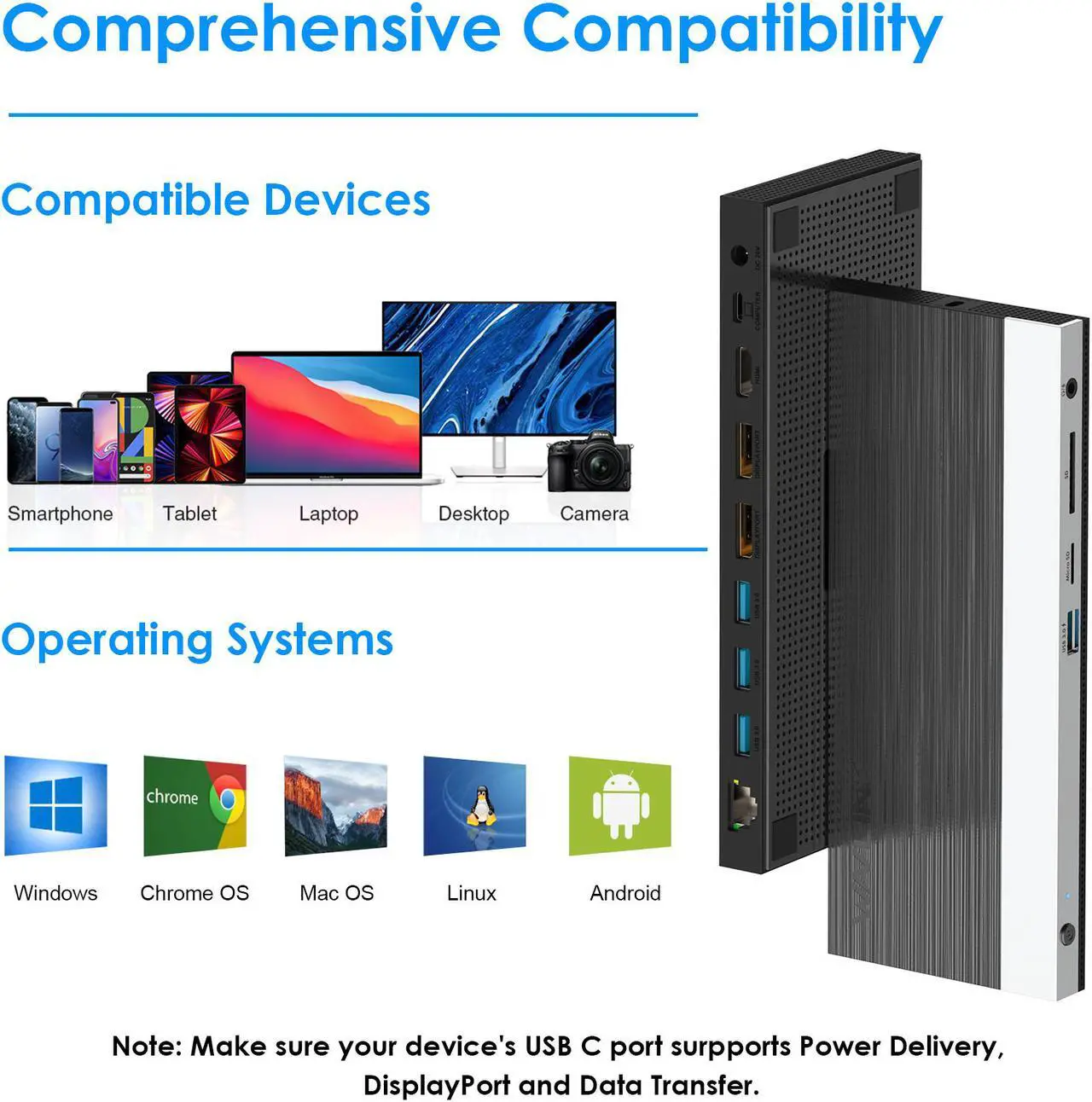

- Windows 7/8/10 or later
- Mac OS X or later
- CPU i7 or higher, RAM 4GB or above
- Requires that host PC/laptop supports PD 2.0 or above

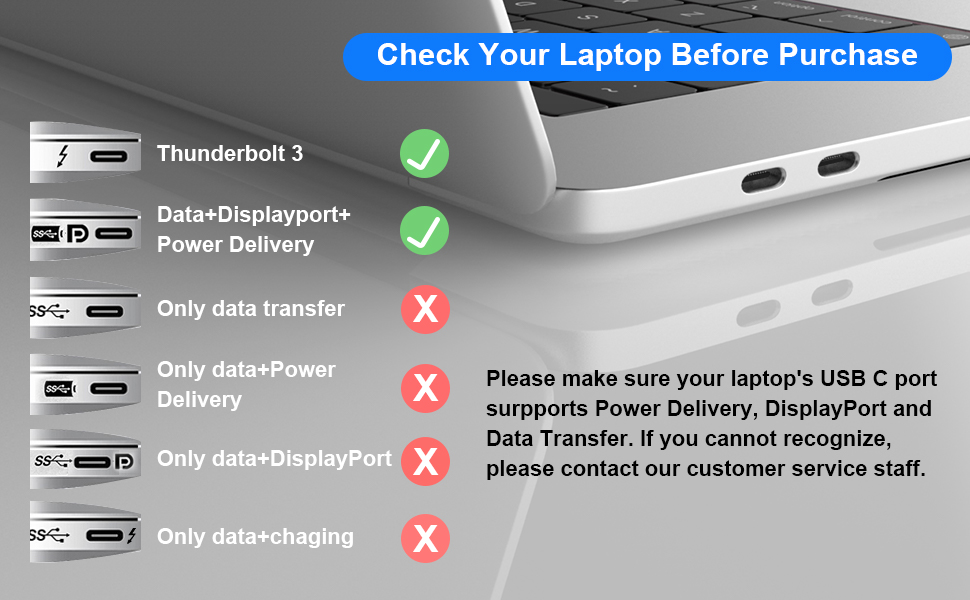

- PC/laptop with USB 3.1 full function Type-C port
(Power Delivery, Video Alternate, Display, data transfer)
Before using this dock, please make sure that the latest PC/laptop drivers are installed (including USB, graphics card etc) because the network port needs specific drivers.
For Windows 10, the system detects and automatically installs them after the dock is connected to the network. If drivers cannot be automatically installed, the network port cant perform properly. Please install them manually. For MAC OS system, you need to install the network port driver manually, please visit wavlink.com > Support > Driver > PC peripherals > USB Docking.
