USB-C computer with USB 3.1 Gen. 2 port compatibility. Total six USB downstream ports to expand more USB devices connectivity including one USB-C and two USB-A ports running at max. 10Gbps, two USB-A ports running at max. 5Gbps. Dual displayport 1.4 enables additional two display, gigabit Intel Ethernet, audio input/output. Thunderbolt 3 host computer under HBR3, achieve a single port video maximum output resolution at 8K (7680 x 4320) @30Hz or 5K (5120 x3200) @30Hz for professional users.
A single Thunderbolt 3 port from your laptop expands to 12 ports! Power users need as many ports as possible, UTD21 can achieve it. Enables additional dual 4k display, gigabit Intel Ethernet, audio input/output, and USB-C 3.1(10Gbps) , USB A 3.1(10Gbps), 2 xUSB 3.0(5Gbps) expansion.

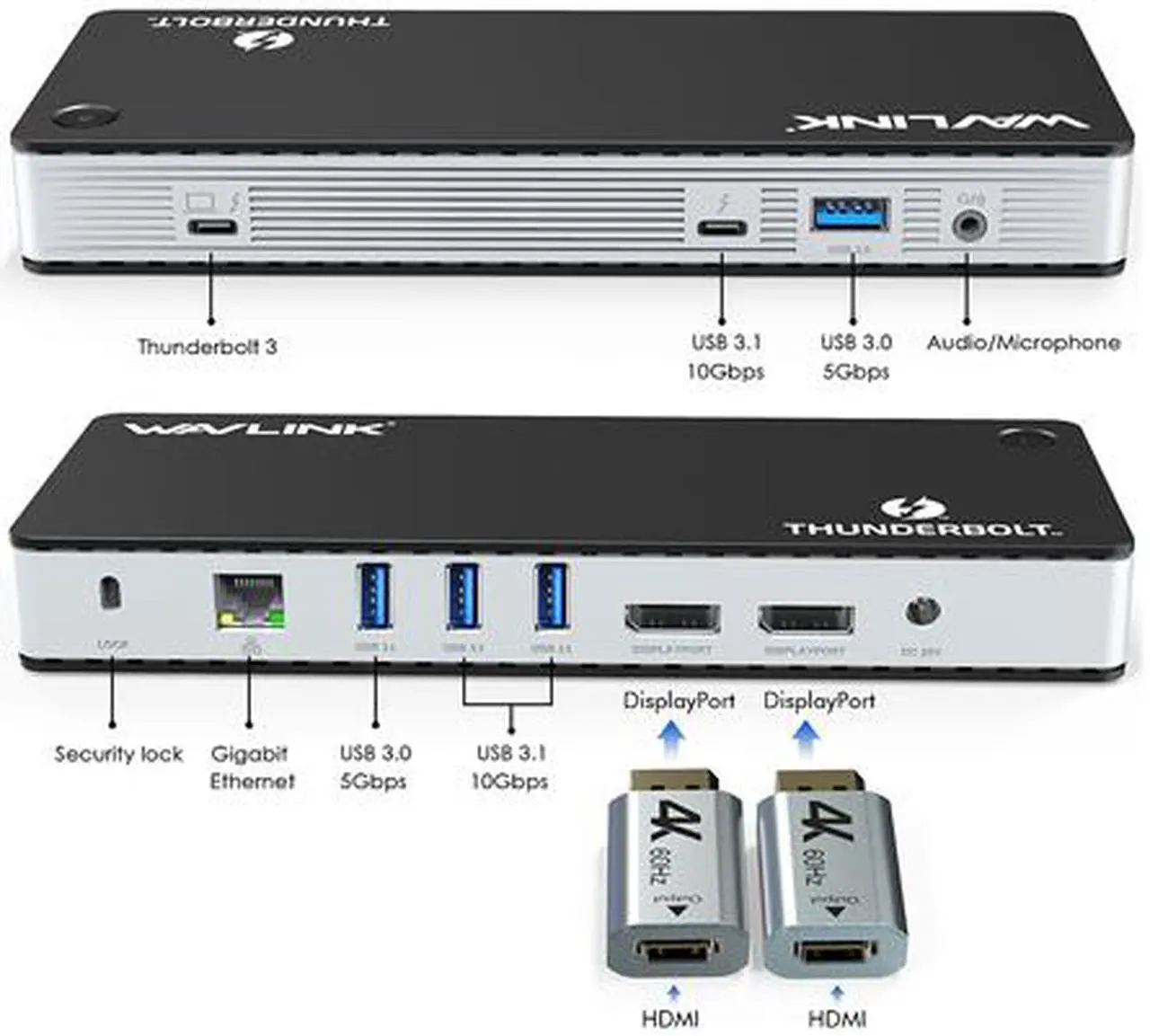

Featuring both front and rear USB ports, USB Type C 3.1(10Gbps) , 2 xUSB A 3.1(10Gbps), 2 xUSB 3.0(5Gbps) expansion. Type-C port and two USB A 3.1 features USB 3.1 Gen. 2 (10Gb/s) which allows users to connect their ultra-fast SSD drives for incredible performance

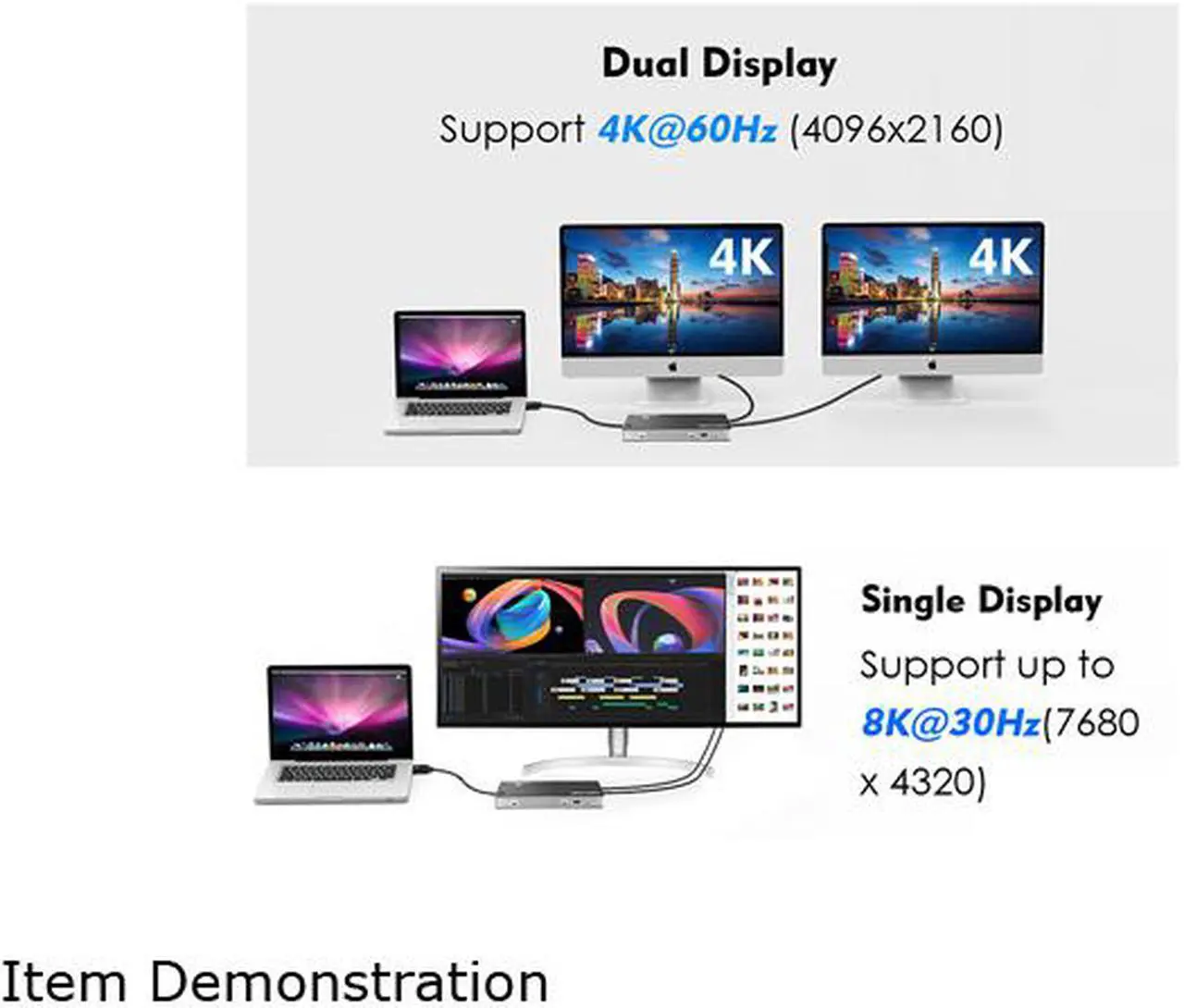

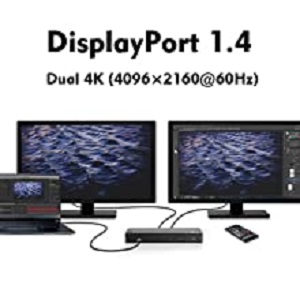

Users have the option to connect dual display 4K monitors or a single 8K or 5K monitor. Thunderbolt 3 host computer can achieve a single port video maximum output resolution at 8K (7680 x 4320) @30Hz or 5K (5120 x3200)@30Hz for professional users. Also support dual 4K resolution at 60Hz/ 30Hz output for business users, full HD at 144Hz or @120Hz output favorite for gaming users.

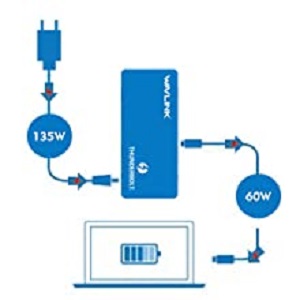

Dock provides usb-c power delivery up to 60W maximum of upstream charging to compatible Thunderbolt 3 host systems and also power to the others peripherals simultaneously with 130Watt Power Adapter.
Thunderbolt 3 host computer under HBR3
-Achieve a single monitors video display up to 8K (7680 x 4320) @30Hz or 5K (5120 x3200)@60Hz for professional users.
-Support dual 4K resolution at 60Hz output for business users.
Full HD at 144Hz output favorite for gaming users.
Thunderbolt 3 host computer under HBR2
-Adapter support dual display resolution maximum up to 4K (4096 x 2160) @60Hz
-Full HD at 120Hz output favorite for gaming users.
Specification

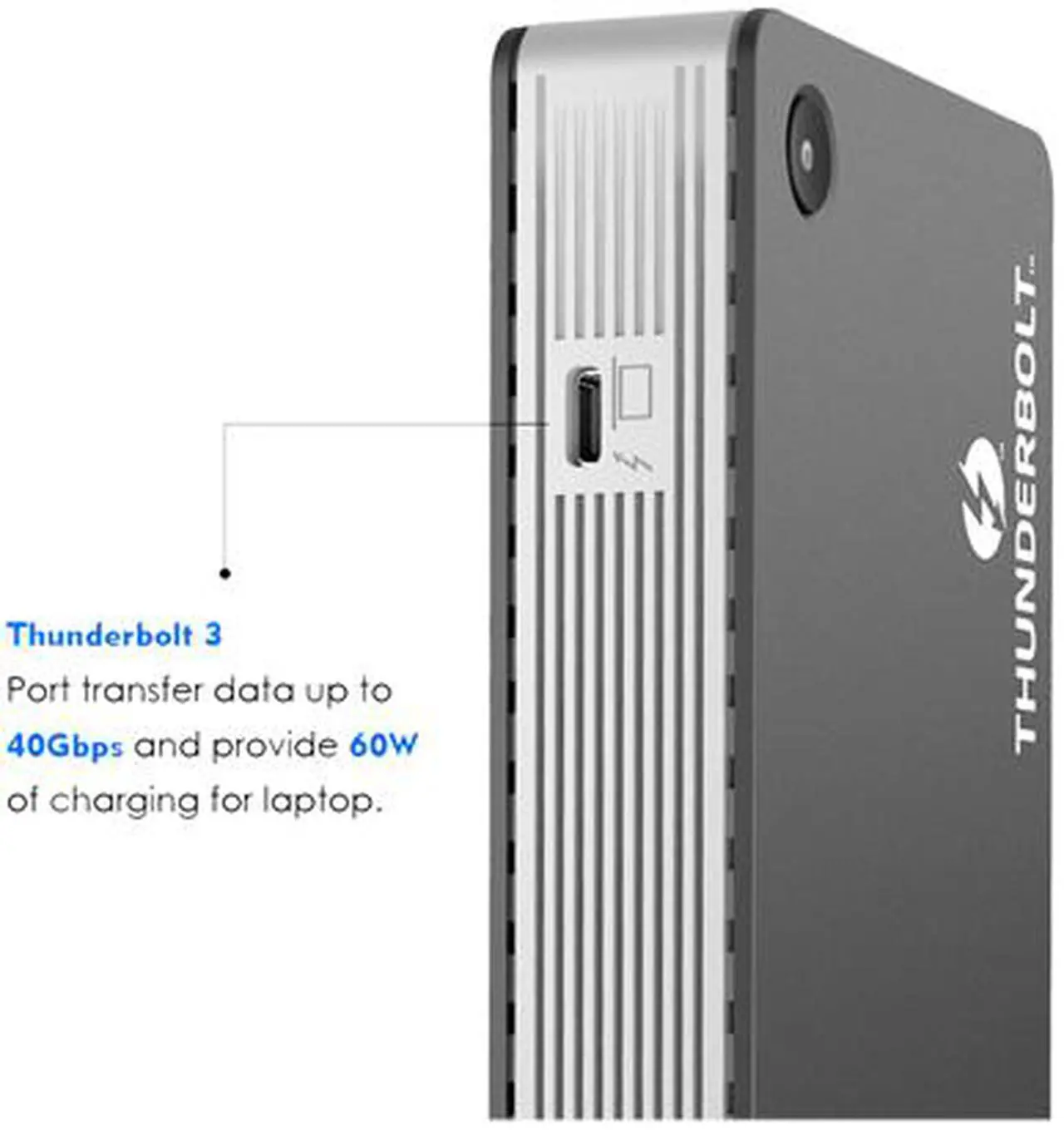

Thunderbolt 3 Port 40Gbps Data and Upstream Charging

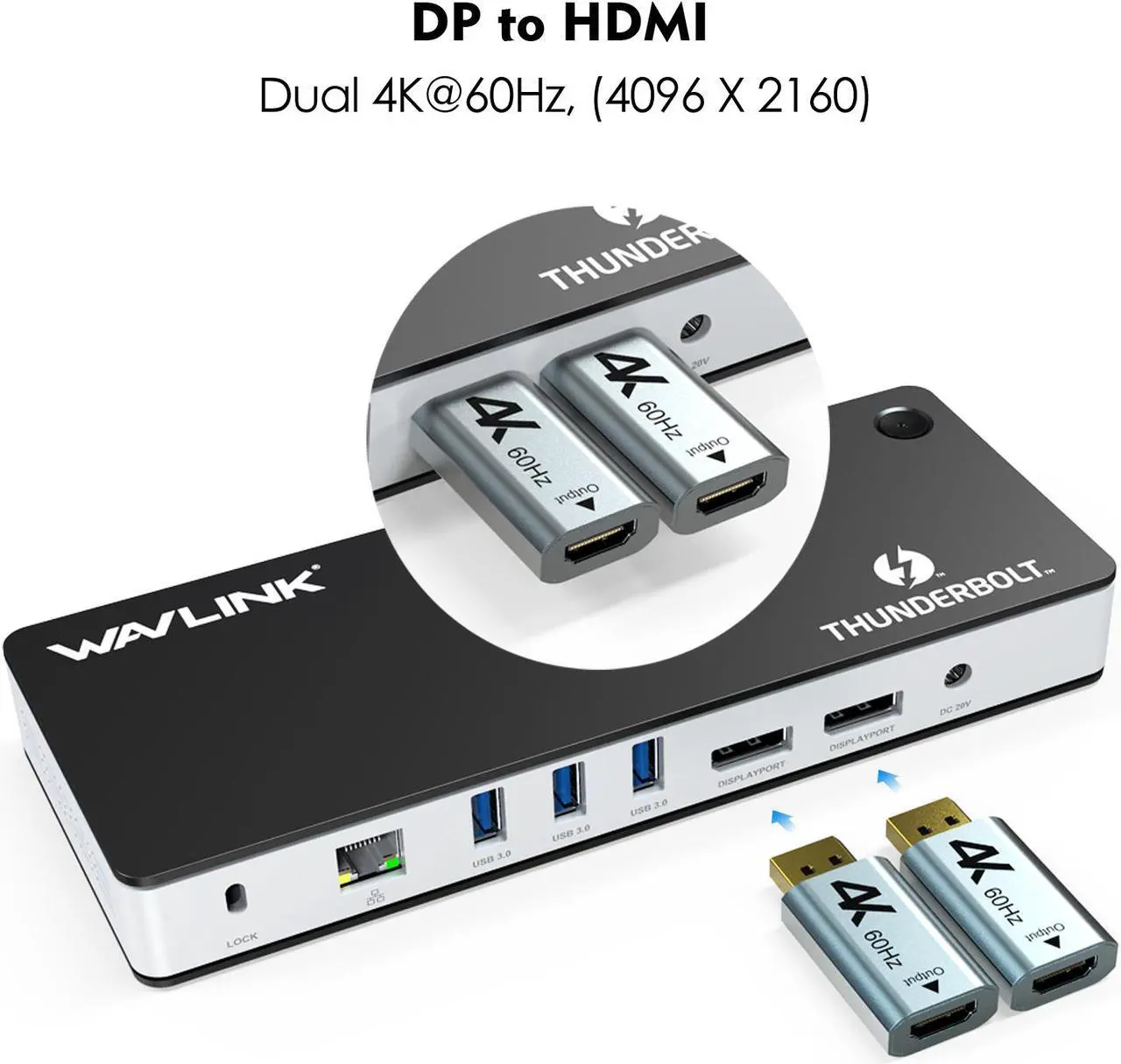

2 x Displayport 1.4( 32.4Gb/s )
1 x Gigabit Ethernet (Rj45)
1 x USB C 3.1 (10Gb/s)
2 x USB A 3.1 (10Gb/s)
2 x USB A 3.0 (5Gb/s)
Phone Jack Stereo 4pole TRRS Stereo
1, Please ensure that the DP cable supports the DP 1.4 standard, otherwise the video cannot be displayed
2, Some computers may only support a single video output over Thunderbolt 3 port. Please check with your computer specification. System manufacturer must have physically routed two Display Port lines to the Thunderbolt 3 port.
3, Requires updated system UEFI BIOS, Thunderbolt 3 drivers, and graphics (GPU) drivers from system manufacturer
4.2020 Mac equipped with M1 chip only supports single extension when connected to Thunderbolt docking stations, even if that docking station has multiple video connectors.
System Requirements:
mac OS 10.15.1 later
Windows 10 or later*
Computer with Thunderbolt 3 port or USB-C Computer with Power Delivery and Video Alternate Mode. ( host-charging and "Alt Mode" video output must be supported by host system to function. As such, dock is not compatible with legacy USB 3.0 systems. )
Compatibility
mac OS 10.15.1 later
Computer with Thunderbolt 3 port or USB-C Computer with Power Delivery and Video Alternate Mode. ( host-charging and "Alt Mode" video output must be supported by host system to function. As such, dock is not compatible with legacy USB 3.0 systems. )
Charge your laptop, add devices and light up dual monitors, all with a single cable, regardless of your connectivity. It compatible with Mac (Thunderbolt 3), Windows PC (USB-C or Thunderbolt 3), USB-C Chromebook.
The USB-C Pro Dock also works with the iPad Pro, Windows USB-C phones/tablets and Android USB-C phones, delivering a full desktop experience with external monitors, keyboard, mouse, Ethernet, external USB drives and charging.
Compatible Systems Dual Display:
Apple Late 2016/2017/2018 MacBook Pro models with Thunderbolt 3
Apple 21.5' and 27' iMac Mid 2017 with Thunderbolt 3
Dell XPS 12 9250, Dell XPS 13 9350, 9360, 9365, 9370, Dell XPS 15 9550, 9560
Dell Latitude 7275, 7370
Dell Precision 15 3510, 3520, 5510, 5520, 7510, 7520, Dell Precision 17 7710, 7720 (Precision systems with certain CPU and GPU configurations have power requirements above 130W and do not support charging via Thunderbolt 3
Computers Supporting A Single Display (Partial List):
Systems with a single DisplayPort line wired to the Thunderbolt 3 port are not updatable to support two displays
Razer Blade Stealth / Pro
Asus/Transformer 3 Pro / ROG
Gigabyte (All models except Z170X, LGA1151)
HP Spectre 13.3
Intel NUC
MSI Stealth
LG Gram 15Z970
Samsung NP900X5N
Sony VAIO S11
Lenovo ThinkPad T470 / T470s / Yoga 720
Clevo P750DM2-G Series

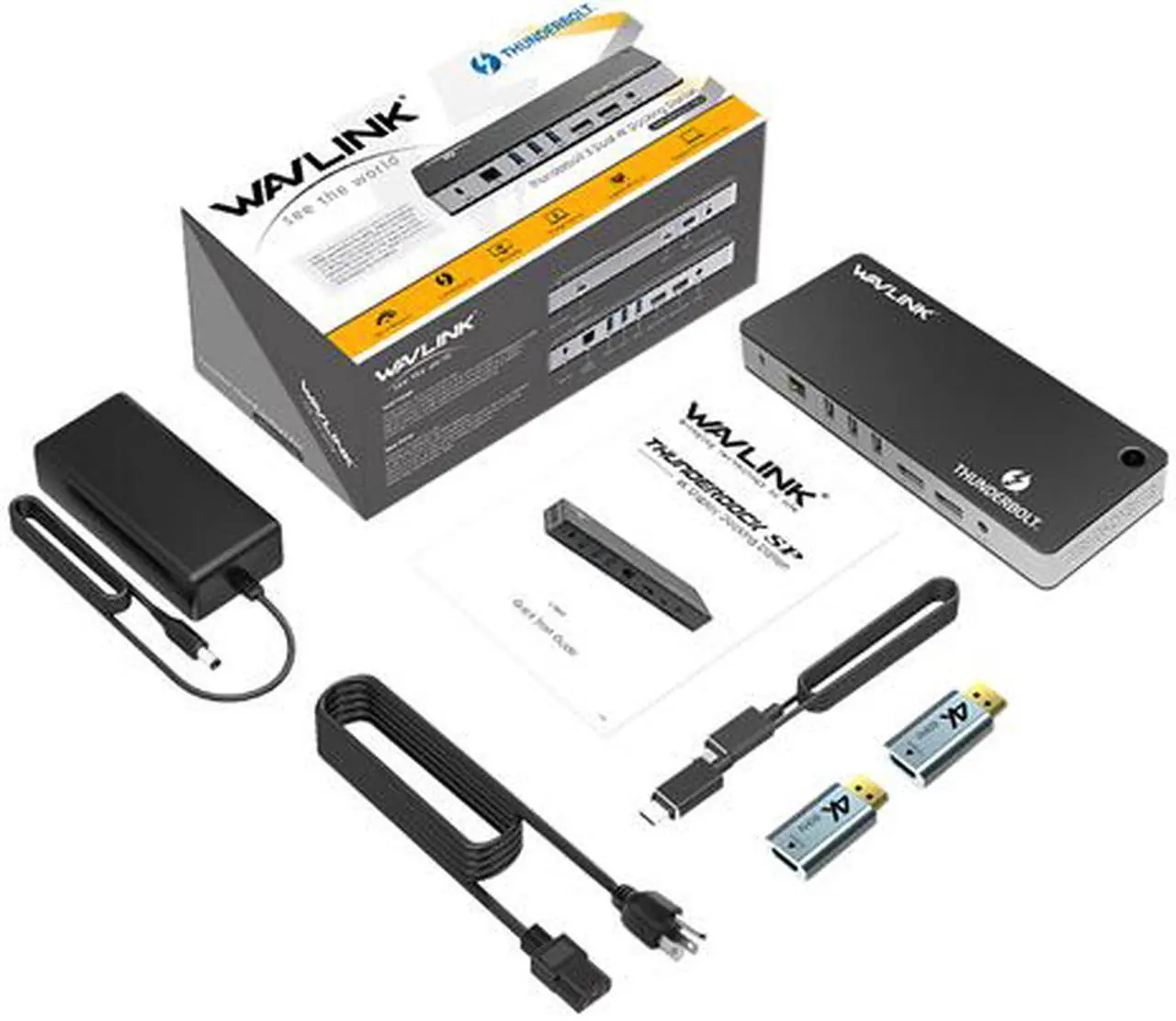

In the Box

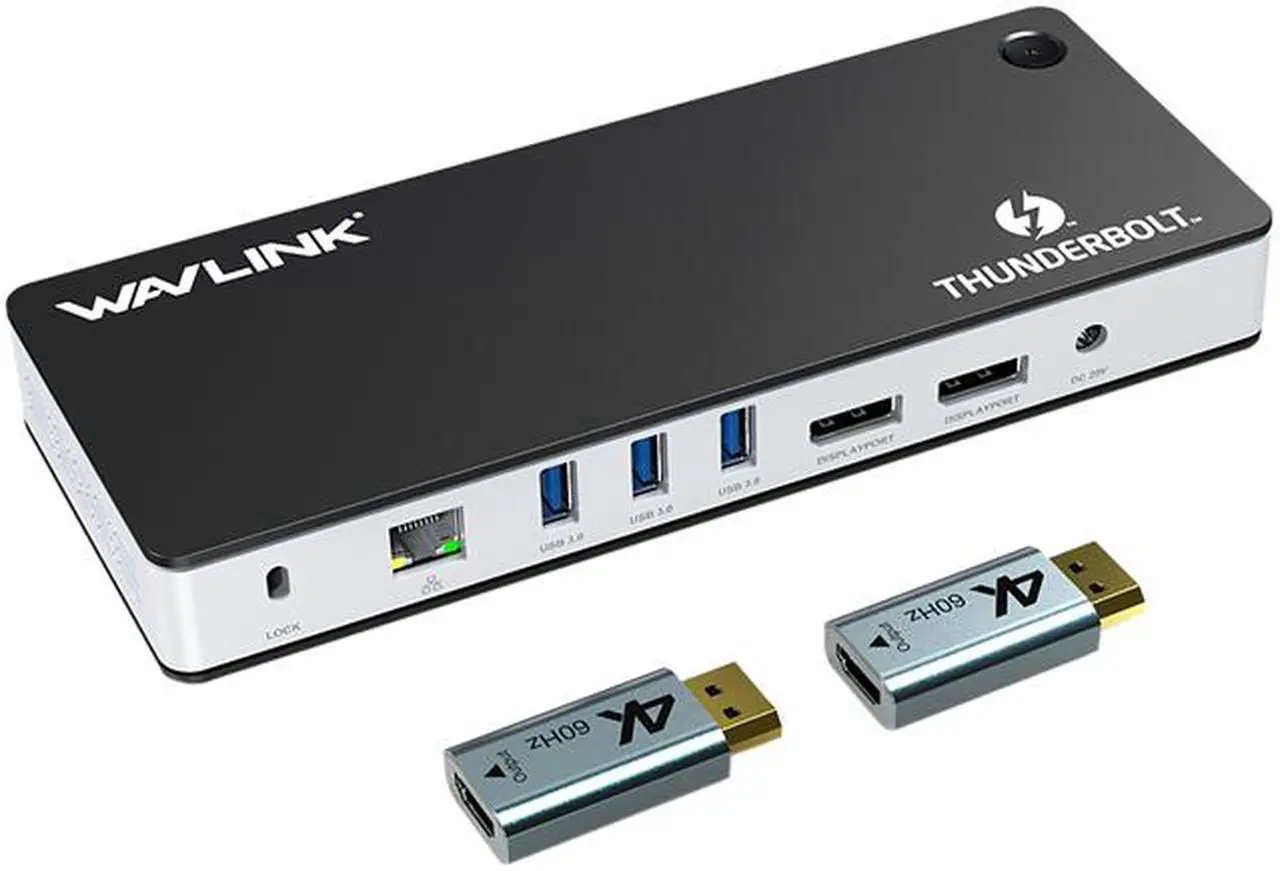

1x Thunderbolt 3 Titan USB-C Dual 4K Docking Station
1x Thunderbolt 40Gbps cable 0.7 meter
1x User Manual
1x DC20V/6.5A 130W Power Adapter
