WAVLINK Universal Triple Display DisplayLink Docking Station

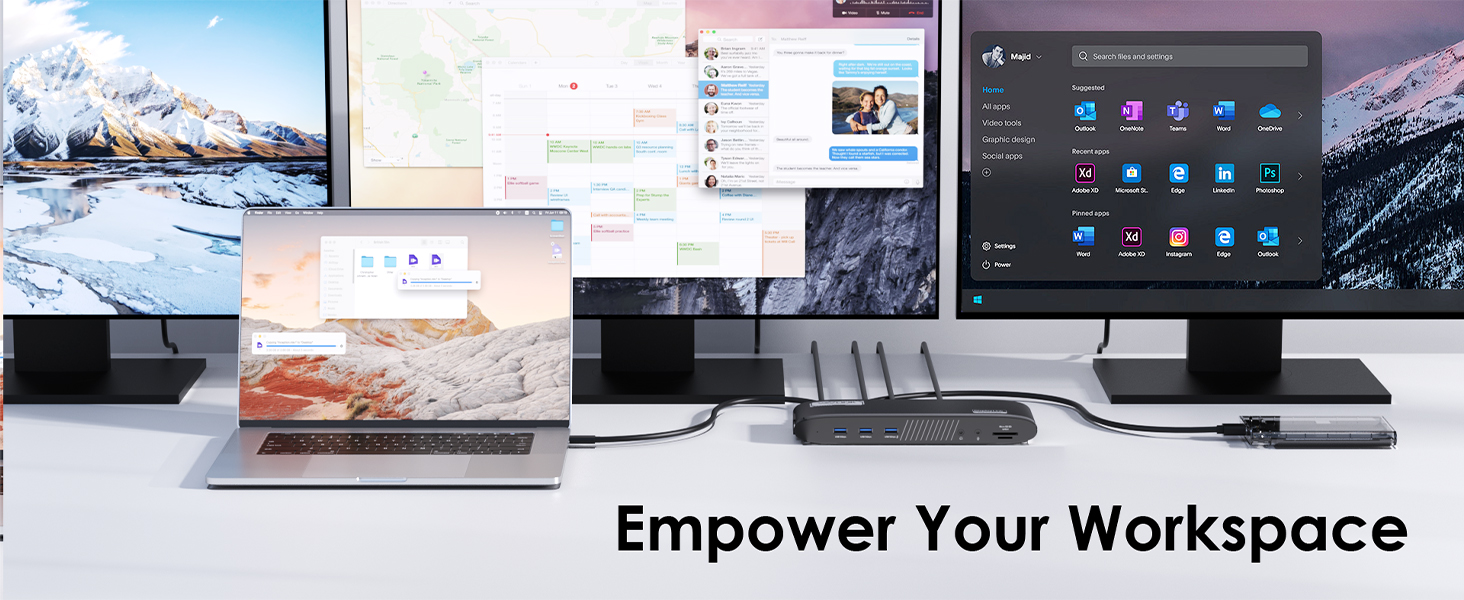

Empower Your Workspace with Seamless Connectivity and Rapid PD 100W Upstream Charging!
Compatible Systems: Windows 10/11, Mac OS 11.x-15.x and latest, Chrome OS, Ubuntu, Android, HarmonyOS.

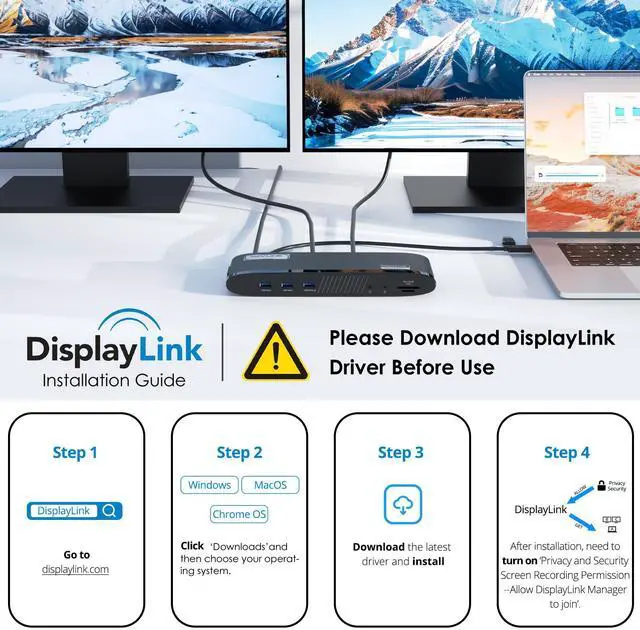

How to download and install the latest DisplayLink driver?
1. Visit "displaylink.com" and click on 'Downloads';
2. Find the corresponding driver for your system;
3. Download and install the driver;
4. Start to use it after simple configuration.
1.The dock is self-powered and needs to be connected to the power adapter to work
2.Please confirm that the type-c port of your laptop supports charging and video output, or the docking station's host charging function and HDMI (Alt. Mode) port may not work
3.Does not support plug and play; driver installation is required. Please visit the website 'displaylink.com' to download the latest driver
4.Not for Linux, Unix, iOS or iPadOS systems. Does not support Steam Deck
5.Windows/Mac OS(12.x or above)-based devices support rotation and clamshell modes.
6.Not recommended for gaming/video editing via HDMI 2/3 ports (only HDMI 1 in Alt. Mode suitable).
7.To get 4K@60Hz on HDMI(Alt.Mode), your laptop's USB-C port must support DP1.4; if it supports DP1.2, you'll be limited to 4K@30Hz
8.Not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc
9.Mac users, it is necessary to grant permission to the DisplayLink Manager to record your screen
WAVLINK Universal Triple Display DisplayLink Docking Station
Empower Your Workspace with Seamless Connectivity and Rapid PD 100W Upstream Charging!
Compatible Systems: Windows 10/11, Mac OS 11. x-15. x and latest, Chrome OS, Ubuntu, Android, HarmonyOS.
How to download and install the latest DisplayLink driver?
1. Visit displaylink. com and click on Downloads;
2. Find the corresponding driver for your system;
3. Download and install the driver;
4. Start to use it after simple configuration.

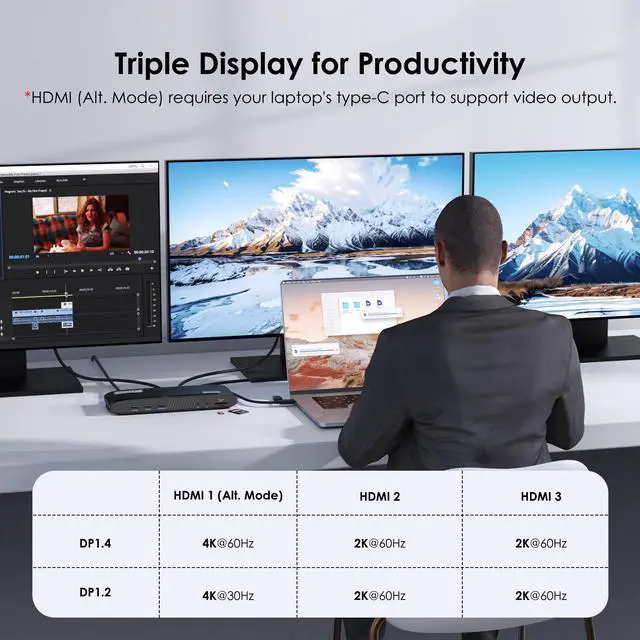

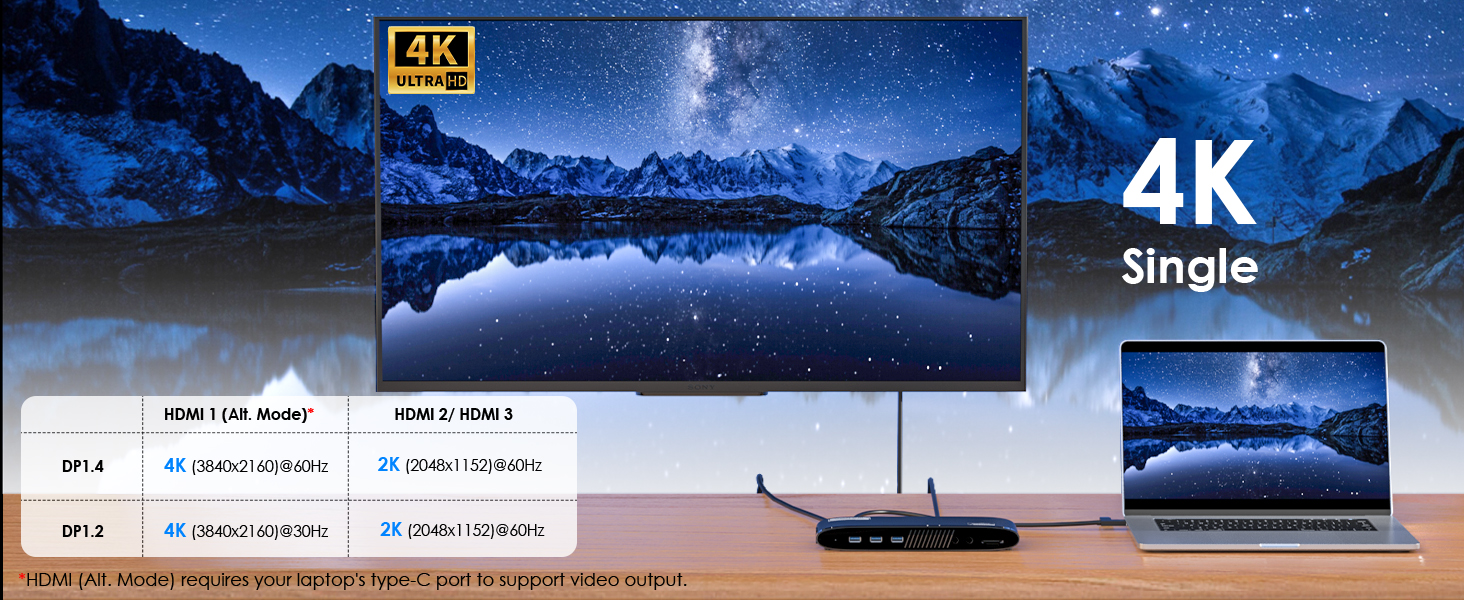

Multiple Display Resolution (Max. Resolution)
1)Single Display:
Under DP 1.2 Source: HDMI 1 (Alt
Mode): 3840x2160@30Hz; HDMI 2/ HDMI 3: 2048 x1152@60Hz;
Under DP 1.4 Source: HDMI 1 (Alt
Mode): 3840x2160@60Hz; HDMI 2/ HDMI 3: 2048 x1152@60Hz.
2)Dual Display:
a. HDMI 1 (Alt Mode) +
HDMI 2/3:
Under DP 1.2 Source: 3840x2160@30Hz + 2048x1152@60Hz;
Under DP 1.4 Source: 3840x2160@60Hz + 2048x1152@60Hz.
b. HDMI 2 +
HDMI 3:
Under DP 1.2 / 1.4 Source: 2048x1152@60Hz + 2048x1152@60Hz.
3)Triple Display:
HDMI 1 (Alt Mode) + HDMI 2 +
HDMI 3:
Under DP 1.2 Source: 3840x2160@30Hz + 2048x1152@60Hz + 2048x1152@60Hz;
Under DP 1.4 Source: 3840x2160@60Hz + 2048x1152@60Hz + 2048x1152@60Hz.
Specification
1.
Model: WL-UG39PD11
2.

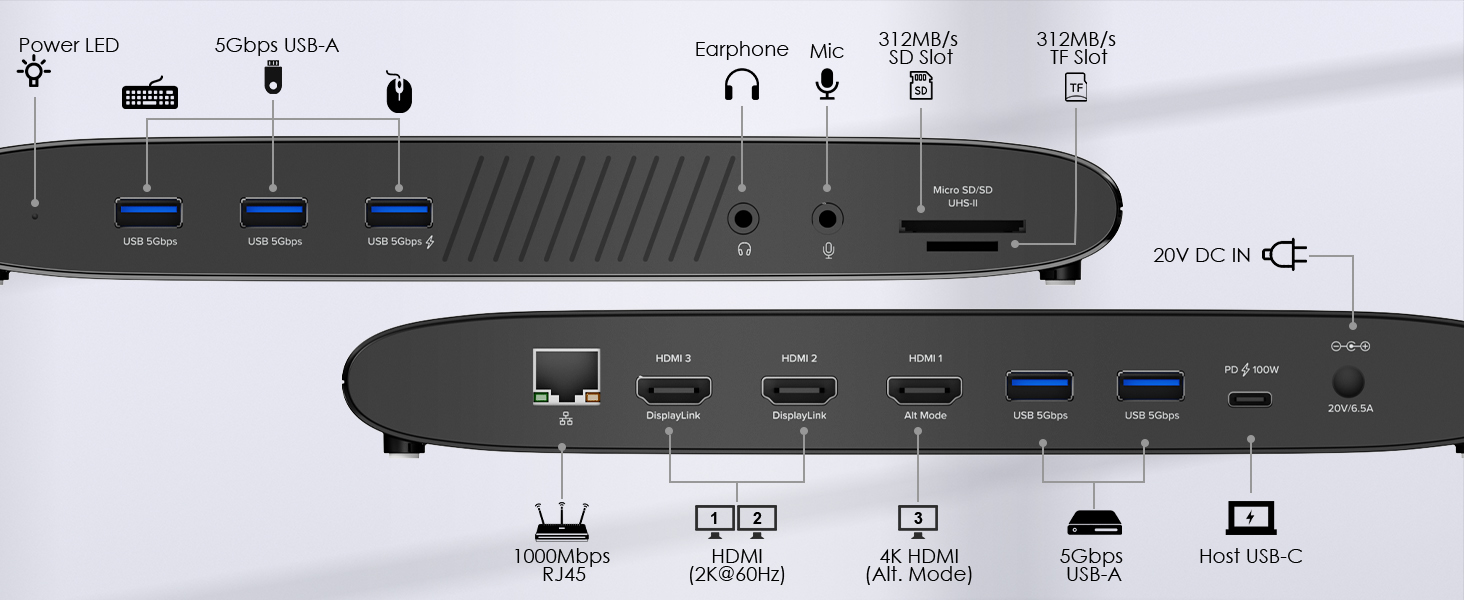

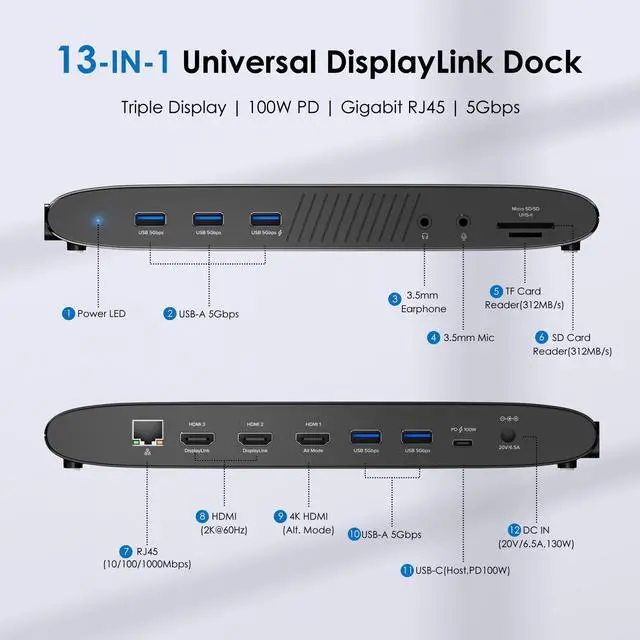

Ports: Side
1: Power LED; 3x USB-A 5Gbps; 1x 3.5 mm Earphone; 1x 3.5 mm Mic; SD/TF Card Reader(312MB/s)
Side 2: 1 x RJ45(10/100/1000Mbps); 2x HDMI (2K@60Hz); 1x 4K HDMI(Alt. Mode); 2x USB-A 5Gbps; 1x USB-C Upstream (Host, PD100W); 1x DC IN (20V)
3.
Unit Size: 24.0 x 8.3 x 3.0 cm/ 9.4 x 3.3 x 1.2 in (L x W x H )
4.
USB-C Cable Length: 100cm/ 39.4 in
Power Adapter Cable Length (plug end): 150cm/59in
Power Adapter Cable Length (round port end): 110cm/43in
5.
Unit Weight: 363g/ 12.8 oz
6.
Housing Material: ABS Plastic
7.
Power LED: Blue
Features

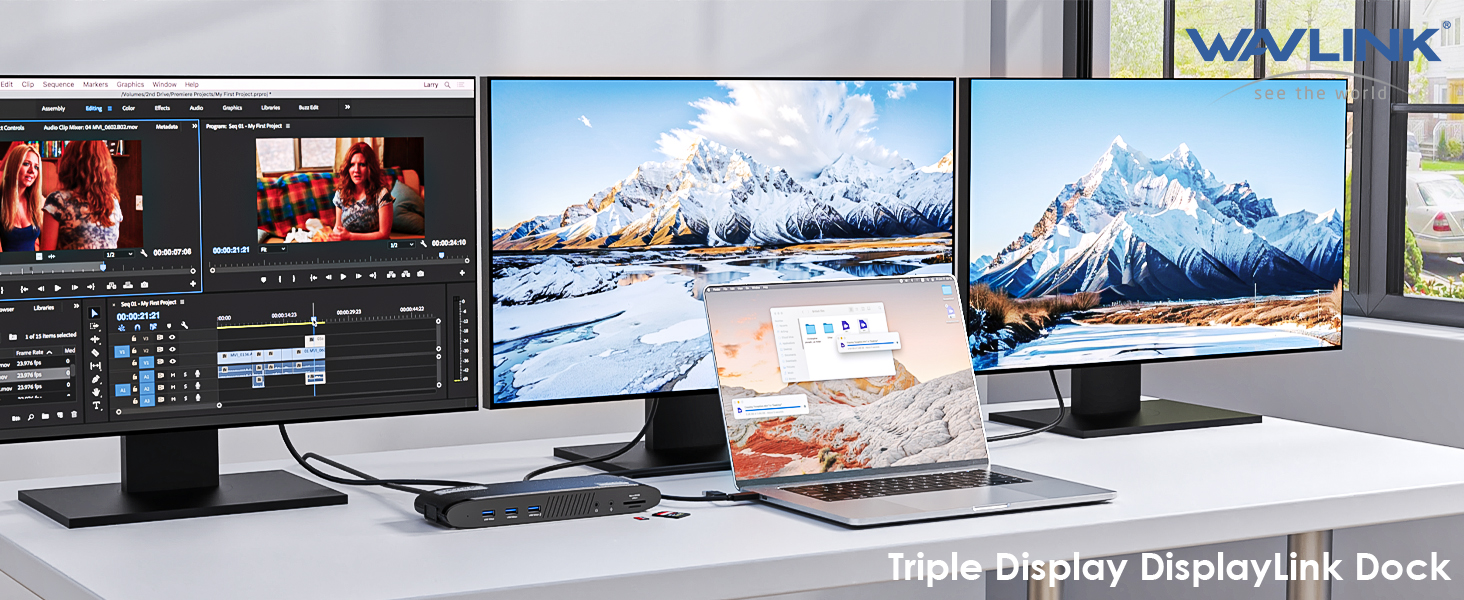

- Three HDMI ports support video output simultaneously: one HDMI port can support the resolution up to 4K@60Hz and the other two support up to 2K@60Hz.

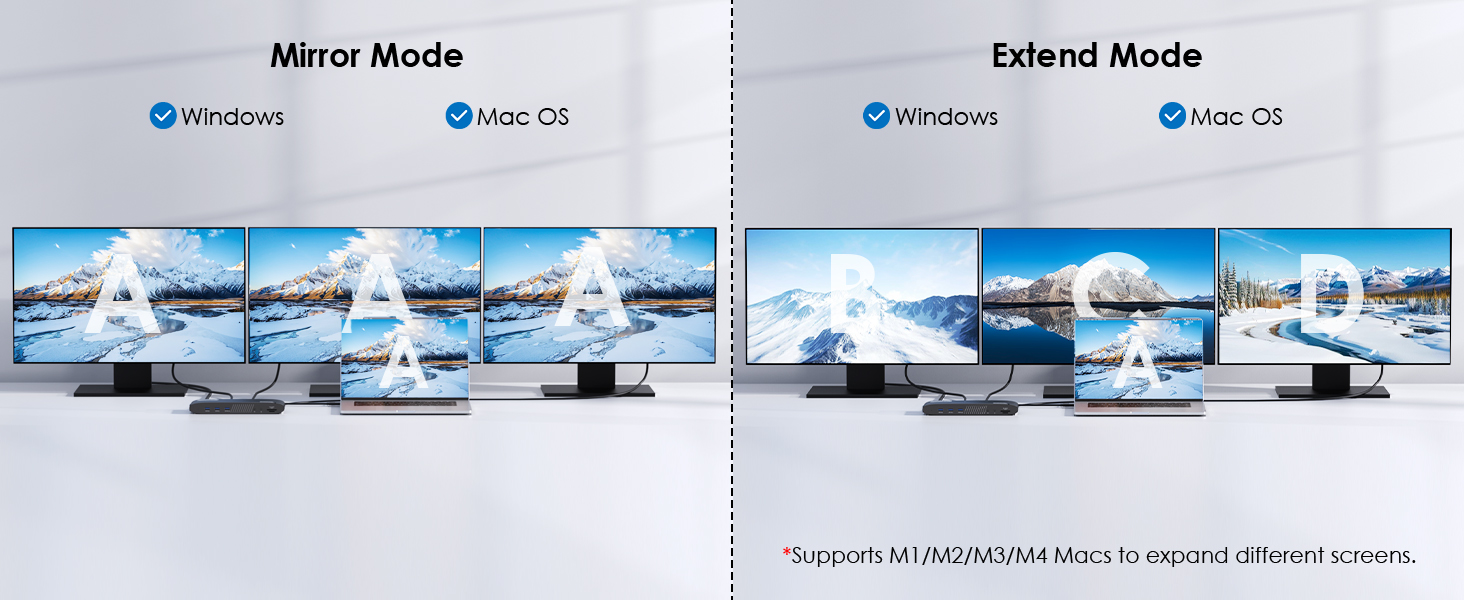

- Extend/Mirror video modes are available for multiple tasks.

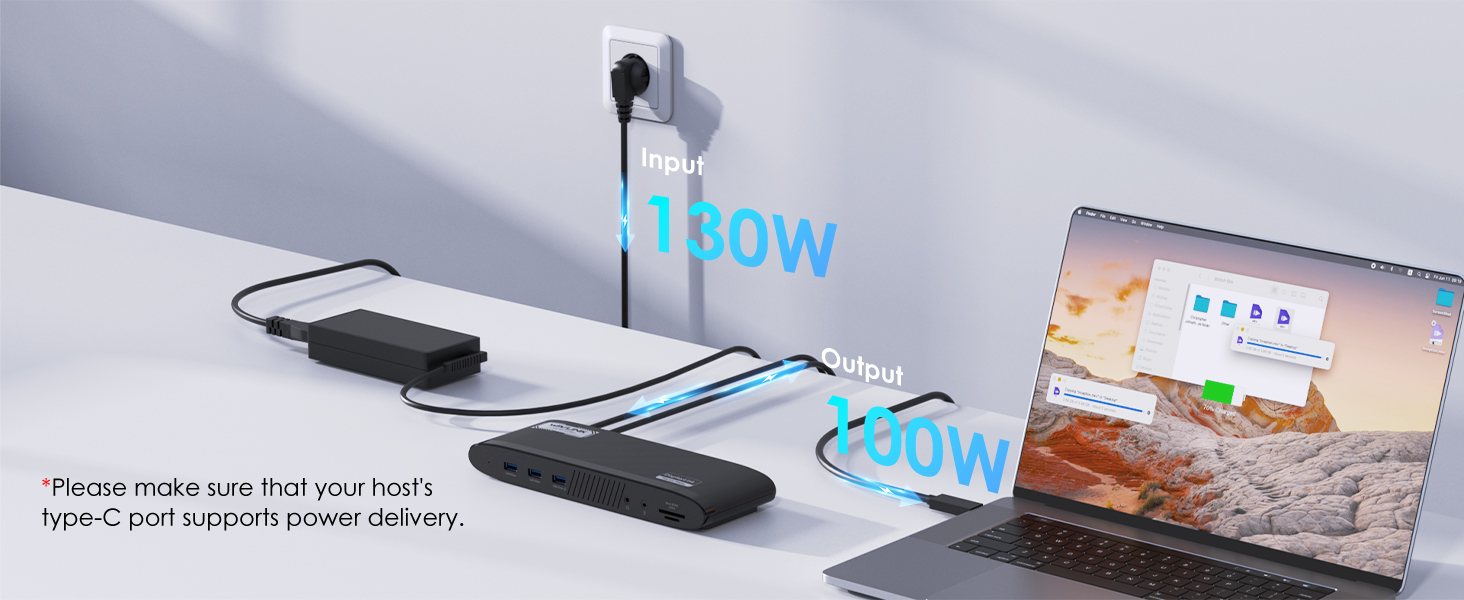

- 130W Power Supply delivers maximum 100W power upstream to charge your laptop.

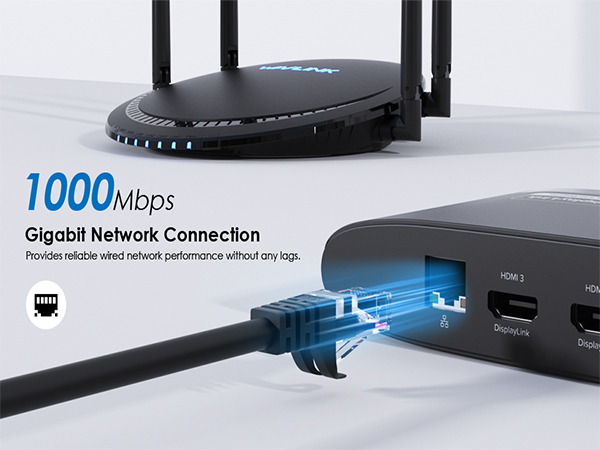

- A Gigabit Ethernet port offers fast and stable network connection.

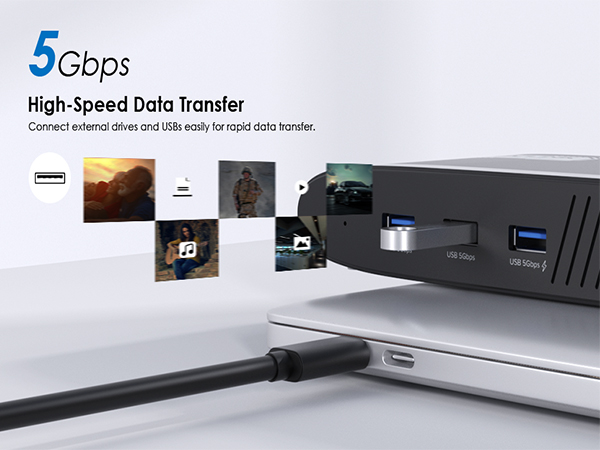

- Five USB-A ports with transfer speed up to 5Gbps, backward compatible with USB 2.0; one of USB-A ports supports 7.5W downstream charging.
- 3.5 mm audio out and mic in ports for earphone, mic, and speaker connection and playing.

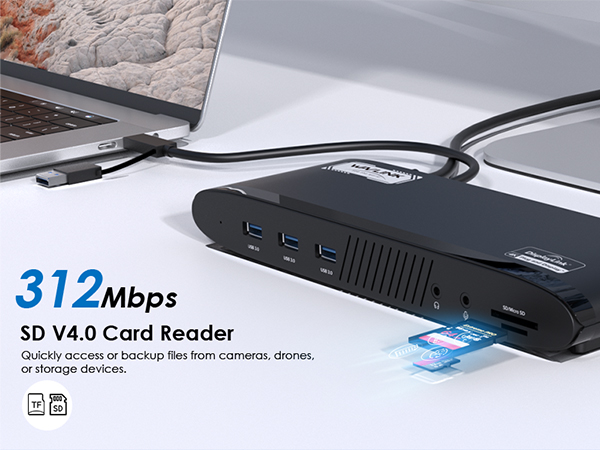

- SD/Micro SD v 4.0 supports SDXC UHS-II and transfers speed up to 312MB/s.

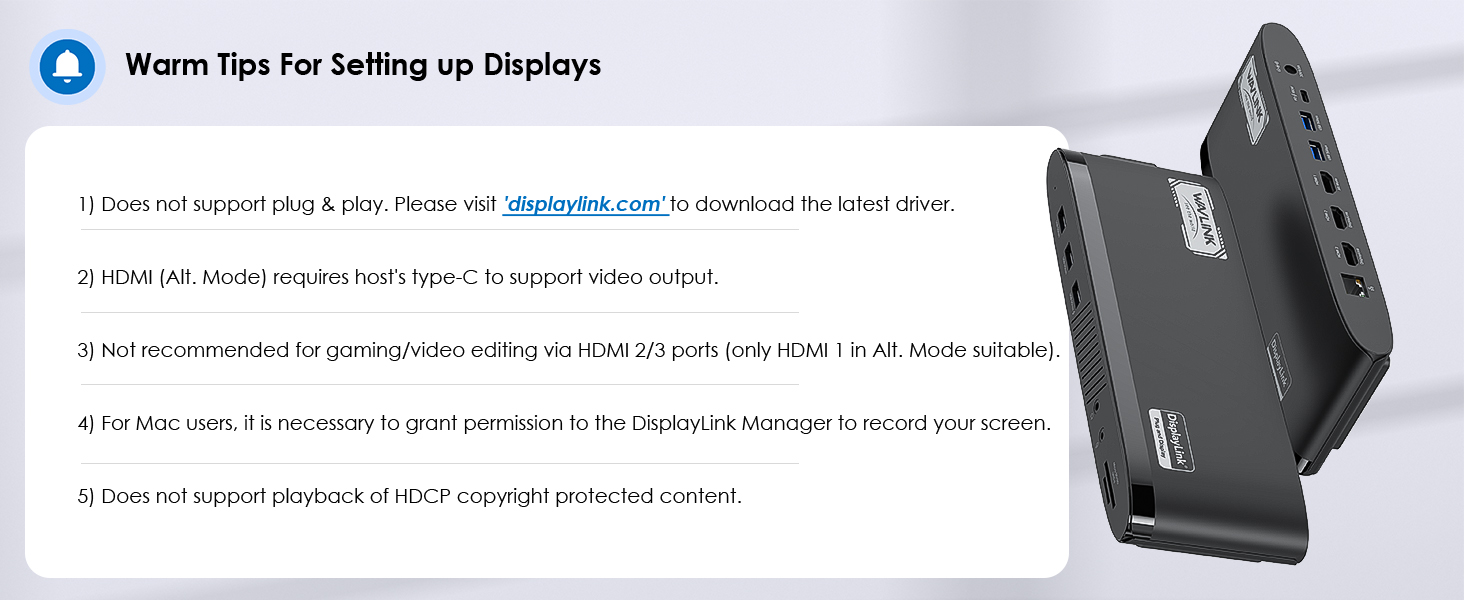

Warm Tips:
1. The dock is self-powered and needs to be connected to the power adapter to work normally.
2. Please confirm that the type-c port of your laptop supports charging and video output, or the docking station's host charging function and HDMI (Alt. Mode) port may not work.
3. Does not support plug and play; driver installation is required. Please visit the website 'displaylink. com' to download the latest driver.
4. Not for Linux, Unix, iOS or iPadOS systems. Does not support Steam Deck.
5. Windows/Mac OS(12. x or above)-based devices support rotation and clamshell modes.
6. Not recommended for gaming/video editing via HDMI 2/3 ports (only HDMI 1 in Alt. Mode suitable).
7. To get 4K@60Hz on HDMI(Alt. Mode), your laptop's USB-C port must support DP 1.4; if it supports DP 1.2, you'll be limited to 4K@30Hz.
8. Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
9. For Mac users, it is necessary to grant permission to the DisplayLink Manager to record your screen.
In the Box
1x USB-C Triple Display Universal Docking Station
1x 2-in-1 USB-C to USB-C Cable with USB-A Converter
1x 130W Power Adapter
1x Quick Start Guide
--------

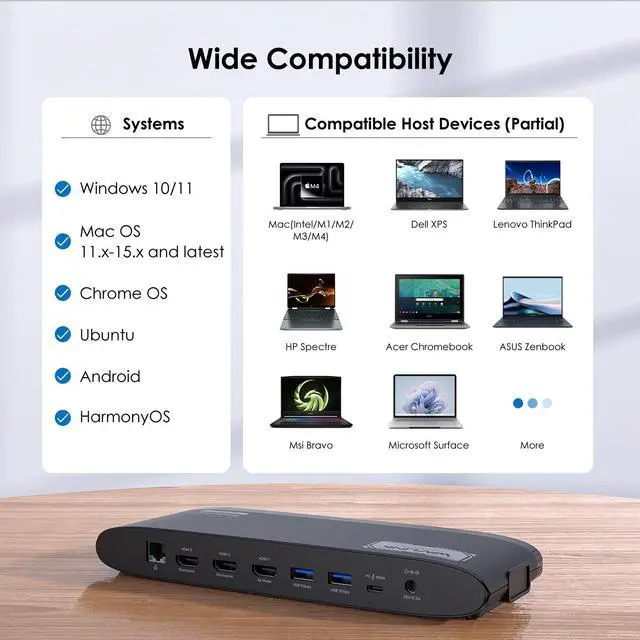

Host Devices Compatibility List (Partial):
*Note: Supports almost all common computers, most notably M1/M2/M3/M4-based MacBook. If your device is not on the list, please let us know and we will be glad to help you check with it.
Apple: Mac Studio 2022, iMac(2017, 2019, 2020), MacBook Pro 16-inch (2019, 2021), MacBook Air 13-inch (2018, 2019, 2020), MacBook Pro 13-inch (2016, 2017, 2018, 2019, 2020), MacBook Pro 14-inch 2021, MacBook Pro 15-inch (2016, 2017, 2018, 2019);
Dell: XPS 13 7390 2-in-1 (Ice Lake), XPS 12 9250, XPS 13 9350, XPS 13 9360, XPS 13 9370, XPS 13 9380, XPS 15 9550 (Intel + Nvidia GPU), XPS 15 9550 (Intel GPU), XPS 15 9560 (Intel + Nvidia GPU), XPS 15 9570, XPS 17 9700, XPS 12 XPS9250, Dell LATITUDE 7480, Alienware 13 R3, Alienware 15 R3, Alienware 17 R4, Dell Precision 15 M7510, Dell Precision 17 M7710, Dell XPS 13 9365, Dell Precision 15 5000 Series (5510), Dell Precision 15 3000 Series (3510), Dell Latitude 7370 (3C7XP), Dell Latitude 12 7275, Alienware 17 R3, Dell Precision M5510 15.6";
HP: EliteBook Folio G1 (Model V1C43EA), Spectre x360 Convertible 13-w000 (SKU W9A95AV), Spectre x360 - 13-ac003la, Spectre x360 - 15-ch000, Elite X2 1012 G1, HP Spectre x360 - 13-ae011dx (Late 2017), Elite x2 1012 G2, HP Spectre x360 (2017), HP EliteBook Folio G1 12.5", HP ZBook 15 G3, HP Zbook 17 G3 Workstation, HP ZBook Studio Series, HP Elite X2 1012 G1, HP Spectre x360 2-in-1 13-W023DX 13.3";
Intel: NUC8i7HVK (Hades Canyon), NUC8i7HNK (Hades Canyon), NUC9VXQNX (Ghost Canyon), Intel NUC9V7QNX (Ghost Canyon), Intel NUC9i9QNX (Ghost Canyon), Intel NUC9i7QNX (Ghost Canyon), Intel NUC9i5QNX (Ghost Canyon);
Lenovo: Thinkpad P50, Thinkpad P51, Thinkpad P70, Lenovo Yoga C930, Lenovo X1 Carbon 7th Gen, ThinkPad P70 Series Mobile Workstation, Lenovo Legion Y720, Lenovo ThinkPad T570, Lenovo Miix 720, Lenovo ThinkPad X1 Carbon (5th Gen 2017), Lenovo ThinkPad X1 Yoga (2nd Gen 2017), Lenovo ThinkPad P50;
Others: MSI VR Ready GS43VR Phantom Pro-006; ASUS ZenBook Pro UX501VW and more.
--------
