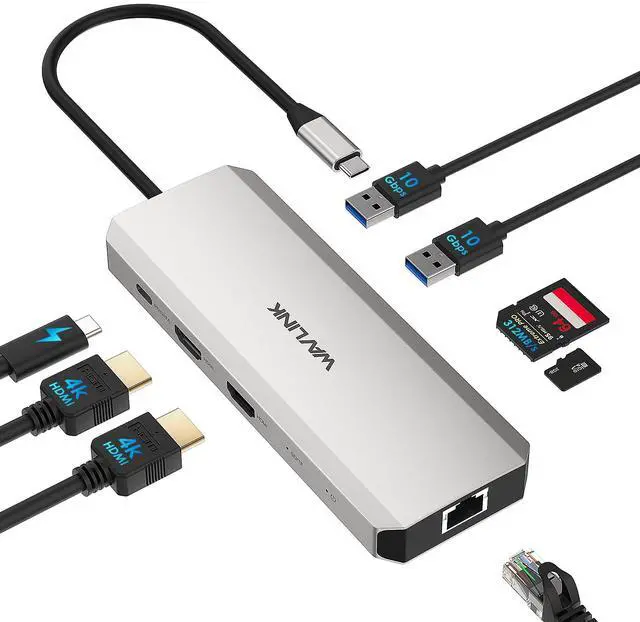

WAVLINK Docking Station Dual Monitor, Dual 4K@60Hz USB-C Dock with PD Pass-Through 125W, 2.5G Ethernet, 2×USB-A 10Gbps, SD/Micro SD Card Reader 312MB/s, Compatible with Windows & Mac

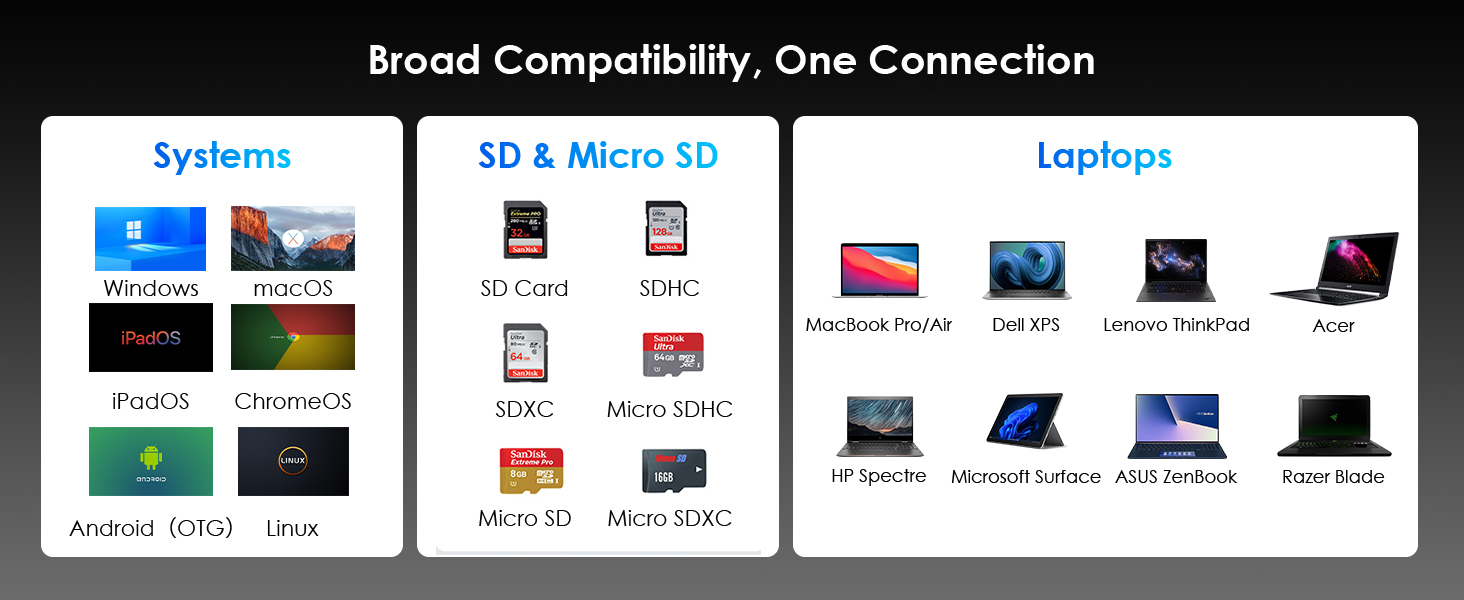

Systems/ Devices Compatibility

- Windows 7/8/10/11

- Mac OS 10.8 or later

How to Confirm if the Type-C Port of Your Laptop Supports Vido Output and Charging?

Step 1: Please check the model of your laptop, it should be on the back of the label;

Step 2: Search brand + the model number of the device + manual in Google, for example: asus ux435 manual;

Step 3: Check the manual and navigate to the view and check the type-c specification, if it states it supports power delivery which means it supports charging. If it states the type-c port supports display which means it could support video output. If the specification states bandwidth the type-c port supports only, which means the type-c port might not support video output and charging. You could also contact the manufacturer to confirm that.

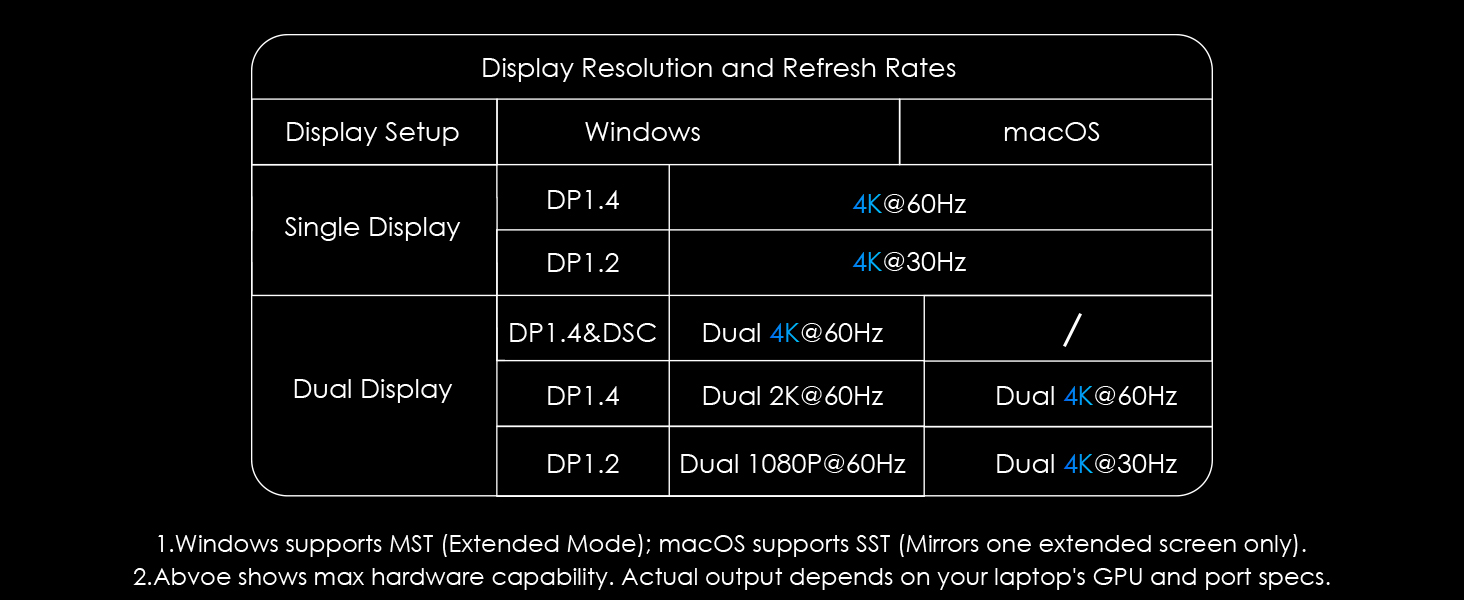

Multiple Display Resolution (Max. Resolution)

Notice: Please make sure the type-C port of your host supports video output.

Windows:

Single Display:

DP1.2: 4K@30Hz

DP1.4: 4K@60Hz

Dual Display:

DP1.4&DSC: Dual 4K@60Hz

DP1.4: Dual 2K@60Hz

DP1.2: Dual 1080P@60Hz

macOS:

Single Display:

DP1.2: 4K@30Hz

DP1.4: 4K@60Hz

Dual Display:

DP1.2: 4K@30Hz

DP1.4: 4K@60Hz

Specification:

1.Model: WL-UMD327

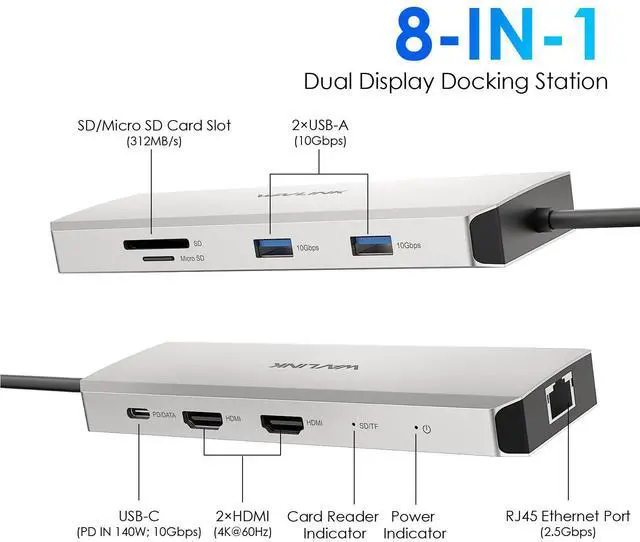

2.Ports: Front: SD/Micro SD Card Reader(UHS-, SD 4.0, 312MB/s); 2×USB-A(10Gbps);

Rear: USB-C(PD IN 140W&10Gbps); 2×HDMI(4K@60Hz); Card Reader Indicator; Power Indicator. 1×RJ45 Ethernet(2.5Gbps).

3.Unit Size: LxW×H :15cm×5.7cm×1.8cm/5.9inch×2.2inch×0.7inch

4.Cable Length: 25cm/9.84 inches

5.Unit Weight: 4.8oz/138g

6.Material: Aluminum alloy + ABS

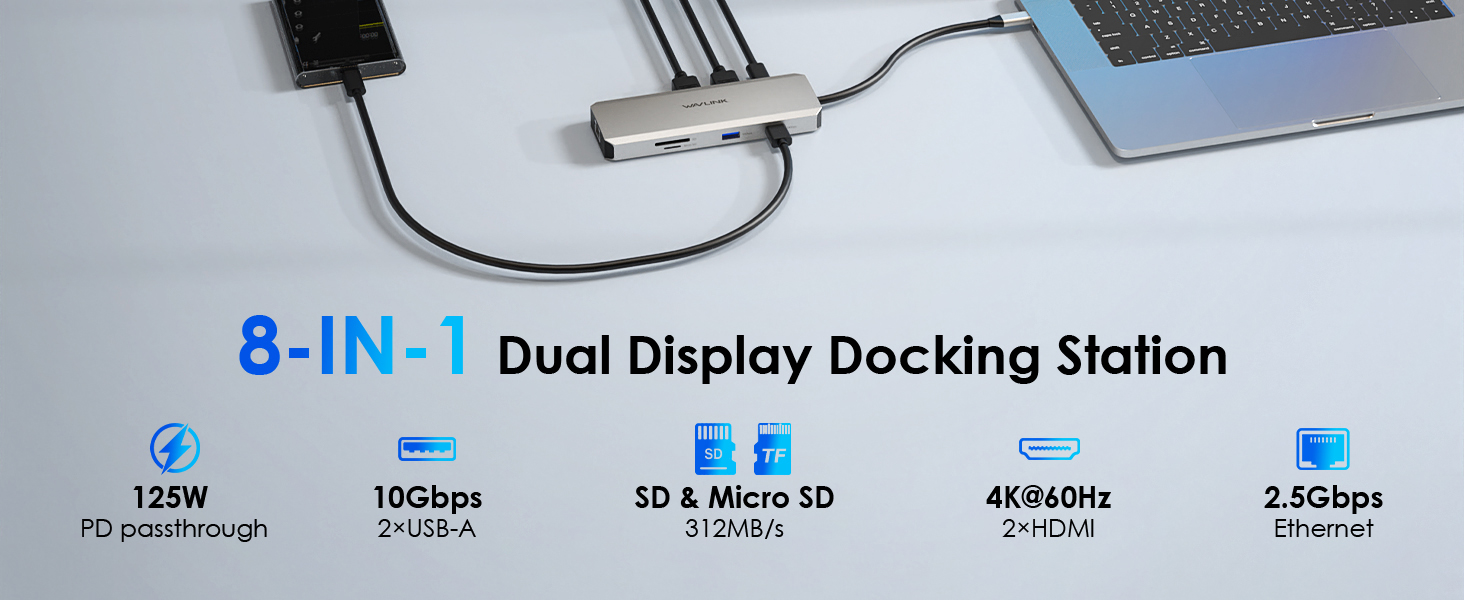

Features

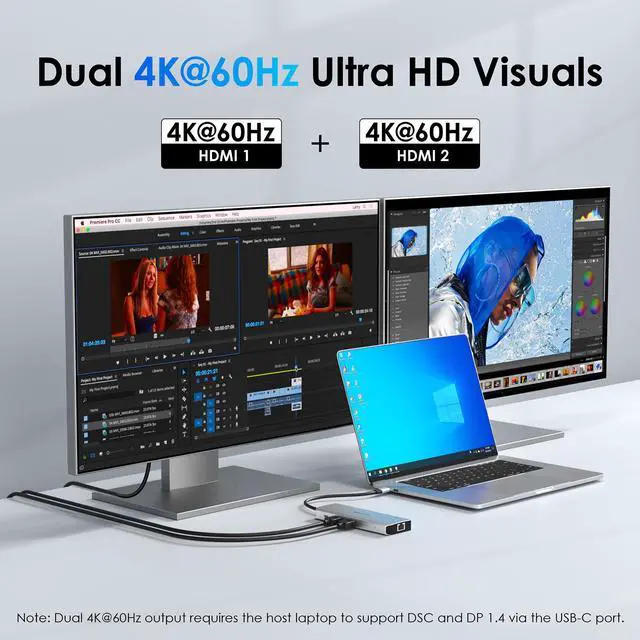

-2 x HDMI ports support dual 4K@60Hz display output. If the host support DSC and DP 1.4 via type-c port.

-1 x USB-C port offers 140W power delivery to the docking station and 10Gbps data transmission.

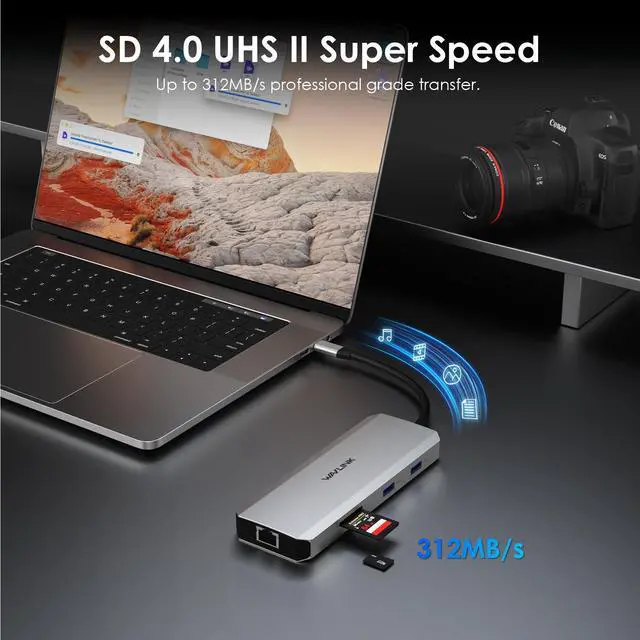

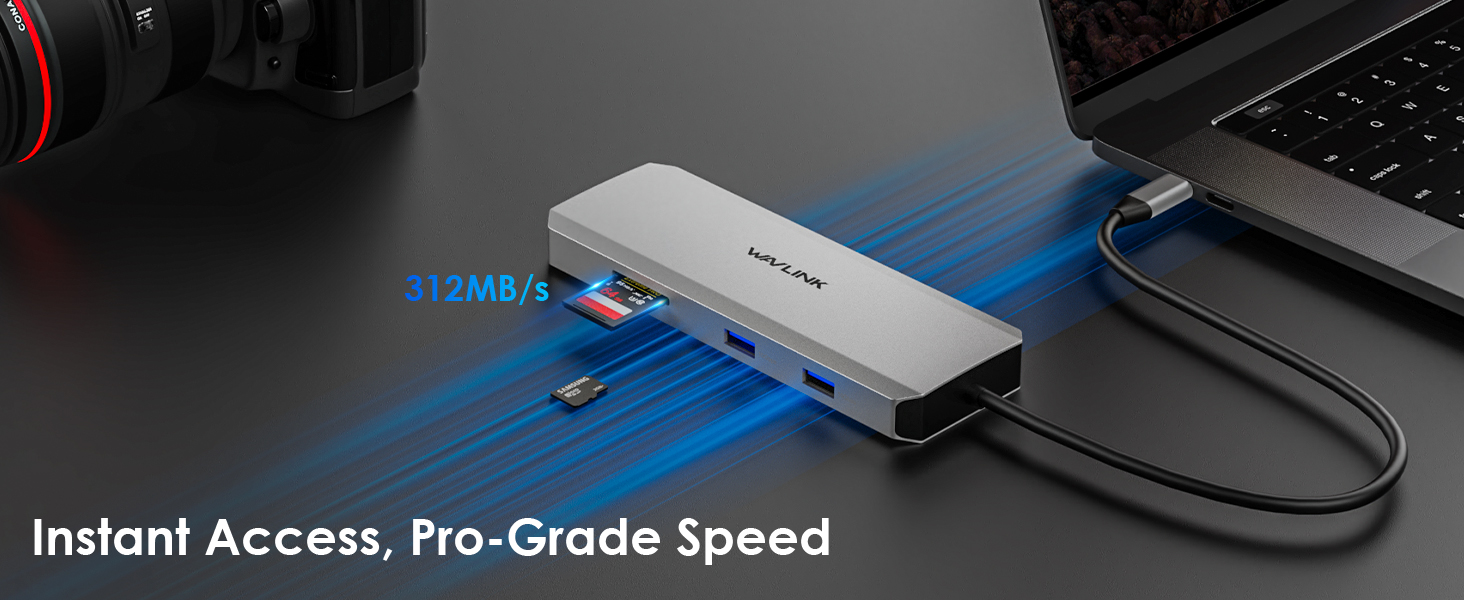

-Integrated SD V4.0 card reader with SD/Micro SD slot supports UHS-II theoretical bus speed up to 312MB/s.

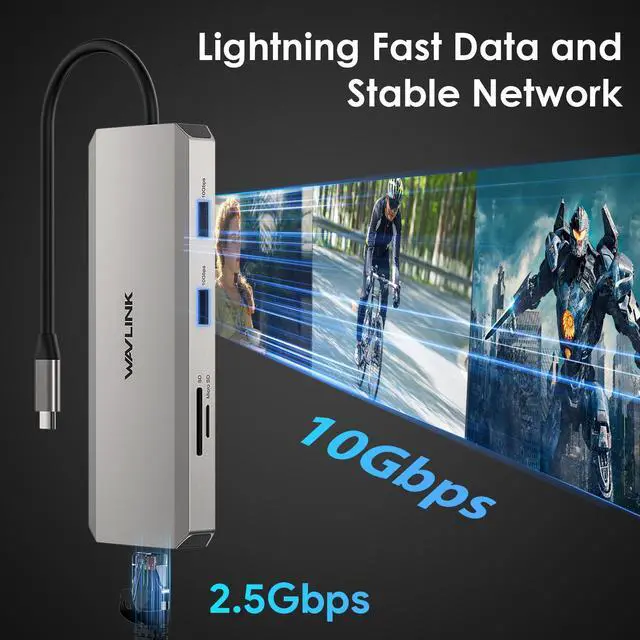

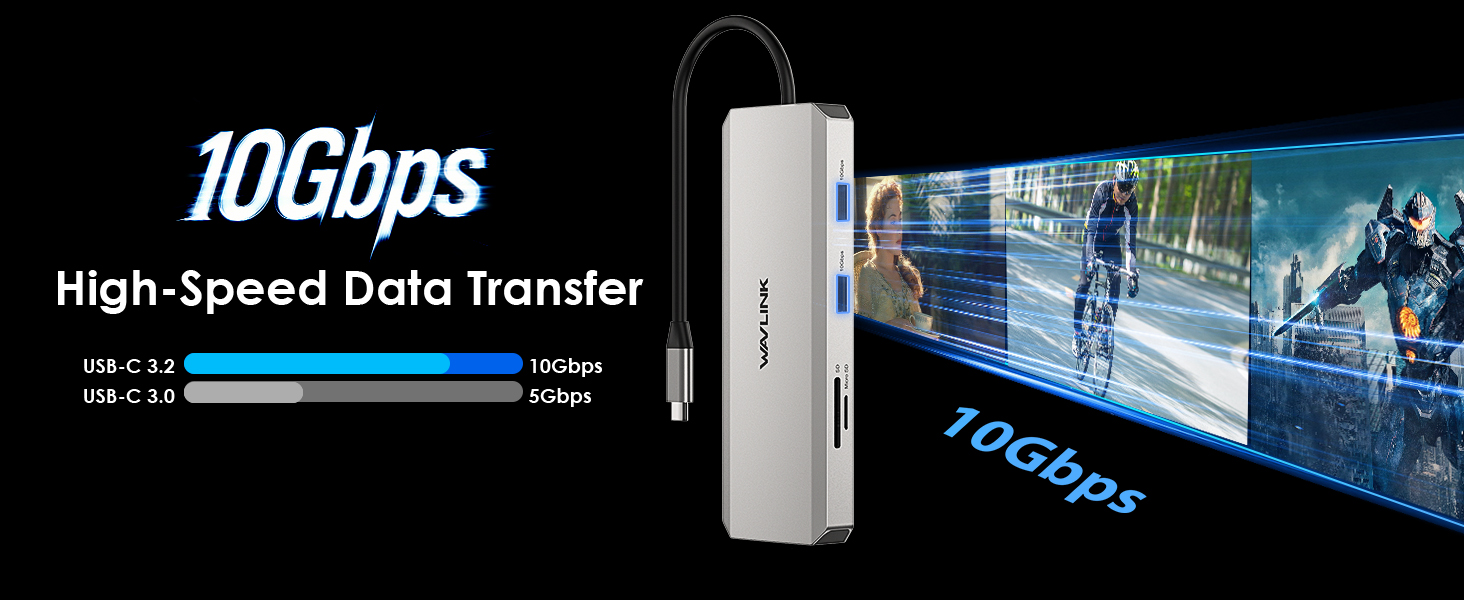

-2 x USB-A ports support 10Gbps transmission speed.

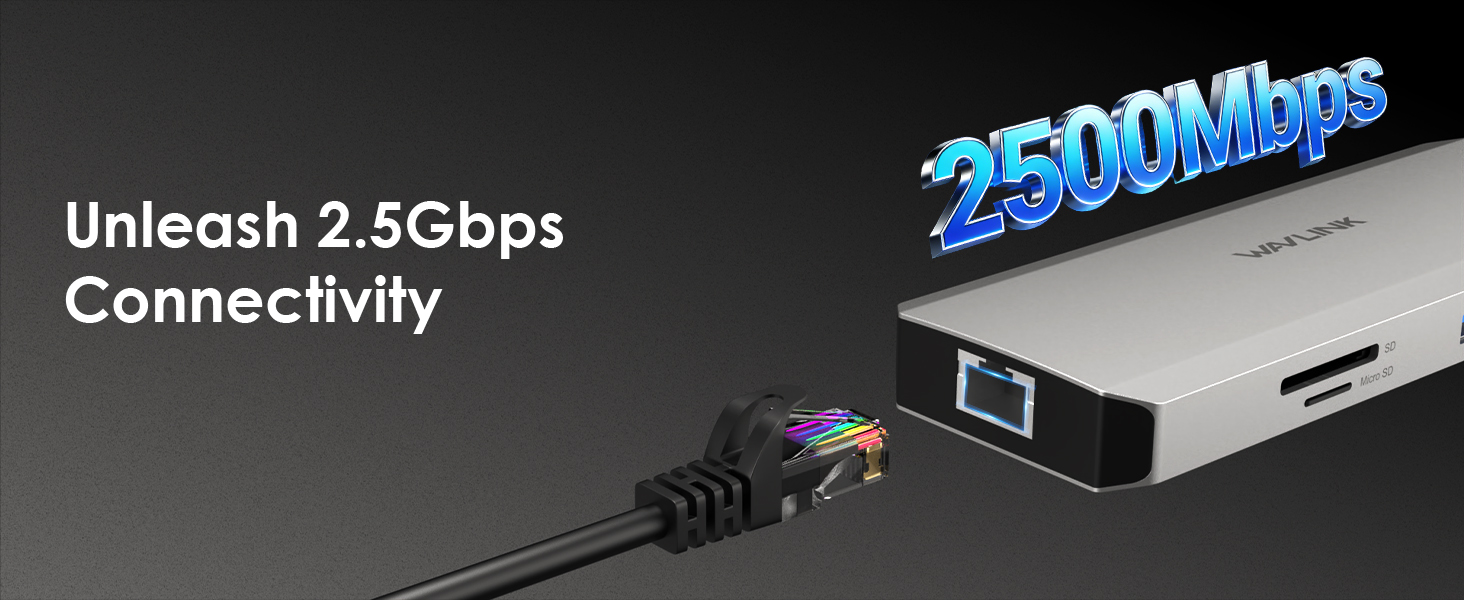

-1 x RJ-45 port allows a 2.5G Gigabit wired network.

-1 x USB-C connector supports 125W upstream charging for your laptop.

In the Box

-1x SD/Micro SD4.0 Dual Display Docking Station

-1 x Quick Start Guide

Warm Tips:

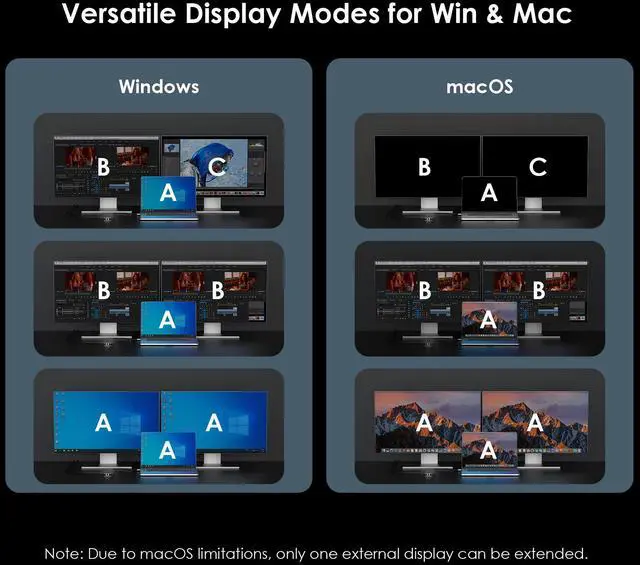

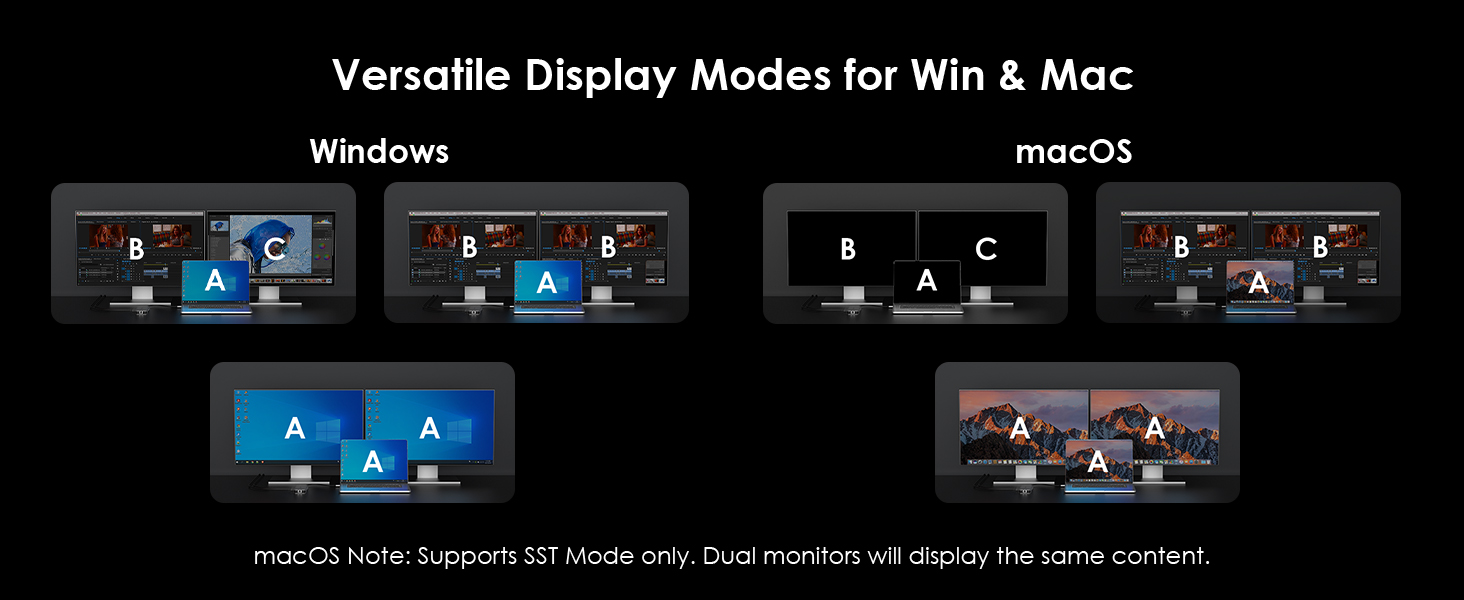

1.For macOS Users: Due to system limitations, this dock only supports Mirror Mode (SST) for external displays. When connecting two monitors, both will show the same content (ABB mode).

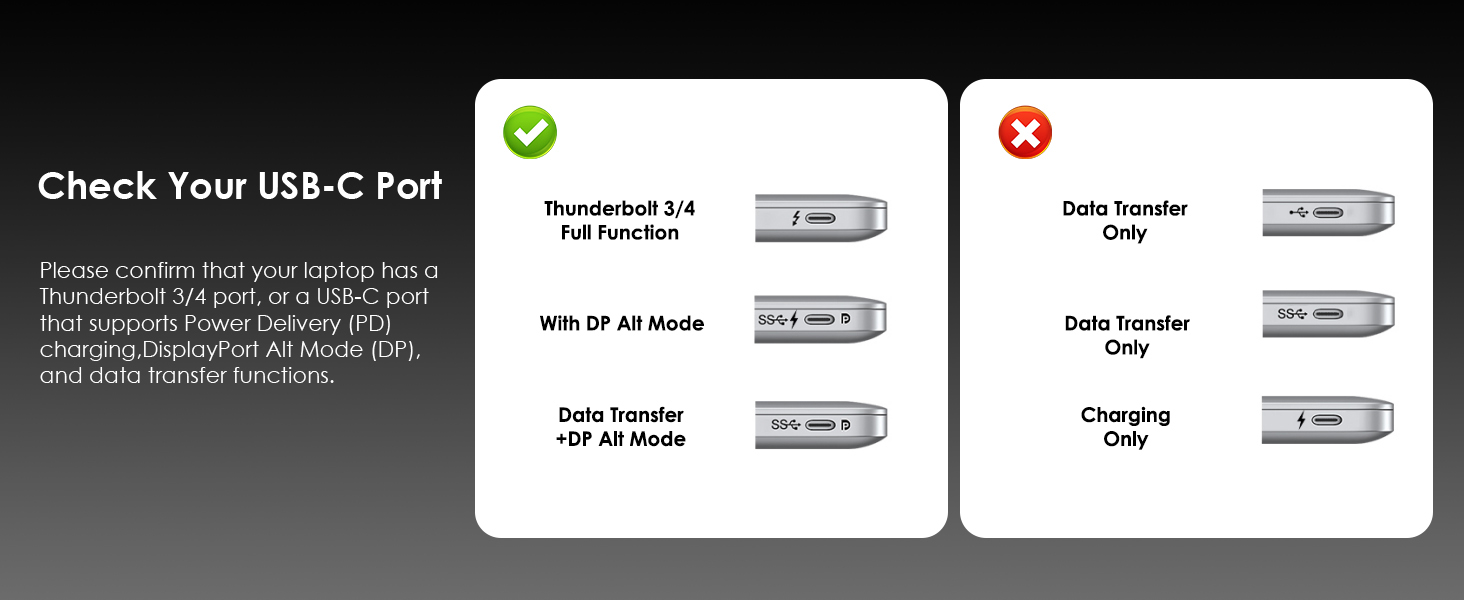

2.Ensure your laptop's USB-C port supports Power Delivery (PD) and DisplayPort Alt Mode. If the port is for data transfer only, video output and charging will not function.

3.4K@60Hz Requirements: To achieve dual 4K@60Hz, Windows hosts must support DP 1.4 with DSC. Mac hosts must support DP 1.4.

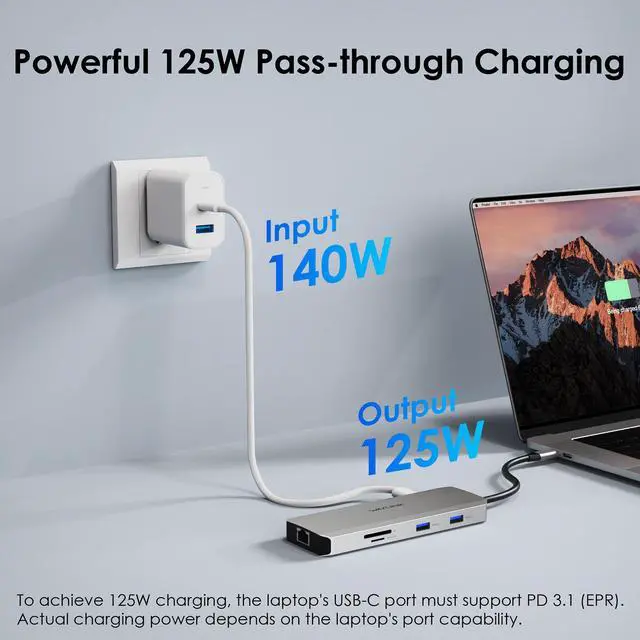

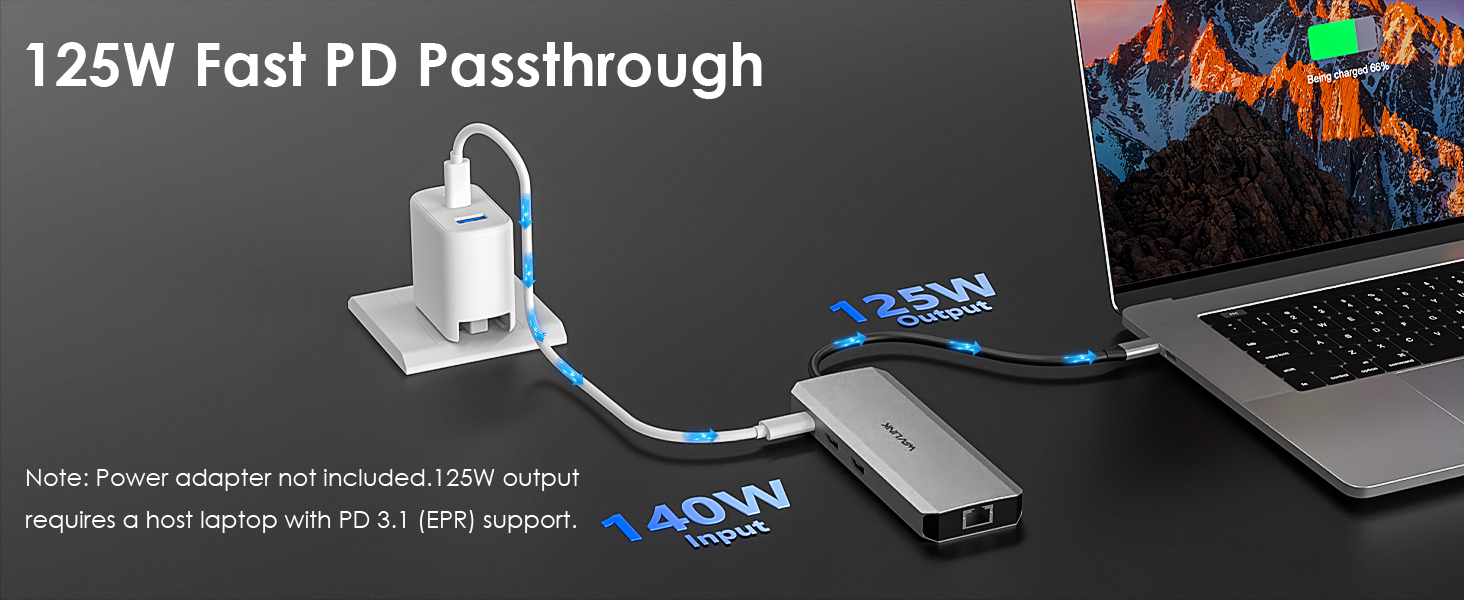

4.Power Information: Power adapter not included. Supports up to 140W PD Input and 125W Passthrough charging. To reach maximum charging speed, your laptop's USB-C port must support PD 3.1.
