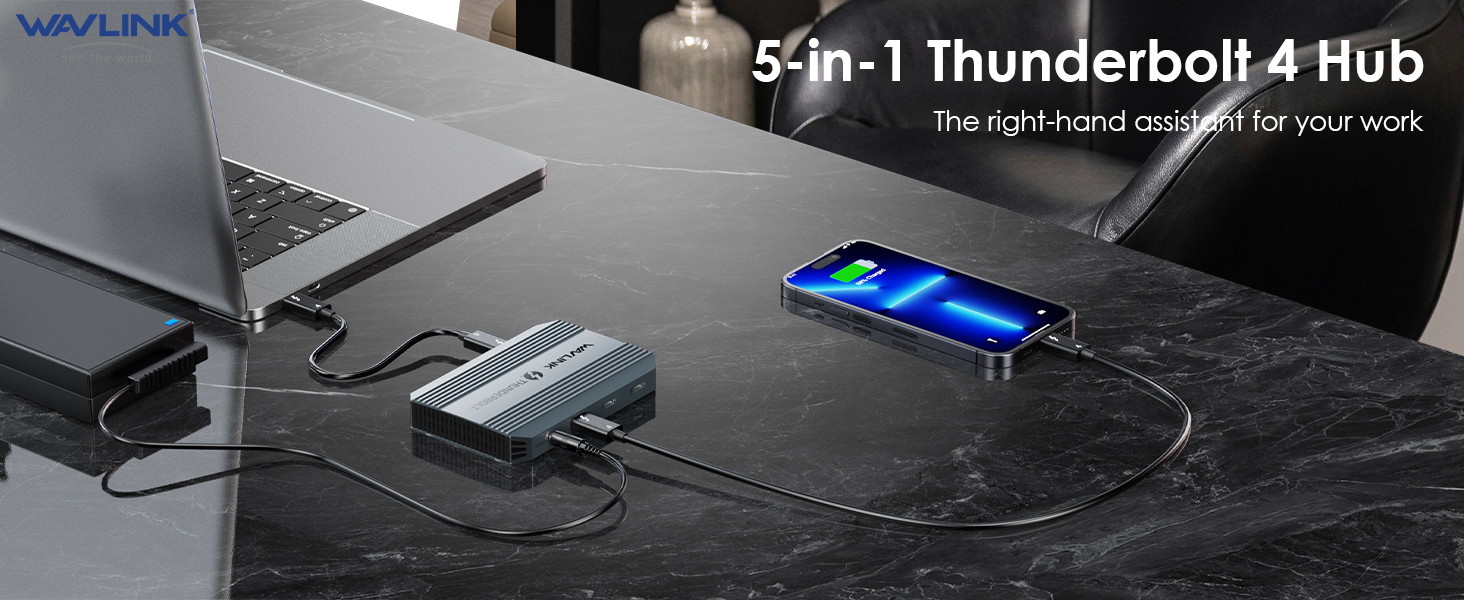

WAVLINK Future-Proof 5 in 1 Thunderbolt 4 Hub, Boost Your Work Efficiency!
Enhance your workspace effortlessly with the 5-in-1 Thunderbolt 4 hub, featuring four Thunderbolt 4 ports and a USB-A port in a sleek design tailored to complement your lifestyle. This versatile hub enables seamless connectivity for multiple devices, promoting productivity across various platforms. Benefit from swift and reliable data transfer speeds that are eight times faster than USB 3.0, sustaining prolonged productivity. With support for dual and single monitors and up to 90W max power delivery, you can multitask efficiently while keeping your devices fully charged.

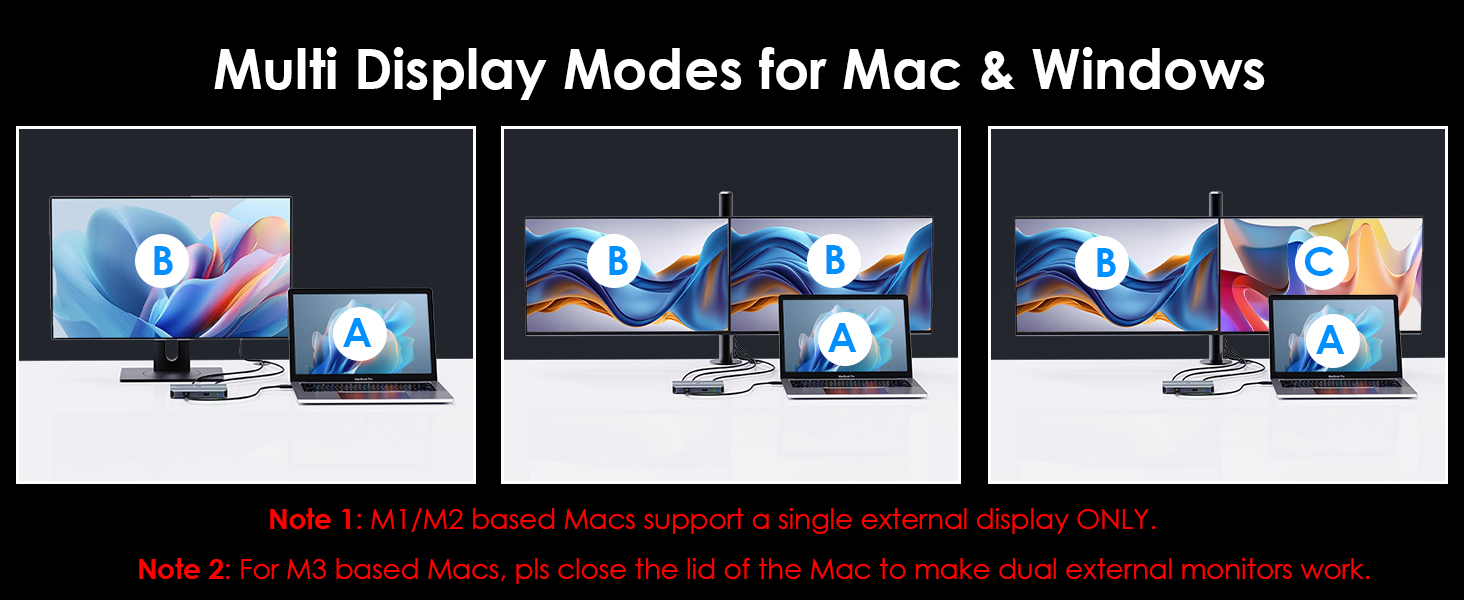

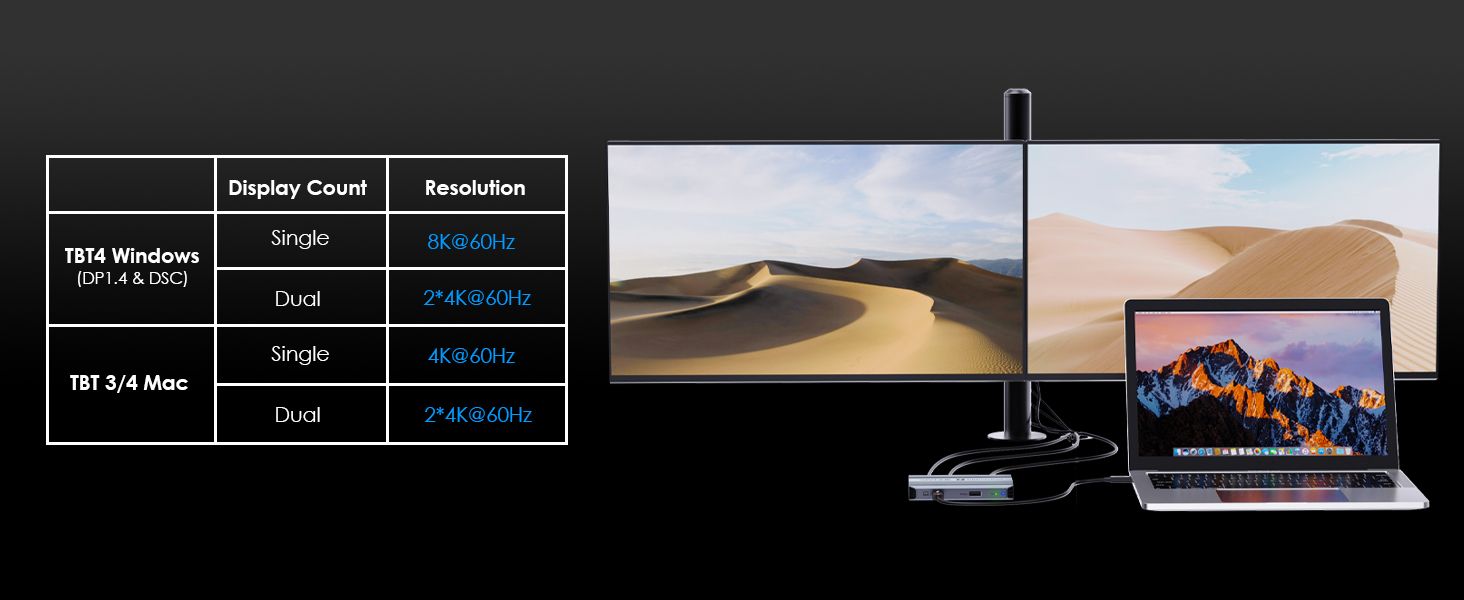

Dual Monitors
macOS users on M1 Pro, M1 Max, M1 Ultra, M2 Pro, M2 Max, M2 Ultra, M3 Pro, M3 Max or Intel based Macs can connect up to dual displays.
M1/M2 based Macs do not support dual monitors through their Thunderbolt ports due to their chip limitations.
For M3 based Mac, pls close the lid of the Mac to make dual external monitors work.

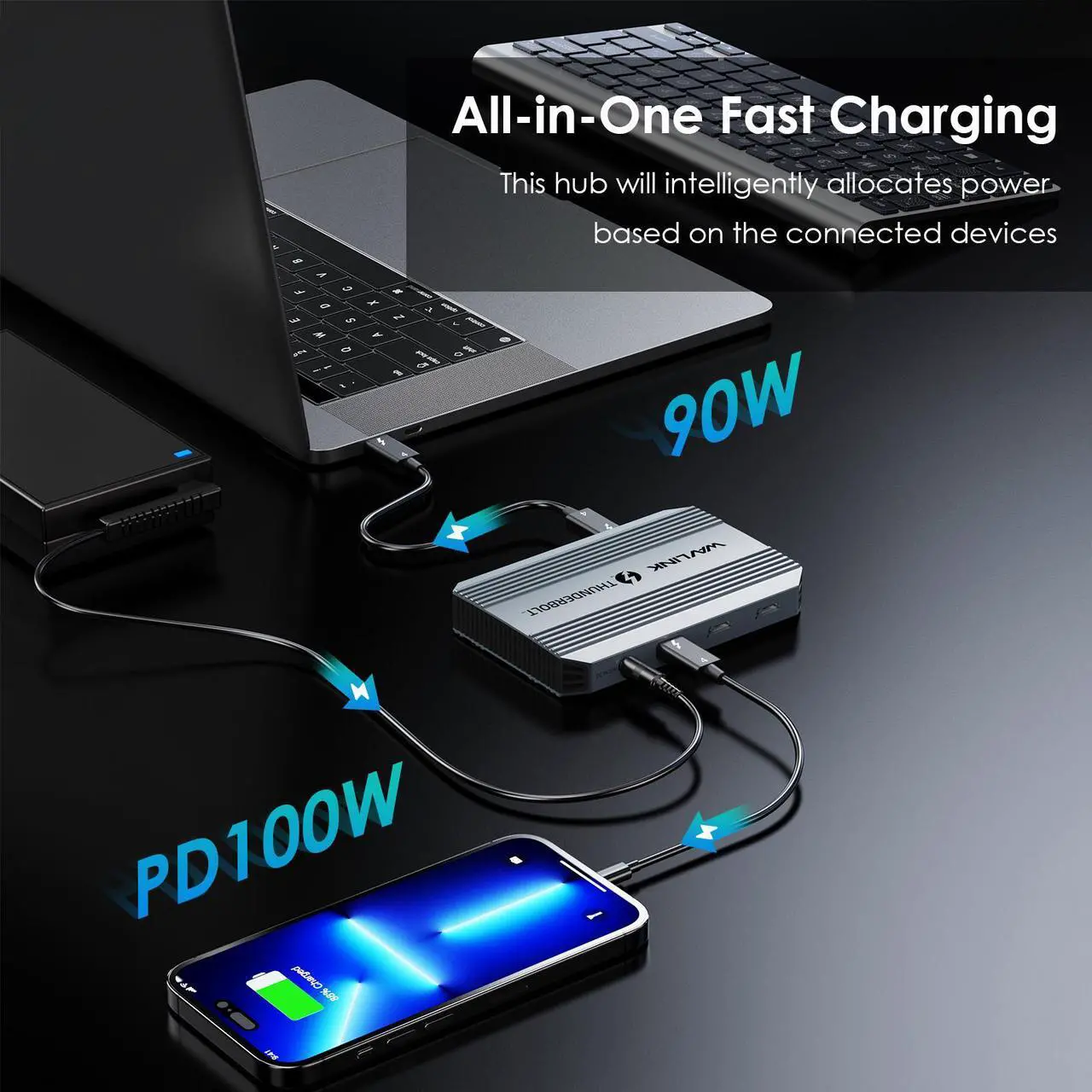

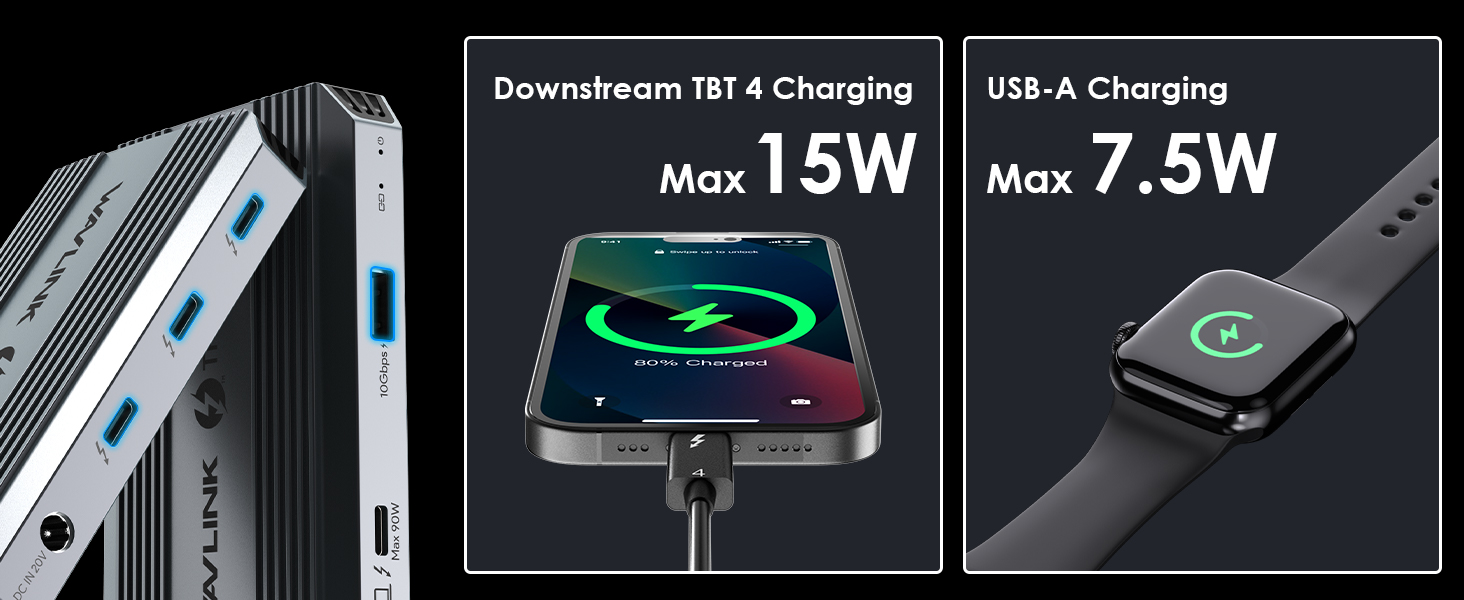

Power Supply
Thunderbolt 4 Host Port: Up to 90W
Each Downstream Thunderbolt 4 Port: 15W
Front USB-A Port: 7.5W
Considerate
Details

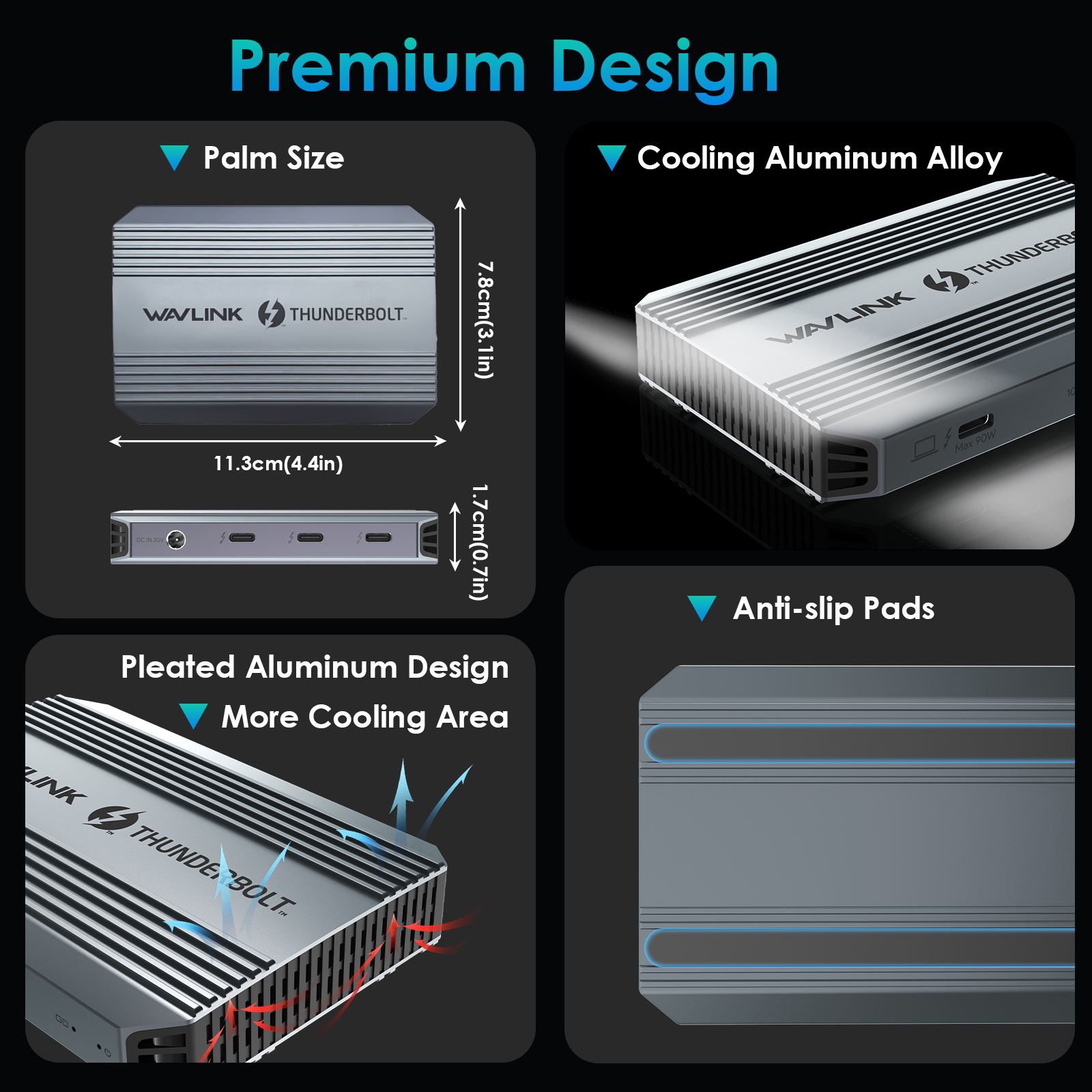

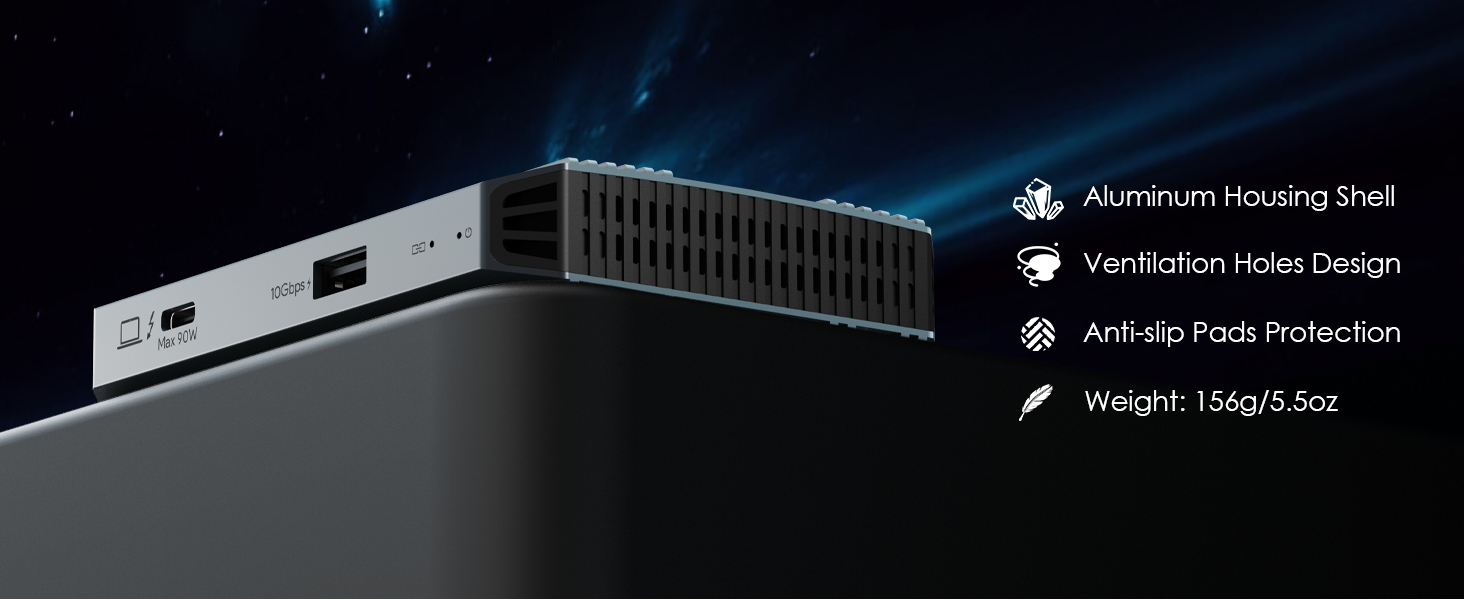

The specially processed aluminum alloy material looks neat and delicate, the heat conduction alloy helps to cool down your dock and prevent overheating.
This dock is specially designed with ventilation holes on both sides, which help maintain a cooler operating environment for optimal performance and a longer life span.
The silicone pads on the bottom of this dock provide maximum protection for your device from scratches and sliding.
This compact hub offers maximum portability, slipping easily into your laptop sleeve, bag or pocket.
Hot Tips
M1/M2 based Macs do not support dual monitors, you can only extend ONE monitor, the other monitor will not be displayed.
For M3 based Mac, pls close the lid of the Mac to make dual external monitors work.
You can extend/mirror dual monitors via two of the three downstream Thunderbolt 4 ports only, cannot reach 3 monitors.
Higher refresh rate support may vary due to operating system updates.
Not recommended for non-thunderbolt3/4 systems, performance will be limited.
Please make sure your device's USB-C port supports charging and video output.

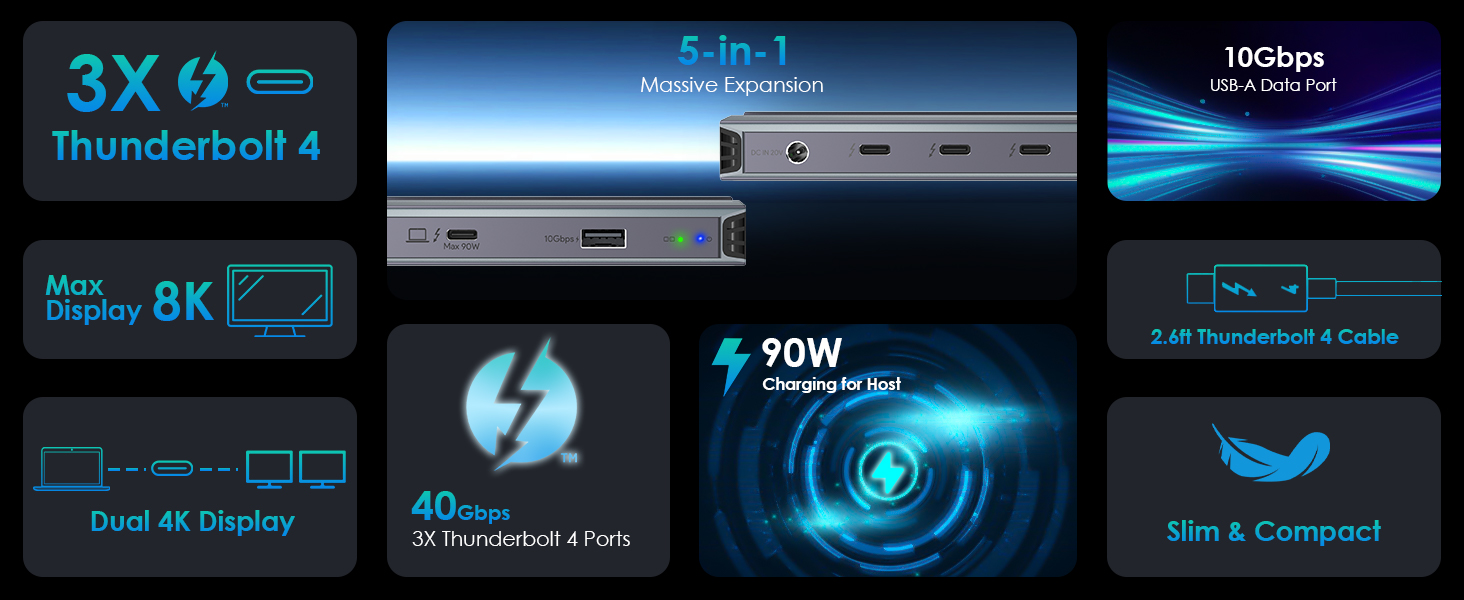

Features:

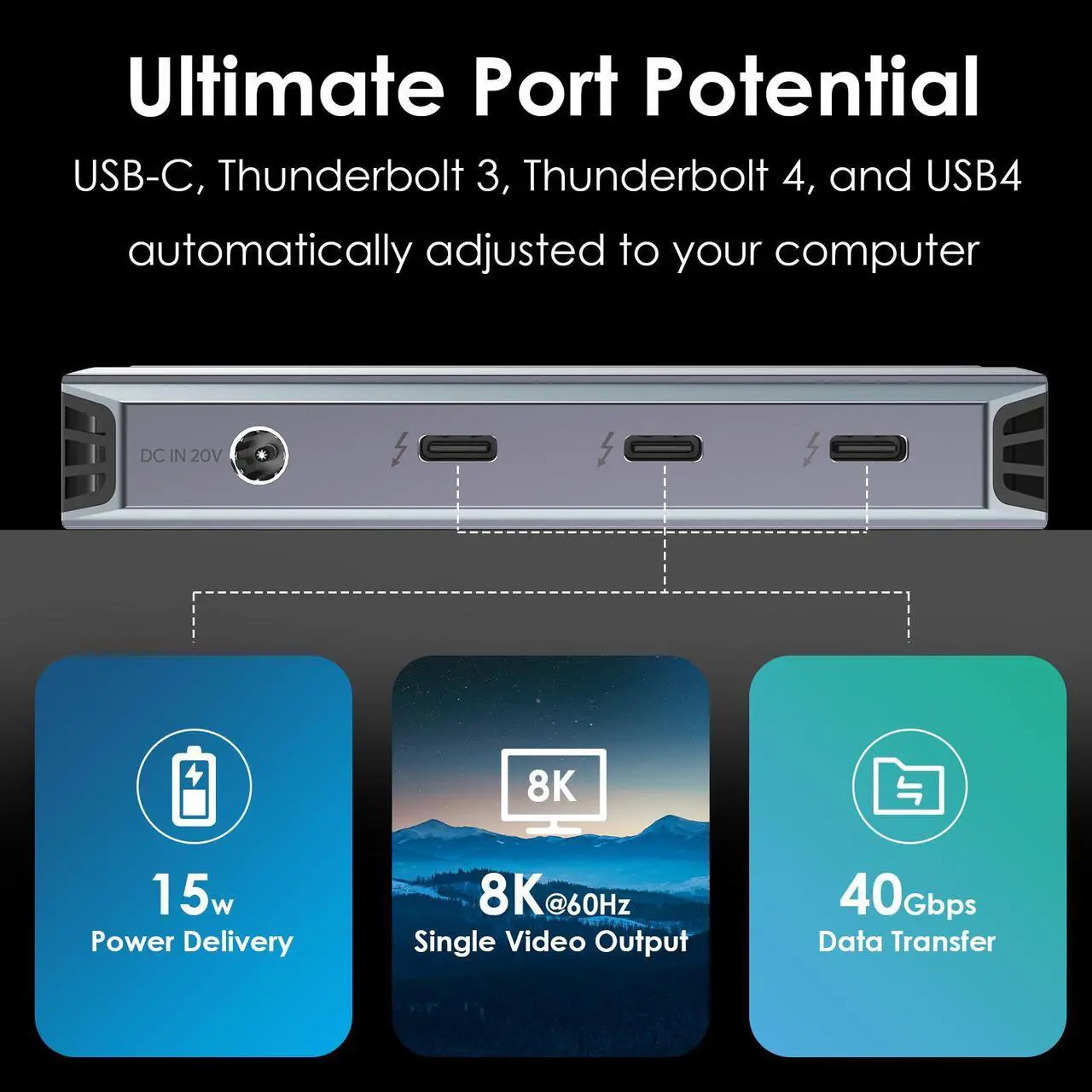

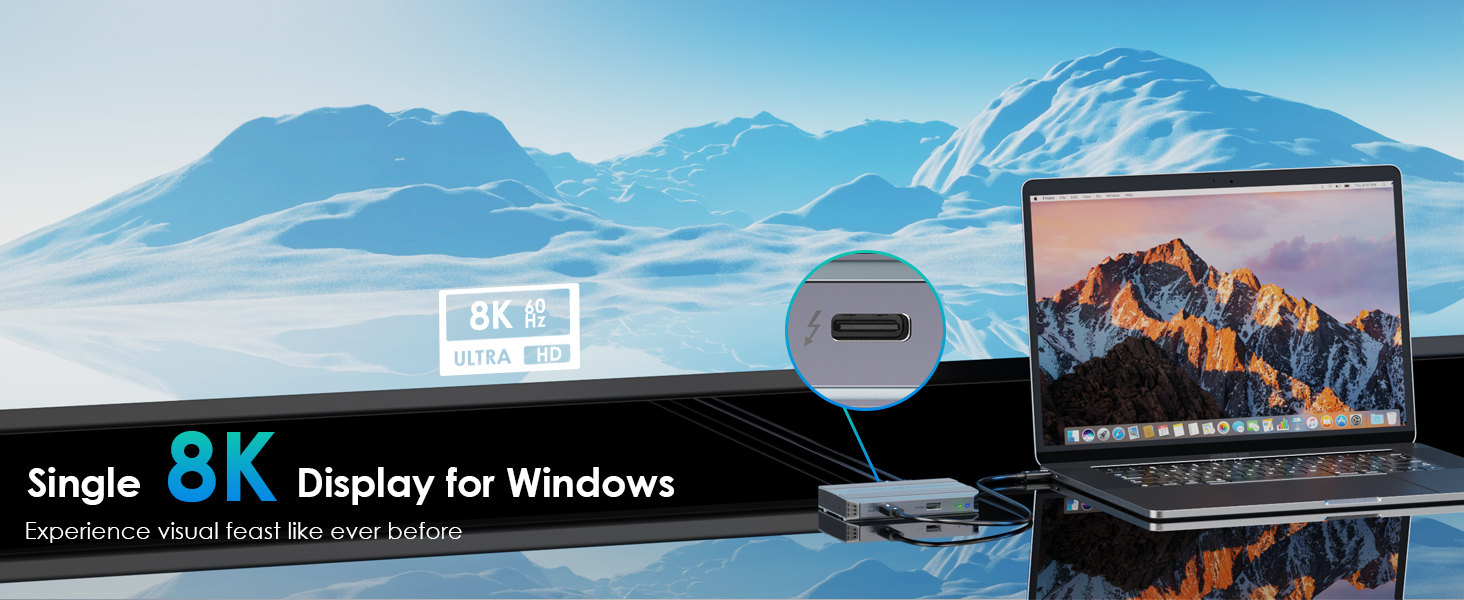

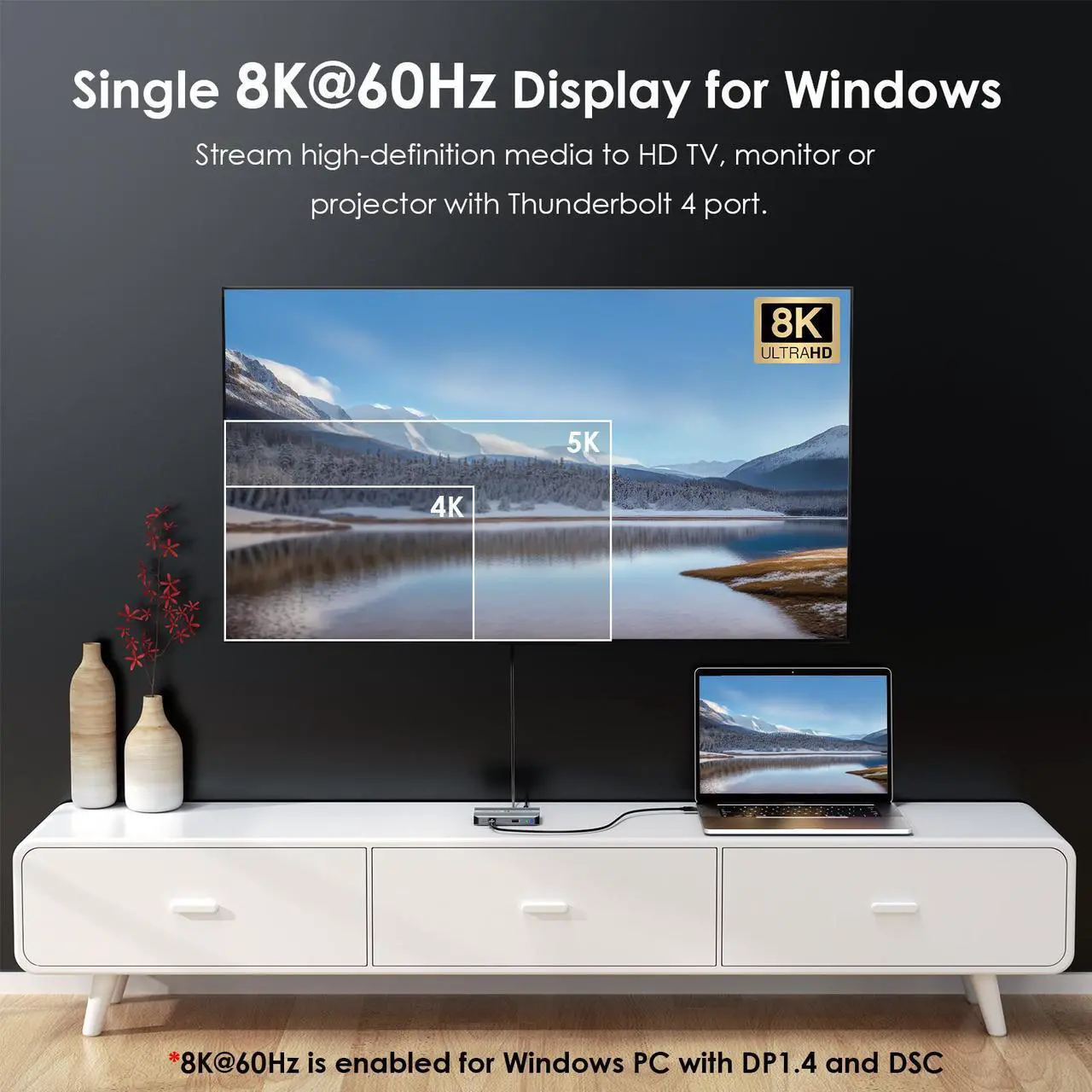

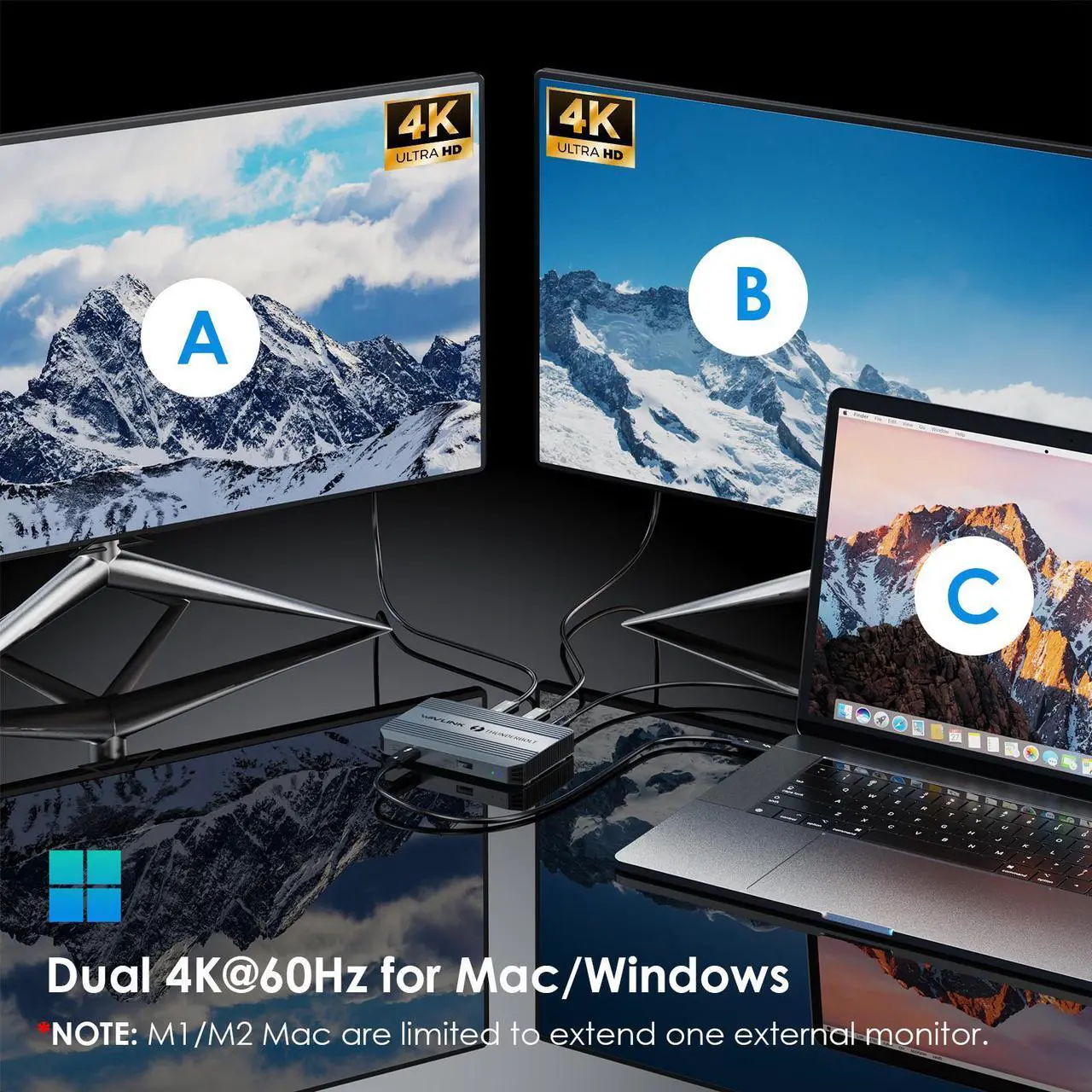

-Three TBT4 downstream ports support single 8K@60Hz and dual 4K@60Hz displays.
-Three TBT4 downstream ports transfer up to 40Gb/s, and provide 15W PD charging for the USB peripherals.

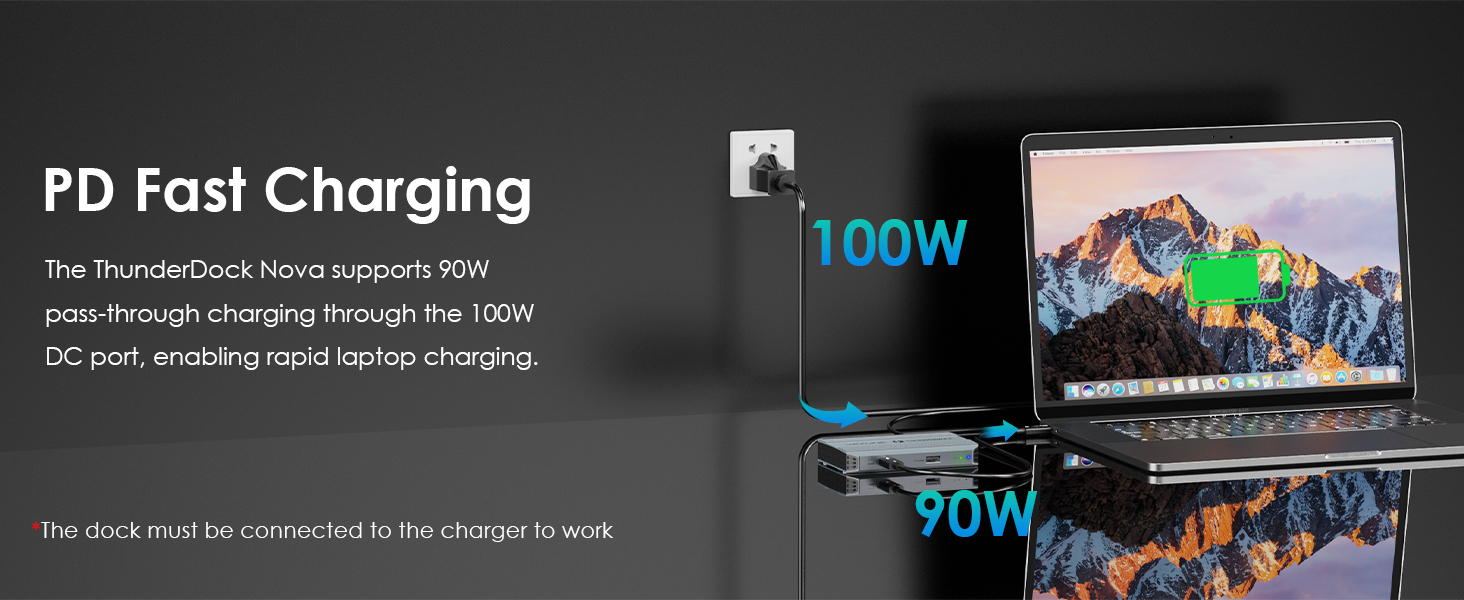

-One TBT4 upstream port transfers speed up to 40Gb/s, and provides 90W upstream PD charging for the laptop.
-One USB-A port transfers speed up to 10Gbps and supports BC 1.2 charging.
-Plug and play, no driver installation required.
-Compatible with the USB4 host.
Specification:
Model: WL-UTD49T
Color: Grey

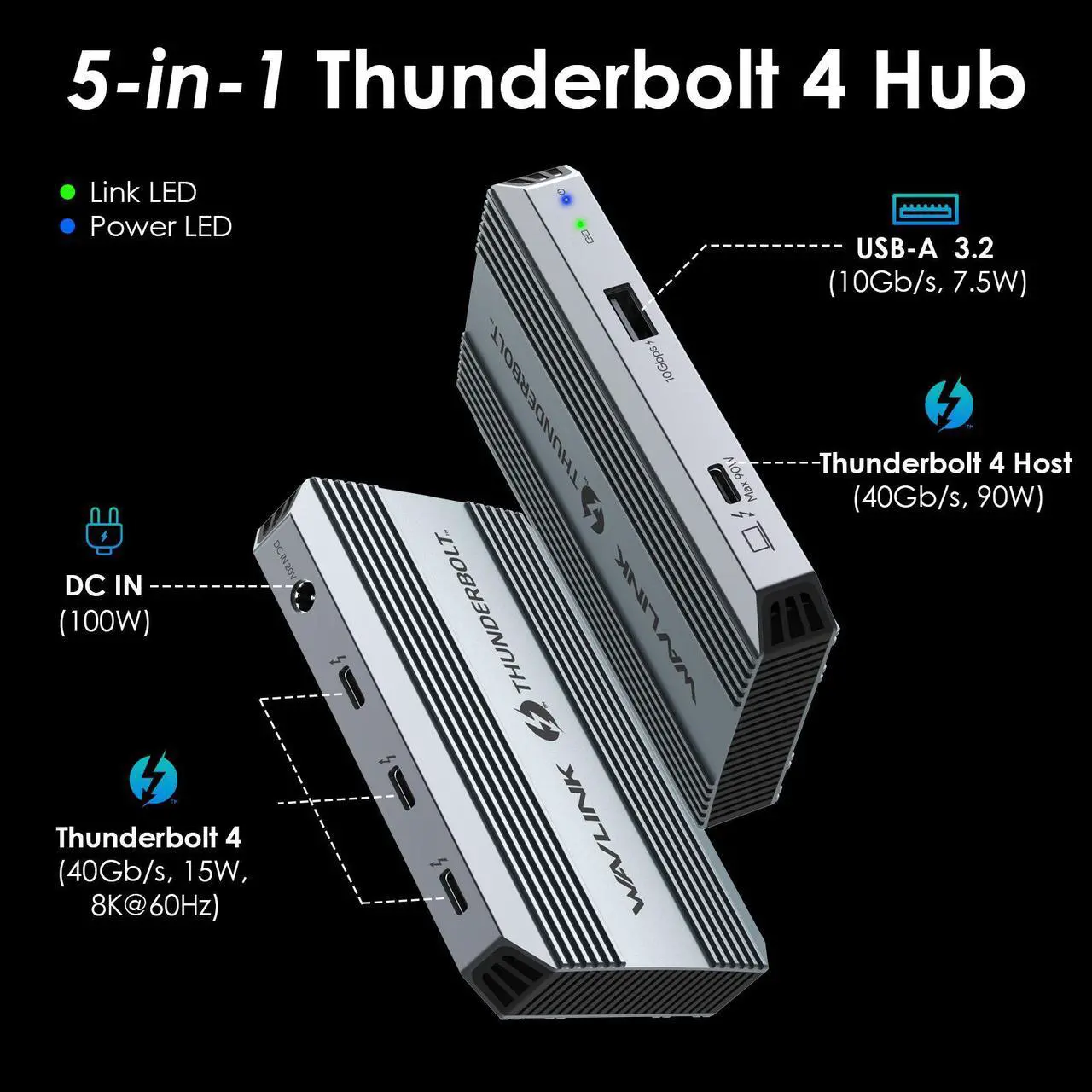

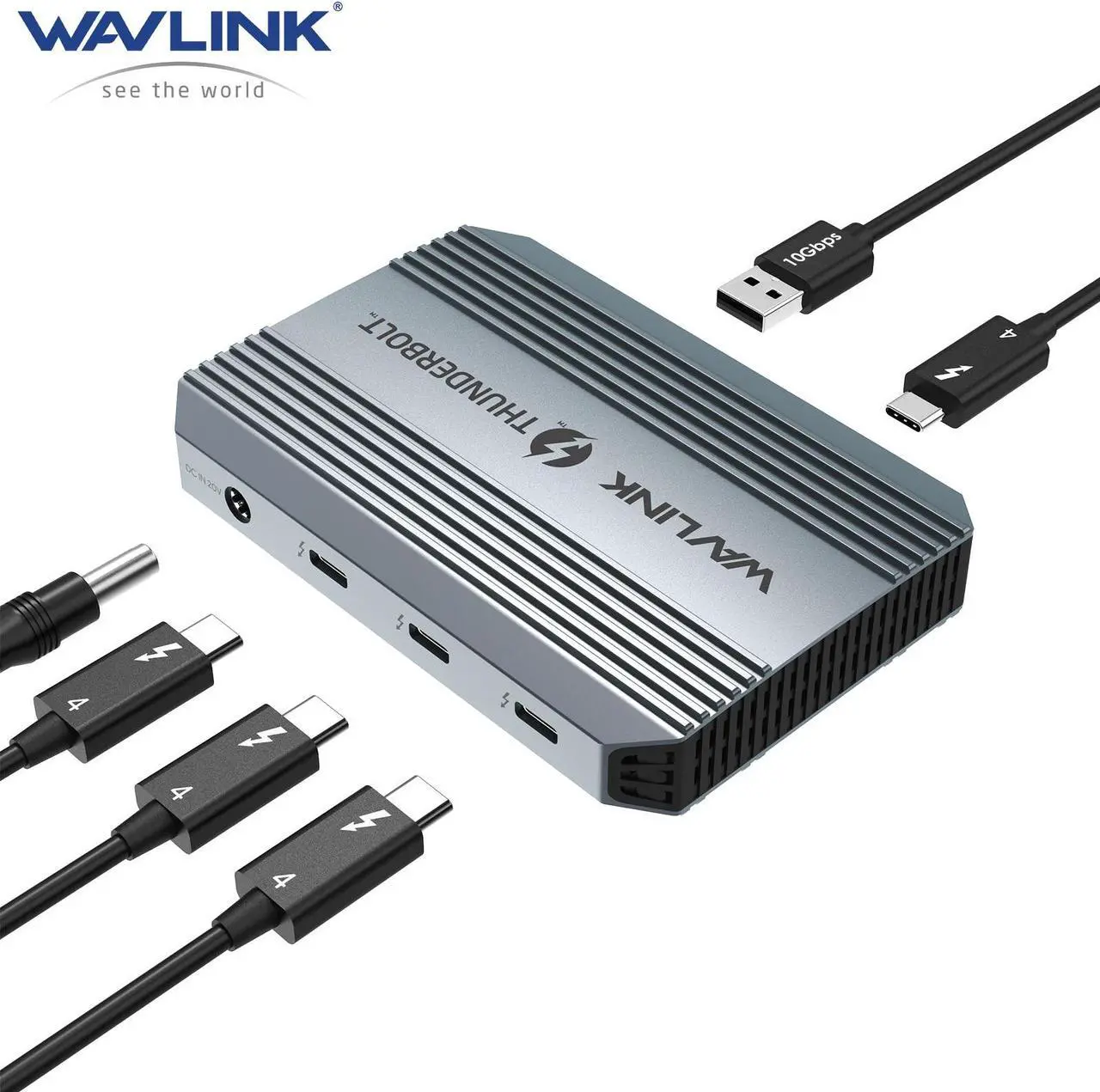

Ports: 1 x upstream Thunderbolt 4 (40Gb/s+PD90W), 3 x downstream Thunderbolt 4 (40Gb/s+PD15W+8K@60Hz), 1 x USB-A(10Gb/s+ 7.5W ), 1 x DC In (20V/5A)
Material: Aluminum Alloy
Power LED Indicator: Blue
Link LED Indicator: Green
Item Weight: 156g/ 5.5 oz/ 0.34 lbs
Thunderbolt 4 Cable Length: 80cm/ 31.5 in
Power Cable Length: 120cm/ 47.2 in(UK/EU), 150cm/59in(AU/JP/US)
Power Adapter Cable Length: 110cm/43in
Product Dimensions: 11.3 x 7.8 x 1.7 cm/ 4.4 x 3.1 x 0.7 in
System Requirement: Windows 10/11 (with TBT4 port) and Mac 11 or later(with TBT3/4 port)

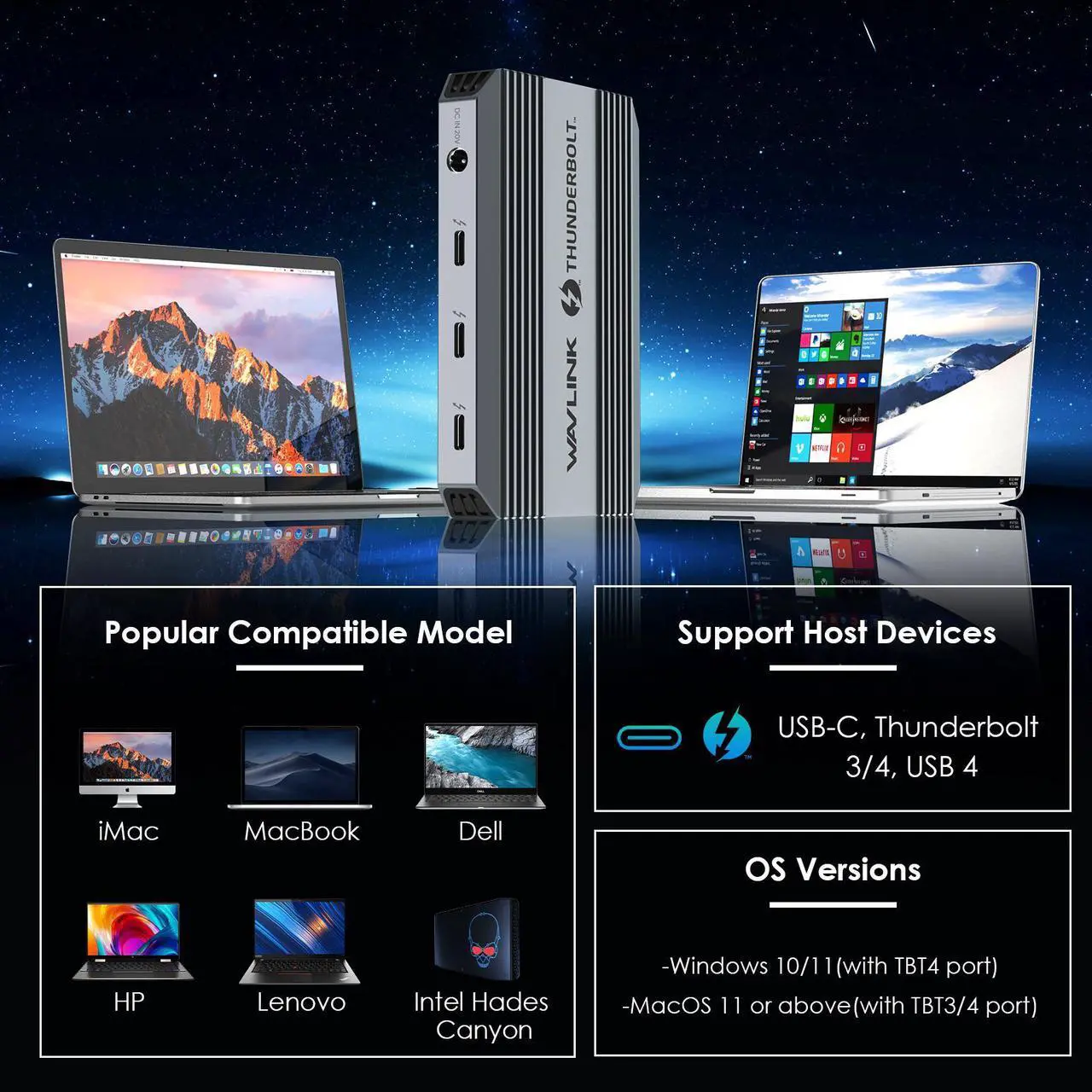

Compatible Devices (PARTIAL LIST):
Note: Please check the compatibility list below before purchasing. If your device is not on the list, please let us know and we will be glad to help you check.
Apple iMac (Early 2017), Apple MacBook Pro (Late 2016), Apple MacBook Pro (Mid 2017), Apple MacBook Pro (Mid 2018), Apple MacBook Pro (2019), Apple MacBook Pro 16-inch 2019, Apple MacBook Air (Retina, 13-inch, 2018), Apple MacBook Air (Retina, 13-inch, 2019), MacBook Pro (14-inch, 2023), MacBook Pro (16-inch, 2023), MacBook Pro (14-inch, 2021), MacBook Pro (16-inch, 2021), Mac mini with M2 Pro 2023, Mac Studio (M2 Max or M2 Ultra, 2023), Mac Studio (M1 Max or M1 Ultra, 2022), Mac Pro (M2 Ultra, 2023)
Dell XPS 13 7390 2-in-1 (Ice Lake), Dell XPS 12 9250, Dell XPS 13 9350, Dell XPS 13 9360, Dell XPS 13 9370, Dell XPS 13 9380, Dell XPS 15 9550 (Intel + Nvidia GPU), Dell XPS 15 9550 (Intel GPU), Dell XPS 15 9560 (Intel + Nvidia GPU), Dell XPS 15 9570, Dell XPS 17 9700, Dell XPS 17 (2023)
HP EliteBook Folio G1 (Model V1C43EA), HP Spectre x360 Convertible 13-w000 (SKU W9A95AV), HP Spectre x360 - 13-ac003la, HP Spectre x360 13.5 (2023), HP Spectre x360 - 15-ch000, HP Elite X2 1012 G1
Intel NUC8i7HVK (Hades Canyon), Intel NUC8i7HNK (Hades Canyon), Intel NUC9VXQNX (Ghost Canyon), Intel NUC9V7QNX (Ghost Canyon), Intel NUC9i9QNX (Ghost Canyon), Intel NUC9i7QNX (Ghost Canyon), Intel NUC9i5QNX (Ghost Canyon)
Lenovo Thinkpad P50, Lenovo Thinkpad P51, Lenovo Thinkpad P70, Lenovo Yoga C930, Lenovo X1 Carbon 7th Gen
Samsung Galaxy Book 3 Pro
Razer Blade 16 (2023)
surface Pro 9 (Wi-Fi)
acer aspire 5 2023
ASUS ProArt Studiobook Pro 16 OLED (W7604), ProArt Studiobook 16 3D OLED (H7604), ProArt Studiobook 16 OLED (H7604), Zenbook Pro 16X OLED (UX7602ZM, UX7602BZ, UX7602VI), Zenbook Pro 14 Duo OLED (UX8402ZA, UX8402ZE, UX8402VV, UX8402VU), Zenbook Pro 14 OLED(UX6404VI, UX6404VV), Zenbook S 13 OLED (UX5304VA), Zenbook 14X OLED (UX3404VC, UX3404VA), Zenbook 14 OLED (UX3402, UX3402VA), Zenbook 14 (UX3402, UX3402VA), Zenbook 14 Flip OLED (UP3404VA), Vivobook Pro 16X 3D OLED (K6604JI), Vivobook Pro 16X OLED (K6604JI, K6604JV), Vivobook Pro 15 OLED (K6502, K6502ZE, K6502ZC, K6502HE), Vivobook Pro 16 OLED (K6602ZC, K6602ZE, K6602HC, K6602VV), Vivobook S 14 OLED (K54O4VA), Vivobook S 15 OLED BAPE Edition (K5504), Vivobook S 15 OLED (K5504VA, K5504VN), Vivobook S 14 Flip OLED (TP3402ZA), Vivobook S 14 Flip (TP3402ZA), Vivobook 16X OLED (K3605VV, K3605VU), ProArt Studiobook Pro16 OLED (W7600Z3A, 12th Gen Intel), ProArt Studiobook Pro16(W7600Z3A, 12th Gen Intel), ProArt Studiobook 16 OLED (H7600ZM, H7600ZX, H7600ZW OLED, 12th Gen Intel)

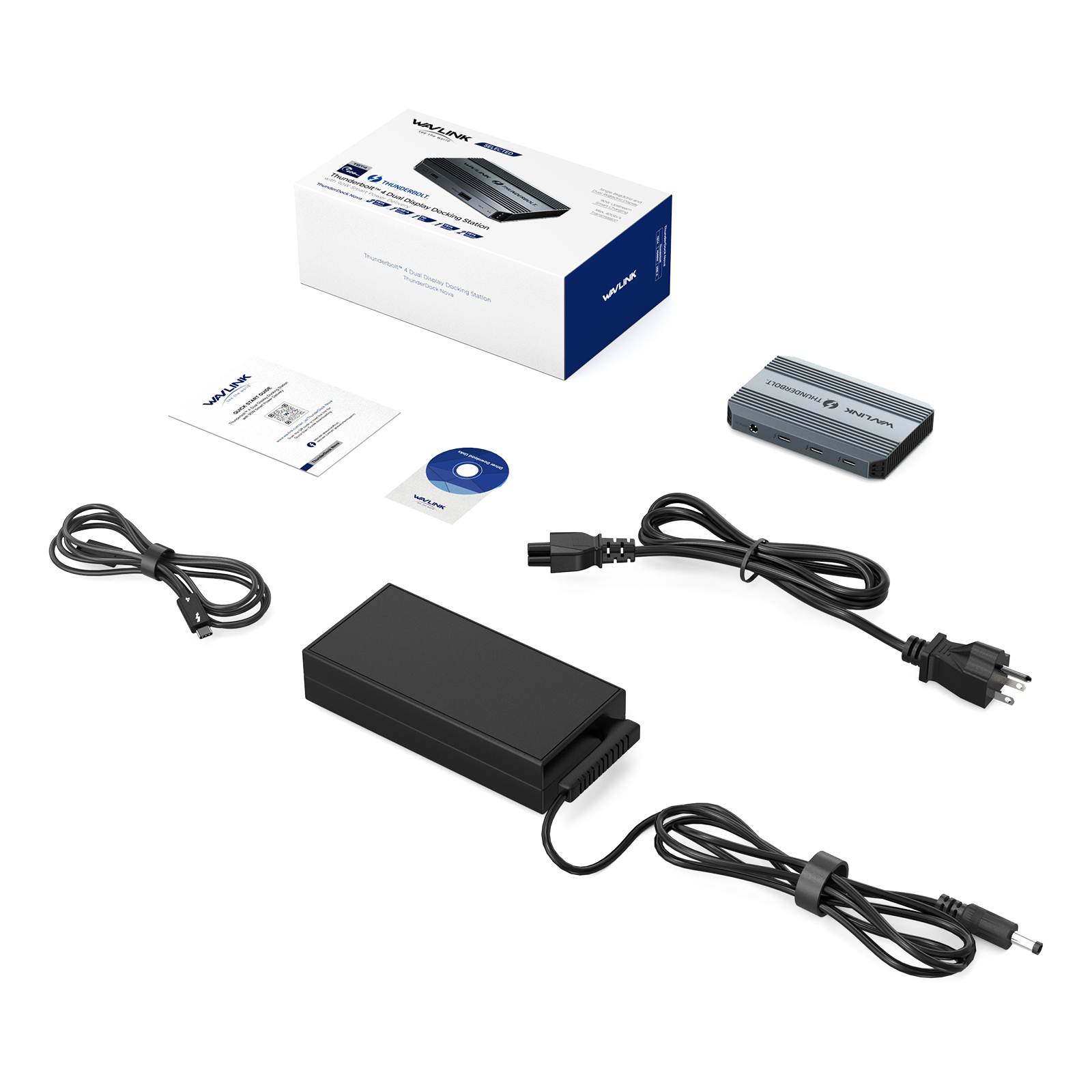

Package List:

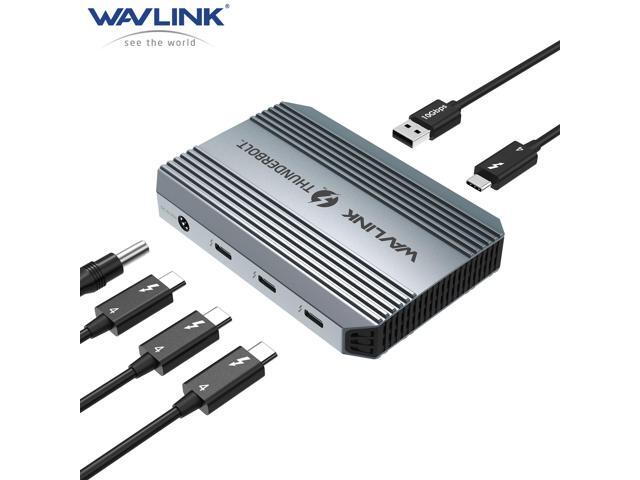

1x Thunderbolt 4 Hub
1x 0.8 m Thunderbolt 4 Cable
1x 100W Power Adapter
1x Power Cable
1x Instruction Manual
