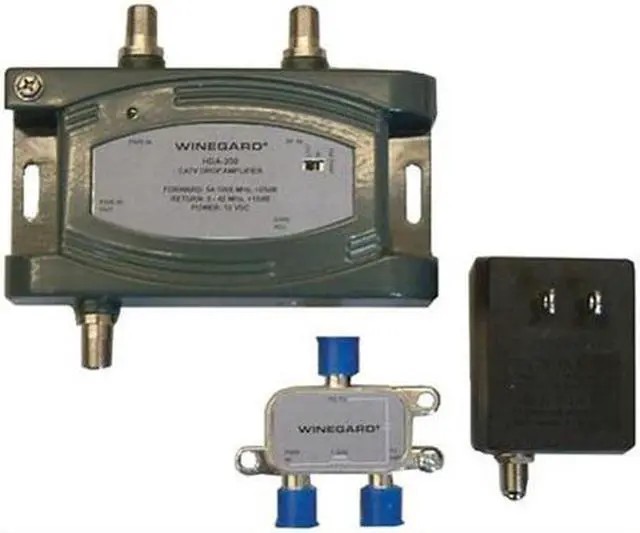

Winegard HDA-200 24dB Distribution Amplifier

Name: Winegard HDA-200 24dB Distribution Amplifier
Brand: Winegard
SKU: N82E16882557021
Rating: 2 (3 reviews)

Specs

Reviews (3)

Learn more about the Winegard HDA-200

Model
Brand	Winegard
Model	HDA-200

Details
Specifications	Bandpass Forward: 54-1000 MHz Bandpass Reverse: 5-42 MHz Max Output per Channel (80 ch CATV): +25 dBmV (Note 1) Max Output per Channel (16 ch off-air): +40 dBmV (Note 2) Max Input per Channel (80 ch CATV): +8 dBmV (Note 1) Max Input per Channel (16 ch off-air): +23 dBmV (Note 2) Max Input Reverse Amp: +23 dBmV (at 1dB comp) Gain: 24 dB Gain Control: 0-18 dB Reverse Gain: +12 dB Noise Figure: 4.5 dB (at max gain) FM Trap: -20 dB (95-108 MHz) Operating Temp: -30 degree to 140 degree F Power Supply Voltage: 12VDC - 200 mA Housing Dimensions: 4.90" x 3.92" x 1.5"

Features
Features	Weather resistant enclosure Amp works best when located as close to the source (Antenna, or Cable TV Drop). If using an indoor antenna, dont expect a big boost in signal unless your cable lengths is over 20 ft and/or you are splitting the signal FM trap Adjustable Gain Power Supply and Inserter Included Can be located anywhere in the system its convenient

Manufacturer Warranty
Parts	1 year limited
Labor	1 year limited

Additional Information
First Listed on Newegg	October 14, 2010
