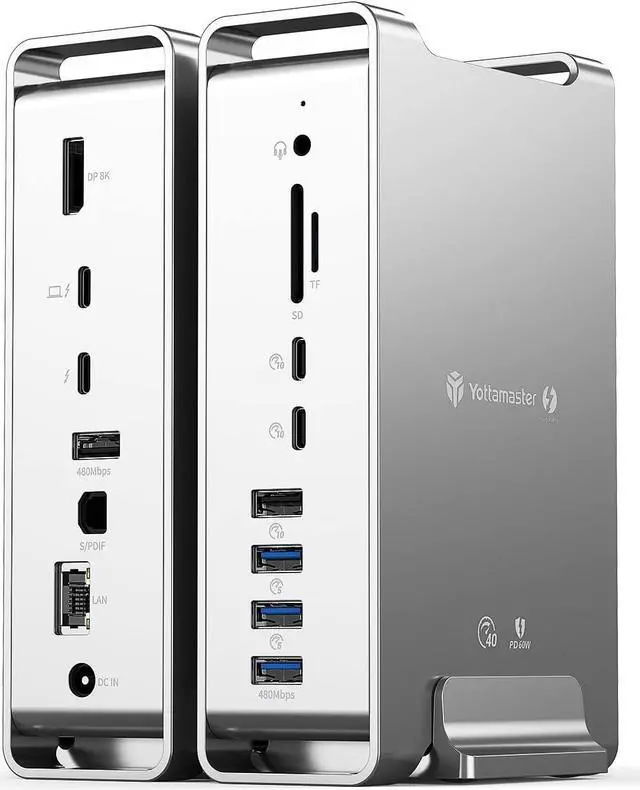

Yottamaster Mac Style 15-in-1 Thunderbolt 3 Dock Dual Monitor
Thunderbolt 3 dock Dual Monitor

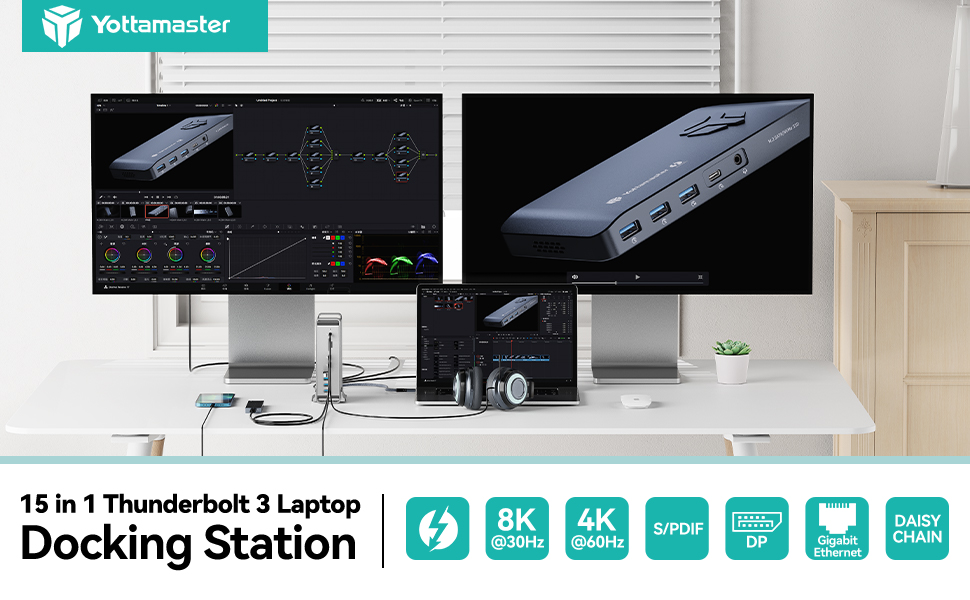

- Can extend dual 4k@60Hz displays via the Thunderbolt 3 port (OUT) and DisplayPort.
- Can extend single display[8K@30Hz (7680x4320) / 5K@60Hz (5120x2880) UHD] via the Thunderbolt 3 port (OUT) or DisplayPort.

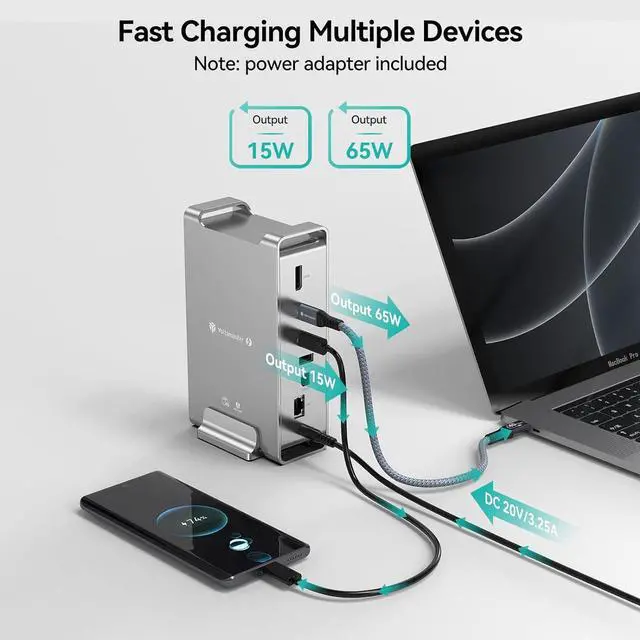

Fast Charging Multi Devices
- The Thunderbolt 3 port (IN) can charge a Tablet or Ultrabook at up to 65W.
- The Thunderbolt 3 port (OUT) supports 15W charging, so you can charge your other devices such as your smartphone or tablet.

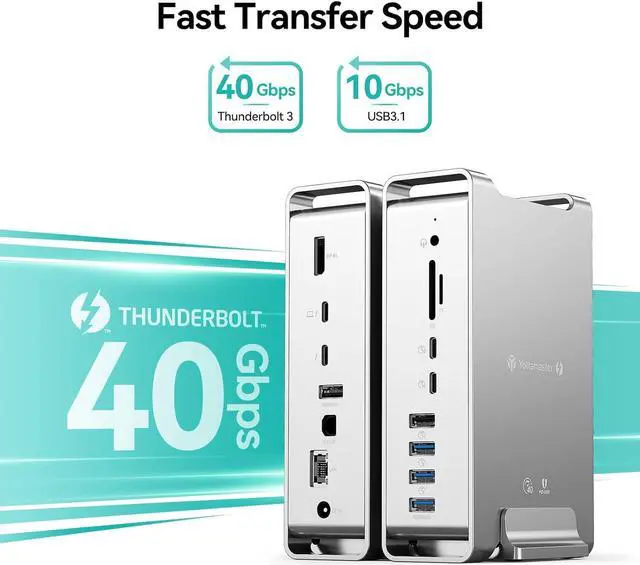

Thunderbolt 3 & USB 3.2 GEN2 - Ultra Fast
- The Thunderbolt 3 dock dual monitor supports 40Gbps data transfer.
- It also equipped with USB 3.1 Gen2 Type-C x 2. USB 3.1 Gen2 Type-A x 1, USB 3.1 Gen1 Type-A x 2, to easily connect high-performance USB-A/USB-C devices such as ultra-fast NVMe SSDs.
- 2 USB2.0 Type-A port to connect your legacy peripherals.

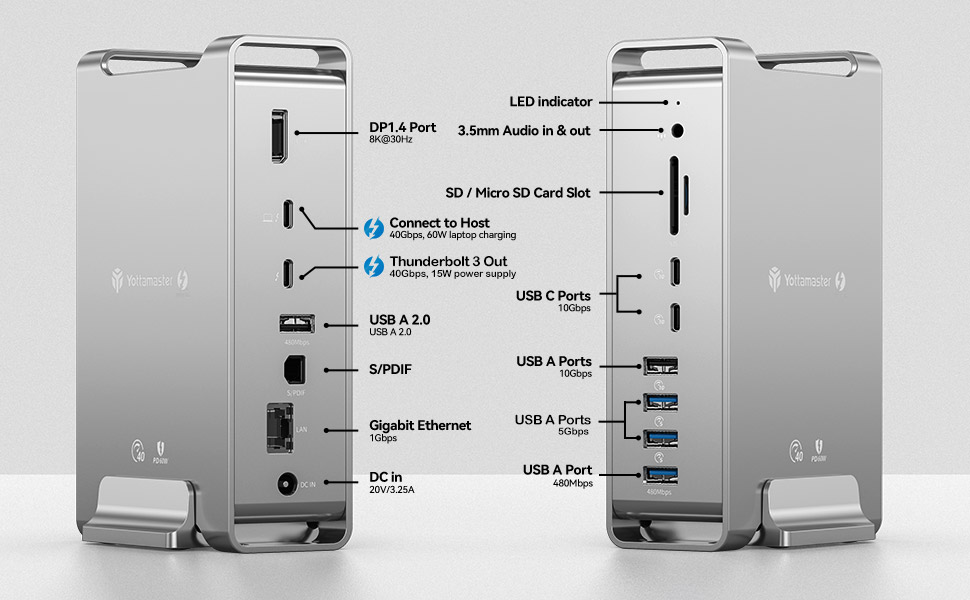

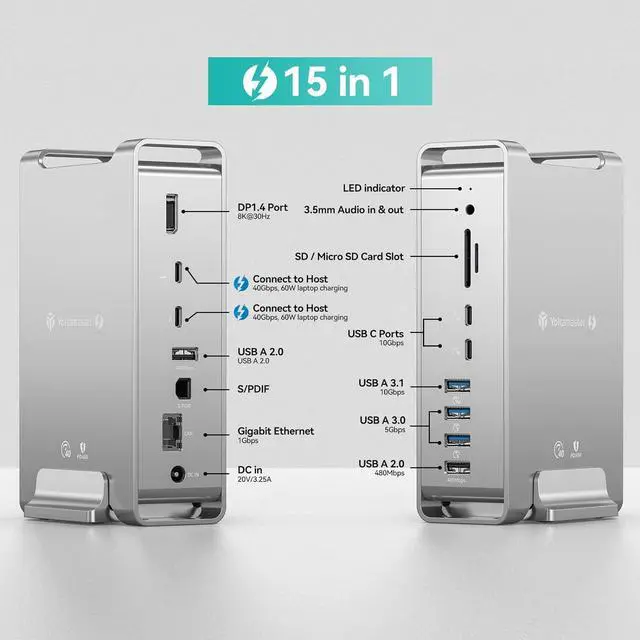

Tech Information of Multi-ports
- 1 X DP port DP1.4 - 4K @ 60Hz
- 1 X Thunderbolt 3 port (IN) - 40Gbps, PD60W charging(For connecting to the host)
- 1 X Thunderbolt 3 port (OUT) - 40Gbps, PD15W charging
- 1 X S/PDIF - Experience amazing sound which do not receive any RFI or EMI signal disturbances.
- 2 X USB-A - USB2.0 480Mbps
- 2 X USB-C - USB3.2 10Gbps
- 1 X Gigabit Ethernet - 10/100/1000 BASE-TX Auto MDI / MDI-X, 1000Mbps
- 1 X DC IN - 20V 3.25A power input
- SD & TF slot - SD2.0
- 1 X USB-A - USB3.1 Gen1 5Gbps
- 1 X USB-A - USB3.1 Gen1 10Gbps
- 1 X Audio in & out - 3.5mm stereo audio output & MIC input
Important NOTE:
- When DP to HDMI cable/adapter is used for DP port, the DP to HDMI cable/adapter must support 4K@60Hz. If the DP to HDMI cable/adapter only supports 4K@30Hz, the external display will be black.
- Please remember to connect the power adapter to power the docking station first, and then connect other devices and monitors to the thunderbolt 3 dock.

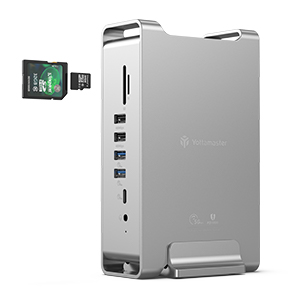

SD & TF slot
The SD & TF slot is located at the top front of the usb c docking station, making it convenient to read and write the SD & TF card removed from the camera.
Note: SD and TF slots cannot be read and written at the same time.

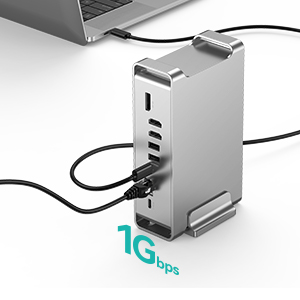

Wired LAN port
You can enjoy high-speed Internet even at hotels and accommodations that have only a wired LAN environment.

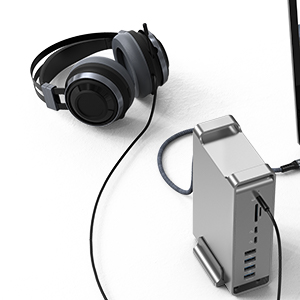

Audio In & out
The 3.5mm audio jack features both stereo and microphone functionality. Can connect earphones, headphone with microphone, speakers, etc.

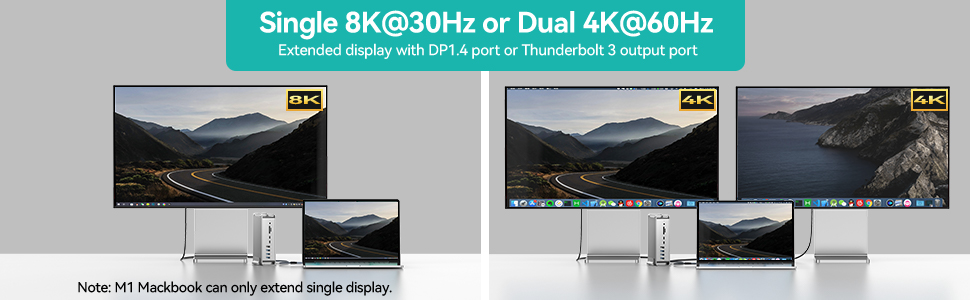

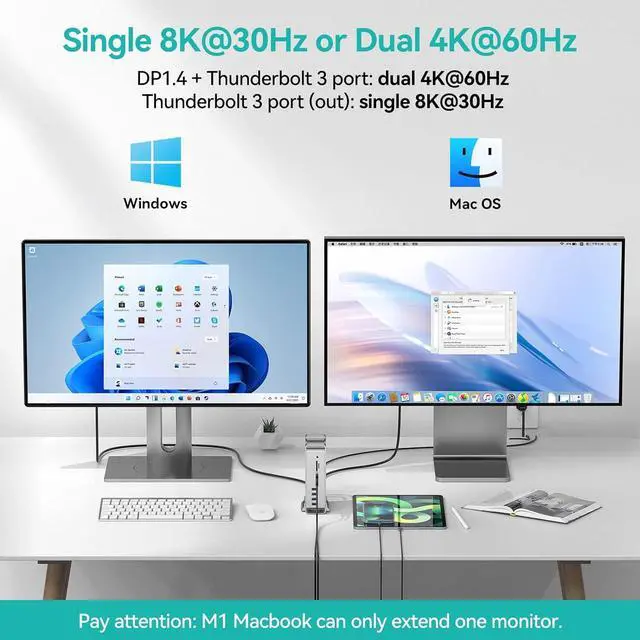

Media Display Information
- Can extend single display[8K@30Hz (7680x4320) / 5K@60Hz (5120x2880) UHD] via the Thunderbolt 3 port (OUT) or DisplayPort.
- Can extend dual 4k@60Hz displays via the Thunderbolt 3 port (OUT) and DisplayPort.

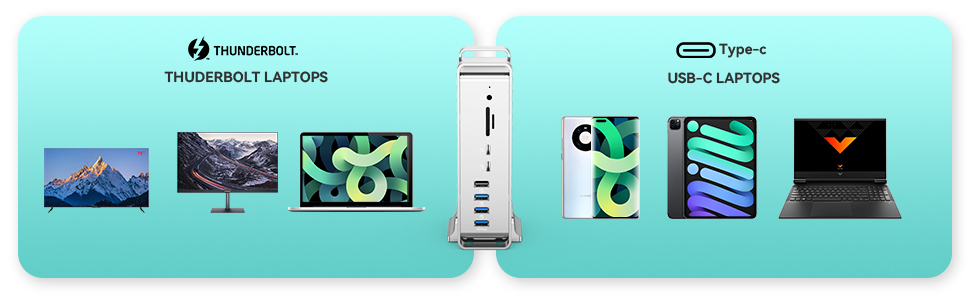

Host Requirements
- Make sure that your laptop supports DisplayPort 1.4.
- Make sure that the device you are using supports USB Power Delivery.
- This product does not support simultaneous connection to two monitors of Macbook Air / Pro 2020 equipped with M1 chip.
Supported Operating Systems
- Windows 10 and later
- Mac os
Product Information
- Size: 100 * 48 * 168mm, Weight: 800g, Color: Silver, Material: Aluminum alloy
