Product Description
Dimensions and Weight: L x W x H: 26.5 x 13.7 x 20 cm, 10.43 x 5.39 x 7.87 inch. Weight: 4.16kg / 146.74 oz / 9.17 lb.

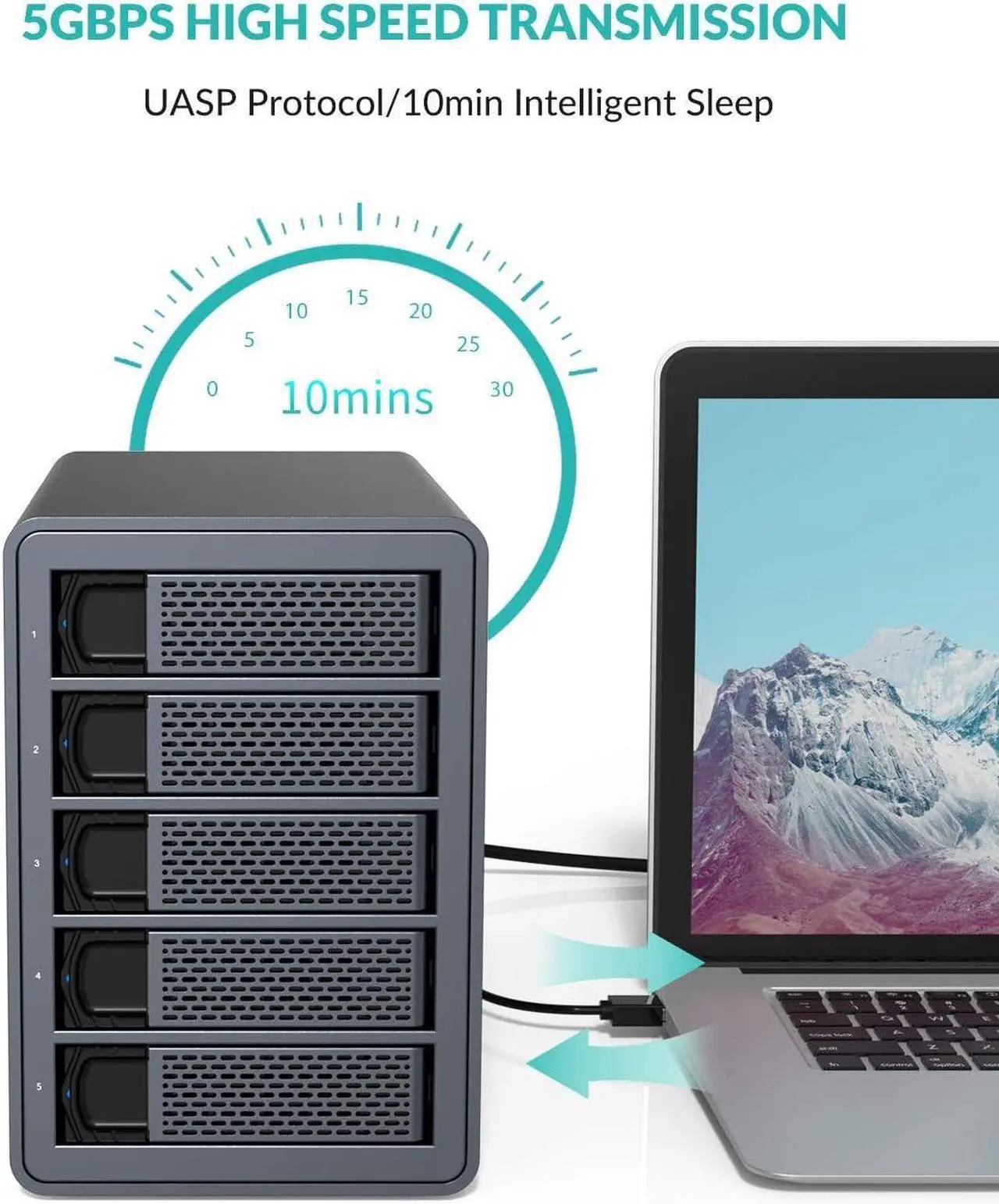

Interface and Data Cable: USB3.1 GEN1 Type-B 5Gbps. Type-A to Type-B (1m).
Fan and Voltage: 80mm Silent fan (12V, 2PIN). 150W Power Supply Inside.

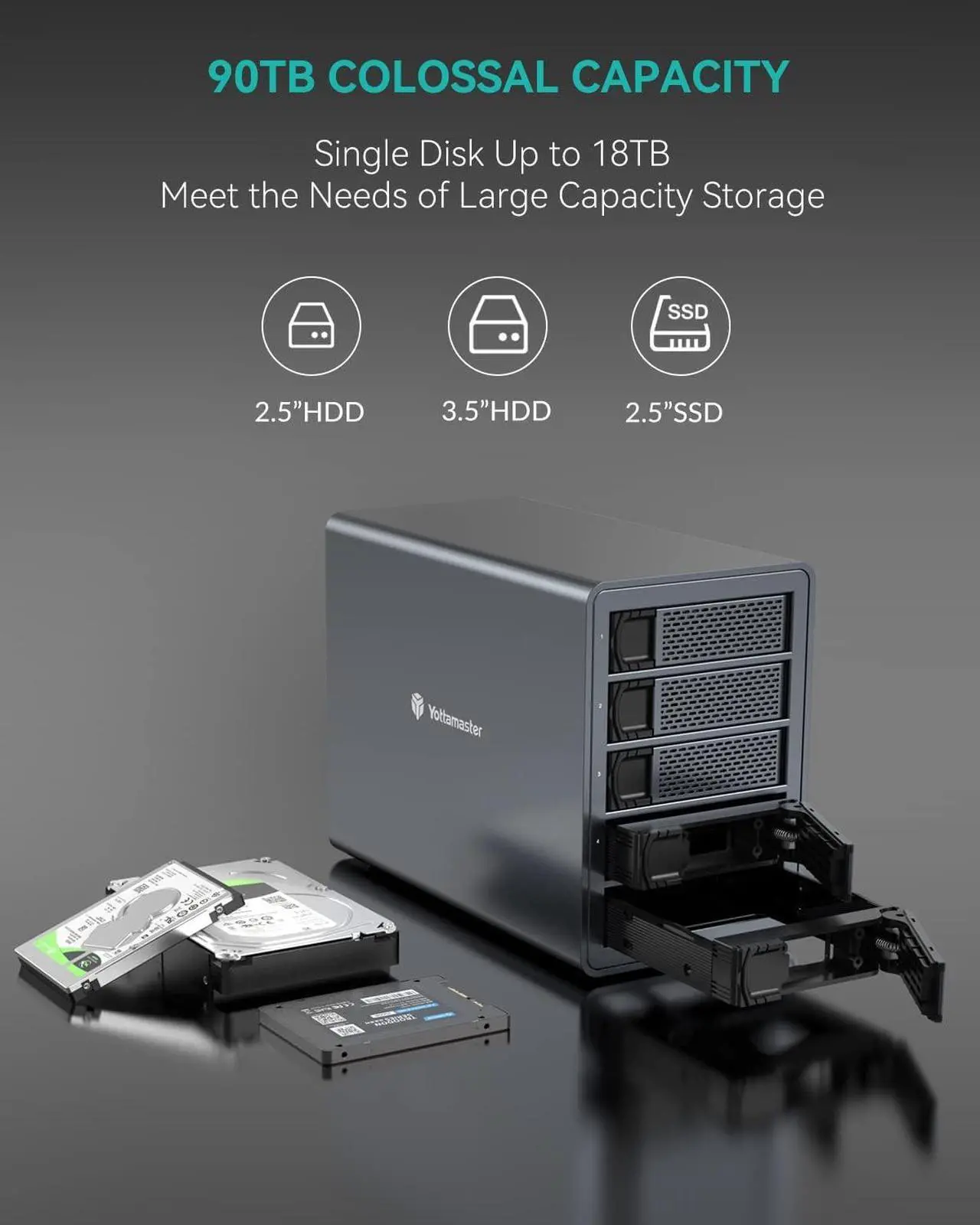

HDD/SSD Capacity: Support 2.5"/3.5" SATA HDD/SSD. Support up to 18TB, 90TB in total.
RAID Array: Support RAID 0/1/3/5/10, SPAN, Normal. (Setting two RAID modes at the same time is not supported.)
Sleep mode cancel: Download our firmware or use the third-party software, like KeepAliveHD/Prevent Disk Sleep.

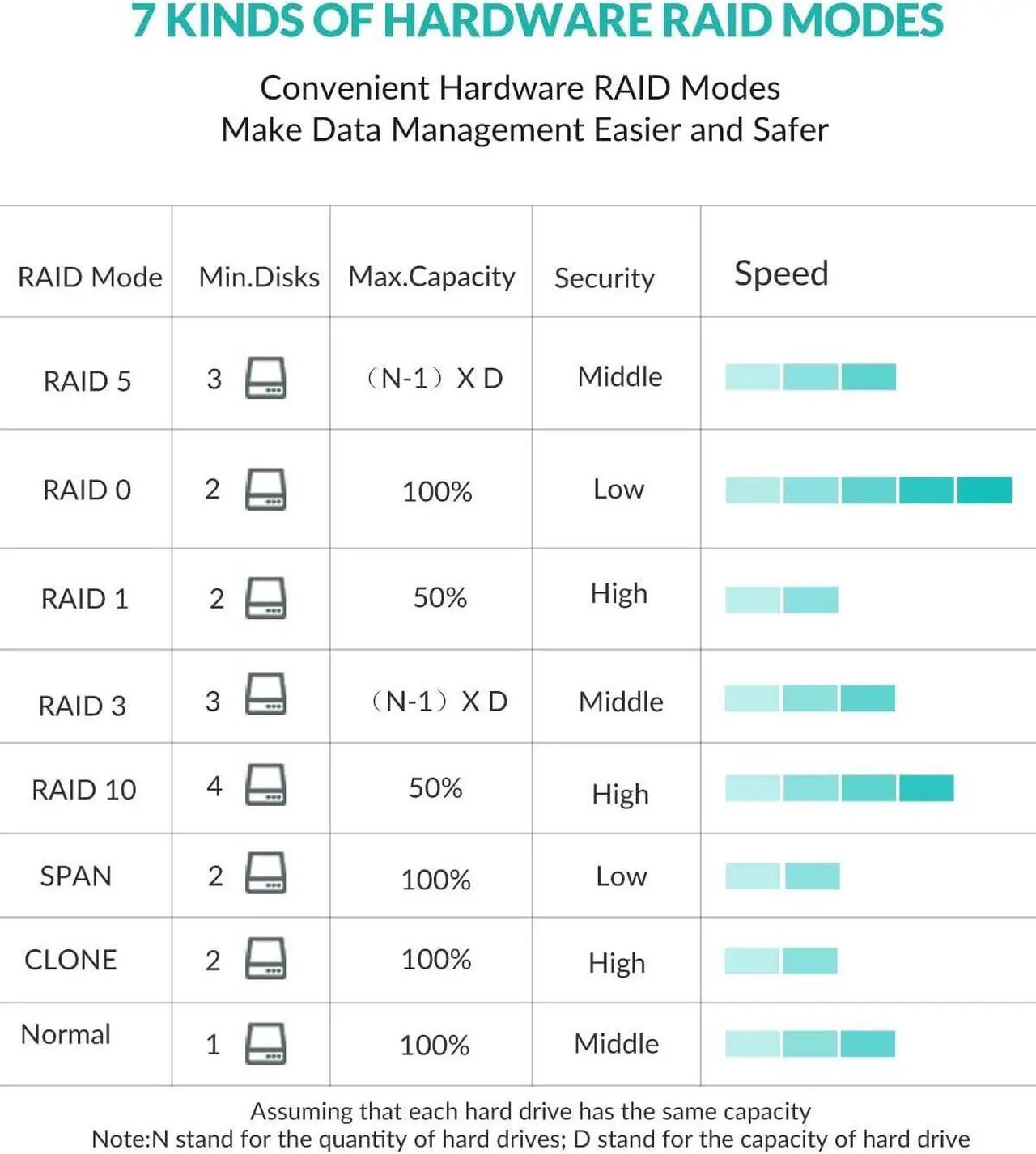

7 RAID modes optimized for every environment, the RAID choice is all yours!
RAID1.You can mirror the drives with RAID 1 as a reliable backup for your important data;
RAID0.You can stripe the drives with RAID 0 for optimal performance and maximum speed;
RAID3.Or you could instead choose RAID 3 provides better data security in environments where continuous long files (like video editing files) are to be read;
RAID5.Provide complete data protection against disk failure while providing excellent speed and capacity. This is perfect for when you want to use a single storage products for both editing and backup;
RAID10.Combines data security of RAID 1 with high-speed read and write of RAID 0.
SPAN: Or use SPAN to combine the drives for extra large storage capacities;
Normal: Allows you to see and use each disk independently. With five working days a week you can assign each disk to a daily backup to see and use each disk independently.
RAID1.You can mirror the drives with RAID 1 as a reliable backup for your important data;
RAID0.You can stripe the drives with RAID 0 for optimal performance and maximum speed;
RAID3.Or you could instead choose RAID 3 provides better data security in environments where continuous long files (like video editing files) are to be read;
RAID5.Provide complete data protection against disk failure while providing excellent speed and capacity. This is perfect for when you want to use a single storage products for both editing and backup;
RAID10.Combines data security of RAID 1 with high-speed read and write of RAID 0.
SPAN: Or use SPAN to combine the drives for extra large storage capacities;
Normal: Allows you to see and use each disk independently. With five working days a week you can assign each disk to a daily backup to see and use each disk independently.
How to Set RAID Mode?
Step1: Power the enclosure off. Toggle the RAID control switch to the "Normal" (PM Mode).
Step2: Press and hold the Set button.While holding the Set button then press and release the Power button to turn it on, As it turns on so you will hear one beep.Keep holding the Set button until you hear a second beep.
Step3: Power the enclosure off.
Step4: Set the dip switches to the pattern matching your chosen configuration.
Step5: Press the power button (while holding the Set button). Wait for second beep.(Same as step 2).
Step1: Power the enclosure off. Toggle the RAID control switch to the "Normal" (PM Mode).
Step2: Press and hold the Set button.While holding the Set button then press and release the Power button to turn it on, As it turns on so you will hear one beep.Keep holding the Set button until you hear a second beep.
Step3: Power the enclosure off.
Step4: Set the dip switches to the pattern matching your chosen configuration.
Step5: Press the power button (while holding the Set button). Wait for second beep.(Same as step 2).

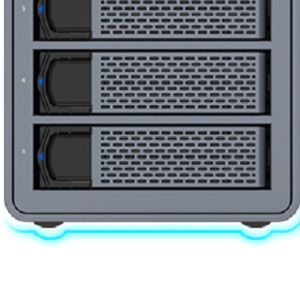

Vibration-absorbing feet
Vibration-absorbing feet
- With four vibration-absorbing&non-slip feet.

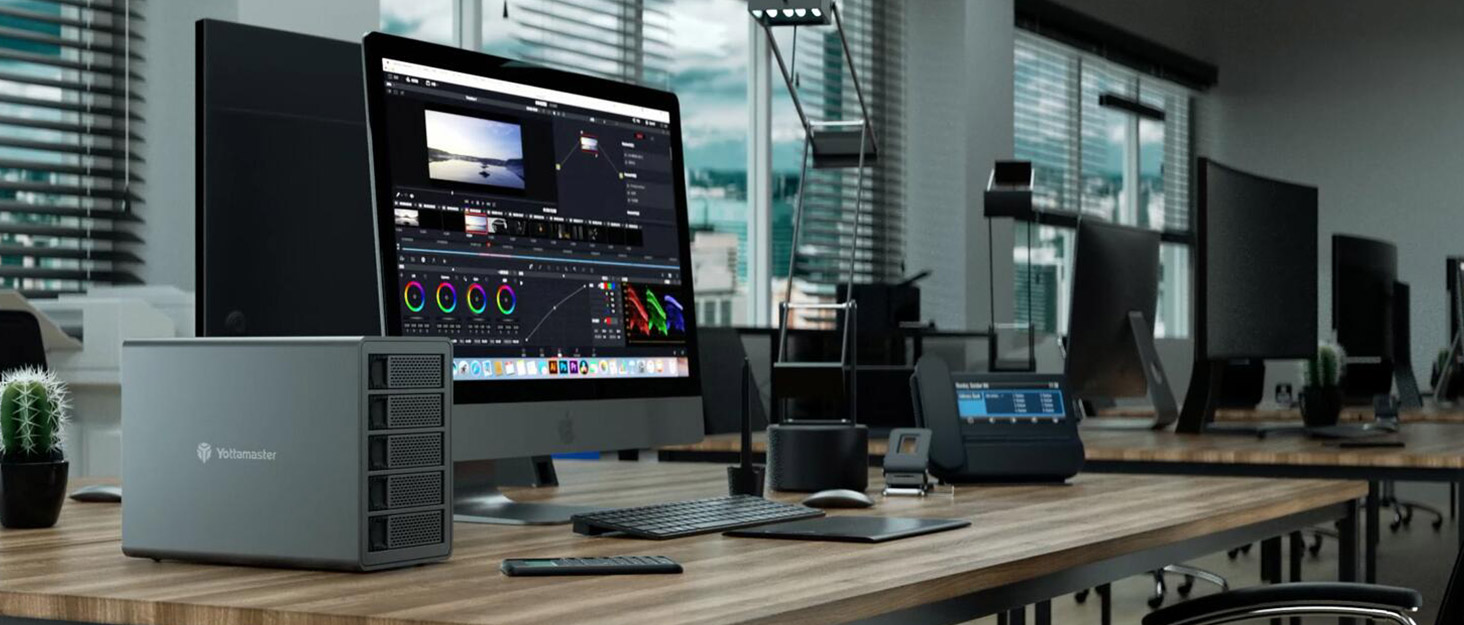

- The 5 bay enclosure can turn into a quiet assistant to help you at the desktop.

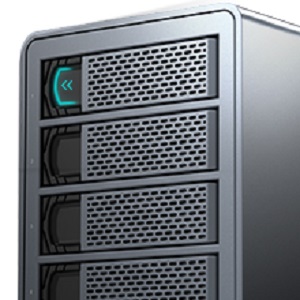

Press left
Press left

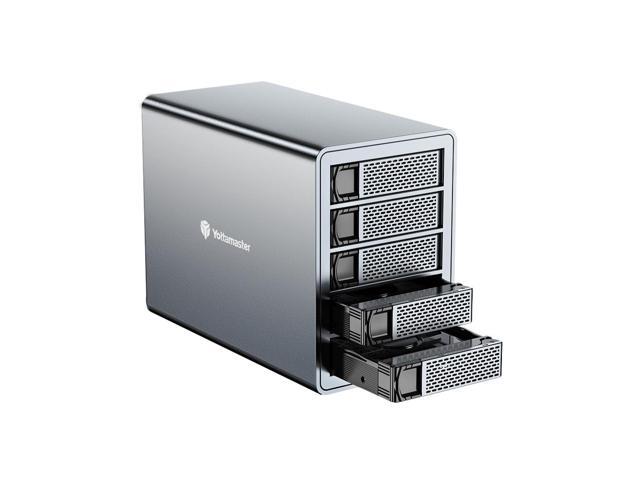

- User-friendly design, making it easily to install and uninstall.
- Five universal drive bays for 2.5" and 3.5" hdds/ssds.
Press left

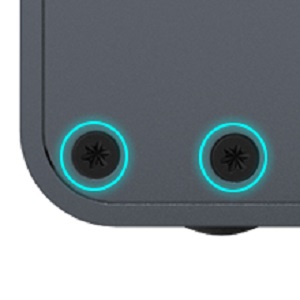

More Security
- The enclosure is firmly fixed by screws, which can effectively protect your hdds from shock and interface damage.
Press left

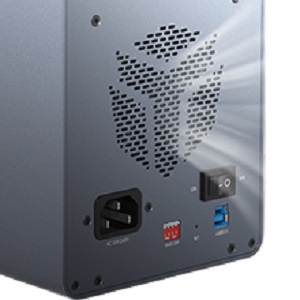

Heat-dissipation
- Built with a heat-dissipating aluminum enclosure, a whisper-quiet fan, help to rapid cooling.
- Runs cool and quietly, making it ideal for noise-sensitive environments.
