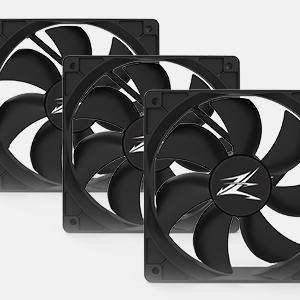

Fan Specification
- Dimension: 120 x 120 x 25(T)mm
- Bearing Type: Hydro Bearing
- Max Fan Speed: 1,200 RPM ± 15%
- Max Airflow: 35.34 CFM
- Noise Level: 23.2 dB(A)
Life Span: 40,000 hours

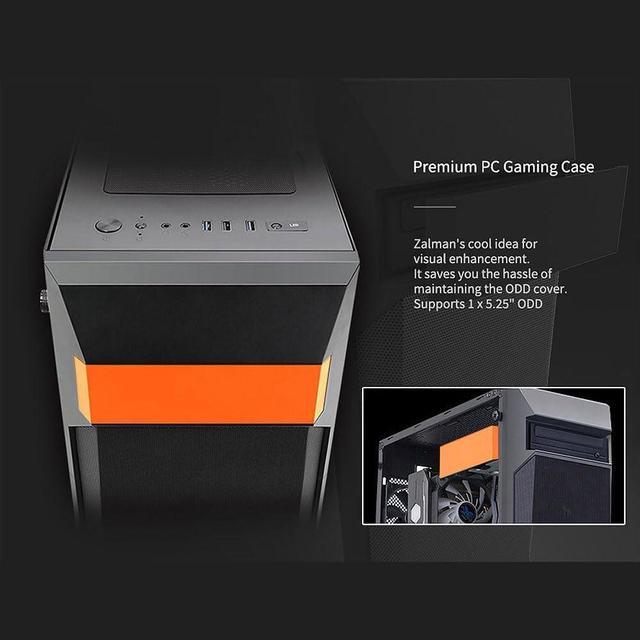

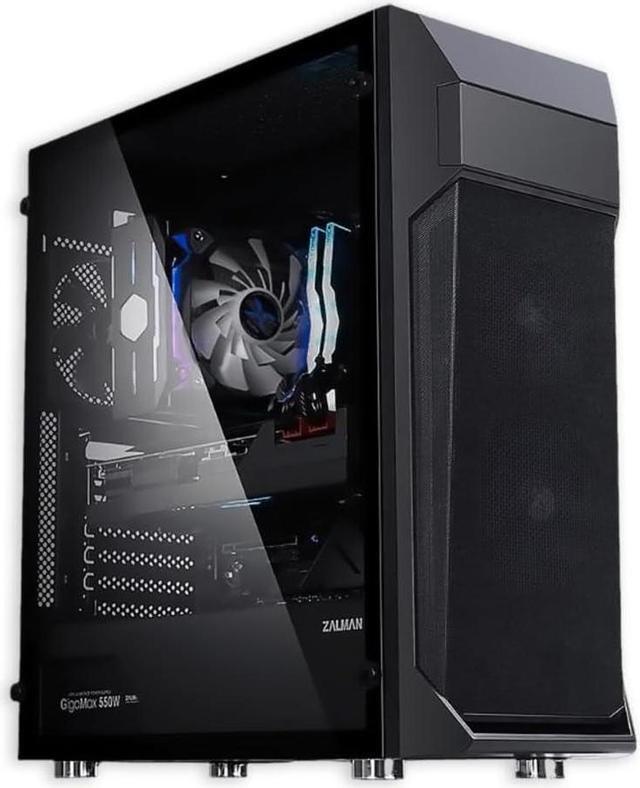

Premium PC Gaming Case
Zalman's cool idea for visual enhancement. It saves you the hassle of maintaining the ODD cover. Supports 1 x 5.25" ODD.

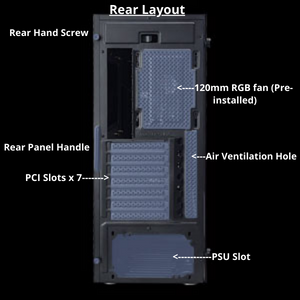

Rear Layout
- Rear Hand Screw
- 120mm RGB fan (Pre-installed)
- Rear Panel Handle
- PCI Slots x 7
- Air Ventilation Hole
- PSU Slot

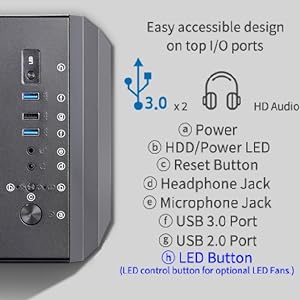

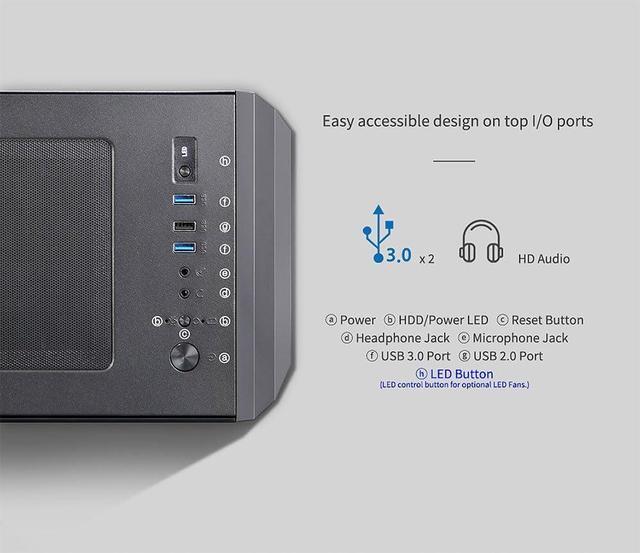

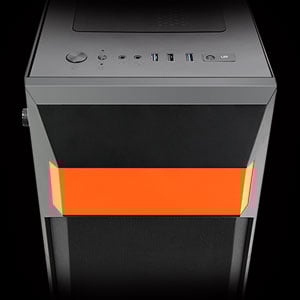

Top I/O Panel Layout
- Power
- HDD/Power LED
- Reset Button
- Headphone Jack
- Microphone Jack
- USB 3.0 Port
- USB 2.0 Port
- LED Button (LED control button for optional LED fans)

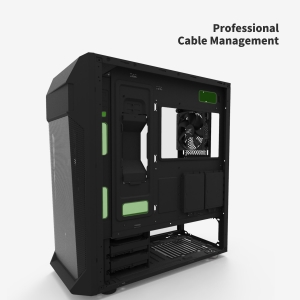

Cable Management

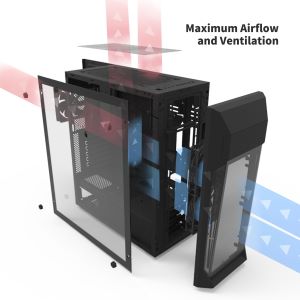

Air Flow
Specification
Case Form Factor | ATX Mid Tower |
---|---|
Dimensions | 463(D) x 209(W) x 485(H)mm |
Weight | 5kg |
Materials | Steel, Plastic, Tempered Glass |
Motherboard Support | ATX/ mATX/ Mini-ITX |

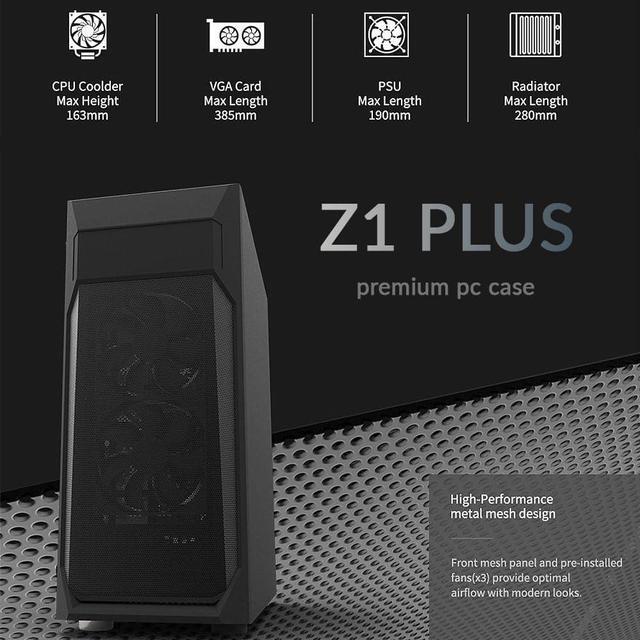

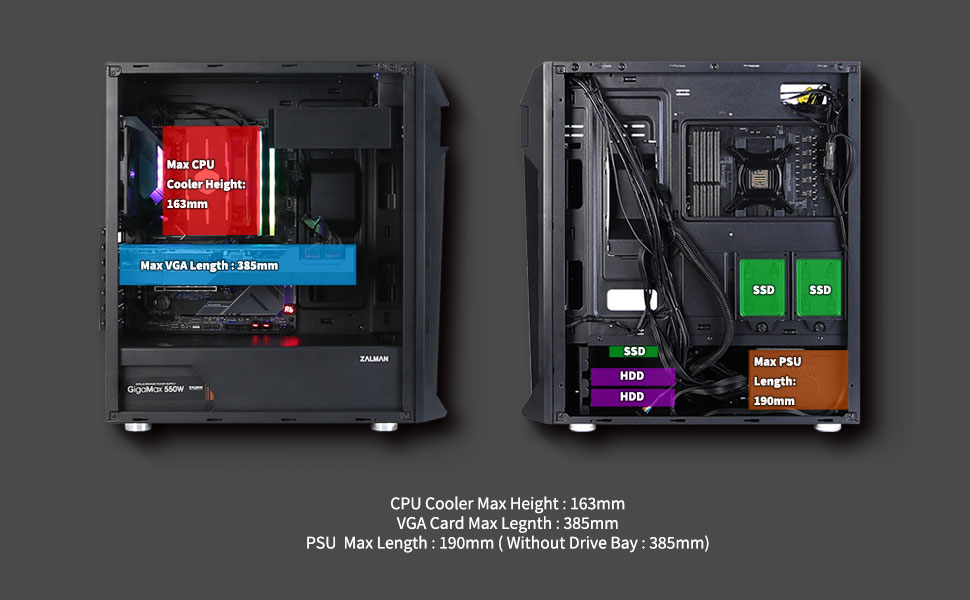

Maximum VGA Length | 385mm |
Maximum CPU Cooler Height | 163mm |
Maximum PSU Length | 190mm |
PCI Expansion Slots | 7 pcs |

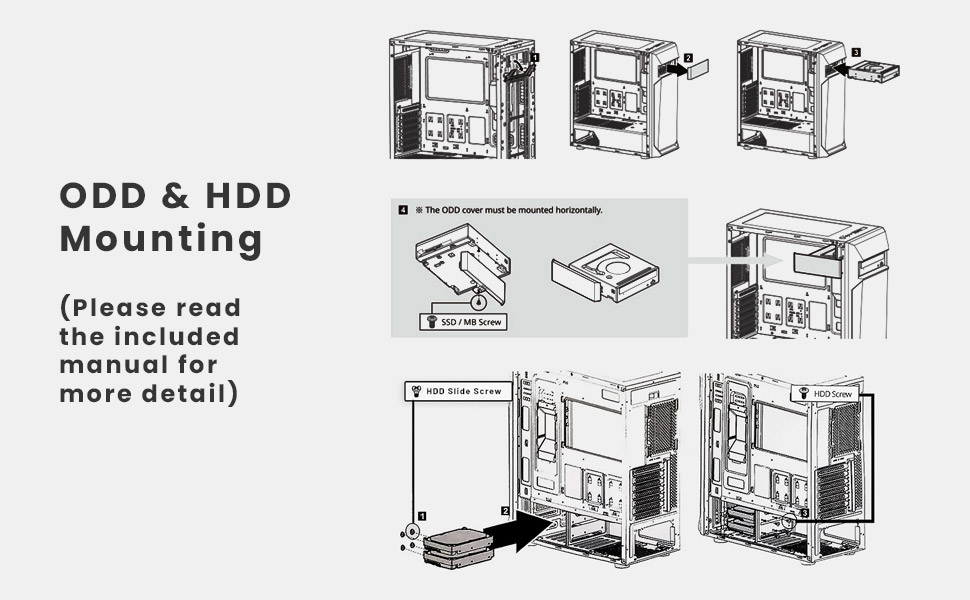

Drive Bays | 1 x 5.25" (ODD) 2 x 3.5", 3 x 2.5" |

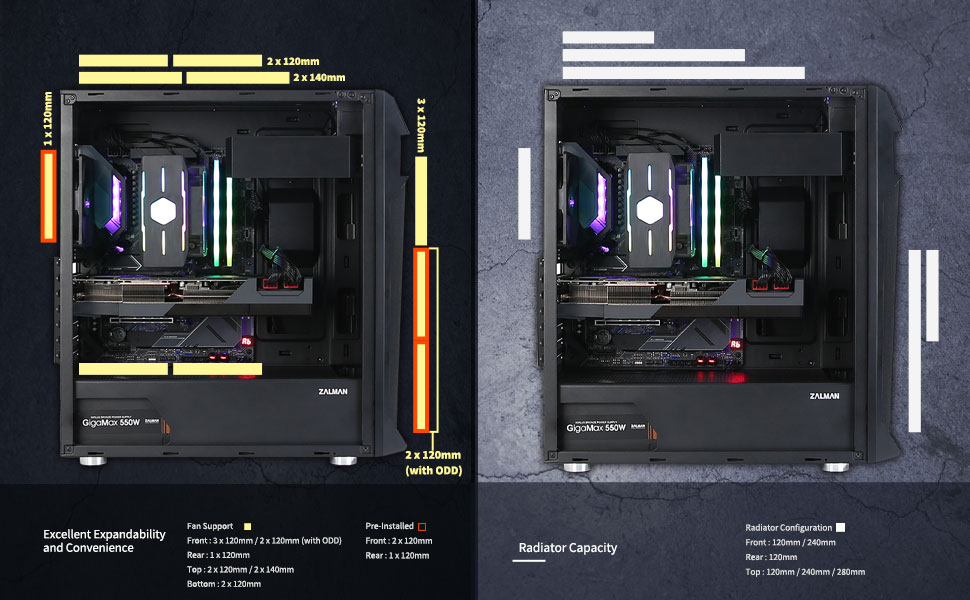

Fan Support | Front : 3 x 120mm/ 2 x 120mm (with ODD) Top : 2 x 120mm / 2 x 140mm Rear : 1 x 120mm Bottom : 2 x 12 |
Fan(s) Included | Front : 2 x 120mm Rear : 1 x 120mm |
Radiator Support | Front : 120mm / 240mm Top : 120mm / 240mm/ 280mm Rear : 120mm |
I/O Ports | 1 x Headphone Jack, 1 x Mic, 2 x USB 3.0, 1 x USB 2.0, Power Button, Reset Button, LED Button |
