Item#: 9SIA4HM2PS0843

Tripplite - 10 Outlet Ultimate Protection Home Theater A/V Surge Suppressor (AVBAR10)

Sold and Shipped by LGeOO a-seller

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 10 outlets
  • $500K Lifetime warranty
  • Awesome A/V protection

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

PRODUCT DESCRIPTION

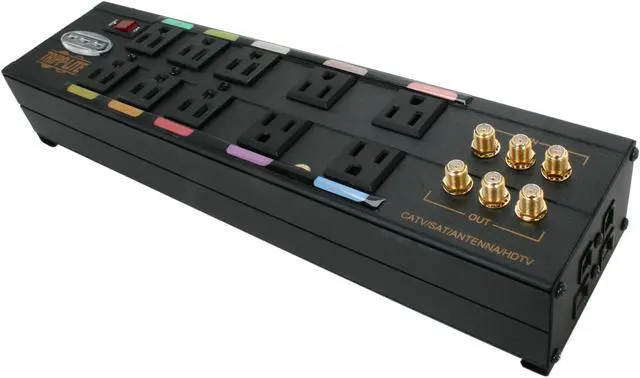

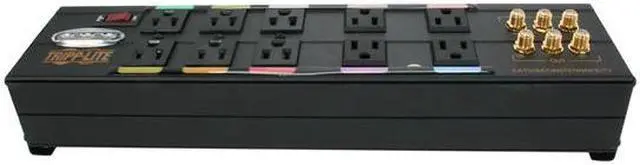

Protect your valuable home theater components from damage and performance problems with Tripp Lite's AVBAR10 Platinum Series Isobar® A/V Surge Protector. In one compact, cost-effective unit, the AVBAR10 provides comprehensive protection for small to medium A/V installations and all electronics. It features exclusive isolated filter banks and EMI/RFI line noise filtering to eliminate interference between electronic components, ensuring peak audio/video performance. The AVBAR10 also features a high 3384-joule surge suppression rating—more joules mean more protection. A total of 10 AC outlets provide the capacity you need to protect all your components. Three-line 2.2 GHz gold coaxial surge protection, single-line RJ11 tel/modem surge protection and single-line RJ45 Ethernet protection safeguard every incoming line through which a damaging surge could reach your equipment. The AVBAR10 comes with $500,000 Ultimate Lifetime Insurance protection for connected equipment and a lifetime product warranty.

Premium Protection for Home/Business Theater Installations and More

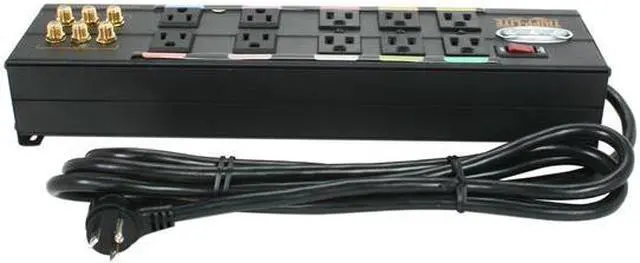

The AVBAR10 offers premium surge protection and performance enhancement for A/V components, PCs, peripheral devices and all electronics. It provides a total of 10 AC outlets, arranged to accommodate up to four bulky transformers without blocking remaining outlets. Outlets are color-coded to identify component connections. The AVBAR10 also features a durable all-metal case, an eight-foot cord enabling connection to a distant wall outlet and a space-saving right-angle plug that allows furniture to be placed flush against the wall. The case is equipped with keyhole mounting tabs to facilitate permanent installation on or under shelves, on walls, etc. Included outlet covers (set of four) can be used to safeguard unused outlets.

AVBAR10 Applications
AVBAR10 Feature Focus
Isolated Filter Banks

Improved Component Performance

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The AVBAR10 incorporates exclusive Isobar technology, including isolated filter banks, to eliminate interference between connected components, plus full EMI/RFI line noise filtering, to ensure peak audio and video performance.

Powerful AC Line Surge Suppression

A single power surge has the potential to seriously damage or destroy sensitive A/V components. Even a minor surge can cause incremental damage that degrades performance and shortens component lifespans. The AVBAR10 features the highest surge protection rating in its class—3384 joules of surge suppression to prevent even the strongest surges from damaging your valuable electronics.

Protection on Every Connection

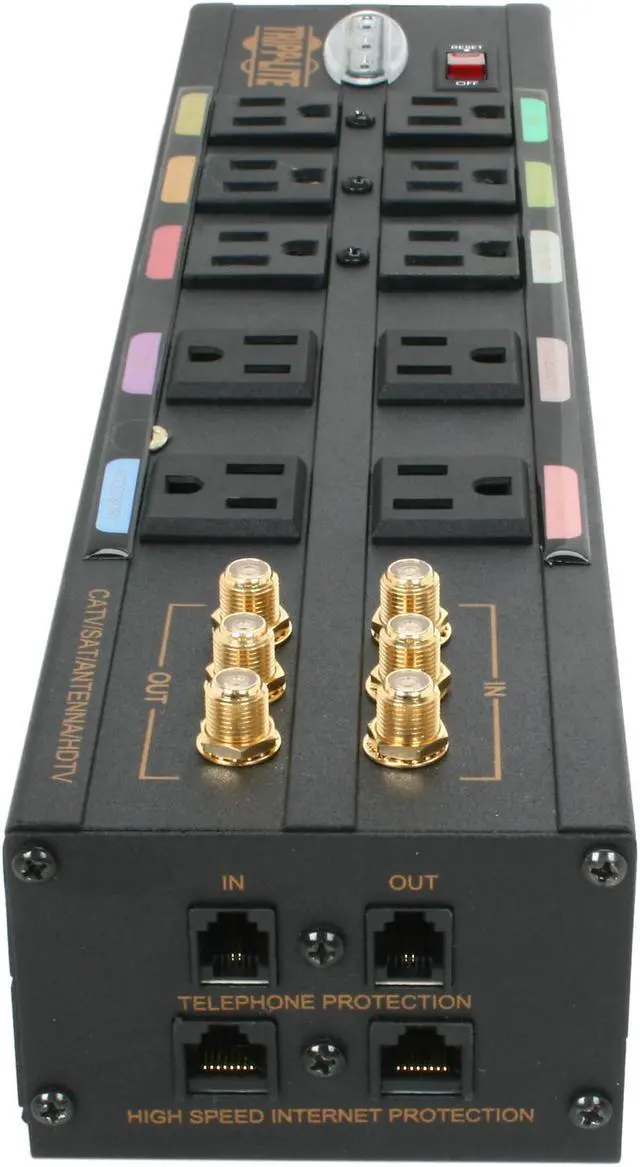

In addition to AC line protection, the AVBAR10 includes built-in RJ11 jacks to prevent surges from damaging your modem/fax/phone equipment (six-foot telephone cord included), built-in RJ45 jacks to prevent surges from damaging 10BT equipment on Ethernet and other network connections (six-foot network cable included) and built-in gold Type F coax jacks to prevent surges from damaging your cable/satellite equipment (digital broadband quality accommodates 2.2GHz bandwidth; six-foot coax cable included).

Built-In Diagnostic Capabilities

Three diagnostic LEDs (GROUNDED, PROTECTED & POWER) show power and protection status. An illuminated master switch provides one-touch power control over all components.

Ultimate Peace of Mind

The AVBAR10 comes with a lifetime product warranty plus $500,000 Ultimate Lifetime Insurance (USA/Canada only) covering connected components against surge damage—for life.

Technical Specifications

  • Voltage compatibility: 120 VAC
  • Frequency compatibility: 50/60 Hz
  • Output watts: 1440
  • Output volt amp capacity (amps): 12
  • Overload protection: 12-amp circuit breaker
  • AC suppression rating (joules): 3384
  • Outlet quantity/type: 10 x 5-15R
  • Signal line protection: RJ11 tel/modem jacks (1 set); RJ45 network/Ethernet jacks (1 set); 2.2 GHz gold coaxial jacks (3 sets)
  • Input cord: 8 ft.
  • Input plug: 5-15P right-angle
  • Switches/LEDs/alarms: On/Off power/circuit breaker switch; 3 diagnostic LEDs
  • Dimensions (HWD): 2.3 x 14.2 x 3.5 in.
  • Weight: 3.5 lbs.
  • Material of construction: Metal
  • Agency approvals: UL 1449, UL 1663, UL497A; FCC Part 68 / Industrie Canada (telecom); RoHS

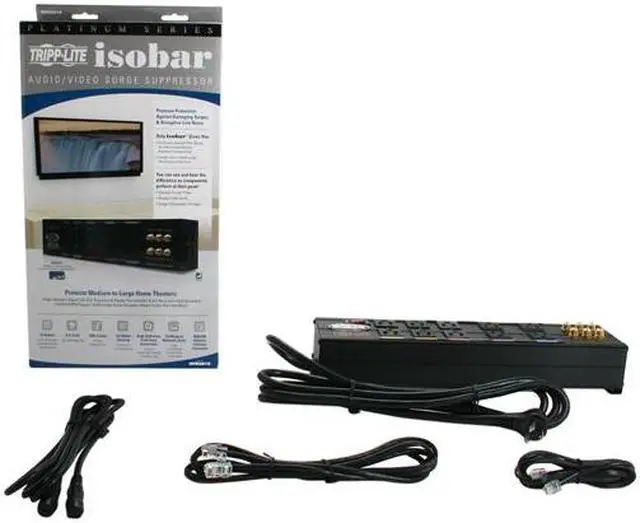

What’s in the Box

What's in the Box

  • • AVBAR10 Platinum Series Audio Video Surge / Spike Protector
  • • 6-ft. coaxial cable
  • • 6-ft. network cable
  • • 6-ft. phone cord
  • • Instruction manual with warranty information
Tripp Lite
Home Theater Surge Suppressors
AVBAR8
AVBAR8
AVBAR10
AVBAR10
AV10IRG
AV10IRG
Outlets 8 10 10
Joules 3134 3384 6480
Additional Protection Tel/DSL/Ethernet; Coax Tel/DSL/Ethernet; Coax Tel/DSL/Ethernet; Coax
Cord Length 8-ft. 8-ft. 8-ft.
Metal Housing Yes Yes
Green Outlet Technology Yes
Ultimate Lifetime Insurance $500,000 $500,000 $250,000
Warranty Lifetime Lifetime Lifetime

Learn more about the Tripp Lite AVBAR10

Model

|
Brand
Tripp Lite
Model
AVBAR10

Details

|
Type
Power Conditioner / Surge Protector
Length
8 FT
Connectors
10 outlets
Specifications
Frequency compatibility: 50 / 60 Hz

Output watts: 1440

Output volt amp capacity (amps): 12

Outlet quantity / type: 10 NEMA 5-15R

Transformer accommodation: Accommodates 2 transformers

Recommended Electrical Service: 120V,15A

Input plug features: Space-saving right-angle input plug

Input cord gauge, type: 14 gauge, SJT

Switches: Combination AC circuit breaker and illuminated 2 position on/off power switch

Diagnostic LEDs: Built-in LEDs confirm line power, protection and ground status

AC suppression joule rating: 3384 joules

AC suppression response time: NM = instantaneous CM = < 1 ns

Protection modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression

Clamping voltage (RMS): 140V

EMI / RFI filtering: Up to40 dB

Telephone/DSL Protection Details: 1

Cable (Coax) Protection Details: 1
Dimensions
14.25" x 2.25" x 3.5"
Weight
3.5 lbs.

Features

|
Features
8 feet cord with space saving right angle plug

3384 joule rating

Isolated Filter Banks

3-line High Definition 2.2 GHz (gold) coaxial surge protection

1-Ethernet RJ45 surge protection jack

1-line tel/modem surge protection

All-metal housing
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime
