Features: Package Contents:

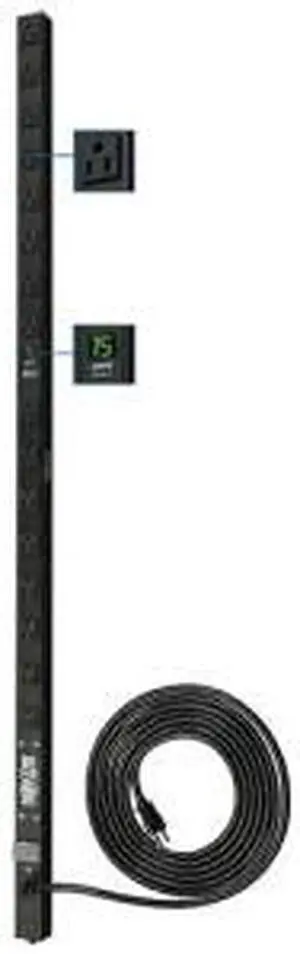

Metered PDU3MV6L2130 48-Outlets 8.6kW PDU
Cord Retention Brackets
Rack Mounting Brackets
Owner's Manual
Current:24 A Input Current
Number of Output Connections:36
6
Output Receptacles:36 x IEC 60320 C13
6 x IEC 60320 C19
6 x NEMA 5-15/20R
Power Rating:8.60 kVA
Power Rating:8.60 kVA
Product Name:Metered PDU3MV6L2130 48-Outlets 8.6kW PDU
Input Receptacles:NEMA L21-30P
Product Type:PDU
Form Factor:Zero U
Form Factor:Zero U Vertical Rackmount
Dimensions: 70.0" Height x 2.7" Width x 2.2" Depth
Front Panel LEDs: 16 front panel LEDs display power on / off status for each outlet, plus 2 additional LEDs to indicate input power status for primary and secondary inputs
Certifications: Tested to UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), TAA Compliant
Features: Connects to Tripp Lite Internal or External SNMP/Web Cards or Intelligent PDU's
Allows remote temperature/humidity monitoring in network environments
Enables monitoring of alarm, security and telecom devices through a dry-contact interface
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Certifications: Tested to UL60950-1: 2007 R10.14 (USA), CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011+A2: 2014 (Canada), FCC CLASS A PART 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Features: Number of Output Connections:30
6
Power Rating:11 kVA
Form Factor:Zero U
Product Type:PDU
Current:16 A Maximum Input Current
Power Rating:11 kVA
Form Factor:Zero U Vertical Rackmount

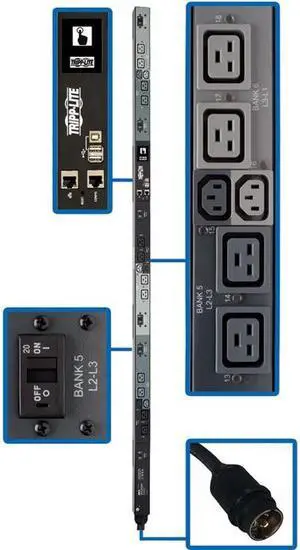

Product Name:Monitored PDU3XVN10G16 36-Outlets 11kVA PDU
Output Receptacles:30 x IEC 60320 C13
6 x IEC 60320 C19
Interfaces/ Ports:Ethernet
Package Contents:
Monitored PDU3XVN10G16 36-Outlets 11kVA PDU
Cord Retention Brackets
Rack Mounting Brackets
Owner's Manual
