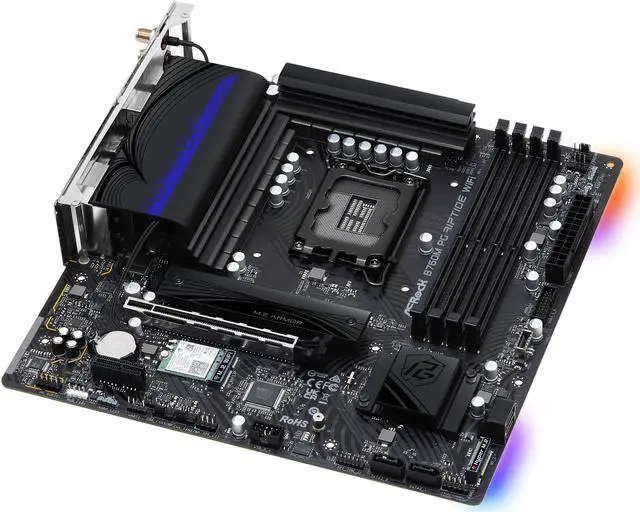

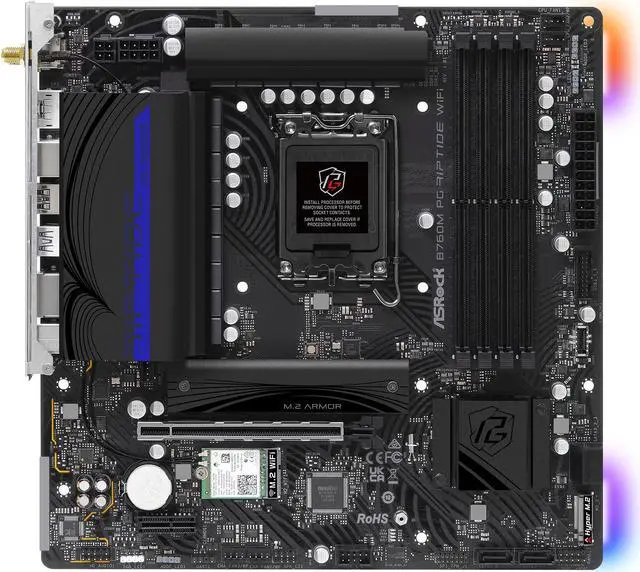

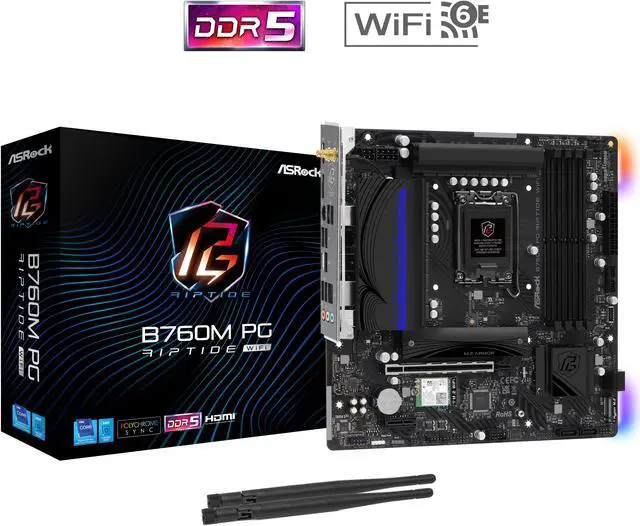

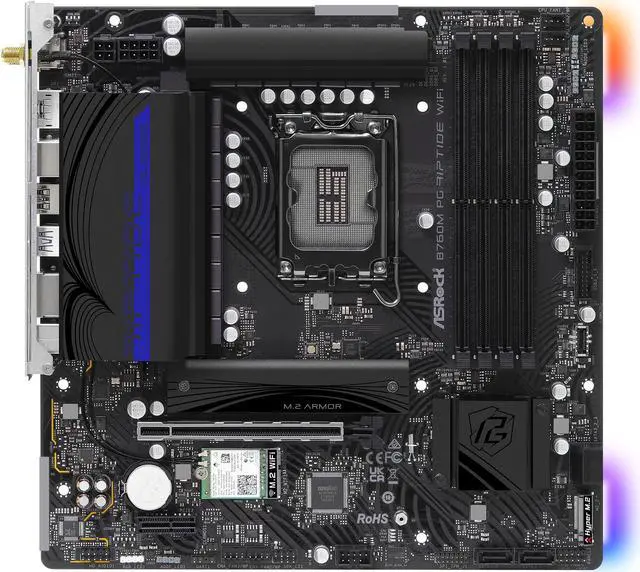

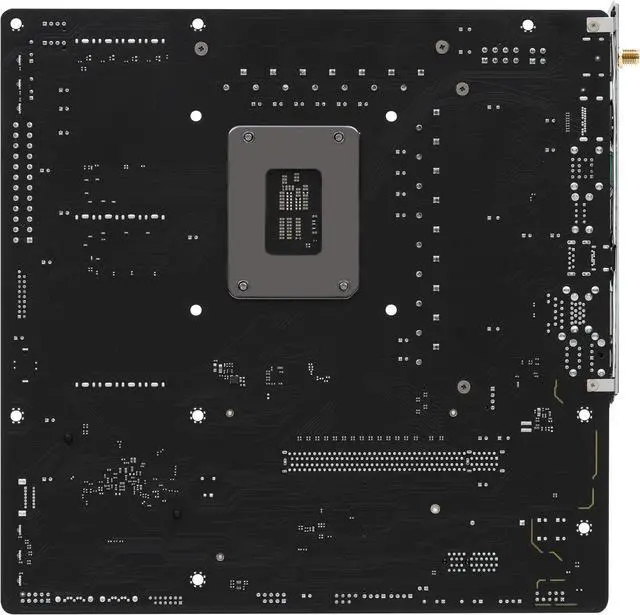

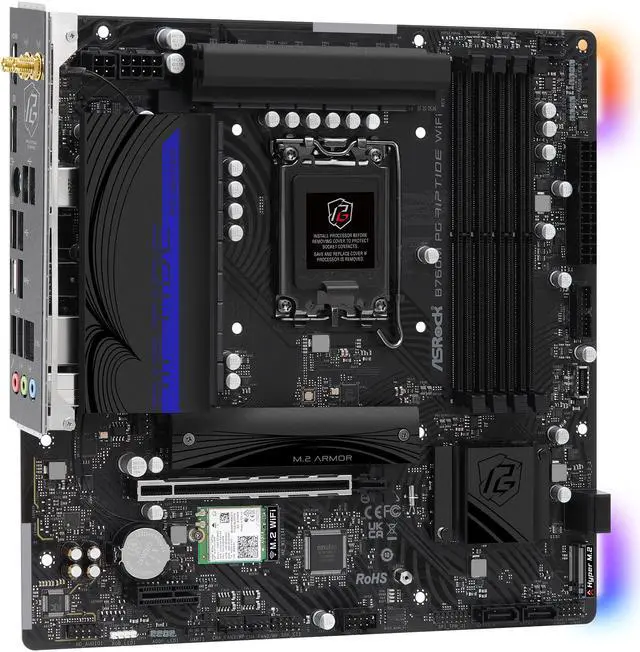

    ASRock B760M PG Riptide WiFi LGA 1700 Intel B760 Micro ATX Motherboard

    Be the first to review this product...
    • Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
    • 14+1+1 Power Phase
    • Supports DDR5 7200MHz (OC)
    • 1 PCIe 4.0 x16, 1 PCIe 4.0 x1
    • Graphics Output Options: HDMI, DisplayPort
    • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
    • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
    • 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front)
    • Dragon 2.5G LAN, Killer 802.11ax WiFi 6E + Bluetooth
    • Supports ASRock Auto Driver Installer
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews

    Learn more about the ASRock B760M PG Riptide WiFi

    Model
    Brand ASRock
    Model B760M PG Riptide WiFi
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
    Chipsets
    Chipset Intel B760
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
    - 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
    - 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
    - 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
    - 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively
    Maximum Memory Supported 192GB
    Channel Supported Dual Channel
    Memory Feature Supports Intel Extreme Memory Profile (XMP) 3.0
    Expansion Slots
    PCI Express 4.0 x16 1 x PCI Express 4.0 x16
    PCI Express x1 1 x PCI Express 4.0 x1
    Storage Devices
    M.2 CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

    1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

    * Supports Intel Volume Management Device (VMD)
    * Supports NVMe SSD as boot disks
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    Max LAN Speed 2.5Gbps
    Wireless LAN Killer 802.11ax Wi-Fi 6E Module
    Bluetooth Bluetooth 5.3 + High speed class II

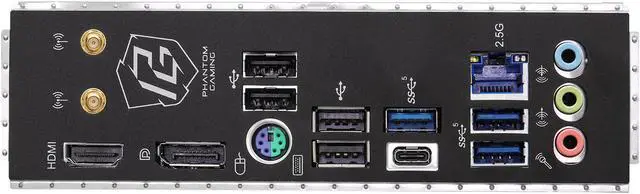

    Rear Panel Ports
    Back I/O Ports 2 x Antenna Ports
    1 x PS/2 Mouse/Keyboard Port
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x USB 3.2 Gen1 Type-C Port
    3 x USB 3.2 Gen1 Type-A Ports
    4 x USB 2.0 Ports
    1 x RJ-45 LAN Port
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    1 x Front Panel Type C USB 3.2 Gen1 Header
    Other Connectors 1 x SPI TPM Header
    1 x Chassis Intrusion and Speaker Header
    1 x RGB LED Header*
    3 x Addressable LED Headers**
    1 x CPU Fan Connector (4-pin)***
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    1 x Front Panel Audio Connector

    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    **** CPU_FAN2/WP supports the fan power up to 2A (24W).
    ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
    ***** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 9.6"
    Power Pin 1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    Features
    Features Superb Productivity
    - Dual Channel DDR5
    Rock-Solid Durability
    - 14+1+1 Power Phase
    - Pre-Installed I/O Shield
    Ultrafast Connectivity
    - 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module
    EZ Update
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    - ASRock Post Status Checker
    Packaging

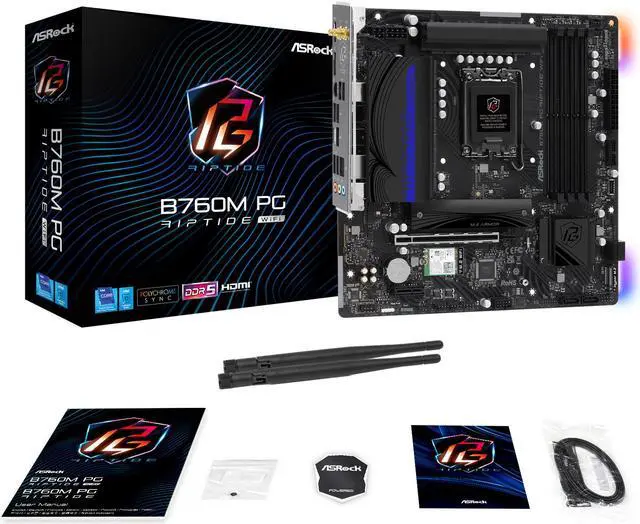

    Package Contents 1 x User Manual
    2 x SATA Data Cables
    2 x ASRock WiFi 2.4/5/6 GHz Antennas
    1 x Screw for M.2 Socket
