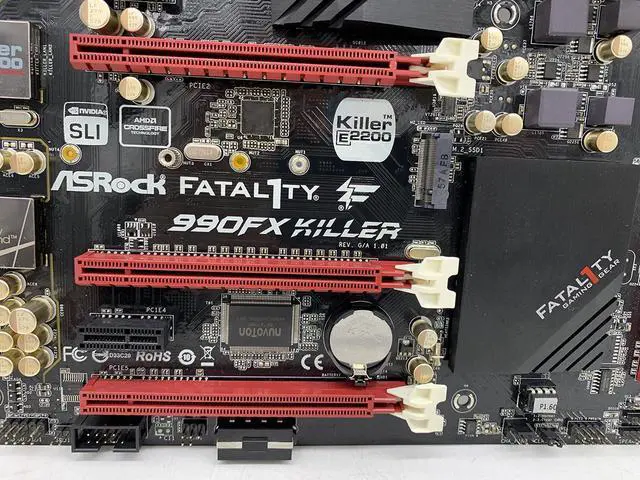

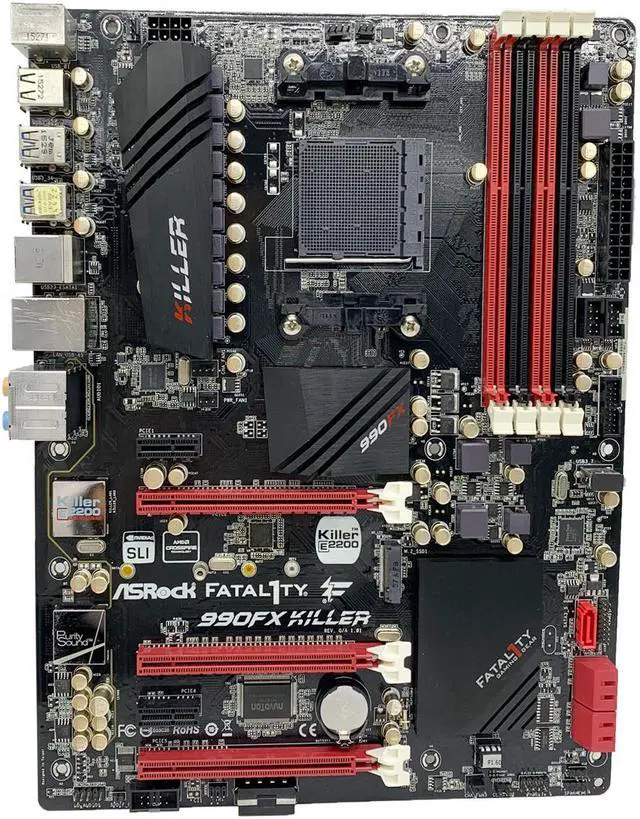

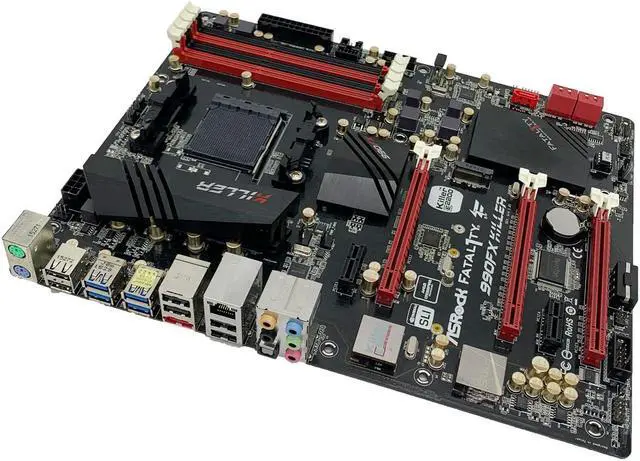

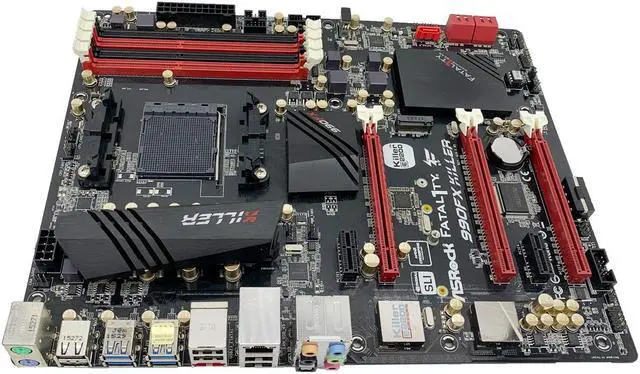

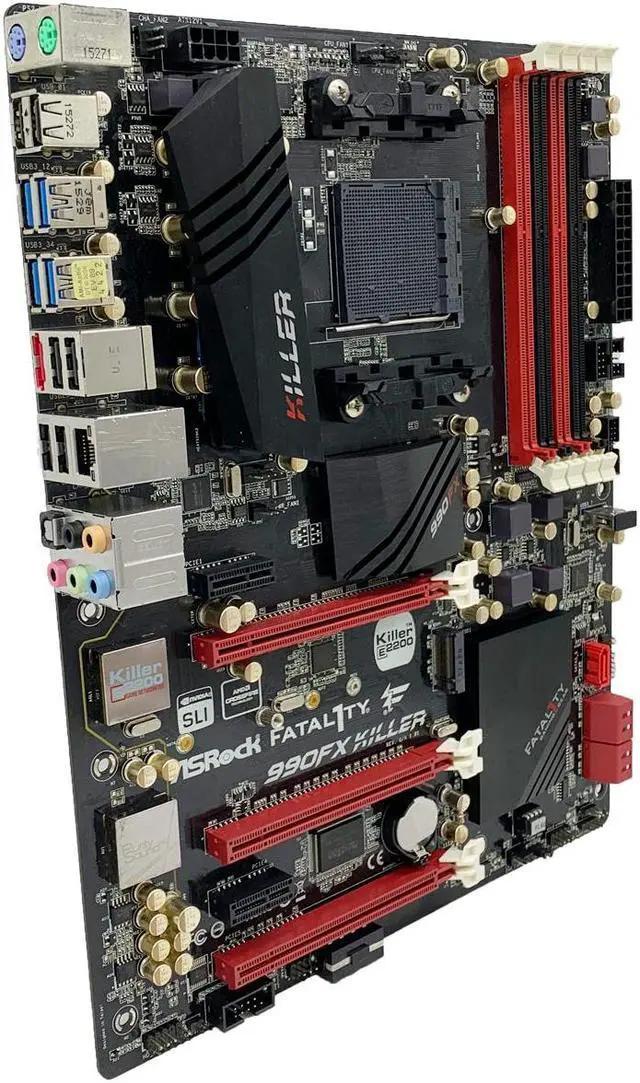

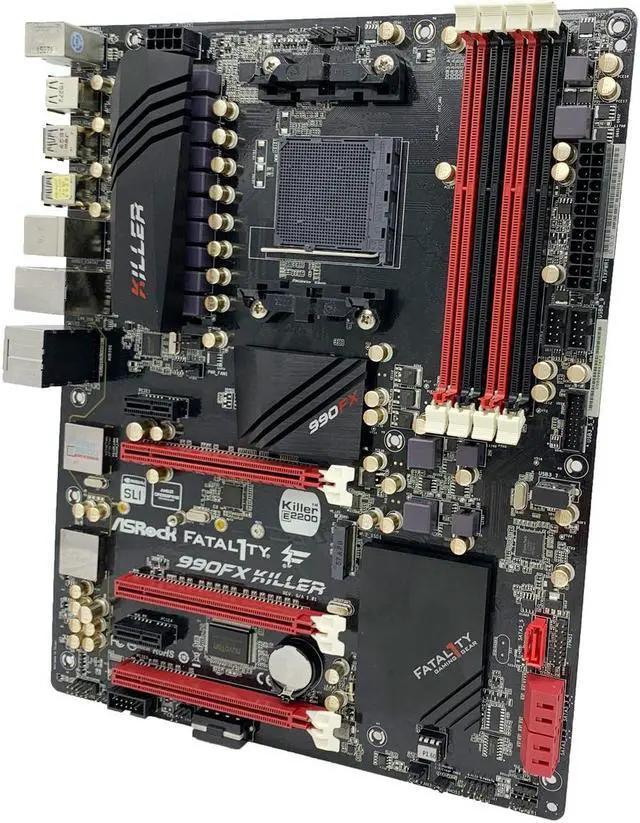

ASRock Fatal1ty 990FX Killer Motherboard ATX AMD 990FX Socket AM3+/AM3 DDR3 64GB SATA3 M.2 SPDIF PCI-E2.0+I/O

CPU
- Supports Socket AM3+ processors
- Supports Socket AM3 processors: AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
- Supports UCC feature (Unlock CPU Core)
- Digi Power design
- 8 + 2 Power Phase design
- Supports CPU up to 140W
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz ( 5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0 ) Technology

Chipset
- Northbridge: AMD 990FX
- Southbridge: AMD SB950

Memory
- Dual Channel DDR3 Memory Technology
- 4 x DDR3 DIMM Slots
- Supports DDR3 2450 (OC) /2100 (OC) /1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
- Supports AMD Memory Profile (AMP)

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.3. 1 support
- CPU, DRAM, NB, HT, CPU VDDA, PCIE VDDA, CPU NB Voltage multi-adjustment

Graphics
- n/a

Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Purity Sound
- 115dB SNR DAC with differential amplifier
- TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Qualcomm® Atheros® Killer E2200 Series
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3 az
- Supports PXE

Slots
- 3 x PCI Express 2.0 x16 Slots (PCIE2/PCIE3 @ x16 mode; PCIE5 @ x4 mode)
- 2 x PCI Express 2.0 x1 Slots
- Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
- Supports NVIDIA® Quad SLI and SLI
Storage
- 5 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and Hot Plug
- 1 x M. 2_SSD (NGFF) Socket 3, supports M Key M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen2 x2 (10 Gb/s)

*M. 2_SSD (NGFF) Socket 3 is shared with the eSATA3 connector.

Connector
- 1 x IR Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x SLI/XFire Power Connector
- 1 x Front Panel Audio Connector
- 1 x SPDIF Out Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x Vertical Type A USB 3.1 Gen1
- 1 x USB 3.1 Gen1 Header by Etron EJ188 (Supports 2 USB 3.1 Gen1 ports)

Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Optical SPDIF Out Port
- 5 x USB 2.0 Ports
- 1 x Fatal1ty Mouse Port (USB 2.0 )
- 4 x USB 3.1 Gen1 Ports (ASMedia Hub)
- 1 x eSATA3 Connector
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), XSplit, Killer Network Manager

Hardware Monitor
- CPU, Chassis temperature sensing
- CPU, Chassis, Power Fan Tachometer
- CPU, Chassis Quiet Fan (Auto adjust fan speed by CPU temperature)
- CPU, Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, + 3.3V, CPU Vcore Voltage

Form Factor
- ATX Form Factor
- Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)

OS
- Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit


Package Included:

1PCS ASROCK Fatal1ty 990FX Killer Motherboard ATX
1PCS I/O Shield Backplane
2PCS SATA Cable
