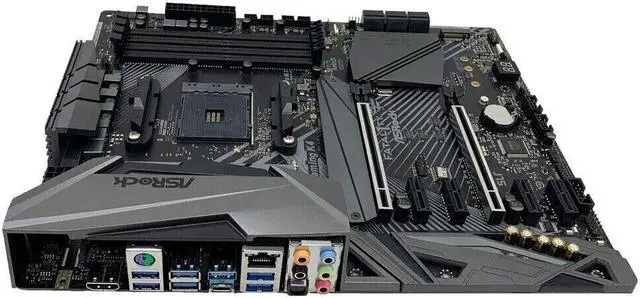

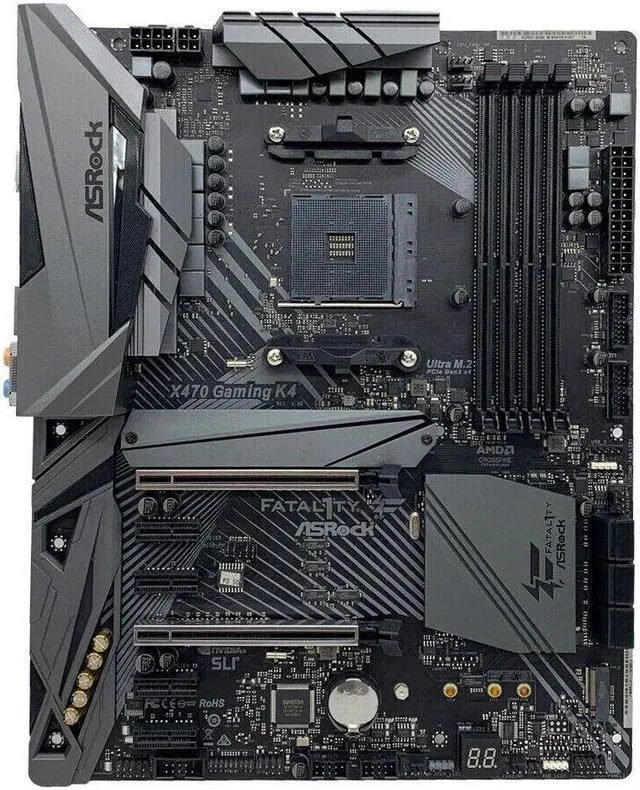

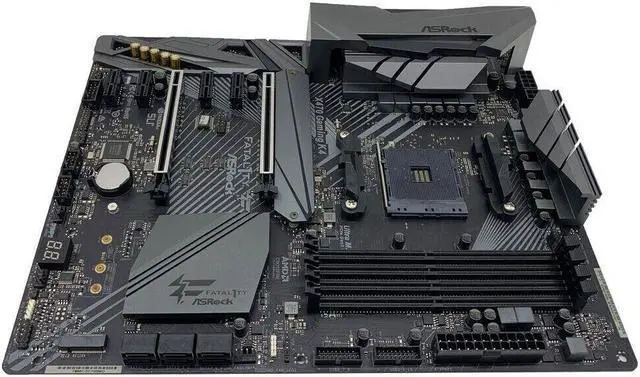

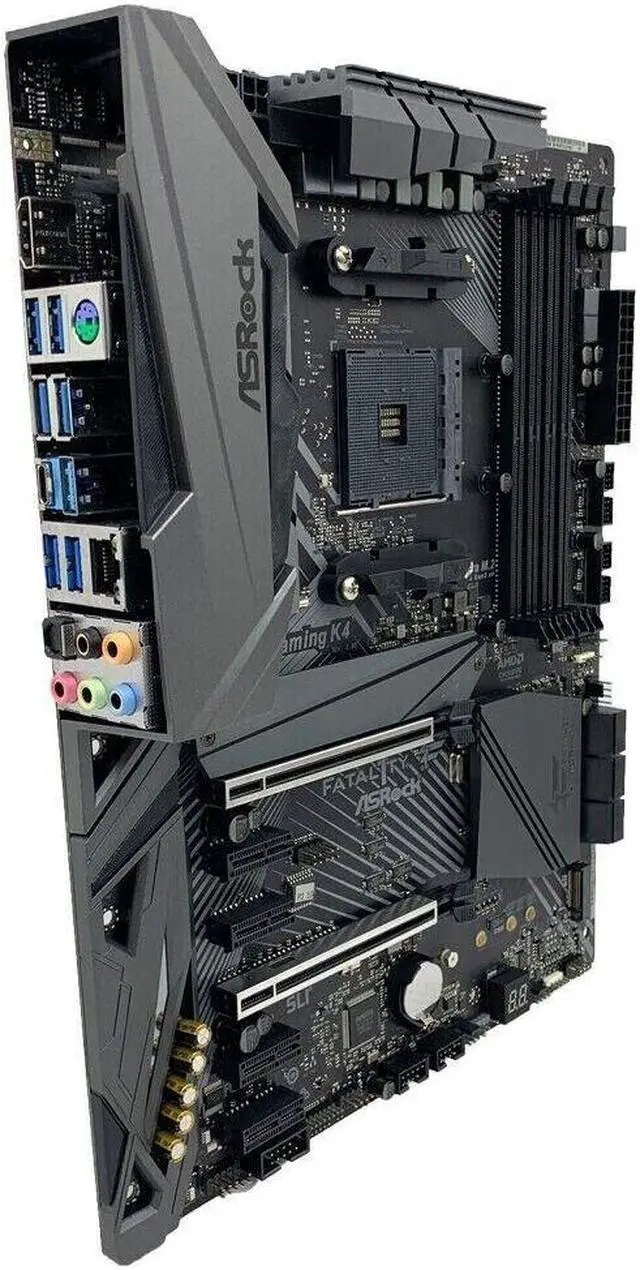

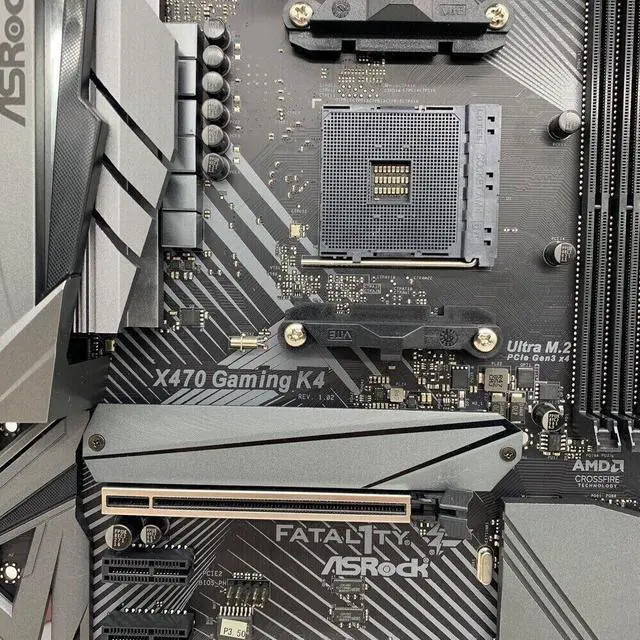

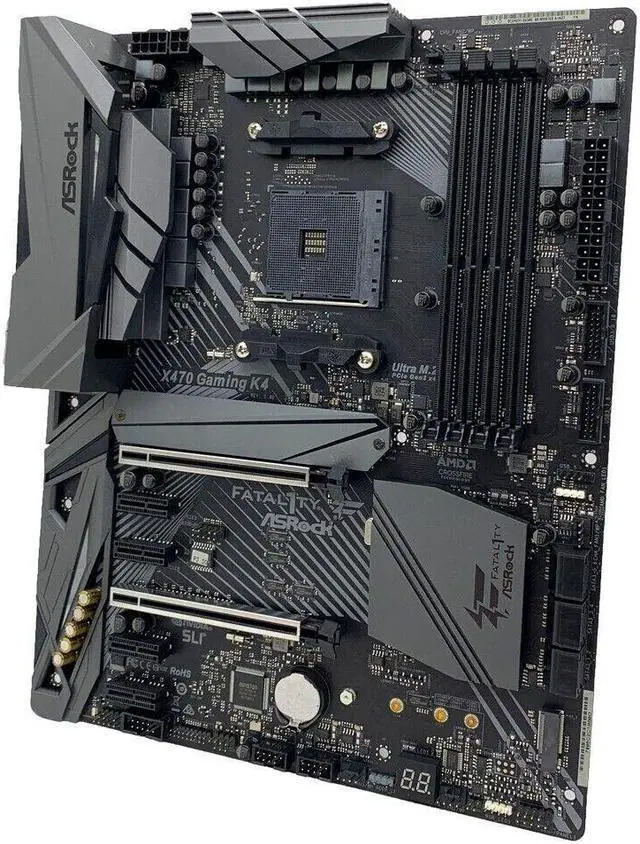

ASRock Fatal1ty X470 Gaming K4 Motherboard ATX AMD Promontory X470 Socket AM4 DDR4 64GB SATA3 M.2 HDMI SPDIF+I/O

CPU
- Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- Digi Power Design (Intersil)
- 12 Power Phase design

Chipset
- AMD Promontory X470

Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- 15 Gold Contact in DIMM Slots

BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, + 1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment

Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB. **
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI 1.4 Port
- Supports 4K Ultra HD (UHD) playback with HDMI Port
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.

Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster Cinema 5

LAN
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3 az
- Supports PXE

Slots
AMD Ryzen series CPUs (Vermeer, Cezanne, Renoir, Matisse, Summit Ridge and Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4) )*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1) )*
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (single at x4 (PCIE1) )*
- 4 x PCI Express 2.0 x1 Slots
- Supports AMD Quad CrossFireX and CrossFireX**
- Supports NVIDIA® Quad SLI and SLI**
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
**This feature is only supported with Ryzen Series CPUs (Vermeer, Cezanne, Renoir, Matisse, Summit Ridge and Pinnacle Ridge).

Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M. 2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Cezanne, Renoir, Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU) *
- 1 x M. 2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen2 x2 (10 Gb/s)*
*Supports NVMe SSD as boot disks
Supports ASRock U. 2 Kit

Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED and Speaker Header
- 1 x AMD Fan LED Header*
- 1 x RGB LED Header**
- 1 x Addressable LED Header***
- 1 x CPU Fan Connector (4-pin)****
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) *****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) ******
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB Header
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
- 1 x Dr. Debug with LED
*The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
**Supports in total up to 12V/3A, 36W LED Strip
***Supports in total up to 5V/3A, 15W LED Strip
****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

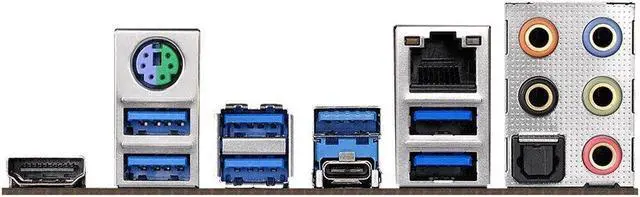

Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 6 x USB 3.1 Gen1 Ports (Supports ESD Protection) *
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by
CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, + 3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, + 1.8V, VDDP

Form Factor
- ATX Form Factor: 12.0 -in x 9.6 -in, 30.5 cm x 24.4 cm
- 2oz Copper PCB

OS
- Microsoft® Windows® 10 64-bit / 11 64-bit*
*Summit Ridge do not officially support Windows® 11.


Package Included:

1PCS ASRock Fatal1ty X470 Gaming K4 Motherboard ATX
1PCS I/O Shield Backplane
2PCS SATA Cable
