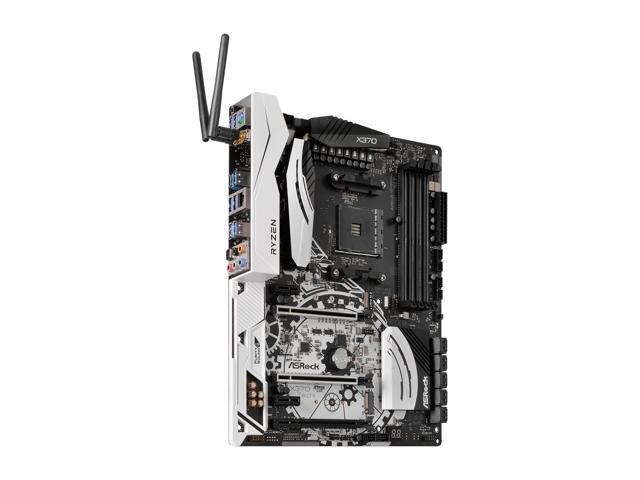

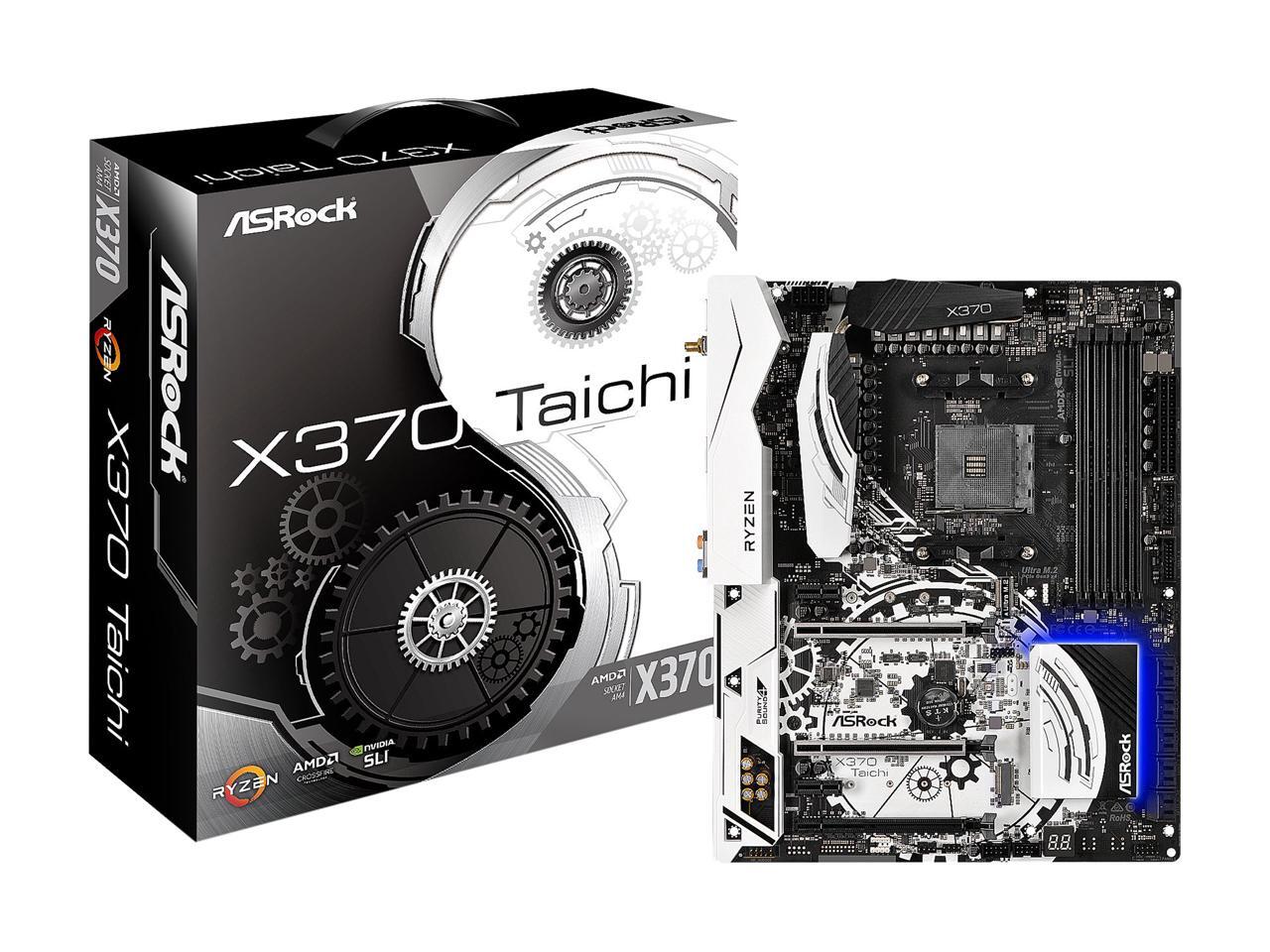

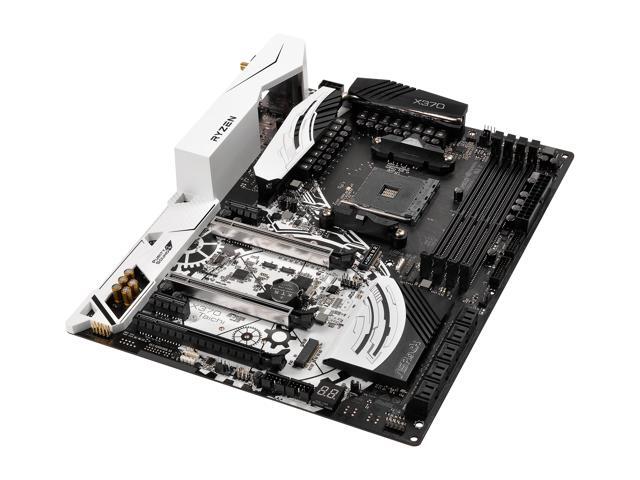

X370 Taichi
- ASRock Super Alloy
- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge)
- Supports DDR4 3200+(OC)
- 2 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1, 1 M.2 (Key E)
- NVIDIA® Quad SLI™, AMD Quad CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
- 10 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x4)
- 2 USB 3.1 (1 Type-A, 1 Type-C), 10 USB 3.0 (4 Front, 6 Rear)
- Intel® Gigabit LAN
- Intel® 802.11ac+ BT 4.2
- Dual Band 802.11ac WiFi
- USB 3.1 Type-A+C
- Intel Gigabit LAN
- Gold Audio Jack
- Hyper BCLK Engine II
- Purity Sound 4
- 2oz Copper PCB
- 2 x RGB LED Headers
- M.2 Socket (PCIe Gen2 x4)
- 10 SATA3 6Gb/s
- PCI-E Steel Slots
Suppotrs 2-Way SLI/CFX
- Ultra M.2 Socket (PCIe Gen3 x 4 & SATA3)
- Nichicon 12K Black Caps
- AMD AM4 Socket
Supports Ryzen Series CPUs (Summit Ridge)
- Digi Power (IR Digital PWM) 16 Power Phase Design Premium 60A Power Choke Dual-Stack MOSFET (DSM)
All-Rounder
"Taichi" represents the philosophical state of undifferentiated absolute and infinite potential. It's ASRock's biggest offering in the easy-to-use, rock-solidly stable line of motherboards that fulfills every task – with style! Specially designed for the all-round PC user who wants a motherboard packed with premium features.
RGB LED
Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!
- Drag the tab to customize your preference.
- Toggle on/off the RGB LED switch And choose the channel.
- Select a RGB LED light effect from the drop-down menu.
Hyper BCLK Engine II
An additional external base clock generator that supports PCIe frequency overclocking. It provides a wider range of frequencies and more precise clock waveforms, allowing any user to get most from their CPU investment with precise, stable overclocking.
16 Power Phase Design
Designed with 16 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
IR® Digital PWM
The onboard IR® Digital PWM controller delivers the most precise and stable power so that users may achieve optimal performance.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

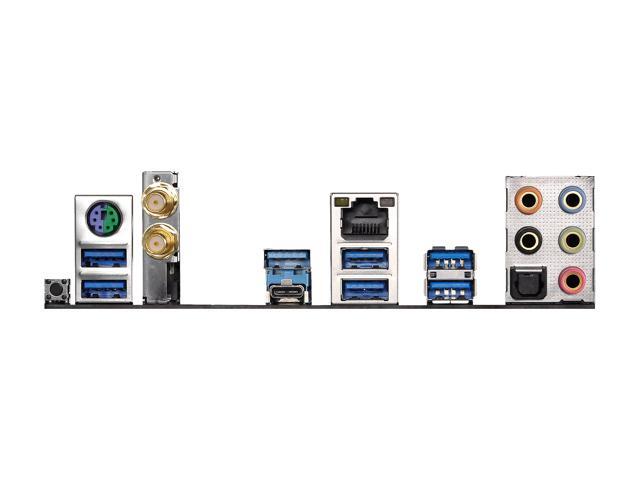

Dual USB 3.1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 ports built on the rear i/o for supporting next generation USB 3.1 devices and to deliver up to 10 Gbps data transfer rates.
Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSD. The other one supports PCIe Gen2 x4 20Gb/s transfer speed.
Purity Sound 4
It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.
120dB SNR DAC
Gold Audio connector
TI® NE5532 Premium Headset Amplifier
Individual PCB Layers for R/L Audio Channel
Impedance Sensing on Front Out port
PCB Isolate Shielding
Pure Power-In
Nichicon Fine Gold Series Audio Caps
Gold Audio Jacks
PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Premium 60A Power Choke
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Premium Memory Alloy Choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.
Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Black Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.
I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

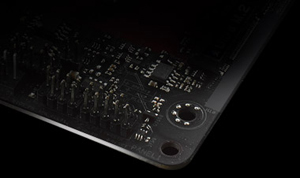

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
