ASRock X470 Taichi Ultimate AM4 AMD Ryzen 3000 Series CPU Ready ATX AMD Motherboard

OUT OF STOCK.
  • Support AMD Ryzen 3000 series CPU
  • AMD Promontory X470
  • Supports AMD AM4 Socket Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
  • AMD Ryzen series CPUs (Matisse) support DDR4 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series CPUs (Picasso) support DDR4 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
  • AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
Overview
Specs
Reviews
ASRock Logo Bar ASRock X470 Motherboard Standing Up, Facing Forward Next to Its box that's angled to the right

ASRock X470 Taichi Ultimate

A solid and feature-rich motherboard for power users and game enthusiasts to build a dream system based on AMD AM4 Ryzen series CPUs/APUs. It's powered by the AMD Promontory X470 chipset, manufactured with ASRock Super Alloy components, and has a wealth of PCIe slots & SATA ports plus two M.2 slots for unrivalled expansion and storage capability. Two PCIe 3.0 x16 slots are steel covered for immunity to RFI and to better support high-end graphics cards. A 10-Gigabit port and a Gigabit port meet the network requirement of today and tomorrow, and three USB 3.1 Gen2 ports let you move files at bus speed up to 10Gbps. Also built onboard are 802.11ac and Bluetooth 4.2 (antennas included), allowing easy integration into today's wireless world.

X470 Taichi Ultimate
  • Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
  • Supports DDR4 3466+ (OC)
  • 2x PCIe 3.0 x16, 1x PCIe 2.0 x16 and 2x PCIe 2.0 x1
  • NVIDIA Quad SLI, AMD Quad CrossFireX
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound 4 & DTS Connect
  • 8x SATA3, 1x Ultra M.2 (PCIe Gen3 x4 & SATA3) and 1x M.2 (PCIe Gen2 x4 & SATA3)
  • 3x USB 3.1 Gen2 (Rear Type A+C, Front Type-C) and 10x USB 3.1 Gen1 (4 Front, 6 Rear)
  • AQUANTIA 10 Gigabit LAN, Intel Gigabit LAN, Intel 802.11ac + BT 4.2
  • ASRock Polychrome RGB
ASRock X470 Motherboard Standing Up, Angled to the Right with 16 circled numbers pointing out features
  1. Dual Band 802.11ac WiFi
  2. HDMI
  3. Intel I211AT Gigabit LAN
  4. AQUANTIA 10Gb/s LAN
  5. USB 3.1 Gen2 Type-A+C
  6. Gold Audio Jack
  7. Digi Power(IR Digital PWM 16 Power Phase Design Premium 60A Power Choke Dual-Stack Mosfet (DSM))
  8. AMD AM4 Socket
  9. Nichicon 12K Black Caps
  1. Ultra M.2 Socket & Full Coverage M.2 Heatsink (PCIe Gen3 x4 & SATA3)
  2. PCI-E Steel Slots Supports 2-Way SLI/CFX
  3. 8x SATA3 6Gb/s
  4. M.2 Sockt (PCIe Gen2 x4)
  5. RGB LED + Addressable RGB LED Headers
  6. Purity Sound 4
  7. 2oz Copper PCB
AQUANTI Gigabit Ethernet Port Glowing Red Towards a Graphic That reads 10X Faster 10Gb/s LAN, there is also a hotspot
AQUANTIA 10Gb/s BASE-T Ethernet

The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning-fast transfer speeds, perfect for the roles of media centers, workstations and gaming PCs.

Rule Your Own Lighting Way with POLYCHROME RGB

In addition to having built-in RGB illumination, these motherboards also feature on-board RGB headers and an addressable RGB header that allows each motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

ASROCK POLYCHROME SYNC & ASROCK POLYCHROME RGB logos

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Four Lined Up ASRock X470 Motherboards, Angled Down tot he Right with white, red, green and blue lighting respectively. There are hotspots on the front motherboard for the RGB LED header, addressable RGB LED header and RGB LED header. To the right of the motherboard RGB light strips circled up and below the motherboard is a the ASRock POLYCHROME RGB customizable software window
  1. Drag the tab to customize your preference.
  2. Toggle on/off the RGB LED switch and choose the channel.
  3. Select a RBG LED light effect from the drop-down menu.
M.2 heatsink on the ASRock X470
Full-Coverage M.2 Heatsink

A massive full coverage M.2 heatsink can support up to Type 22110 M.2 devices, it is able to dissipate heat efficiently to ensure your high-speed M.2 SSD always working at its best.

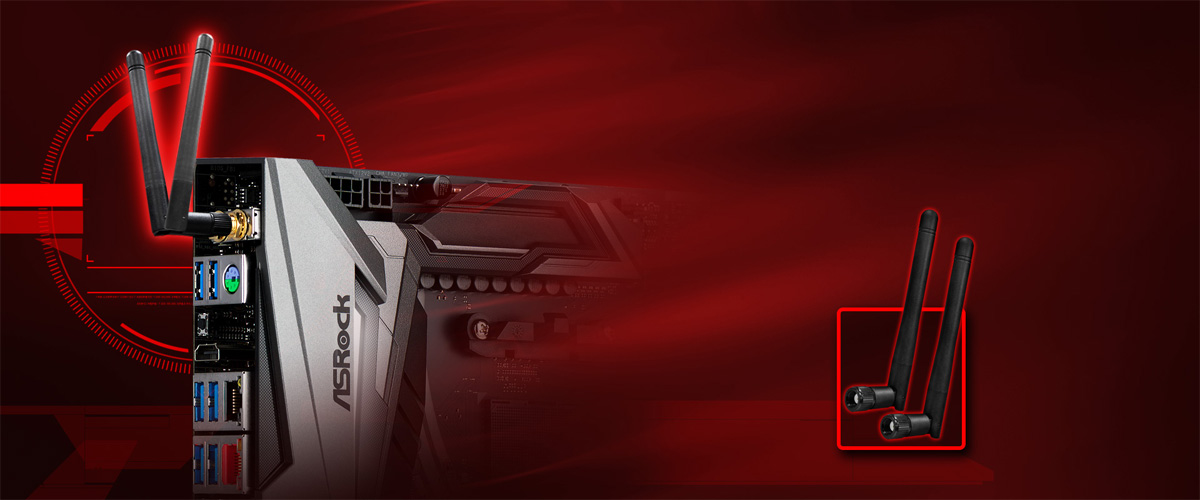

ASRock X470 Motherboard Angled to the Right with Closeup Focus on Its Ports, and Two Antennas
Dual-Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

The two areas for M.2 on the ASRock X470 motherboard
Dual M.2 for SSD

Equipped with an M.2 slot that supports both the SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interfaces, pushing data transfer speeds up to 32Gb/s. It's also compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSD.

USB 3.1 Port on the ASRock X470 Motherboard

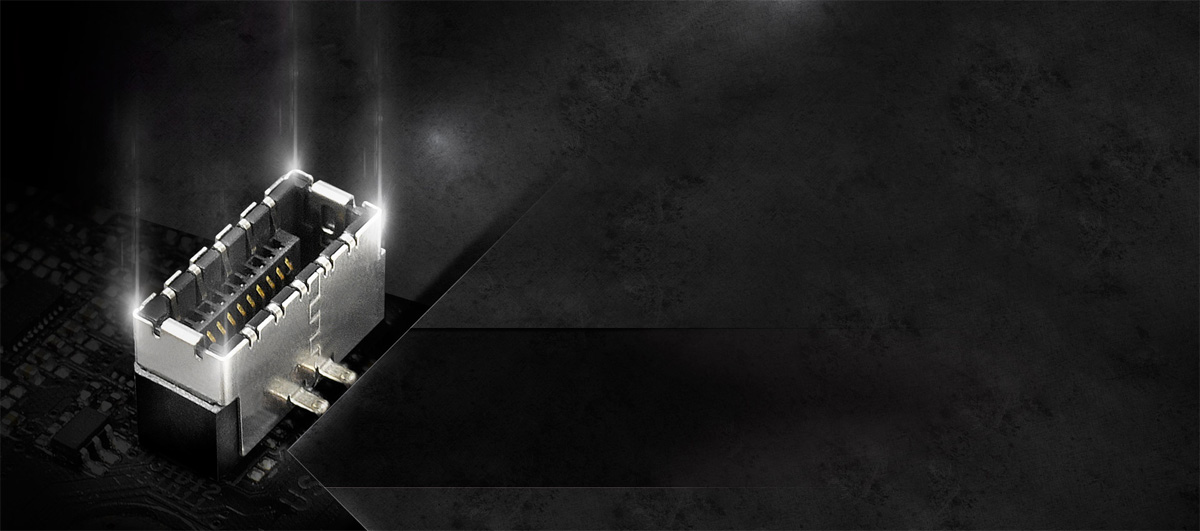

Front USB 3.1 Gen2 Type-C

Front USB 3.1 Gen2 Type-C header delivers up to a 10Gbps data transfer rate and next-generation reversible USB design to the front panel of your computer case.

Super Alloy Motherboard Graphic Text
XXL Aluminum Alloy Heatsink
ASRock X470's Heatsink

Extra-large aluminum alloy heat sinks effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 60A Power Choke
Premium 60A Power Chokes on the ASRock X470 Motherboard

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Premium Memory Alloy Choke
Premium Memory Alloy Chokes on the ASRock Motherboard

Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET on the ASRock X470 Motherboard

Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.

Nichicon 12K Black Caps
Nichicon 12K Black Caps on the ASRock X470 Motherboard

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armor
I/O armor covering the ASRock X470 motherboard's ports

A newly designed protective cover for all of the crucial parts near the motherboard's rear I/O make it so that they won't easily be damaged by static electricity.

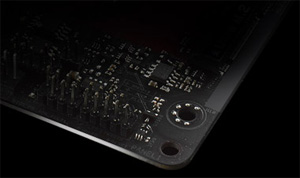

Matte Black PCB
ASRock X470's matte black PCB board

A new mysterious matte black and copper color scheme match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB
High Density Fabric versus Traditional Comparison Graphic

The High Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB
ASRock X470's 2oz copper PCB layered graphic

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

ASRock X470's ICS chip along with graphics and text indicating: CPU PCIE - AMD Ryzen 100MHz Only - AMD Ryzen + Hyper BCLK Engine II 136MHz - Higher Overclocking Capability!
Hyper BCLK Engine II

An additional external base clock generator that supports PCIe-frequency overclocking. It provides a wider range of frequencies and more precise clock waveforms, allowing any user to get the most from their CPU investment with precise, stable overclocking.

The Audio Capacitors on the ASRock X470 next to the Purity Sound 4 Logo
Purity Sound 4

It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound 4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.

120db SNR DAC on the ASRock X470 Motherboard

120dB SNR DAC

Gold audio connector on the ASRock X470 Motherboard

Gold Audio Connector

premium headset amp on the ASRock X470 Motherboard

TI NE5532 Premium Headset Amplifier

PCB layers for the audio channels on the ASRock X470 Motherboard

Individual PCB Layers for R/L Audio Channel

Speaker cone

Impedance Sensing on Front Out Port

Shielding on the ASRock X470 Motherboard

PCB Isolate Shielding

Pure Power Graphic

Pure Power-In

Gold Series Audio Caps on the ASRock X470 Motherboard

Nichicon Fine Gold Series Audio Caps

Gold Audio Jacks on the ASRock X470 Motherboard

Gold Audio Jacks

Two PCI-E Steel Slots on the ASRock X470 Motherboard
PCI-E Steel Slots

The advanced PCI-E steel slots packed with solid cover prevent any signal interference with graphics cards. They also ensure that heavy graphics cards can be well-installed in the PCI-E slots safely.

ASRock of the HB Bridge on Two GeForce Graphics Cards and yellow graphics below
SLI HB Bridge Free Bundled

The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock-stable gameplay and experiencing surround gaming in the best way.

Ports on the ASRock X470 Motherboard with Focus on the TYPE-A and TYPE-C ports
Dual USB 3.1 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear I/O for supporting next-generation USB 3.1 Gen2 devices and to deliver up to 10Gbps data transfer rates.

USB 3.1 Gen2 doubles the data transfer rate

10Gb/s USB 3.1 Gen2 2X Faster versus 5Gb/s USB 3.1 Gen1

USB 3.1 Gen2 Type-C doubles the charge speed!

3.0A USB 3.1 Gen2 Type-C 2X Faster versus 1.5A USB 3.1 Gen1 Type-A
Water pump header on the ASRock X470 motherboard
Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection Logo
Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

A-Tuning Software Windows
A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

ASRock App Shop Logos and Badges
Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
