Hello very good morning, I am interested in buying this motherboard to place an intel 285k, I would like to know what is the best pc case for this motherboard? and that allows me to place a liquid cooling 360mm. Thank you very much

Name: ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC
Uploaded: 2025-11-17
Description: ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Hi, your 1st concern with this board is that you HAVE TO GET A CASE THAT WILL ACCOMODATE A BOARD WITH REAR CONNECTORS!!!!!!! Although on-line info said differently, I had to return my case as the board could not mount. So I got a FRACTAL NORTH XL case. 99% of the connections are on the rear and unseen. The case is large with lots of expansion space. I also have intel CPU 9 Core Ultra. But I don't have liquid, so can't speak to that - you might get tech help from the company making the cooler. Good luck!

$900^.00

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by directmacro

Top Rated

3.8 (9 seller ratings)

Shipped by directmacro

Best Sellers

roboshine

Top Rated

4.5 (178 total ratings)

$889^.00
+ FREE SHIPPING

Meet Your Seller

directmacro

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

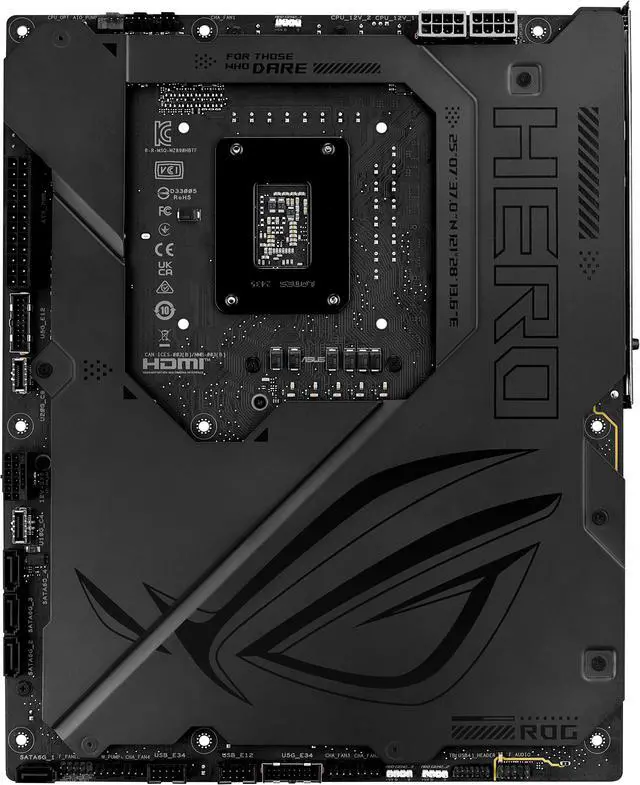

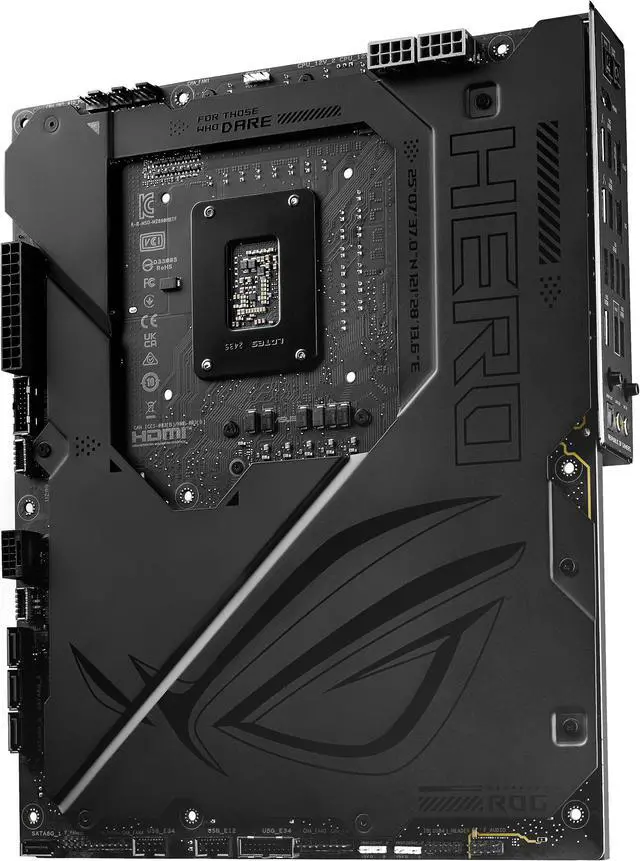

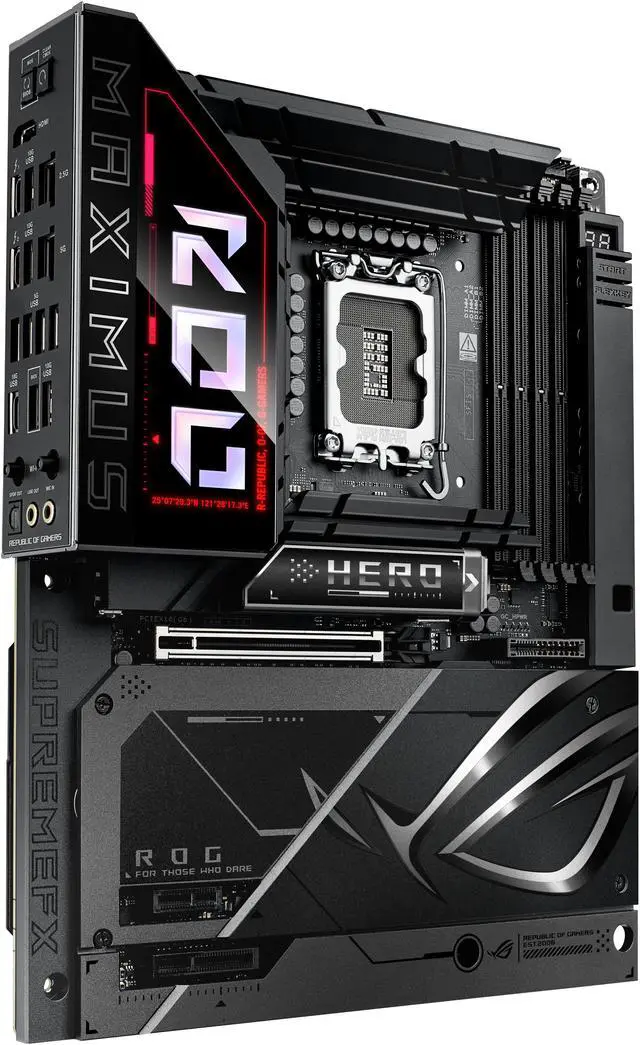

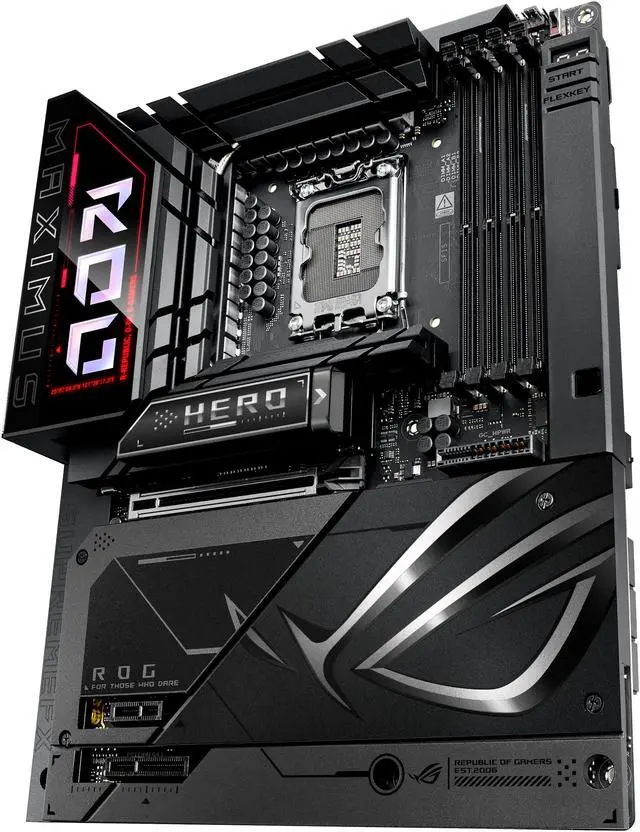

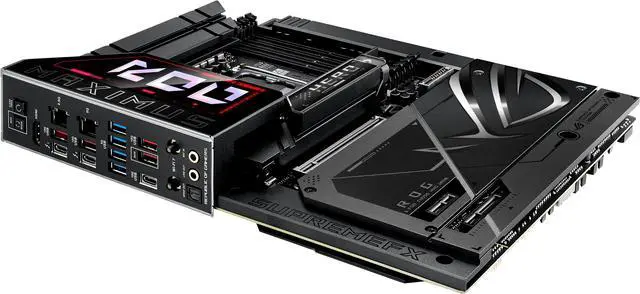

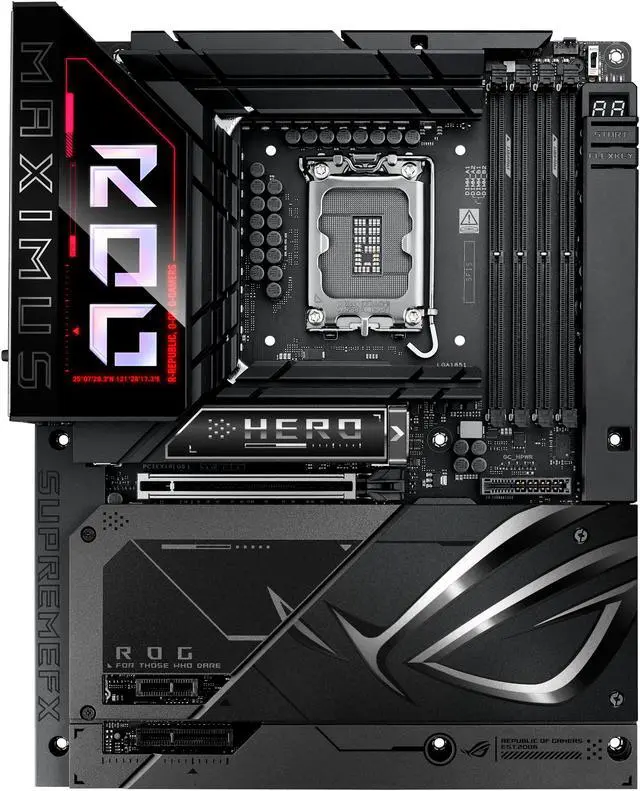

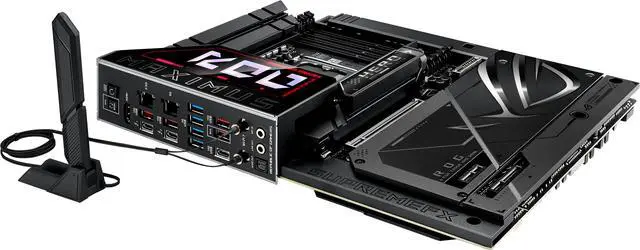

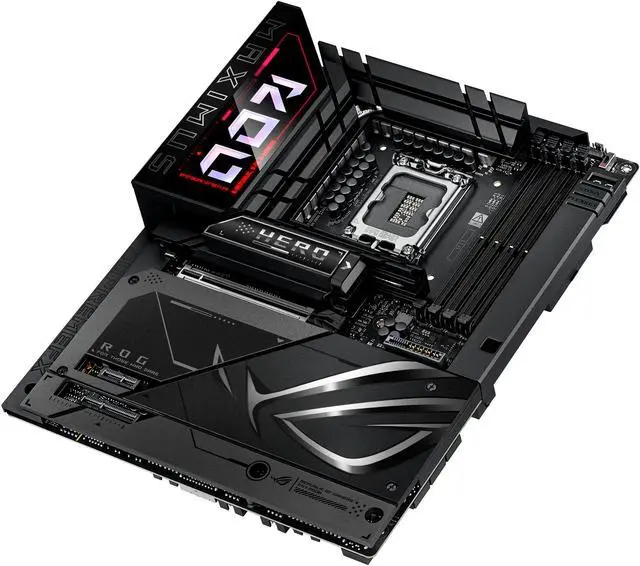

Main image of ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Alt view image 2 of 10 - ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Alt view image 3 of 10 - ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Alt view image 4 of 10 - ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Alt view image 5 of 10 - ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Alt view image 6 of 10 - ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Alt view image 7 of 10 - ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Alt view image 8 of 10 - ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Alt view image 9 of 10 - ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Alt view image 10 of 10 - ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

Customer images

Shop All ASUS Products | Visit Directmacro Store

ASUS ROG MAXIMUS Z890 HERO BTF Z890 LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt™ 4, USB Type-C®, AI OC

(1)(1) Write a Review

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
Hidden-Connector Design: Delivers an unprecedented level of cable management to PC DIY enthusiasts
Graphics Card High-Power Slot: Compatible with the graphics card high-power gold finger on the ASUS BTF graphics card, delivering up to 600 watts through the motherboard
Exclusive AI Technologies: ASUS AI Advisor, AI Overclocking, AI Cooling II and AI Networking II to simplify setup and improve performance
Advanced Overclocking & Memory Technologies: NPU Boost, NitroPath DRAM Technology, DIMM Fit, DIMM Flex and AEMP III
Robust Power Solution: 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
Optimized Thermal Design: Massive heatsinks integrated with the I/O cover

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1)

ROG Maximus Z890 HERO BTF

Clean Design & AI Technology

HIDDEN-CONNECTOR DESIGN

For clean cable management

GRAPHICS CARD HIGH-POWER SLOT

Compatible with the graphics card high-power gold finger on the ASUS BTF graphics card, delivering up to 600 watts through the motherboard

AI OVERCLOCKING

Profiles the CPU and cooling to predict the optimal configuration

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way

Performance and Cooling

22+1+2+2 power stages, each rated to handle up to 110A.

1. VRM and aluminum I/O heatsink

2. High-conductivity thermal pads

3. M.2 heatsinks and backplates

4. Chipset heatsink

Faster, Better, & More

DDR5

Max. 192GB, NitroPath DRAM Technology, DIMM Fit, DIMM Flex, & AEMP III

DOLBY ATMOS

BIOS
Q-DASHBOARD

2.5Gb Ethernet
5Gb Ethernet

EXTENSIVE GEN 5

x3 onboard M.2 slots, x1 PCIe 5.0 x16 slot

THUNDERBOLT^TM 4

2 x USB Type-C® ports

AI Networking II

AI Cooling II

EZ PC DIY

PCIE® SLOT Q-RELEASE SLIM

Simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot.

M.2 Q-RELEASE

The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws.

NEW M.2 Q-LATCH

Tool-free installation or removal of M.2 SSDs with just one press.

M.2 Q-SLIDE

The new sliding M.2 latch design supports sizes 2242, 2260, and 2280 for easy device installation.

What's in the box

Model
Brand	ASUS
Series	ROG
Model	ROG MAXIMUS Z890 HERO BTF
Part Number	90MB1KG0-M0AAY0

Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z890

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	4 x DIMM slots, max. 192GB, DDR5 Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM FIT ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported	192GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	Intel® Core™ Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)** Intel® Z890 Chipset 1 x PCIe 4.0 x4 slot 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® Z890 Chipset M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
SATA RAID	0/1/5/10

Onboard Audio
Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Onboard LAN
Max LAN Speed	1 x Intel® 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless LAN	Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Rear Panel Ports
Back I/O Ports	2 x Thunderbolt™ 4 USB Type-C® ports 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Internal I/O Connectors
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary power connector Storage Related 6 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 10Gps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header* * The Thunderbolt™ card can only be used when installed to the PCIEX4(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX4(G4) slot.

Software Feature
Windows 11	Windows 11 (22H2 & later)

Physical Spec
Form Factor	ATX (Back Connect)
Dimensions (W x L)	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Features
Features	Extreme OC Kit - FlexKey button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design ASUS EZ DIY - Backplate - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 header(s) ROG M.2 PowerBoost

Additional Information
First Listed on Newegg	October 17, 2025
